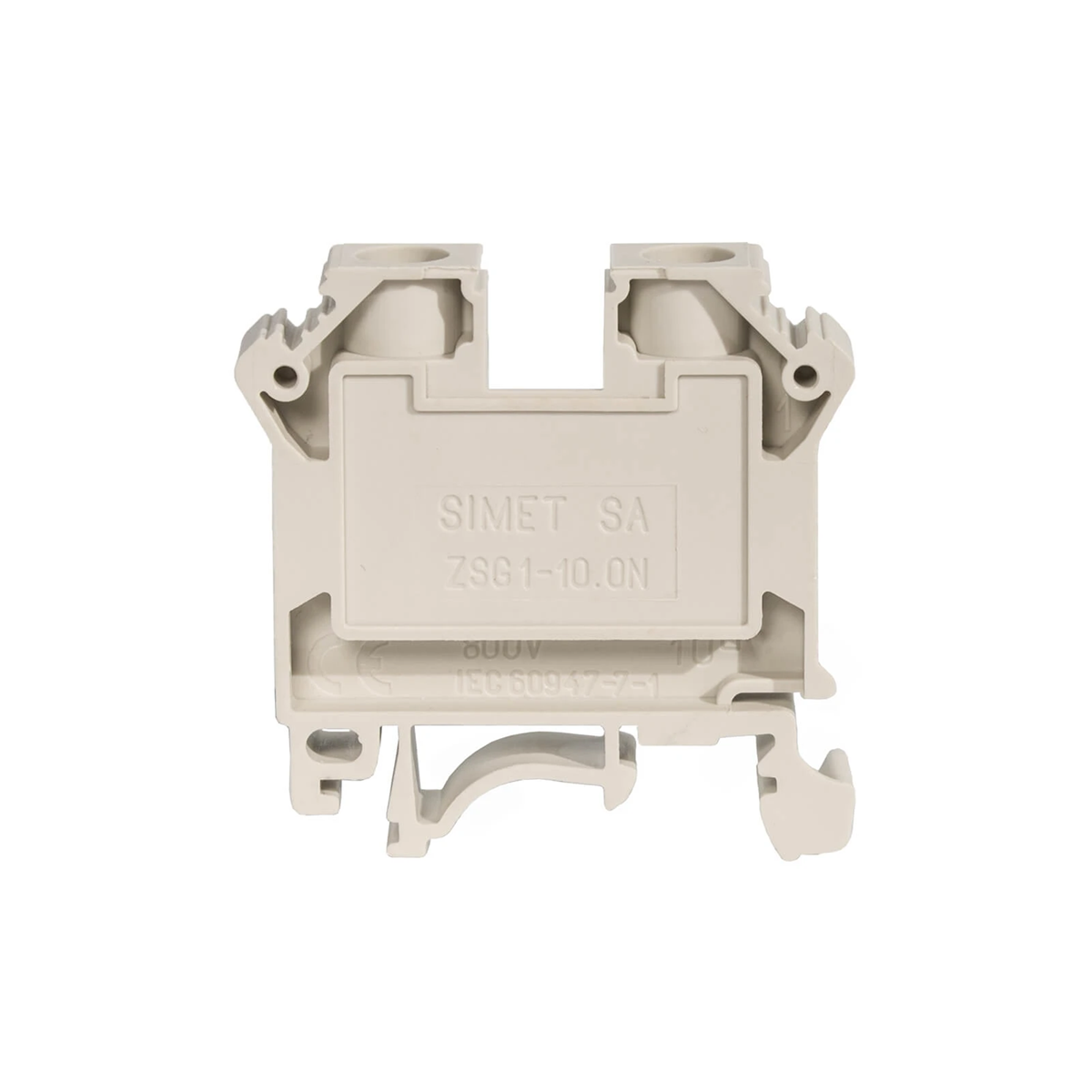

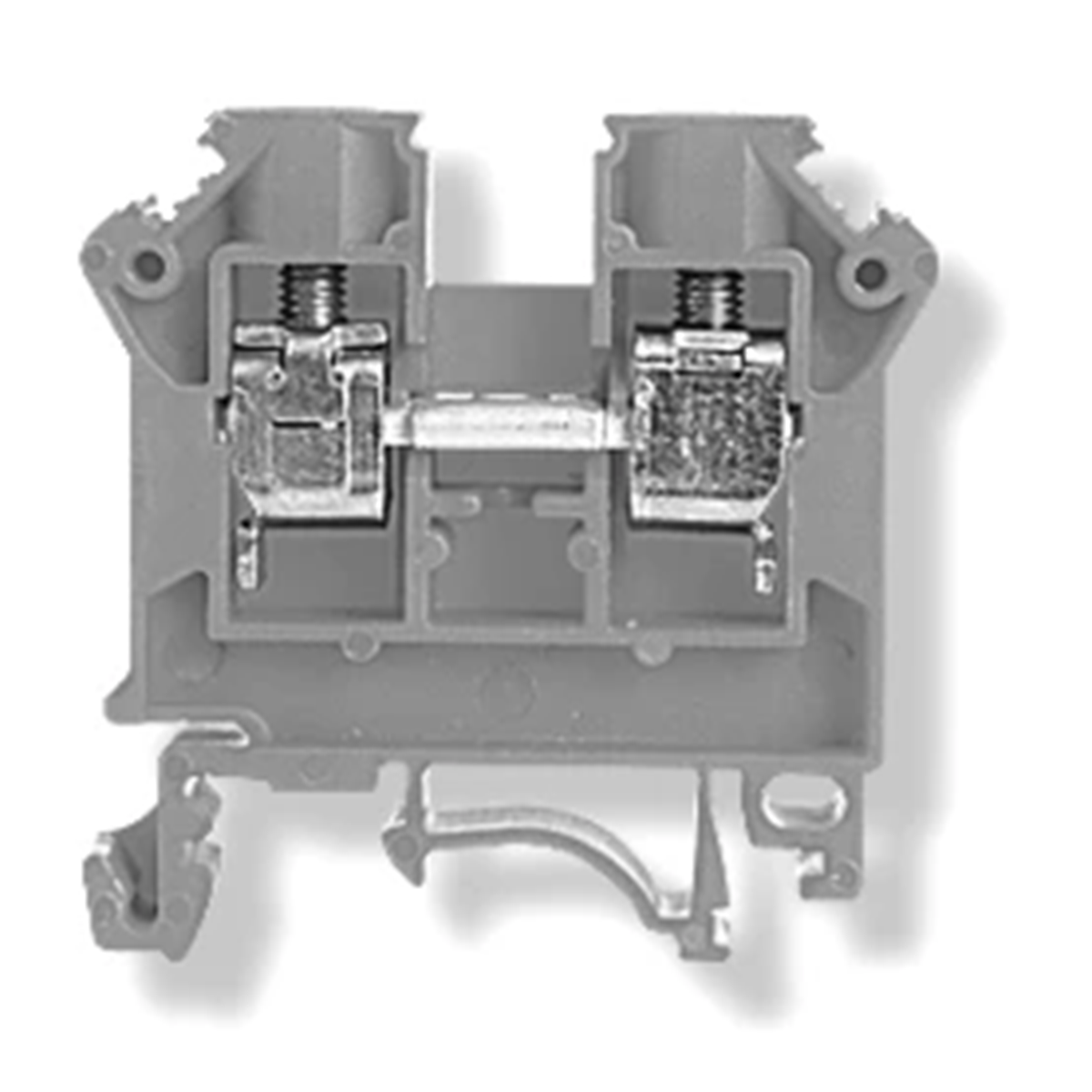

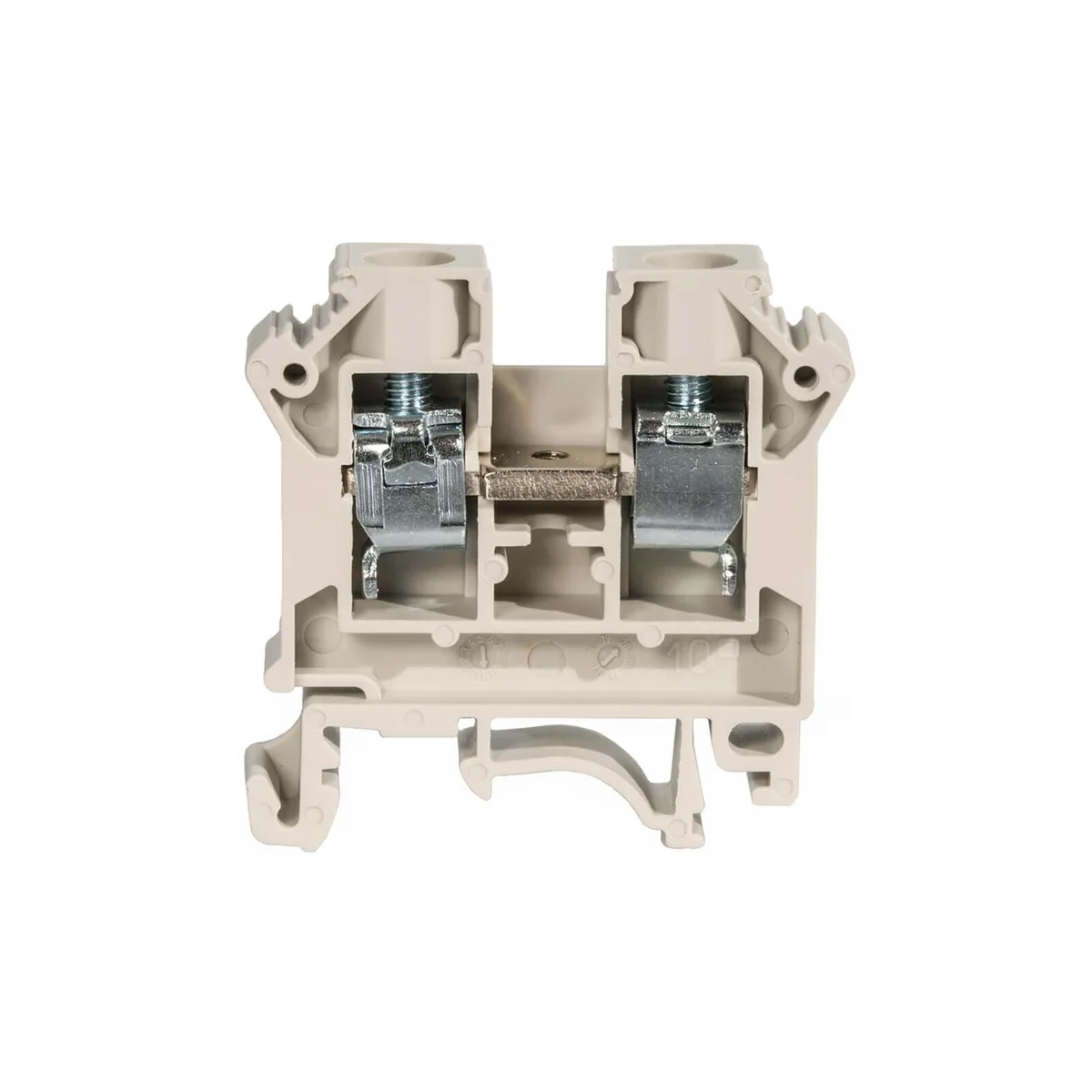

NEW Threaded rail terminal block series 10.0mm² TS-32.35 1 track gray 11521312

local index:
TES074SIME
Catalog No:
11521312
EAN code:
5907813212611
Manufacturer: SIMET
Color: Gray
Price:
1,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

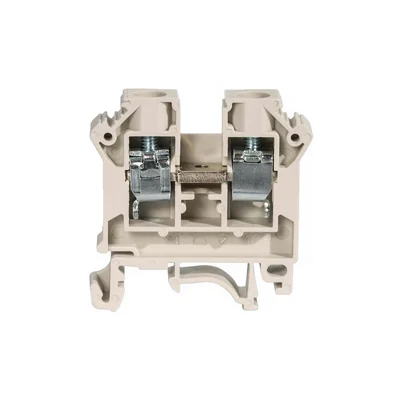

NEW Threaded rail terminal block series 10.0mm² TS-32.35 1 track gray

Technical data

  • Color
    Gray
  • PKWIU
    27.33.13.0

Other technical data

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Grey
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    10 mm
  • Wysokość przy najniższym sposobie montażu
    39.5 mm
  • Connectable conductor cross section solid-core
    1,5 ... 10 mm²
  • Closing plate required
    yes
  • Length
    48 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    57 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    2,5 ... 10 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    no
