NEW Threaded rail terminal block series 10.0mm² TS-32.35 1 track blue 11521313
local index:
TES075SIME
Catalog No:
11521313
EAN code:
5907813212628
Manufacturer:
SIMET
Color: Blue
Price:
1,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

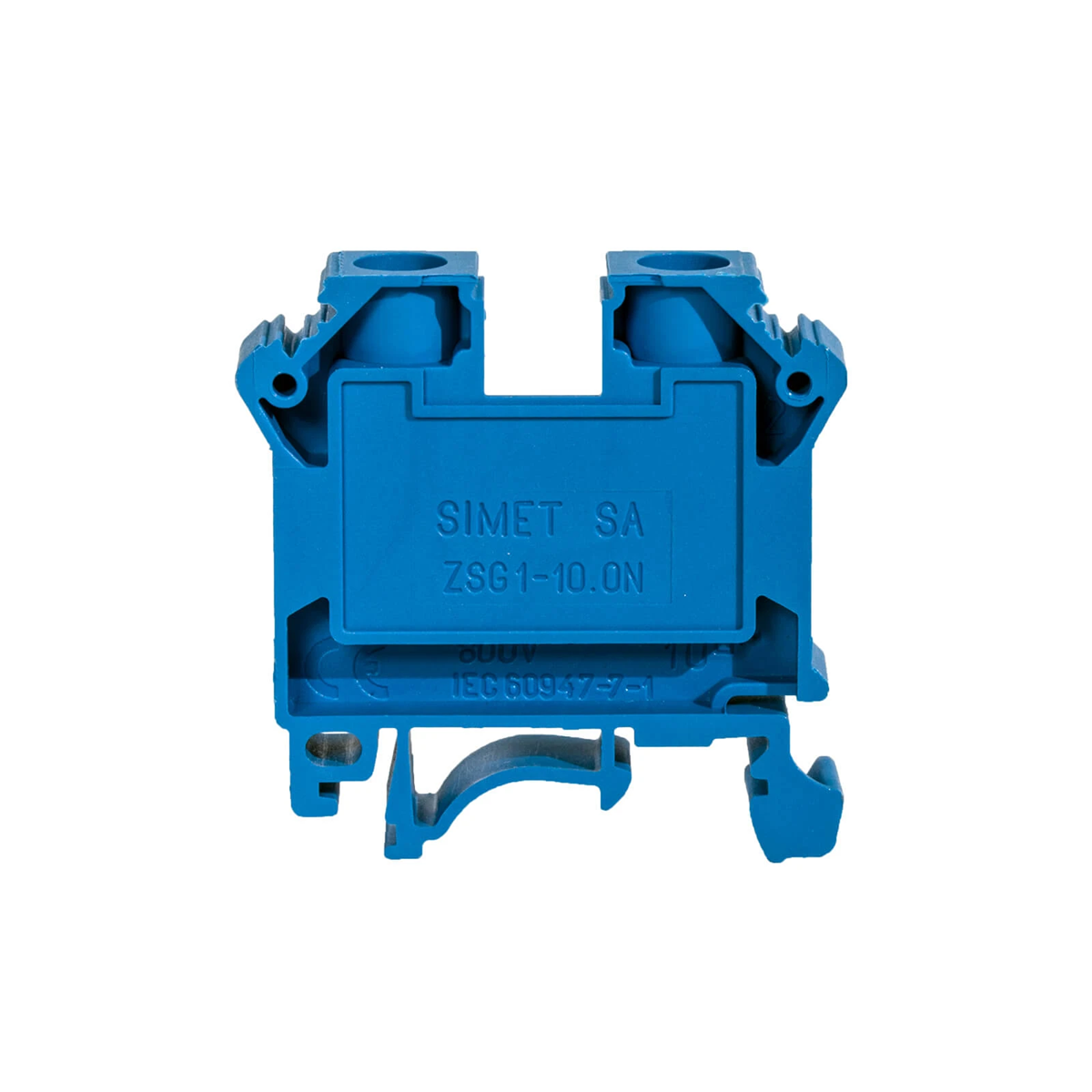

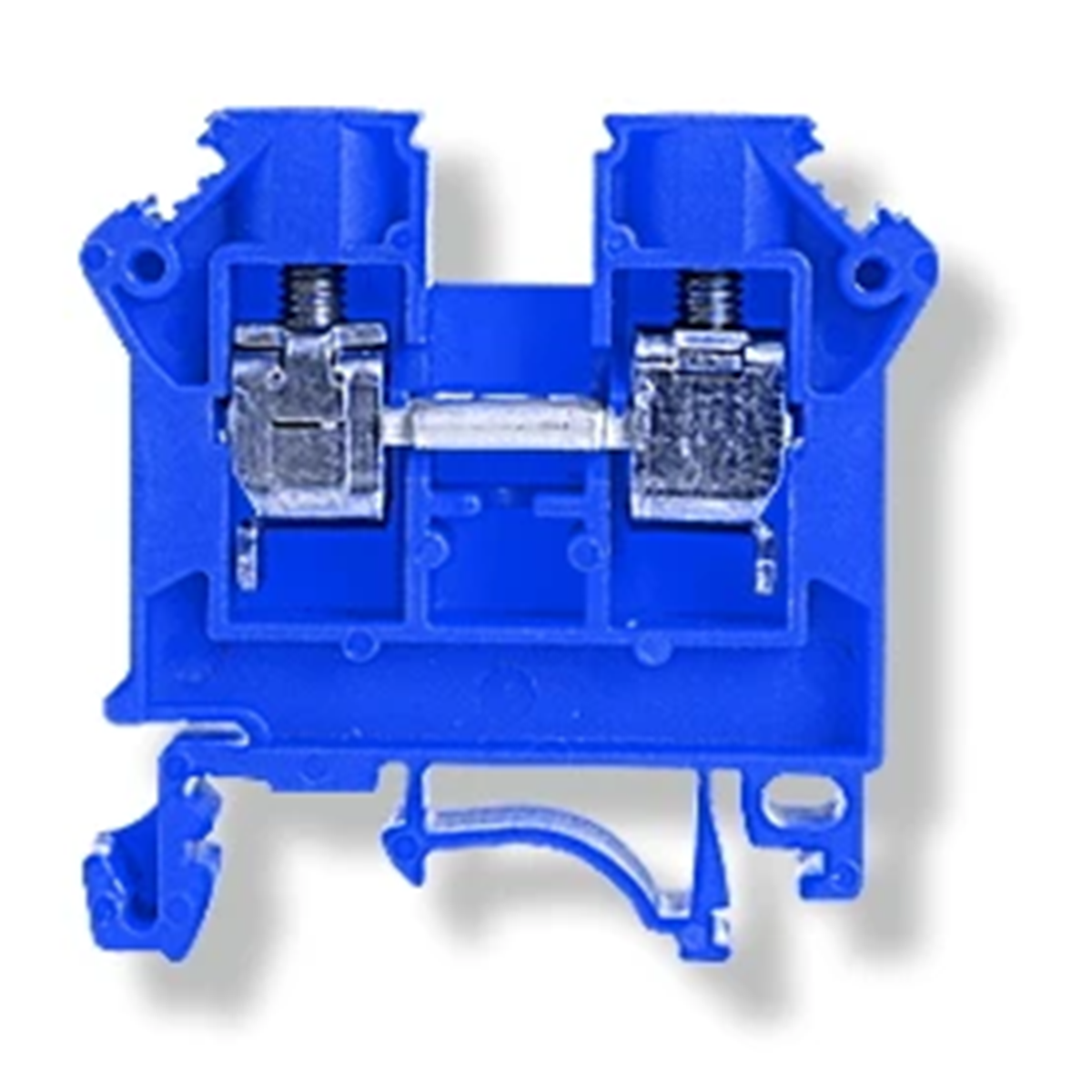

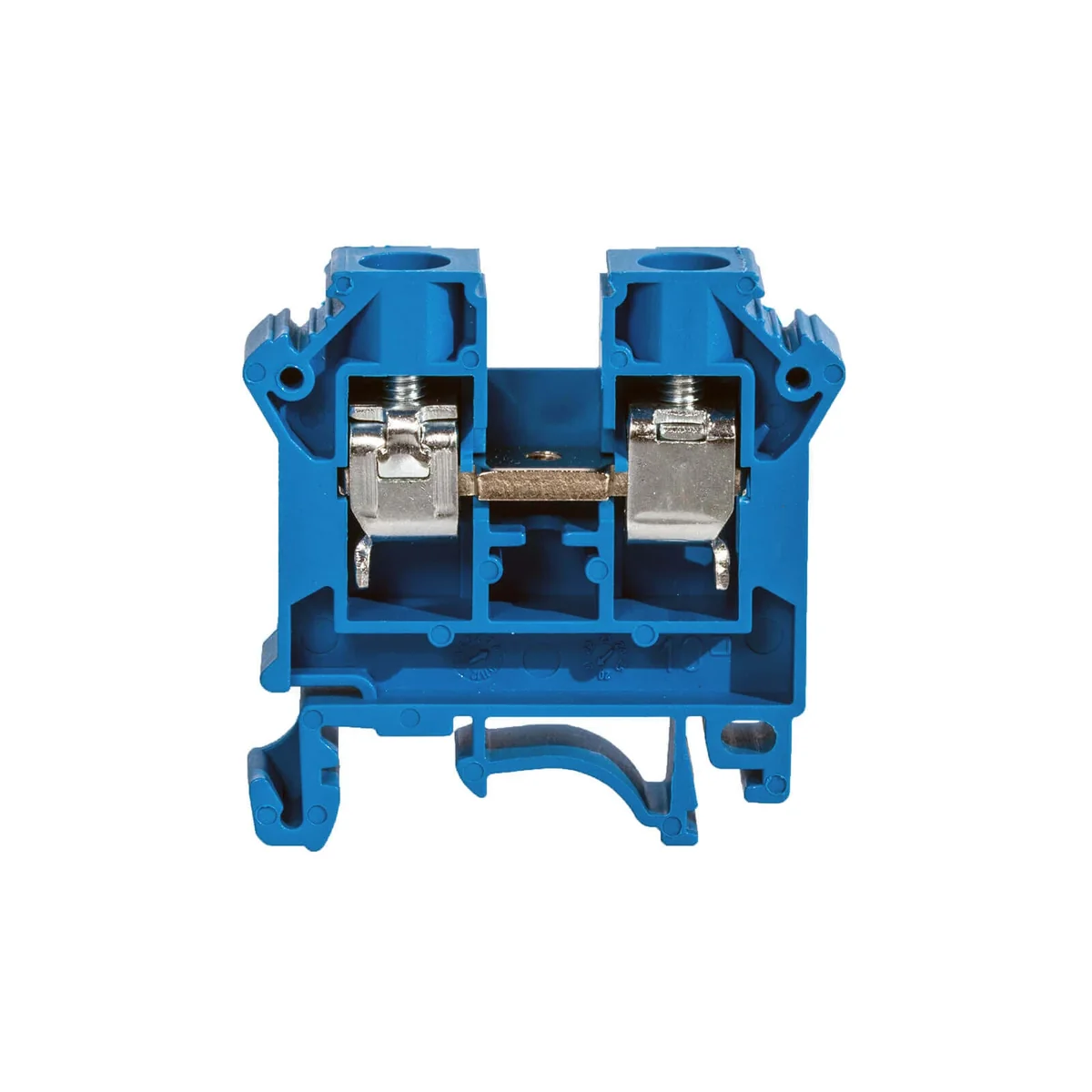

NEW Threaded rail terminal block series 10.0mm² TS-32.35 1 track blue
Technical data
-
ColorBlue
-
PKWIU27.33.13.0
Other technical data
-
Rated voltage800 V
-
Explosion-tested version 'Ex e'No
-
ColourBlue
-
Type of electrical connection 2Screw connection
-
Connection positionSideways
-
Number of levels1
-
Material insulation bodyThermoplastic
-
Width/grid dimension10 mm
-
Wysokość przy najniższym sposobie montażu39.5 mm
-
Connectable conductor cross section solid-core1,5 ... 10 mm²
-
Closing plate requiredYes
-
Length48 mm
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Type of electrical connection 1Screw connection
-
Rated current In57 A
-
Operating temperature-25 ... 125 °C
-
Number of clamp positions per level2
-
Inflammability class of insulation material according to with UL94V0
-
Connectable conductor cross section fine-strand without cable end sleeve2,5 ... 10 mm²
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 0 mm²
-
Connectable conductor cross section multi-wired0 ... 0 mm²
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33 Polska
-
