NEW Threaded rail connector 70mm² TS-35 1 track blue 5 pcs. 11951313
local index:
TES003SIME
Catalog No:
11951313
EAN code:
5907813212864
Manufacturer:
SIMET
Pieces in the package: 5
Price:
60,13 €
gross / pkg.
(including VAT 23%)
12,03 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

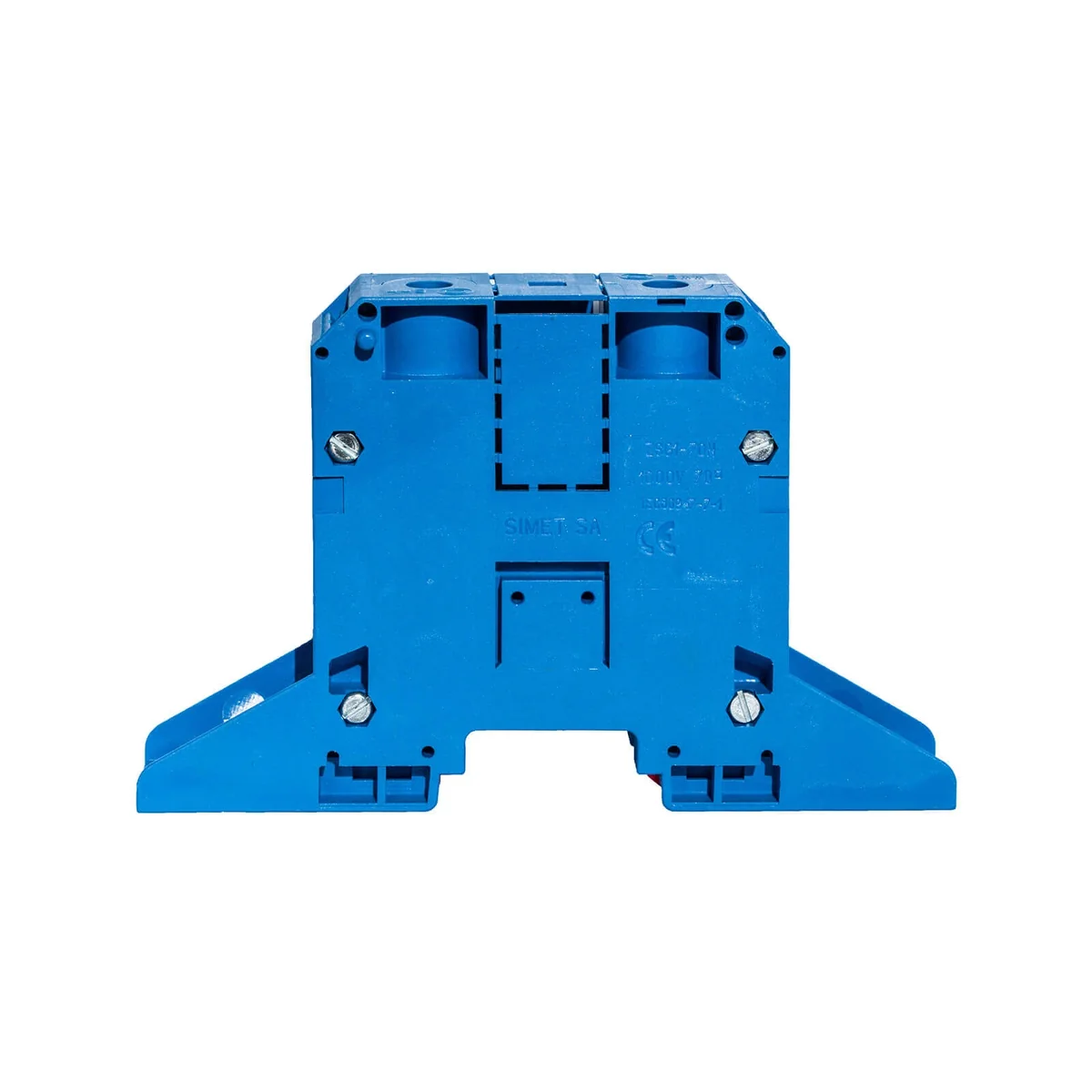

NEW Threaded rail connector 70mm² TS-35 1 track blue 5 pcs.
Technical data
-
Pieces in the package5
-
PKWIU27.33.13.0
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve10 ... 70 mm²
-
Connectable conductor cross section solid-core10 ... 70 mm²
-
Rated current In269 A
-
Type of electrical connection 1Screw connection
-
Connection positionSideways
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu78 mm
-
Explosion-tested version 'Ex e'No
-
ColourGrey
-
Connectable conductor cross section fine-strand with cable end sleeve10 ... 70 mm²
-
Connectable conductor cross section multi-wired10 ... 70 mm²
-
Rated voltage1000 V
-
Type of electrical connection 2Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 125 °C
-
Width/grid dimension24 mm
-
Length132 mm
-
Closing plate requiredNo
-
Internally connected stagesNo
