Connecting cables and wires
Connectors
Threaded fittings

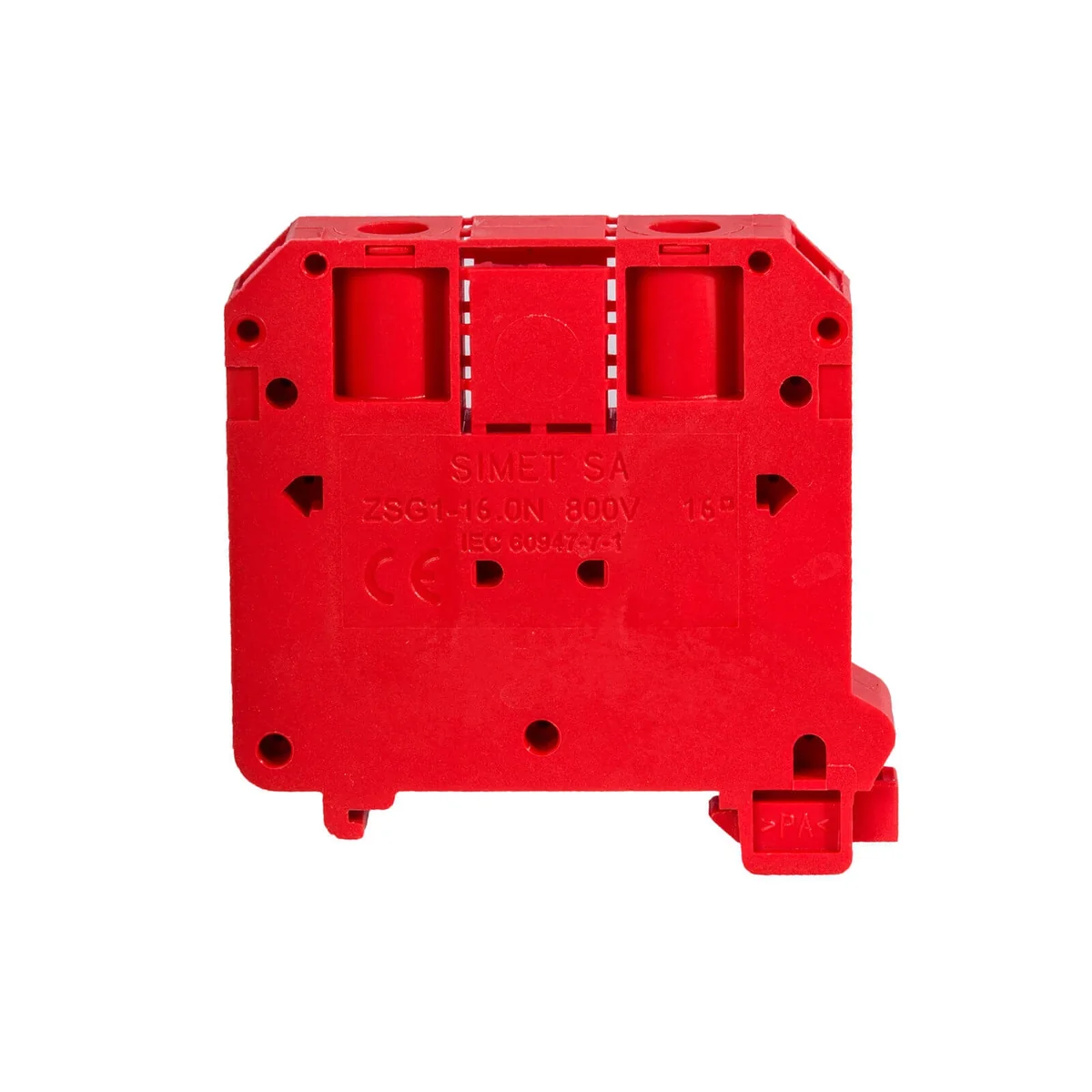

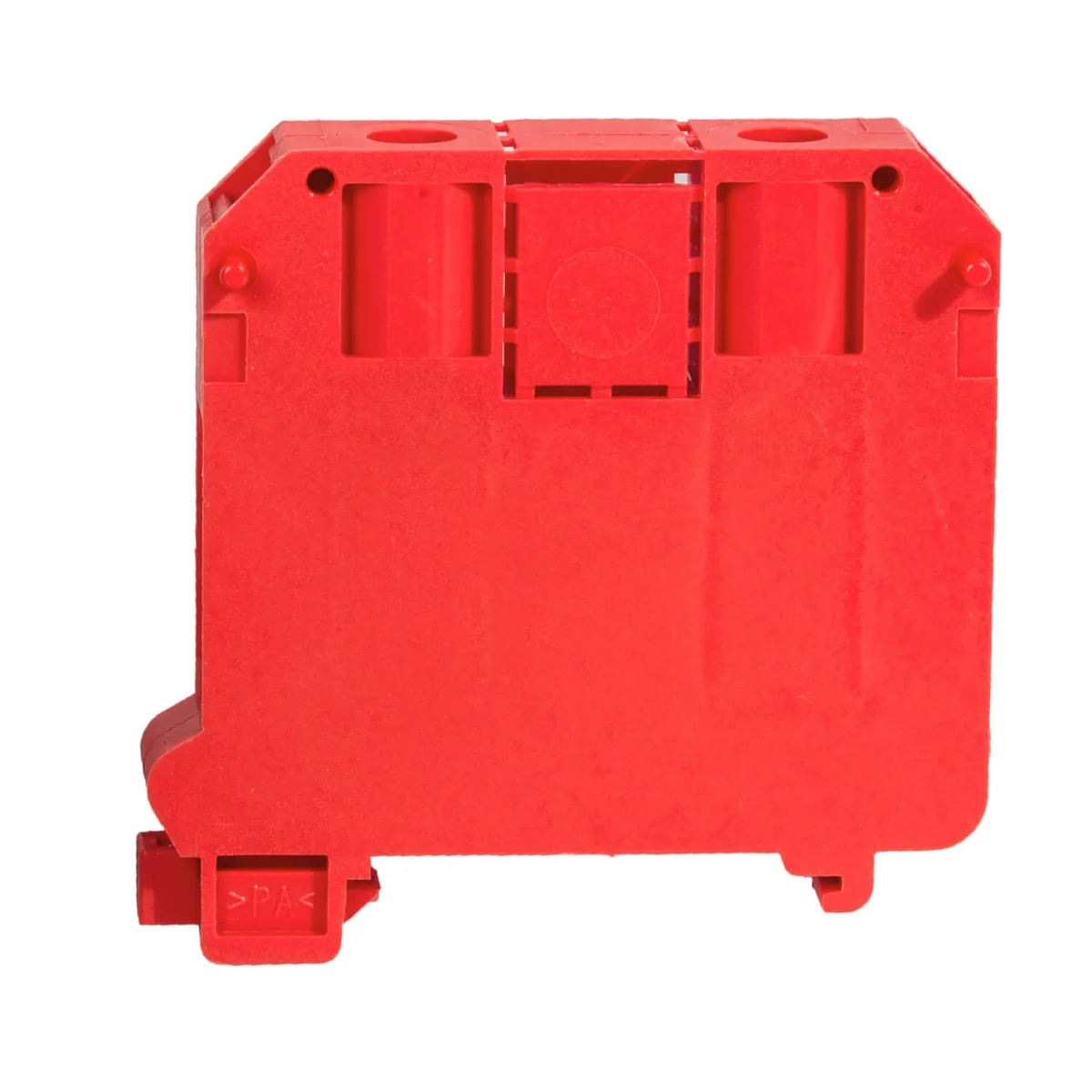

NEW Threaded rail connector 16.0mm² TS-35 1 track red 40pcs. 11621311
local index:
TEG091SIME
Catalog No:
11621311
EAN code:
5907813212727
Click on the photo to enlarge
Manufacturer:
SIMET
Pieces in the package:
40
See full description
Price:
113,73 €
gross / pkg.
(including VAT 23%)
2,84 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Product description
NEW Threaded rail connector 16.0mm² TS-35 1 track red 40pcs.
Technical data
Pieces in the package
40
PKWIU
27.33.13.0
Other technical data
Rated voltage
800 V
Explosion-tested version 'Ex e'
No
Colour
Red
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Material insulation body
Thermoplastic
Width/grid dimension
12 mm
Wysokość przy najniższym sposobie montażu
52.5 mm
Connectable conductor cross section solid-core
2,5 ... 16 mm²
Closing plate required
No
Length
60 mm
Mounting method
DIN rail (top hat rail) 35 mm
Type of electrical connection 1
Screw connection
Rated current In
76 A
Operating temperature
-25 ... 125 °C
Number of clamp positions per level
2
Inflammability class of insulation material according to with UL94
V0
Connectable conductor cross section fine-strand without cable end sleeve
2,5 ... 16 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
0 ... 0 mm²
Internally connected stages
No
Manufacturer details
Manufacturer
SIMET S.A.
Address
58-506 Jelenia Góra al. Jana Pawła II 33 Polska
E-mail
sprzedaz@simet.com.pl
