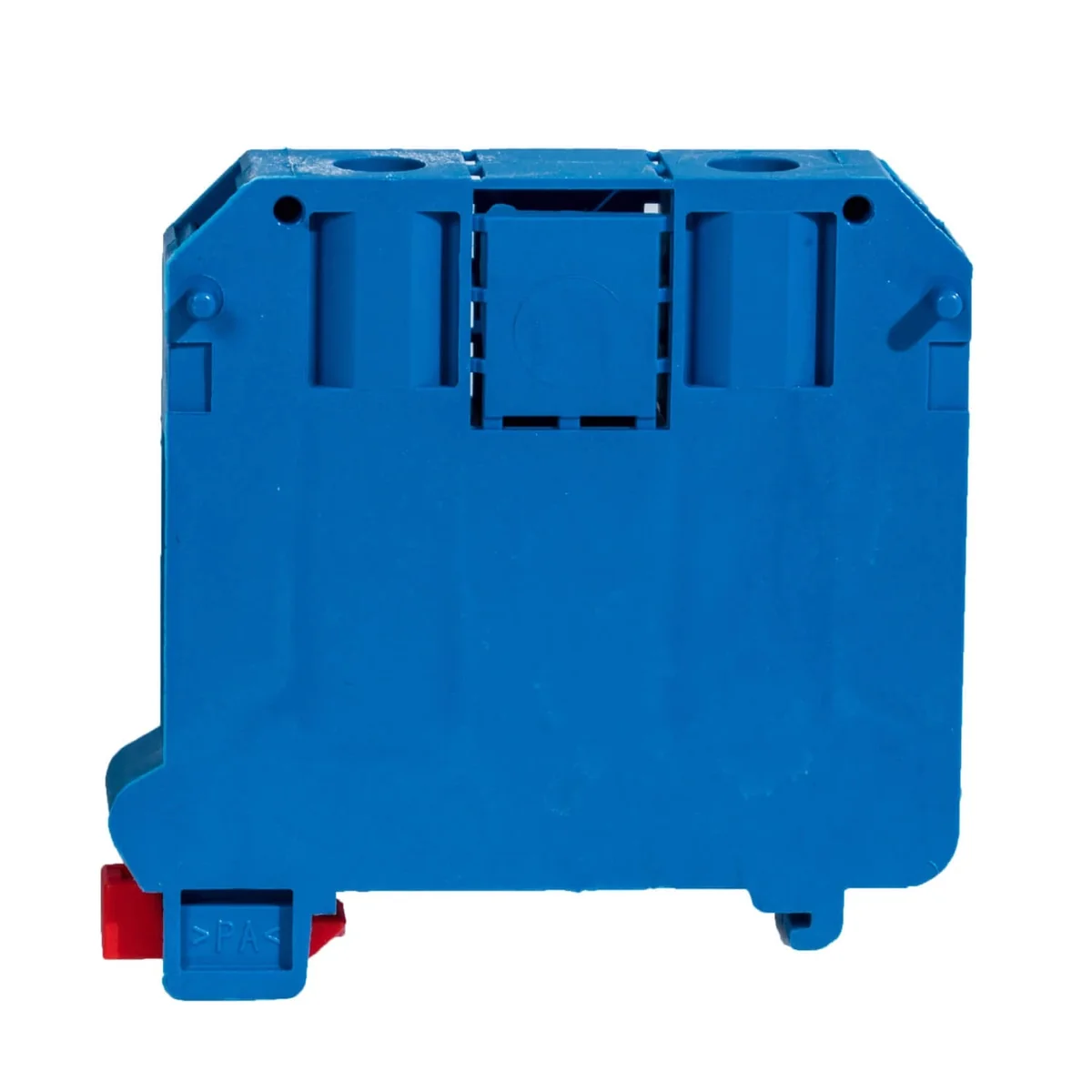

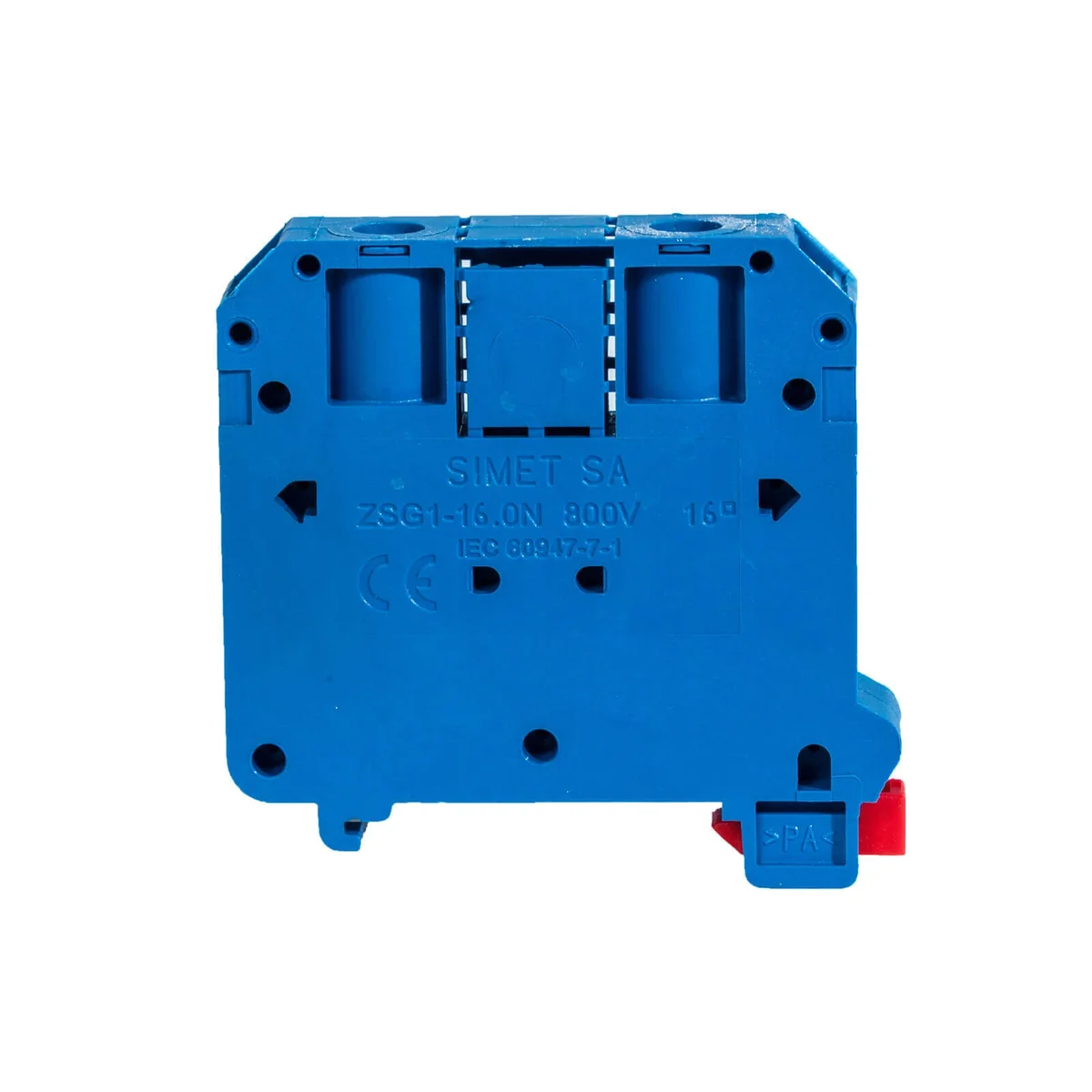

NEW Threaded rail connector 16.0mm² TS-35 1 track blue 40pcs. 11621313

local index:
TEG089SIME
Catalog No:
11621313
EAN code:
5907813212741
Manufacturer: SIMET
Pieces in the package: 40
Price:
102,39 €
gross / pkg.
(including VAT 23%)
2,56 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NEW Threaded rail connector 16.0mm² TS-35 1 track blue 40pcs.

Technical data

  • Pieces in the package
    40
  • PKWIU
    27.33.13.0

Other technical data

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    12 mm
  • Wysokość przy najniższym sposobie montażu
    52.5 mm
  • Connectable conductor cross section solid-core
    2,5 ... 16 mm²
  • Closing plate required
    No
  • Length
    60 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    76 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    2,5 ... 16 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    No
