NEW Threaded rail connector 120mm² TS-35 1 track gray 5 pcs. 11953312

local index:
TEG085SIME
Catalog No:
11953312
EAN code:
5907813203879
Manufacturer: SIMET
Pieces in the package: 5
Price:
76,64 €
gross / pkg.
(including VAT 23%)
15,33 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

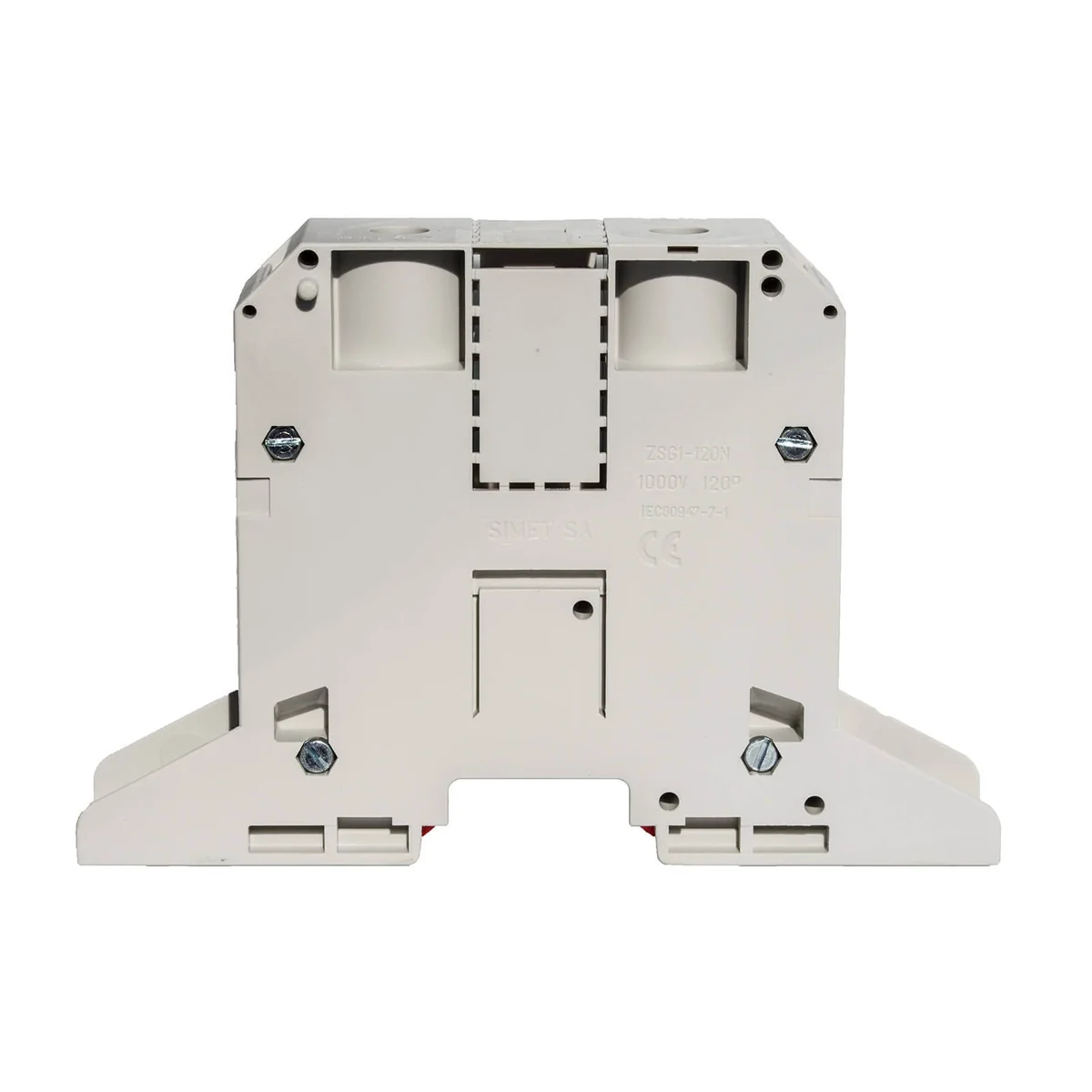

NEW Threaded rail connector 120mm² TS-35 1 track gray 5 pcs.

Technical data

  • Pieces in the package
    5
  • PKWIU
    27.33.13.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    35 ... 120 mm²
  • Connectable conductor cross section solid-core
    35 ... 120 mm²
  • Rated current In
    269 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    89 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    35 ... 120 mm²
  • Connectable conductor cross section multi-wired
    35 ... 120 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 125 °C
  • Width/grid dimension
    26 mm
  • Length
    140 mm
  • Closing plate required
    No
  • Internally connected stages
    No
