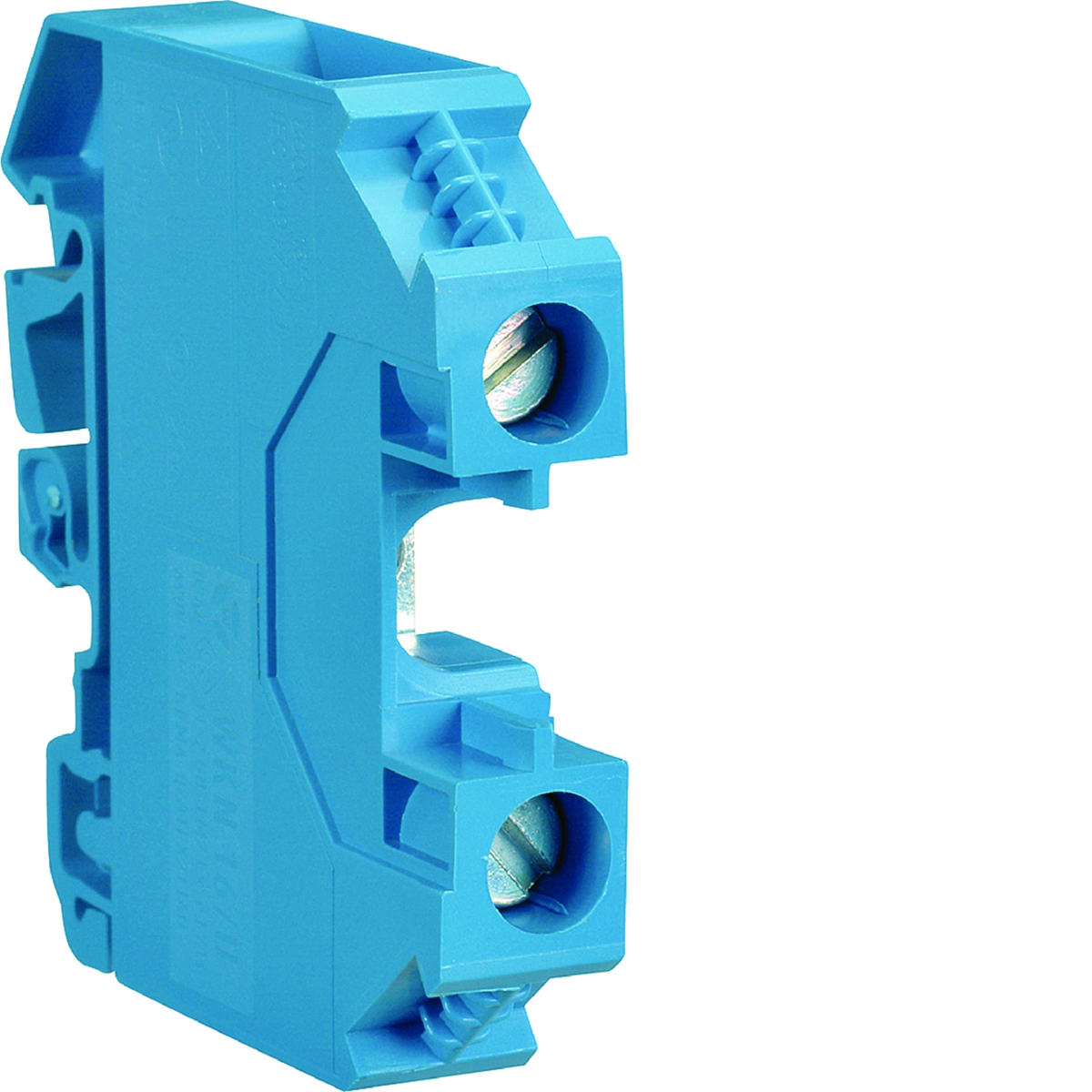

Neutral terminal, 16mm2 KXA16NH

local index:
TES030HAGE
Catalog No:
KXA16NH
EAN code:
3250613942106
Manufacturer: HAGER
Depth [mm]: 12
Color: Blue
Installation: DIN rail
Price:
3,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Leakage resistance: KC > 600
Temperature resistance: 120°C
Un = 800 V at 2.5 and 4 mm2
Un = 400 V at 10 mm2 and larger
Possibility of connecting two conductors of the same cross-section to one terminal screw (in the case of PE only 1 conductor)
Easy wire entry into the open terminal thanks to the tapered entry
Easy to insert a screwdriver into the lowered clamping screws
Idle/idle after loosening clamp screws – especially important for mechanical screwdrivers
All parts permanently fixed in the carrier of the clamps
The same level up to 35 mm2, in order to maintain the required insulation distances between individual groups of terminals, or at the beginning or end of a group of terminals, a partition/end plate should be placed.

Technical data

  • Depth [mm]
    12
  • Installation
    DIN rail
  • Width [mm]
    59.3
  • PKWIU
    27.33.13.0
  • Color
    Blue
  • Rated current [A]
    71
  • Height [mm]
    57.5

Other technical data

  • Rated current In
    71 A
  • Material insulation body
    Thermoplastic
  • Mounting method
    Other
  • Colour
    Blue

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 50 pcs. 10000 pcs.
Weight (kg) 0,042 2,120 447,000
Width (m) 0,055 0,125 0,800
Length (m) 0,012 0,060 1,050
Depth (m) 0,057 0,317 1,200
