MZOI-PE clamp R33RA-01010104221

local index:
TEG070ERGO
Catalog No:
R33RA-01010104221
Manufacturer: ERGOM
short name: MZOI-PE
Price:
6,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

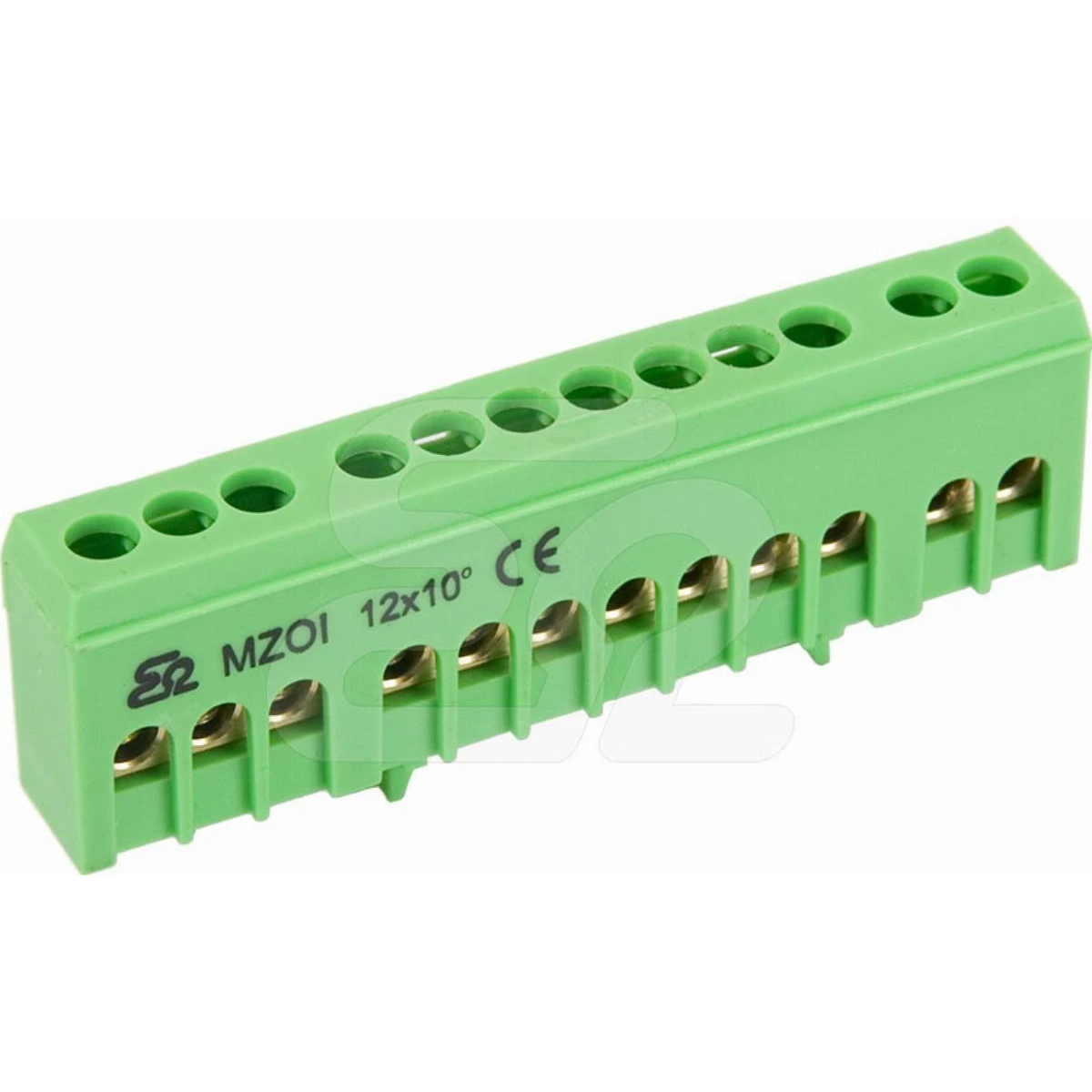

MZOI-PE clamp

Technical data

  • short name
    MZOI-PE
  • PKWIU
    27.90.33.0

Other technical data

  • Construction type
    Surface mounting fix
  • Insulator
    Yes
  • Width
    13 mm
  • Number of connections round conductor total
    12
  • Number of connections round conductor 10 mm
    12
  • Number of connections flat conductor 30 mm
    0
  • Number of connections conductor to 6 mm² fixed
    0
  • Number of connections conductor to 25 mm² fixed
    12
  • Surface of the contact rail
    Untreated
  • Surface of the clamp
    Untreated
  • Model
    In housing
  • Height
    27 mm
  • Length
    88 mm
  • Number of connections round conductor 8 mm
    0
  • Number of connections round conductor 8-10 mm
    12
  • Number of connections flat conductor 40 mm
    0
  • Number of connections conductor to 16 mm² fixed
    12
  • Material of contact rail
    Brass
  • Material of clamp
    Brass

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
Weight (kg) 0,508
Width (m) 0,140
Length (m) 0,030
Depth (m) 0,090
