Modular PCB connector push-button 2.5 mm² RM 5/5.08 mm 1-pole, orange 256-746 256-746

Name: Modular PCB connector push-button 2.5 mm² RM 5/5.08 mm 1-pole, orange 256-746
Brand: WAGO ELWAG
SKU: TEB059WAGO
Price: 1.73 PLN
Availability: BackOrder

local index:

TEB059WAGO

Catalog number:

256-746

EAN code:

4044918758888

Modular PCB connector push-button 2.5 mm² RM 5/5.08 mm 1-pole, orange 256-746

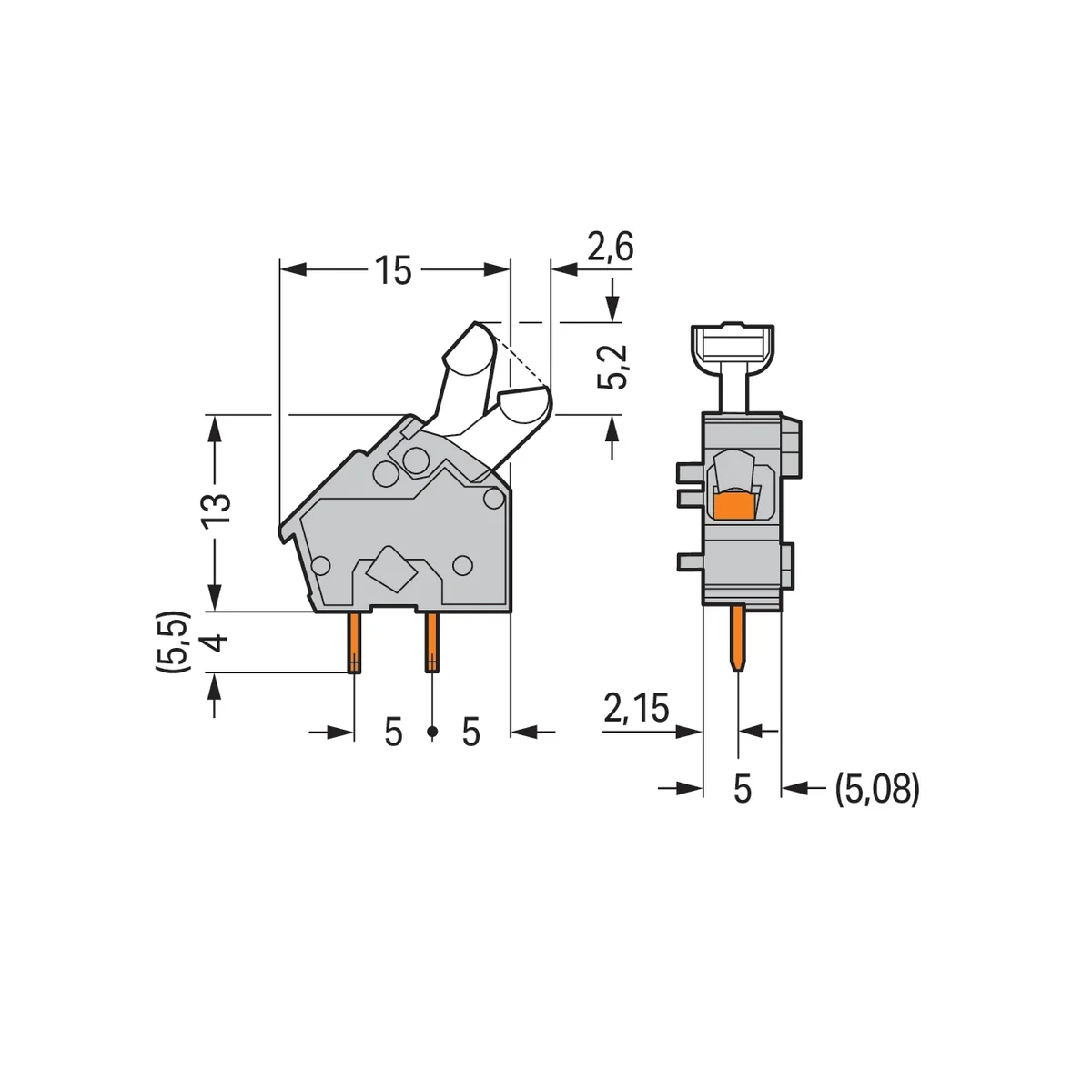

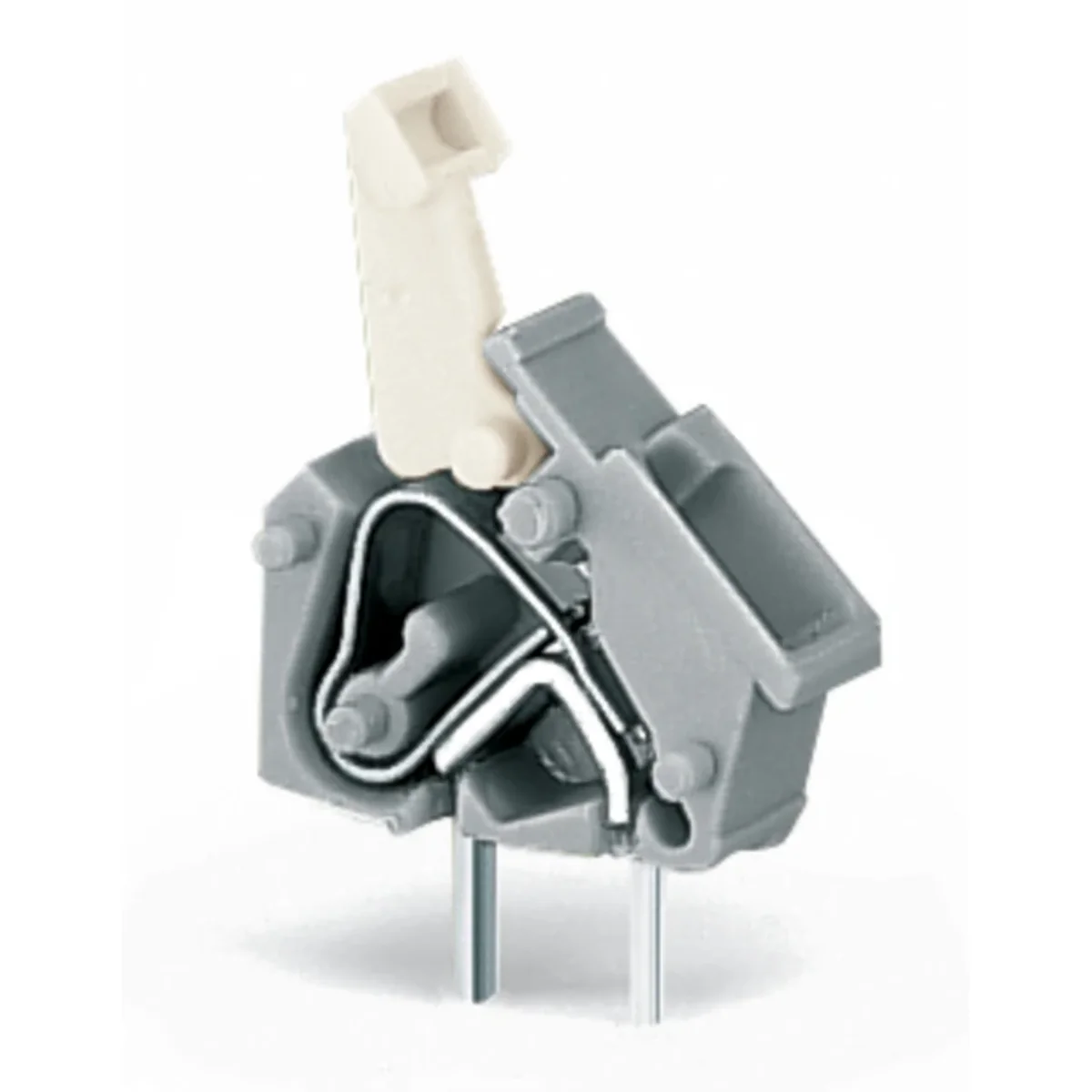

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

1,73 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

Height

18.2 mm
Number of levels

1
Angle PCB/conductor connection

45°/135° (downwards inclined)
Rated voltage

320 V
Over voltage category

III
Connection type conductor

Spring clamp connection
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 1.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Material connection surface

Tin
Material insulation body

Thermoplastic
Operating temperature

-60 ... 105 °C
Type of fastening

Solder

Number of electrical connections

1
Modular spacing connections

5 mm
Rated current In

24 A
Rated surge voltage

4 kV
Pollution degree

2
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 2.5 mm²
Connection type PCB

Soldering connection
Length pin

4 mm
Housing colour

Orange
Type of PCB fastening

Connecting contact
Type of banding

None

Manufacturer details

Manufacturer

WAGO GmbH & Co. KG
Address

32423 Minden Hansastraße 27 Niemcy
E-mail

wago.elwag@wago.com

Bulk packaging

A kind of package	Karton	Karton
Quantity	600 pcs.	600 pcs.
Weight (kg)	0,634	0,634
Volume (m3)	0,002	0,002
Width (m)	0,139	0,139
Length (m)	0,172	0,172
Depth (m)	0,136	0,136
