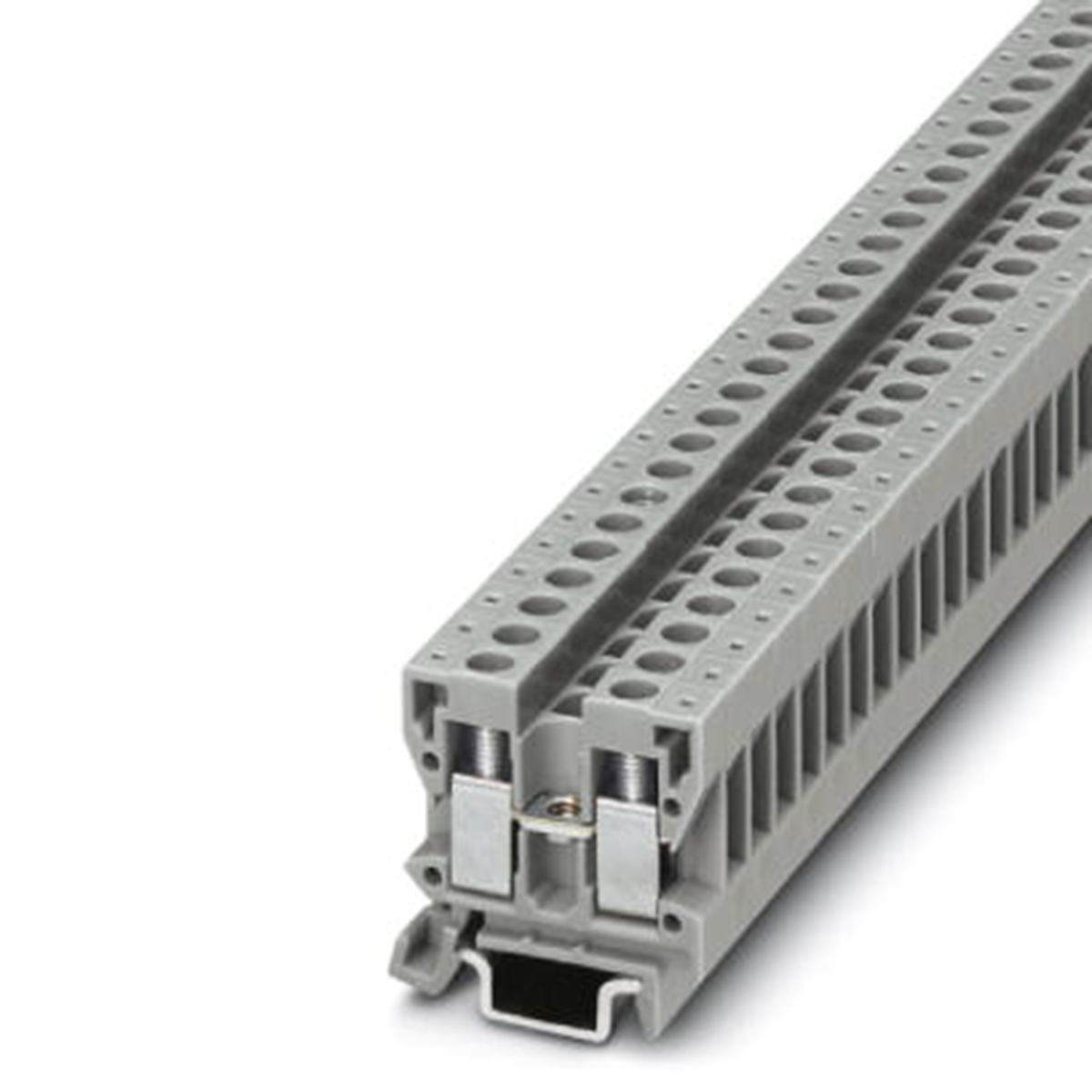

Mini feed-through connectors - MBK 2.5/E 1414006

Number of connections: 2 Connection type Screw terminals Connection according to IEC 60 947-7-1 minimum solid conductor cross-section 0.2 mm² maximum solid conductor cross-section 2.5 mm² Conductor cross-section AWG min. 24 Wire cross-section AWG max. 14 minimum cross-section of flexible conductor 0.2 mm² maximum section of the flexible conductor 2.5 mm² Min. conductor size AWG 24 flexible conductor size AWG 14 Cross-section of a flexible conductor with a ferrule without sheath, min. 0.25mm² Conductor cross-section flexible with ferrule without sheath, max. 2.5 mm² Cross-section of a flexible cable with a plastic-coated pipe end, min. 0.25mm² Flexible conductor cross-section with plastic-coated ferrule, max. 2.5 mm² maximum conductor cross-section with pluggable solid bridge, max. 2.5 mm² maximum conductor cross-section with plug-in flexible bridge, max. 2.5 mm² 2 conductors with the same cross-section, rigid, min. 0.2mm² 2 conductors with the same cross-section, rigid, max. 0.75 mm² 2 cables with the same cross-section, flexible, min. 0.2mm² 2 conductors with the same cross-section, flexible, max. 0.75 mm² 2 conductors with the same cross-section, flexible, made of TWIN-AEH with plastic sheath, min. 0.5mm² 2 conductors with the same cross-section, flexible, made of TWIN-AEH with plastic sheath, max. 1.5 mm² 2 conductors with the same cross-section, flexible, with AEH without sheath, min. 0.25mm² 2 conductors with the same cross-section, flexible, with AEH without sheath, max. 0.75 mm² maximum conductor cross-section with pluggable solid bridge, max. 2.5 mm² maximum conductor cross-section with plug-in flexible bridge, max. 2.5 mm² Connection according to IEC/EN 60079-7 minimum solid conductor cross-section 0.2 mm² maximum solid conductor cross-section 2.5 mm² Conductor cross-section AWG min. 24 Wire cross-section AWG max. 14 minimum cross-section of flexible conductor 0.2 mm² maximum section of the flexible conductor 2.5 mm² Stripping length 7 mm reference probe A3 M3 screw thread Min. tightening torque 0.6Nm tightening torque 0.8 Nm
