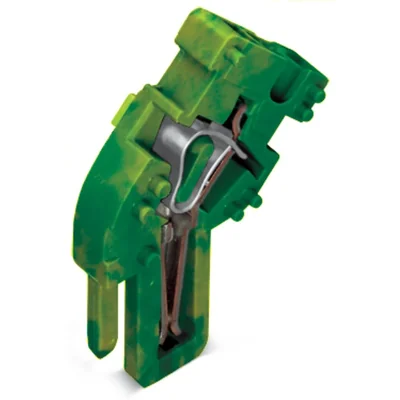

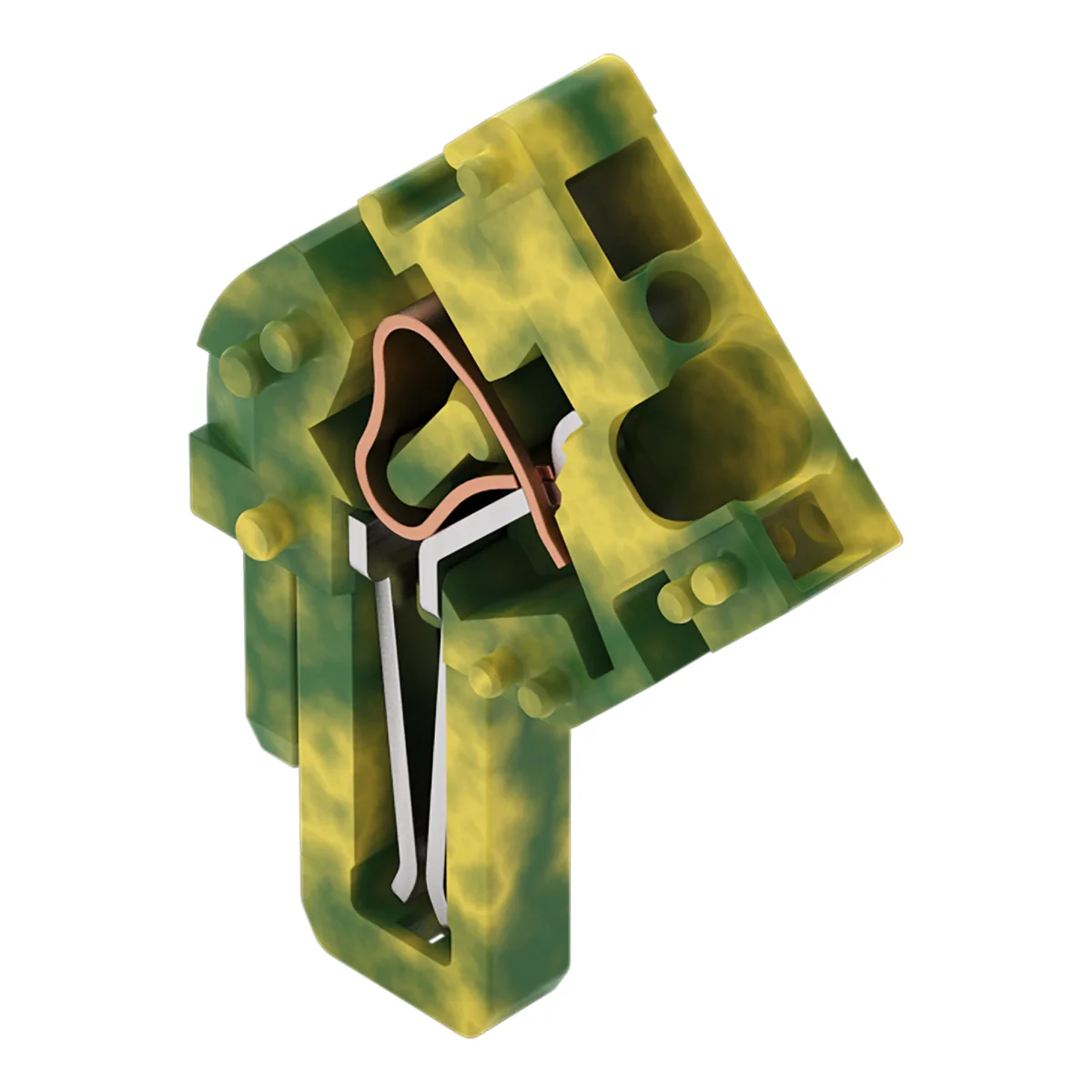

Middle module 1-wire yellow-green X-COM 769-513/000-016
local index:
TEB320WAGO
Catalog No:
769-513/000-016
EAN code:
4017332632959
Price:
0,39 €
gross / pcs.
(including VAT 23%)
55,11 € gross/kg.
The lowest price from 30 days before the reduction:
1,28 € gross
-0,89 €
Price history for this product
1. 0,39 € gross / pcs.
2. The lowest price from 30 days before the reduction:
1,28 €
-0,89 €
3. Base price:
1,33 €
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. The base price of the product
Base price:
1,33 € gross
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Indoor module 1-wire curved 1-way coding possible
Technical data
-
ColorGray
-
Clamp typeCAGE CLAMP
-
Weight [g]7.077
-
Gauge [AWG]2014-12-28 00:00:00
-
Series769
-
Accurate colorGray
Other technical data
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 4 mm²
-
Rated voltage500 V
-
Type of electrical connection 2Spring clamp connection
-
Number of poles1
-
Mounting methodOther
-
Operating temperature105 ... 105 °C
-
Width/grid dimension5 mm
-
Length35.9 mm
-
ColourGreen/yellow
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 4 mm²
-
Connectable conductor cross section solid-core0.08 ... 4 mm²
-
Rated current In32 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per pole1
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu45.2 mm
-
Closing plate requiredNo
-
TransparentNo
Manufacturer details
-
ManufacturerWAGO ELWAG SP. Z O.O.
-
Address50-506 UL.PIĘKNA 58A
-
E-mail
-
Tax identification number8961025689
Bulk packaging
| A kind of package | Torebka | Torebka |
| Quantity | 250 pcs. | 250 pcs. |
| Weight (kg) | 0,636 | 0,636 |
| Volume (m3) | 0,002 | 0,002 |
| Width (m) | 0,134 | 0,134 |
| Length (m) | 0,160 | 0,160 |
| Depth (m) | 0,075 | 0,075 |
