Metal Viking connector 35mm2 width 15 037176

Name: Metal Viking connector 35mm2 width 15
Brand: LEGRAND
SKU: TES076LEGR
Price: 811.78 PLN
Availability: BackOrder

local index:

TES076LEGR

Catalog number:

037176

EAN code:

3245060371760

Click on the photo to enlarge

Manufacturer: LEGRAND

Pieces in the package: 10

See full description

Price:

811,78 zł

gross / pkg.

(including VAT 23%)

81,18 zł gross/pcs.

up to 4 weeks

On request

Quantity pkg.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

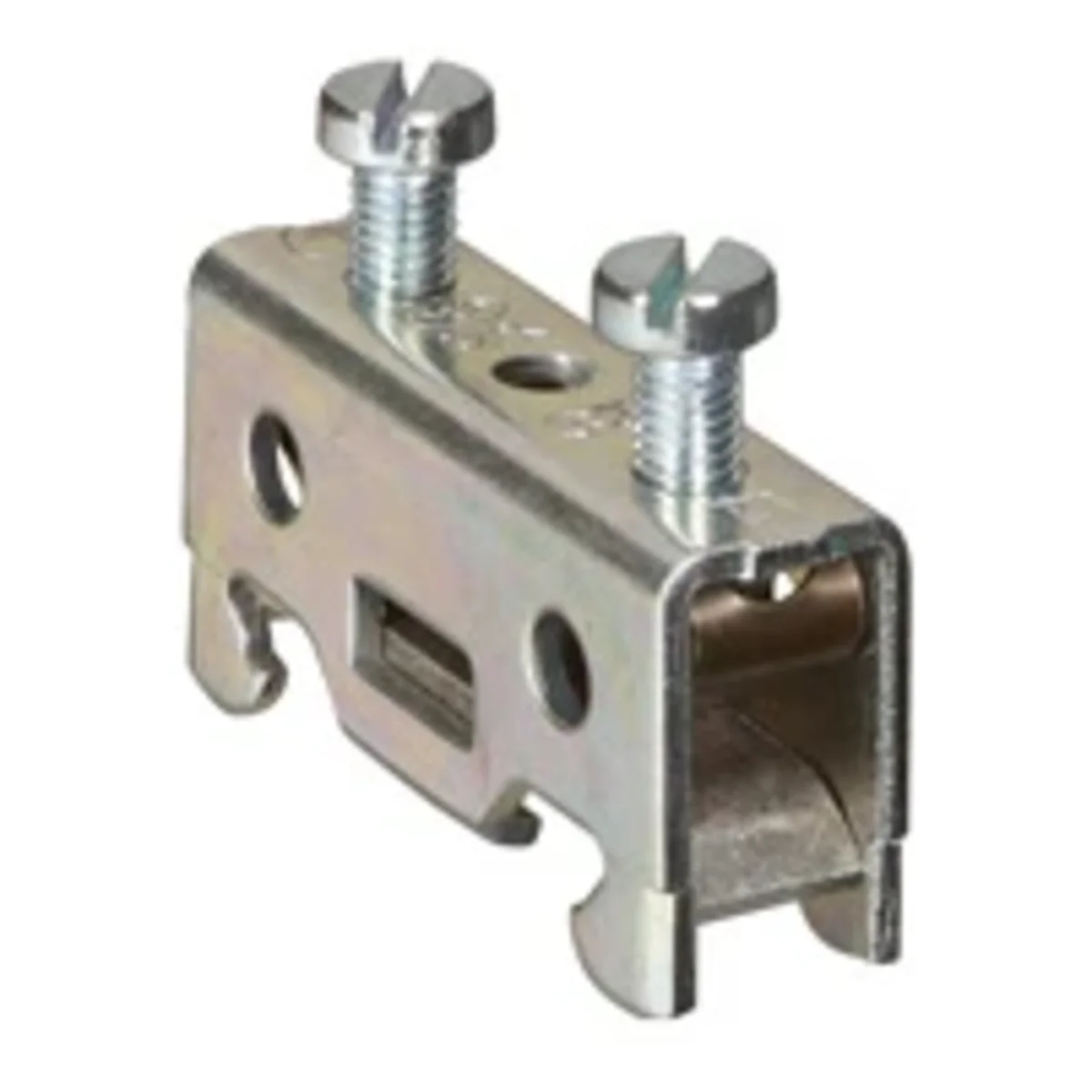

Viking 3 screw connectors
Electrical installation connectors are used to make electrical connections and
mechanical two copper conductors (wires and strands)
To be mounted on a TH35 symmetrical support
deep 7.5 mm and 15 mm (according to PN-EN 60715)
Two bridging points for connection bridges for making connections
equipotential bonding, for terminal blocks up to 8 mm wide

Connectors for protective circuits

Product Parameters

Connectors for protective conductors
Monorail - Bare metal connection block
Nominal cross-section: 35.0 mm2
Solid conductor (wire) cross section: 2.5 to 50.0 mm2
Cross-section of the flexible conductor (cords): from 4.0 to 35.0 mm2
width: 15mm

Technical data

Pieces in the package

10

PKWIU

27.12.40.0

Other technical data

Connectable conductor cross section fine-strand without cable end sleeve

2.5 ... 50 mm²
Connectable conductor cross section solid-core

2.5 ... 50 mm²
Type of electrical connection 1

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-5 ... 40 °C
Height

41.5 mm
Explosion-tested version 'Ex e'

No
Colour

Other
Klasa palności materiału izolacyjnego zgodnie z UL94

V2

Connectable conductor cross section fine-strand with cable end sleeve

4 ... 35 mm²
Connectable conductor cross section multi-wired

4 ... 35 mm²
Type of electrical connection 2

Screw connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Width

15 mm
Depth

50.5 mm
Closing plate required

Yes
Internally connected stages

No

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	1 pkg.	18 pkg.	288 pkg.
Weight (kg)	0,687	12,647	202,352
Volume (m3)	0,000	0,014	0,438
Width (m)	0,105	0,250	1,200
Length (m)	0,056	0,200	0,365
Depth (m)	0,081	0,275	1,000
