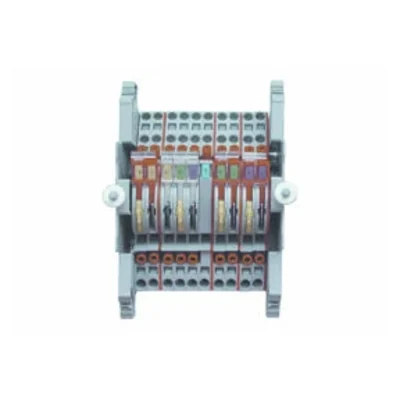

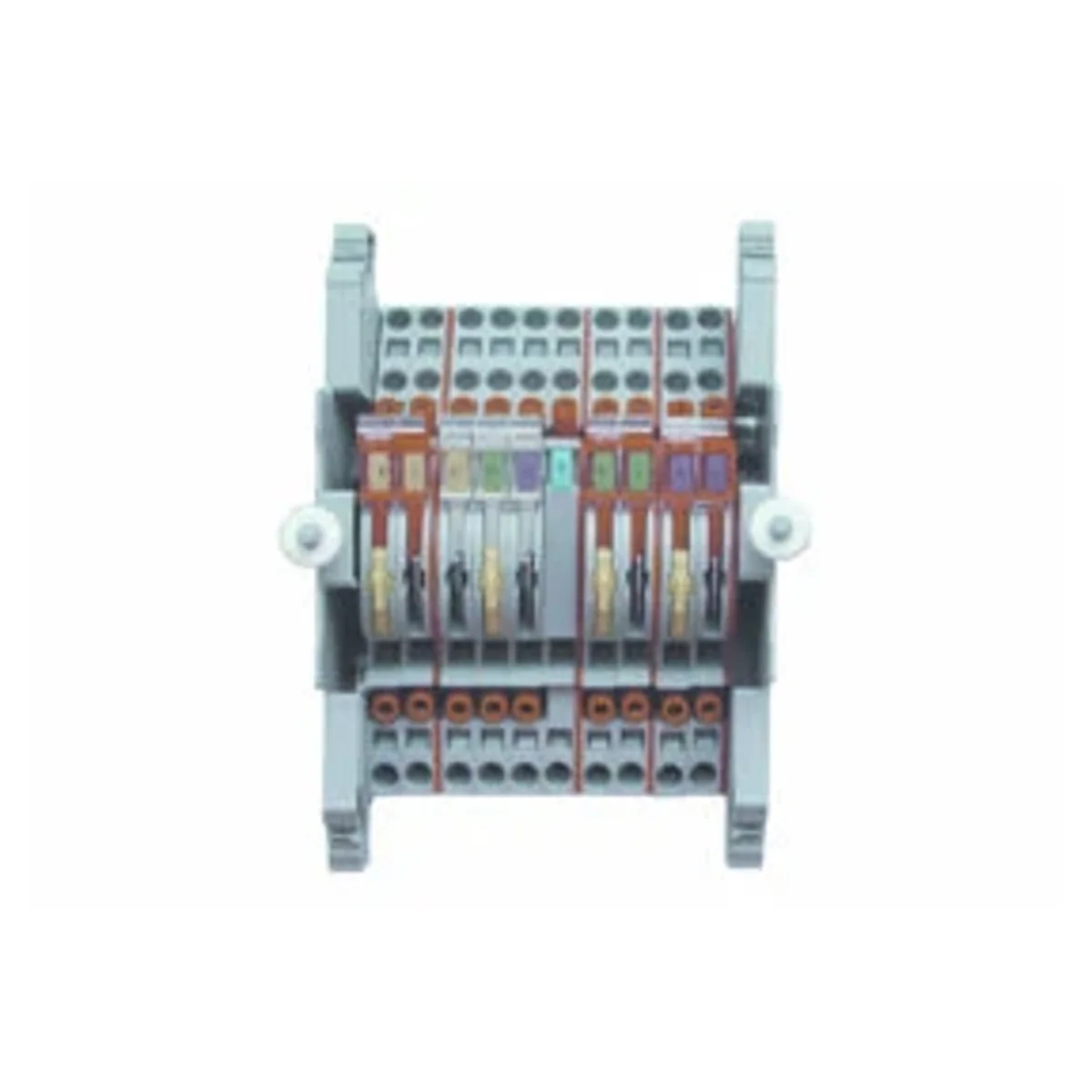

Measuring bar LPW 10-way 847-102

local index:
TEG916WAGO
Catalog No:
847-102
EAN code:
4045454263256
Manufacturer: WAGO ELWAG
Series: 847
Price:
148,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

WAGO LPW 10-way measuring bar

Technical data

  • Series
    847

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2 ... 6 mm²
  • Connectable conductor cross section solid-core
    0.2 ... 6 mm²
  • Rated voltage
    500 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of poles
    10
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    103 mm
  • Closing plate required
    Yes
  • Transparent
    Yes
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 4 mm²
  • Rated current In
    30 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Inclined
  • Mounting method
    Direct mounting
  • Operating temperature
    -50 ... 65 °C
  • Width/grid dimension
    170 mm
  • Length
    164 mm
  • Colour
    Multi-coloured

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,990
Volume (m3) 0,008
Width (m) 0,253
Length (m) 0,148
Depth (m) 0,208
