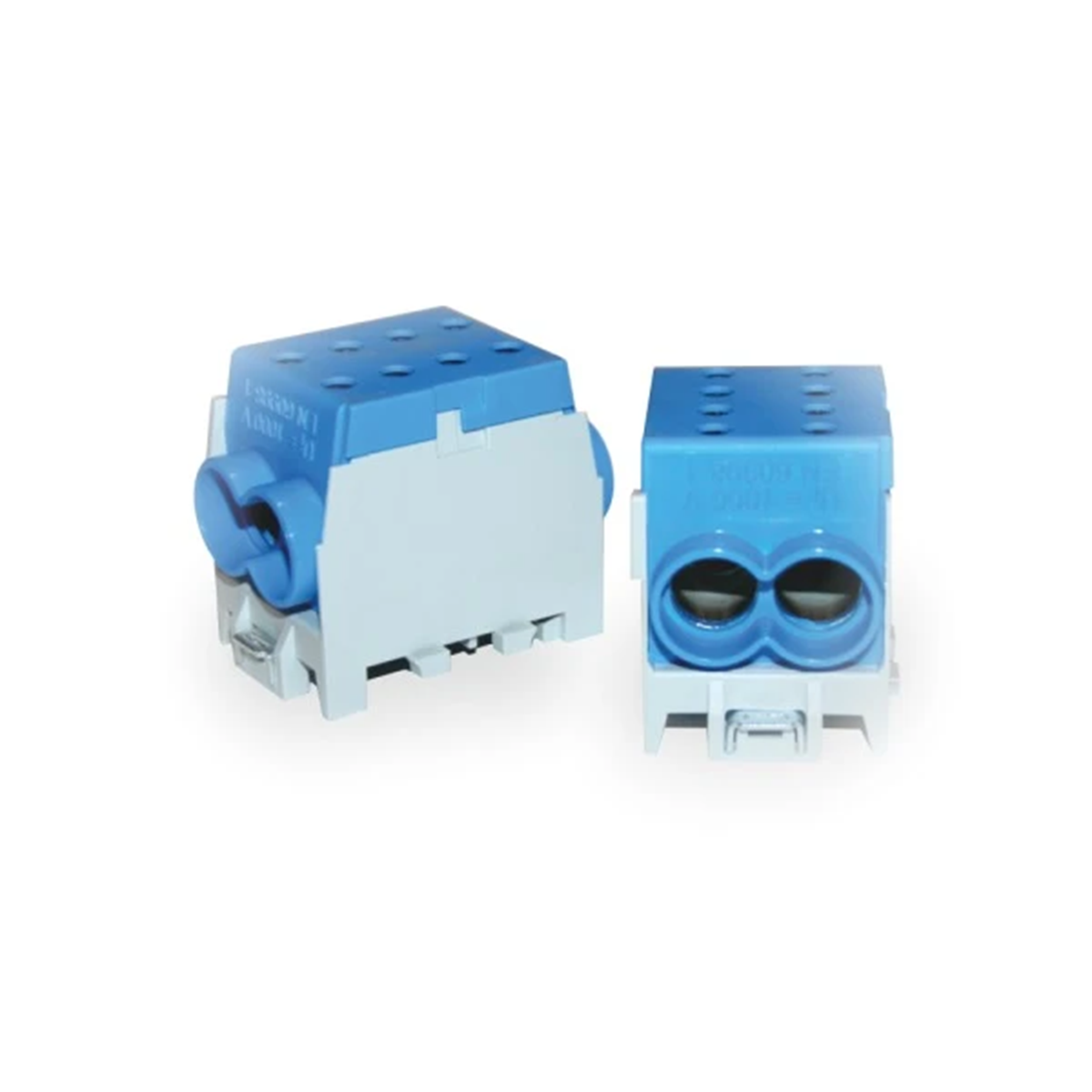

Main cable clamp HLAK 50 1/2 blue 3 pcs. HLAK-70-1/2NB

Indeks lokalny:
TEG033BORP
Numer katalogowy:
HLAK-70-1/2NB
Kod EAN:
4025221400572
Producent: TRYTYT
Color: Blue
Number of poles: 1
Material: Polyamide
230
60
zł
gross / op.  (w tym VAT 23%) 76,87 zł gross / szt.
Dostępność
Dostępne 15 op.
Sprawdź
Odbiór!
Odbierz w godzinę!
Szczegóły
Twoja hurtowinia
Dostępność w oddziale
Wybierz Swoją hurtownię
Wybierz
Ilość op. (wielokrotność: 1 )
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

HLAK terminals are used mainly in switchboards as well as in control cabinets. Adapted to create serial systems mounted on a TS/TH35 rail in a vertical as well as horizontal arrangement (depending on the type). The color differentiation of the terminals allows for easy identification (when properly connected) of the phase, neutral and protective terminals. According to DIN-VDE 0603-2 for AC 400V

Clamp housing in light gray (RAL 7035), covers available in light grey, green, blue, brown or black.

Dane techniczne

  • Color
    Blue
  • Material
    Polyamide
  • PKWIU
    27.90.33.0
  • Number of poles
    1
  • Pieces in the package
    3

Pozostałe dane techniczne

  • Number of poles
    1
  • Mounting method
    DIN rail
  • Number of outputs
    2
  • Suitable for stranded conductors
    Yes
  • Suitable for fine strand conductors without cable end sleeve
    No
  • Suitable for extra fine-strand conductors without cable end sleeve
    No
  • Conductor cross section, output
    4 ... 50 mm²
  • Height
    40 mm
  • Depth
    55 mm
  • Connection type
    Screwing
  • Number of inputs
    2
  • Suitable for solid conductors
    Yes
  • Suitable for fine strand conductors
    Yes
  • Suitable for extra fine-strand conductors
    Yes
  • Conductor cross section, input
    4 ... 70 mm²
  • Contact safe
    Yes
  • Width
    35.5 mm

Dane producenta

  • Producent
    TRYTYT Sp. z o.o.
  • Adres
    43-382 Bielsko-Biała Horeszków 8 Polska
