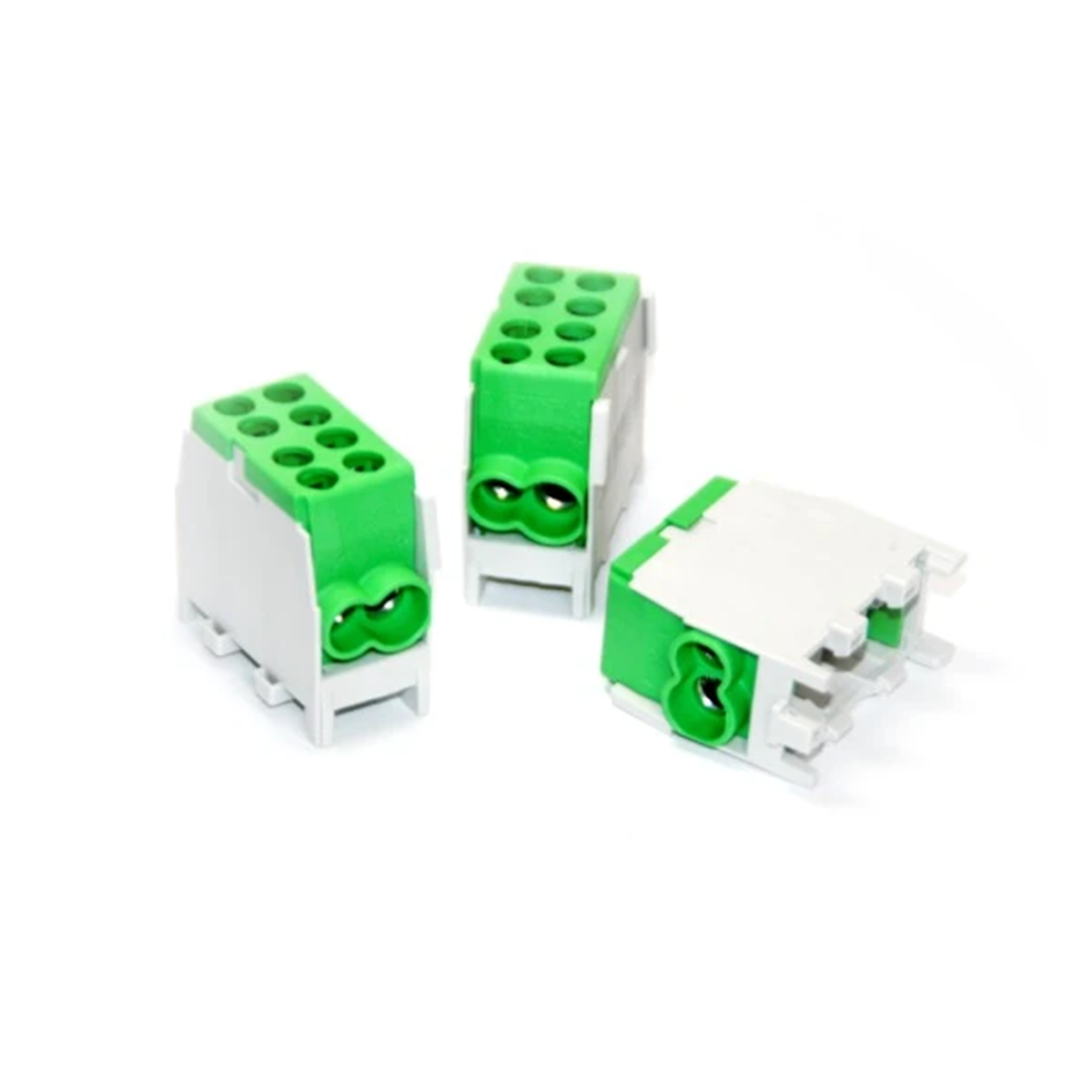

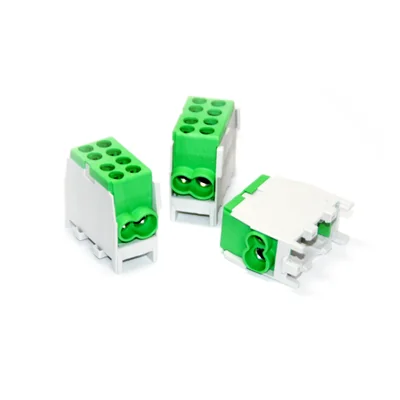

Main cable clamp HLAK 25 1/2 green 5 pcs. HLAK-25-1/2ZI

Místní index:
TEG013BORP
Katalogové číslo.:
HLAK-25-1/2ZI
EAN kód:
4025221400695
Výrobce: TRYTYT
Color: Green
Number of poles: 1
Material: Polyamide
89
78
zł
gross / balení  (včetně DPH 23%) 17,96 zł gross / kusů.
Dostupnost
Dostępne 670 balení
Podívejte se
Odbiór!
Odbierz w godzinę!
Podrobnosti
Twoja hurtowinia
Dostępność w oddziale
Vyberte si svého velkoobchodníka
Vyberte
Množství balení (vícenásobné: 1 )
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

HLAK terminals are used mainly in switchboards as well as in control cabinets. Adapted to create serial systems mounted on a TS/TH35 rail in a vertical as well as horizontal arrangement (depending on the type). The color differentiation of the terminals allows for easy identification (when properly connected) of the phase, neutral and protective terminals. According to DIN-VDE 0603-2 for AC 400V

Clamp housing in light gray (RAL 7035), covers available in light grey, green, blue, brown or black.

Technické údaje

  • Color
    Green
  • Material
    Polyamide
  • PKWIU
    27.90.33.0
  • Number of poles
    1
  • Pieces in the package
    5

Další technické údaje

  • Number of poles
    1
  • Connection type
    Screwing
  • Number of inputs
    2
  • Suitable for solid conductors
    Yes
  • Suitable for fine strand conductors
    Yes
  • Suitable for extra fine-strand conductors
    Yes
  • Conductor cross section, input
    1.5 ... 25 mm²
  • Contact safe
    Yes
  • Width
    23 mm
  • Nominal current
    80 A
  • Mounting method
    DIN rail
  • Number of outputs
    2
  • Suitable for stranded conductors
    Yes
  • Suitable for fine strand conductors without cable end sleeve
    No
  • Suitable for extra fine-strand conductors without cable end sleeve
    No
  • Conductor cross section, output
    1.5 ... 16 mm²
  • Height
    35 mm
  • Depth
    44 mm

Podrobnosti o výrobci

  • Výrobce
    TRYTYT Sp. z o.o.
  • Adresa
    43-382 Bielsko-Biała Horeszków 8 Polska
