LZG4-35 COUPLER R35RW-01030200101

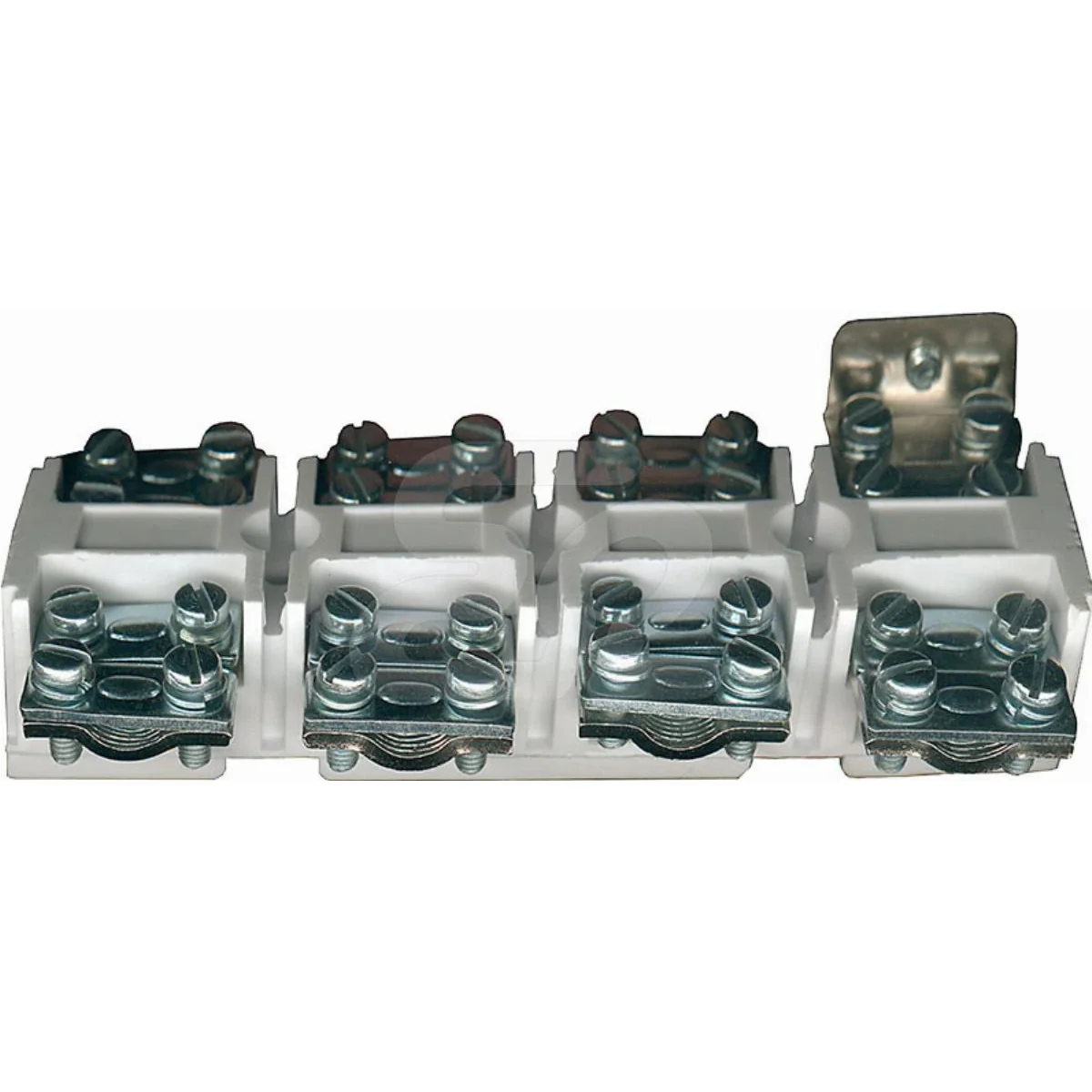

Name: LZG4-35 COUPLER
Brand: ERGOM
SKU: TEG009ERGO
Price: 242.96 PLN
Availability: BackOrder

local index:

TEG009ERGO

Catalog number:

R35RW-01030200101

EAN code:

5900003135561

Click on the photo to enlarge

Manufacturer: ERGOM

Price:

242,96 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Drill hole distance centrically

45 mm
Connectable conductor cross section fine-strand without cable end sleeve

6 ... 35 mm²
Connectable conductor cross section solid-core

6 ... 35 mm²
Rated current In

125 A
Type of electrical connection 1

Screw connection
Number of poles

4
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-25 ... 55 °C
Closing plate required

No
Transparent

No

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

6 ... 35 mm²
Connectable conductor cross section multi-wired

6 ... 35 mm²
Rated voltage

500 V
Type of electrical connection 2

Screw connection
Number of clamp positions per pole

2
Material insulation body

Other
Inflammability class of insulation material according to with UL94

Other
Colour

White
