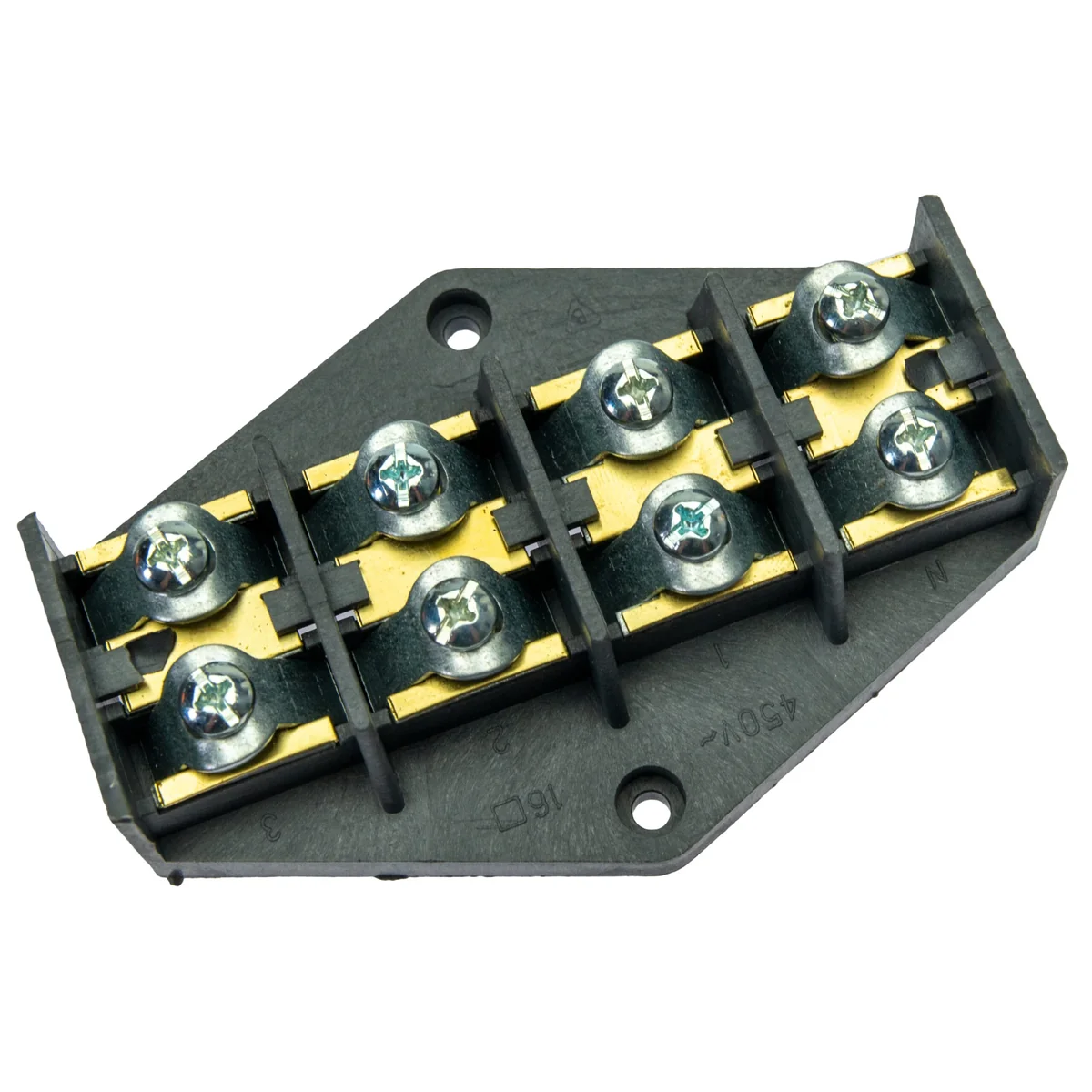

LZ rhombus terminal block, 5x16mm2, 76A, 450V, black E.4007P

Name: LZ rhombus terminal block, 5x16mm2, 76A, 450V, black
Brand: PAWBOL
SKU: TEG003PAWB
Price: 13.97 PLN
Availability: BackOrder

Índice local:

TEG003PAWB

Número de catálogo:

E.4007P

Código EAN:

5908793090398

Haga clic en la foto para ampliar

Fabricante: PAWBOL

Precio:

13,97 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Drill hole distance centrically

26 mm
Connectable conductor cross section fine-strand without cable end sleeve

1 ... 16 mm²
Connectable conductor cross section solid-core

1 ... 16 mm²
Rated current In

76 A
Type of electrical connection 1

Screw connection
Number of poles

5
Mounting method

Direct mounting
Inflammability class of insulation material according to with UL94

Other
Width

75 mm
Depth

22 mm
Colour

Black

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

1 ... 10 mm²
Connectable conductor cross section multi-wired

1 ... 10 mm²
Rated voltage

400 V
Type of electrical connection 2

Other
Number of clamp positions per pole

2
Material insulation body

Thermoplastic
Halogen free

No
Height

22 mm
Closing plate required

No
Transparent

No
