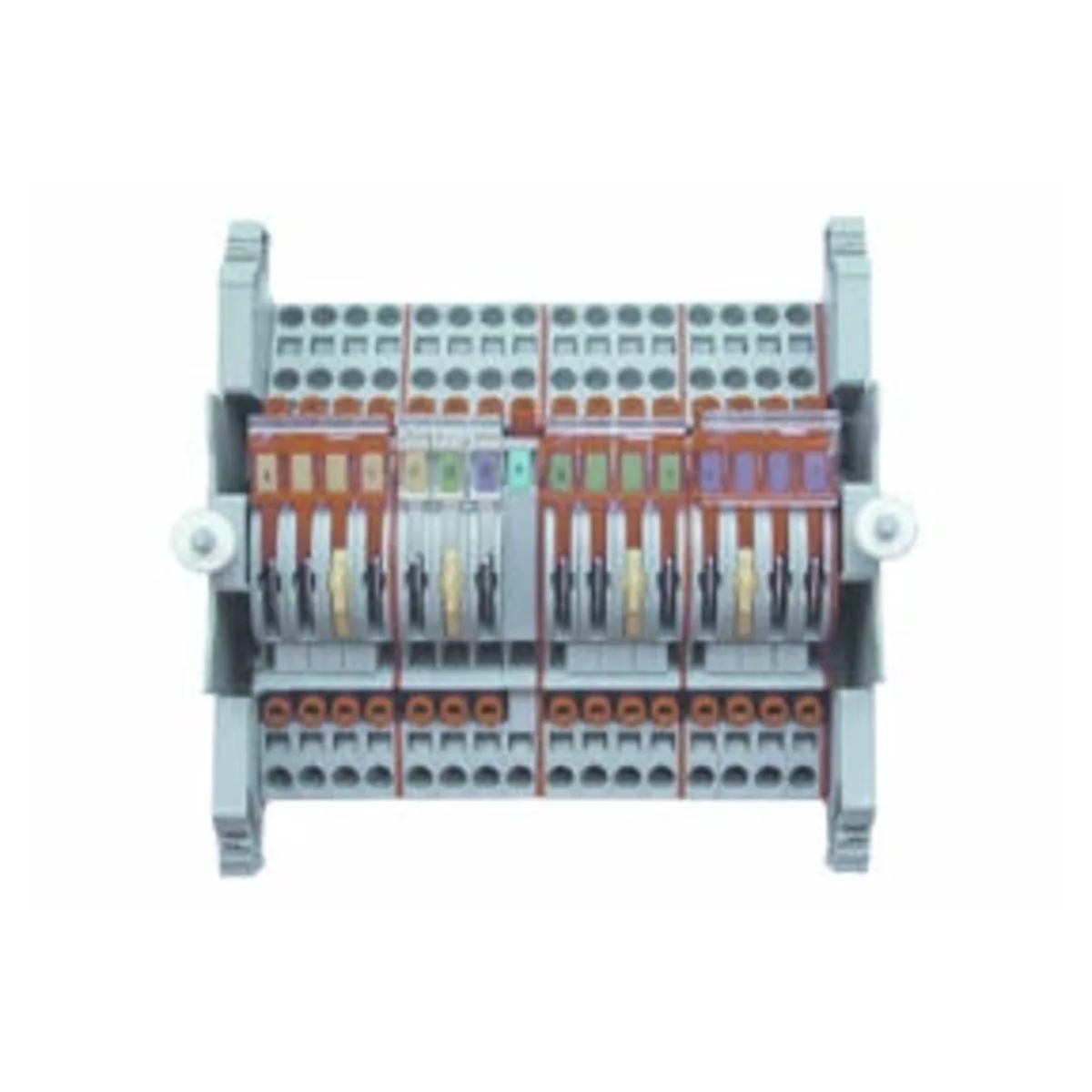

Name: LPW measuring bar
Brand: WAGO ELWAG
SKU: TEG917WAGO
Price: 237.83 PLN

Connectable conductor cross section fine-strand without cable end sleeve

0.2 ... 6 mm²
Connectable conductor cross section solid-core

0.2 ... 6 mm²
Rated voltage

500 V
Type of electrical connection 2

Spring clamp connection
Number of poles

16
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

103 mm
Closing plate required

Yes
Transparent

Yes

Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 4 mm²
Rated current In

30 A
Type of electrical connection 1

Spring clamp connection
Connection position

Inclined
Mounting method

Direct mounting
Operating temperature

-50 ... 65 °C
Width/grid dimension

170 mm
Length

210 mm
Colour

Multi-coloured

LPW measuring bar 847-104
