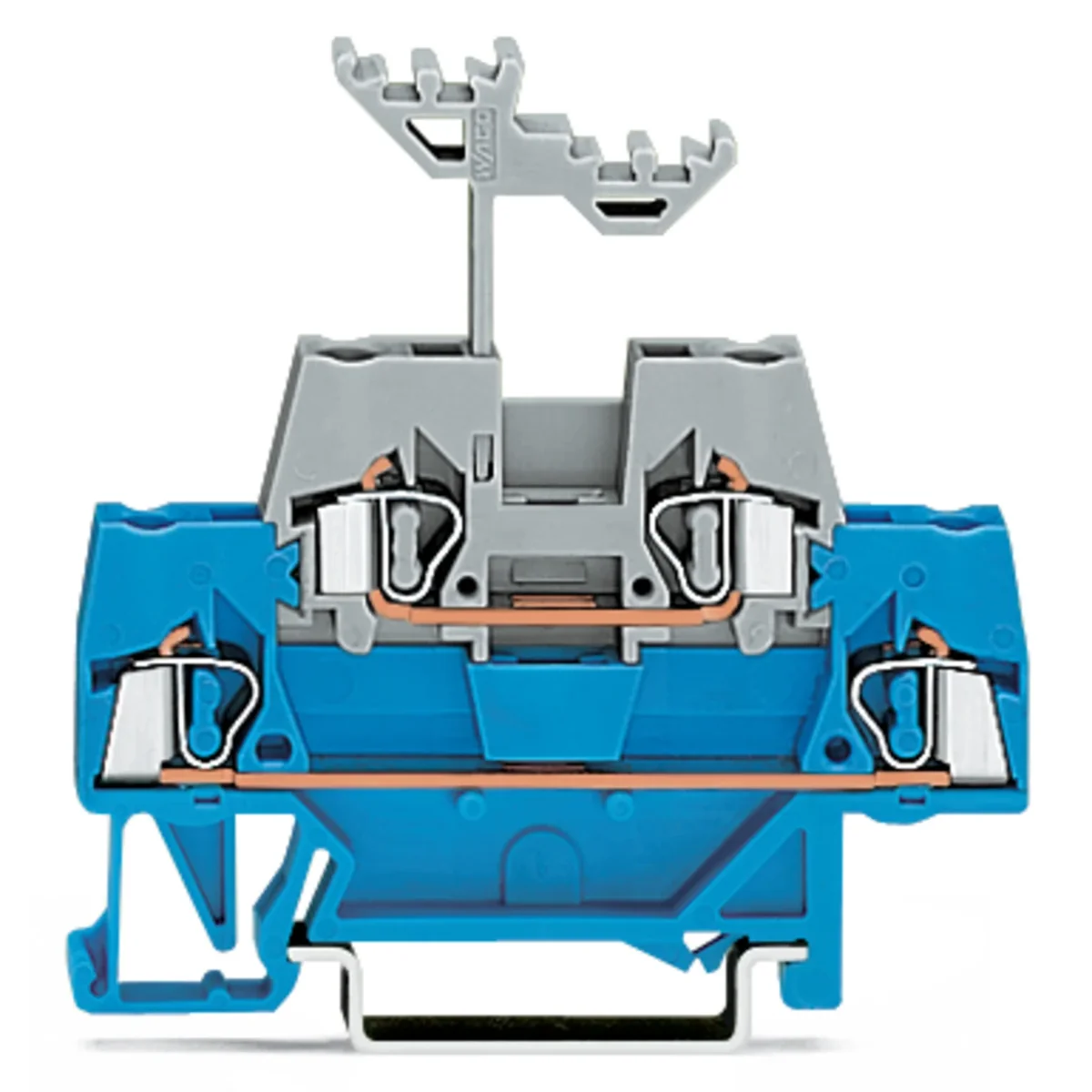

L/L double deck terminal block 2.5mm² blue/grey 280-523
local index:
TEG017WAGO
Catalog No:
280-523
EAN code:
4050821293613
Manufacturer:
WAGO ELWAG
Product group: 1 (strip terminal blocks)
Number of potentials: 2
Number of levels: 2
Price:
1,22 €
gross / pcs.
(including VAT 23%)
Last lowest price:
3,60 € gross
Price history for this product
1. 1,22 € gross / pcs.
2. Last lowest price:
3,60 €
3. Base price:
3,74 €
-67%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
3,74 € gross
-67%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

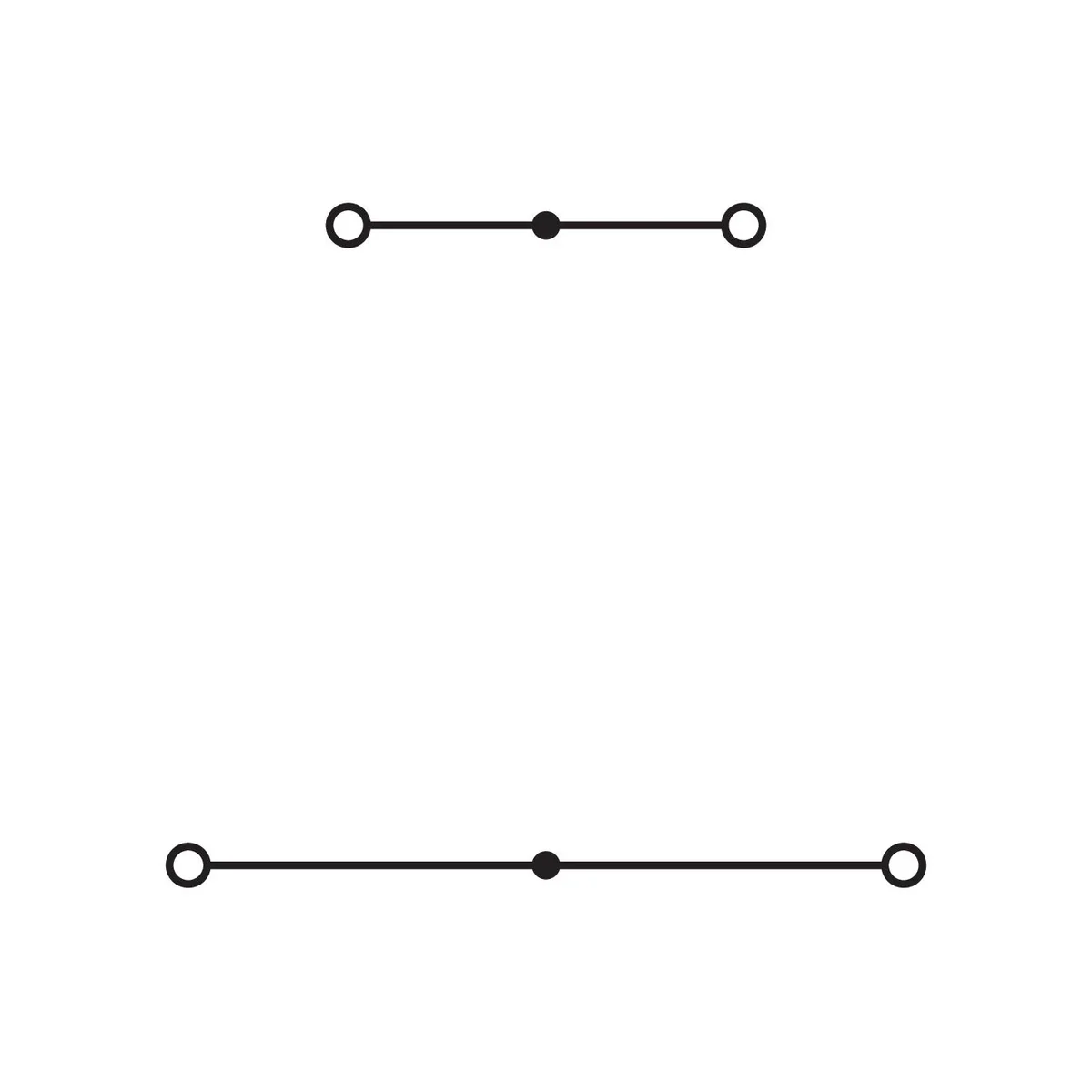

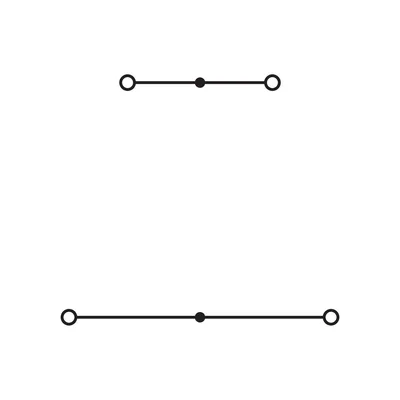

Double-deck pass/through terminal block
Technical data
-
Product group1 (strip terminal blocks)
-
Number of levels2
-
Gauge [AWG]2014-12-28 00:00:00
-
Series280
-
Dirt zone3
-
Number of connectors4
-
Number of potentials2
-
Rated current [A]20
-
Clamp typeCAGE CLAMP
-
How to install the cableFront mounting
-
Rated impulse voltage [kV]6
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Rated current In20 A
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu58.5 mm
-
Explosion-tested version 'Ex e'No
-
ColourMulti-coloured
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 1.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Rated voltage500 V
-
Type of electrical connection 2Spring clamp connection
-
Number of levels2
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension5 mm
-
Length64 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
Bulk packaging
| A kind of package | Karton |
| Quantity | 50 pcs. |
| Weight (kg) | 0,580 |
| Volume (m3) | 0,002 |
| Width (m) | 0,095 |
| Length (m) | 0,355 |
| Depth (m) | 0,070 |
