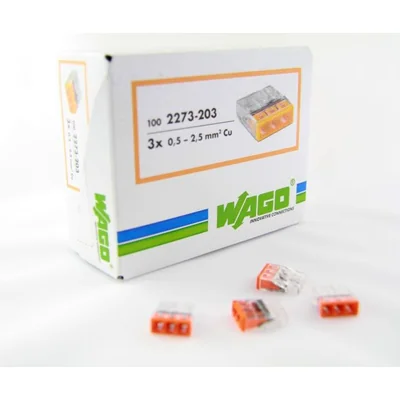

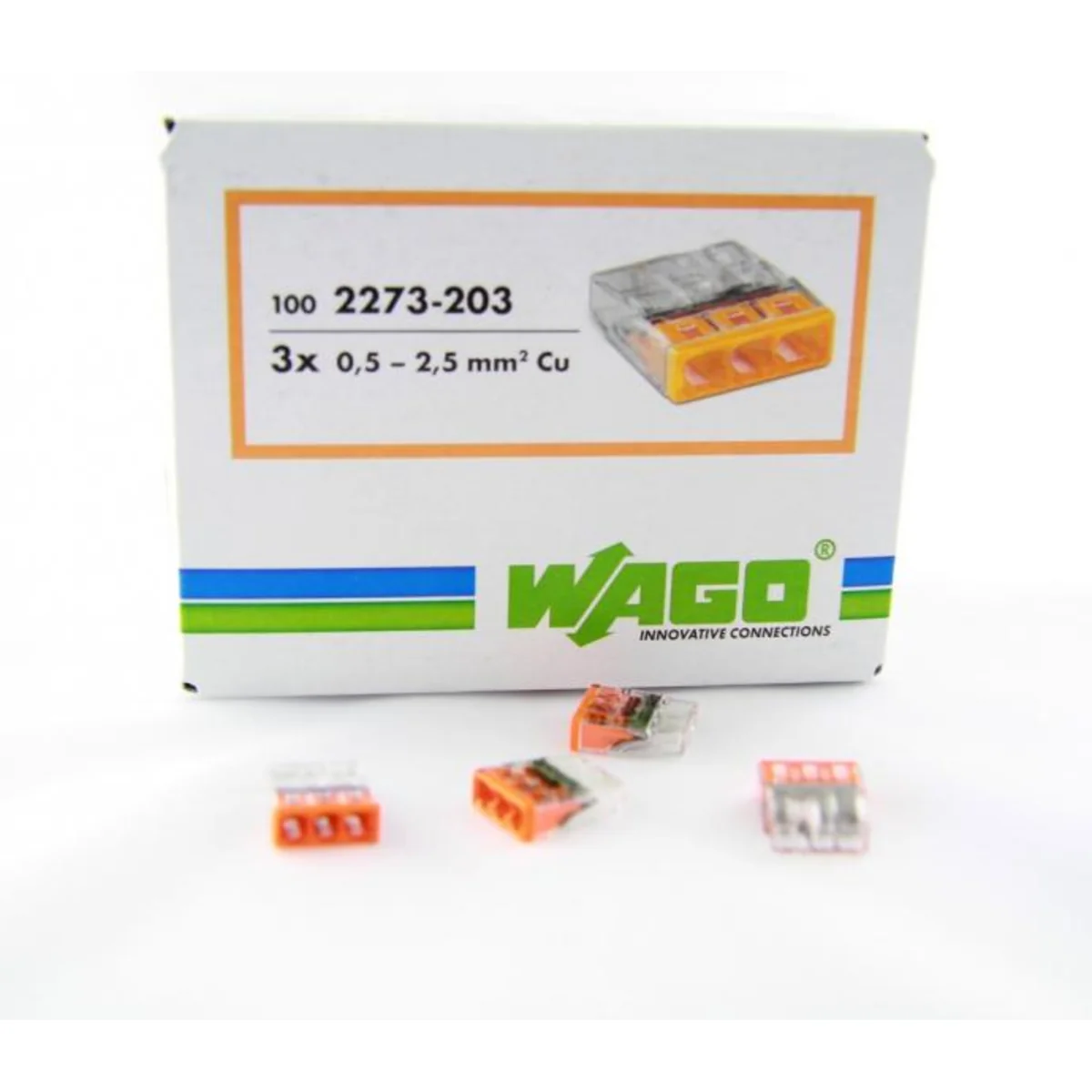

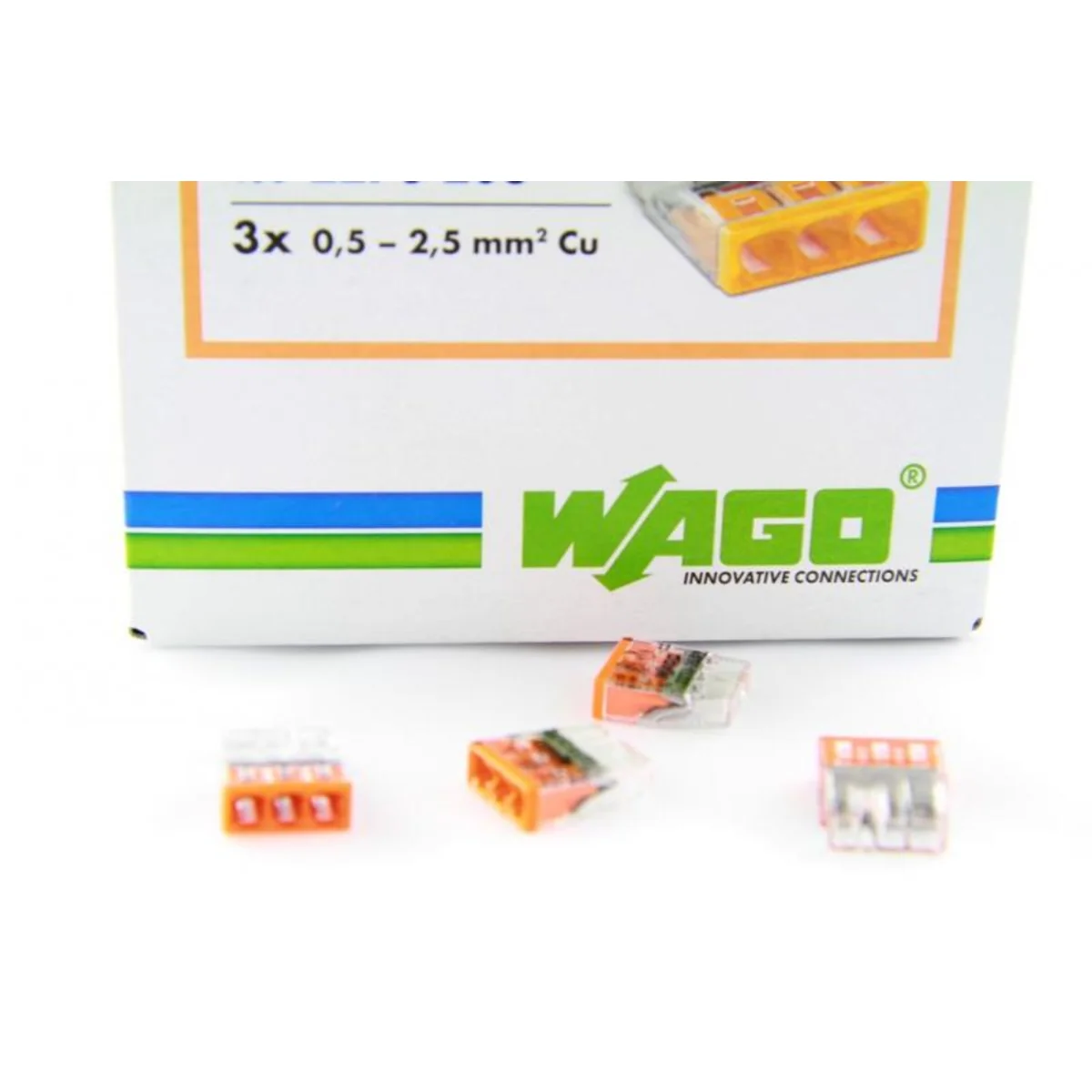

Junction box connector 3x2.5mm² 100pcs. 2273-203

local index:
TEB051WAGO
Catalog No:
2273-203
EAN code:
4050821027850
Manufacturer: WAGO ELWAG
Depth [mm]: 16.7
Color: Transparent
Number of potentials: 1
Price:
18,51 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 155 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

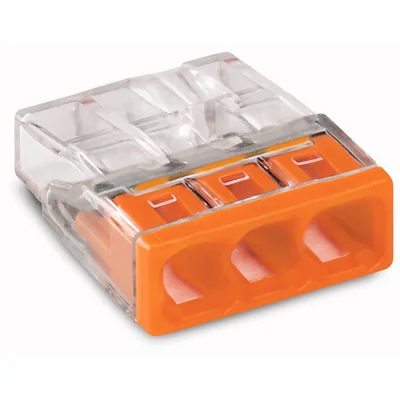

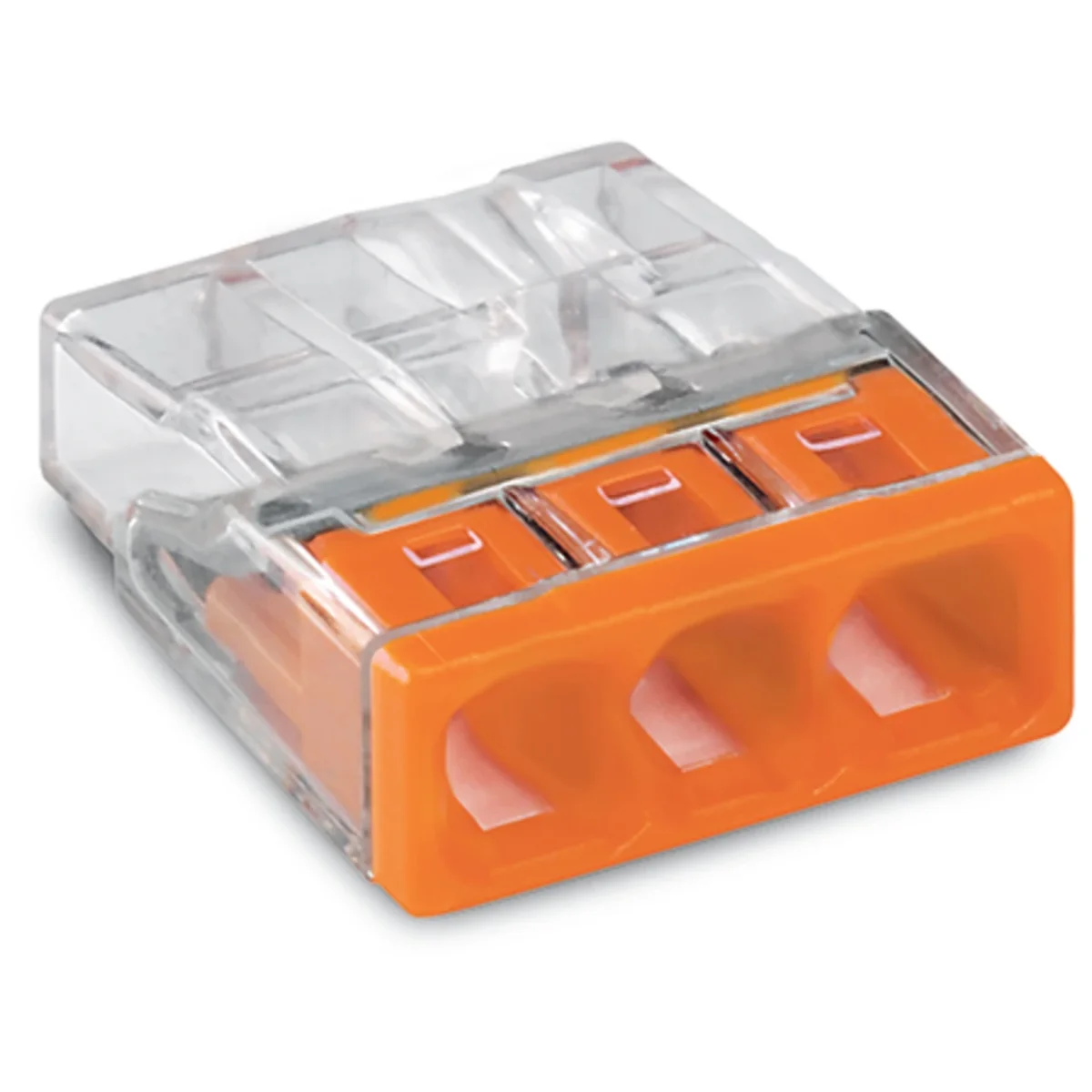

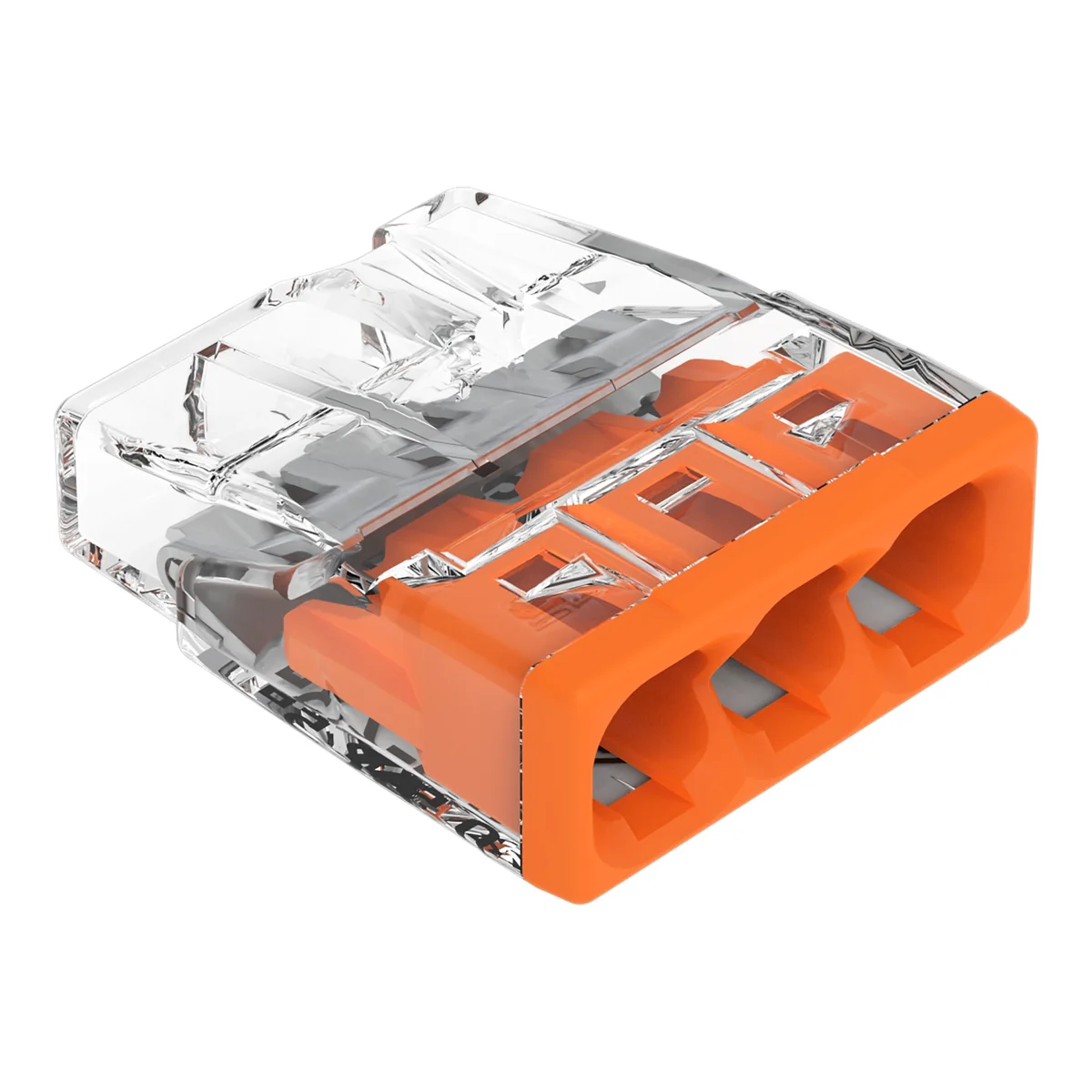

New "WAGO" connectors are over 50% smaller than the billion-times proven 273 series. The transparent housing of the junction box connector guarantees safe and error-free connection of solid conductors.

COMPACT connector for 2273 junction boxes. So small, yet so big.

How is the installation fitting of all time created? Dimensions are minimized while maintaining maximum comfort and safety:

Comfort in every way

Small but powerful! The COMPACT 2273 series junction box connectors are more than 50% smaller than the billion-times proven "WAGO" connectors from the 273 series. And that means a lot of space saving. In addition, the possibility of creating any combinations of wires with cross-sections from 0.5 to 2.5 mm, nominal current up to 24 A and clear color distinction for quick identification – all this creates perfect conditions for creating installations. New "WAGO" connector is more comfortable than ever before!

Everything under control

The transparent housing allows visual inspection of the correct arrangement of the cables. The touch protection inspection visor allows you to check that the wires have been properly isolated. The measuring holes are adapted to all commercially available measuring tips.

Ensuring installation security is child's play here!

Technical data

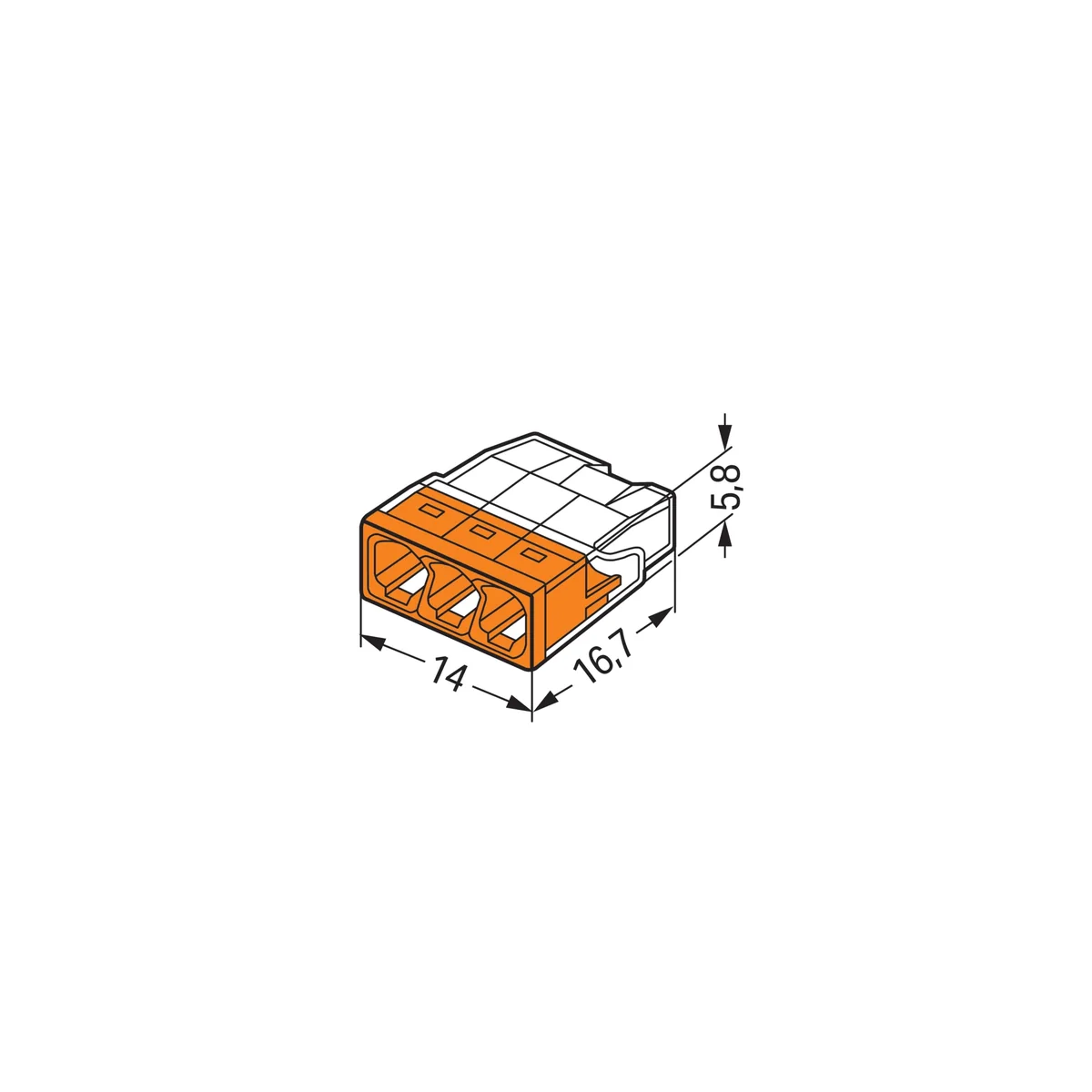

  • Depth [mm]
    16.7
  • Number of potentials
    1
  • Rated current [A]
    24
  • Cable type
    E
  • Series
    2273
  • Width [mm]
    14
  • Rated impulse voltage [kV]
    4
  • Wire cross-section [mm²]
    0.5 - 2.5
  • PKWIU
    27.33.13.0
  • Color
    Transparent
  • Rated voltage [V]
    450
  • Gauge [AWG]
    18 - 14
  • Clamp type
    PUSH WIRE
  • Dirt zone
    2
  • Height [mm]
    5.8
  • Number of connectors
    3
  • Suitable cross sections [mm²]
    0.5 0.75 1 1.5 2.5

Other technical data

  • Number of clamp positions
    3
  • With operation lever
    no
  • Nominal voltage
    450 V
  • Suitable for solid conductors
    yes
  • Suitable for multi-wire conductors
    no
  • AWG-range
    18 ... 14
  • Nominal cross section
    0.5 ... 2.5 mm²
  • Colour
    Przezroczysty (transparentny)
  • Nominal current
    24 A
  • Suitable for flexible conductors
    no
  • Conductor cross section solid (solid, stranded)
    0.5 ... 2.5 mm²

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 1,279
Volume (m3) 0,004
Width (m) 0,170
Length (m) 0,220
Depth (m) 0,110
