el12 Connecting cables and wires Connectors Threaded fittings IP2x N17 terminal block

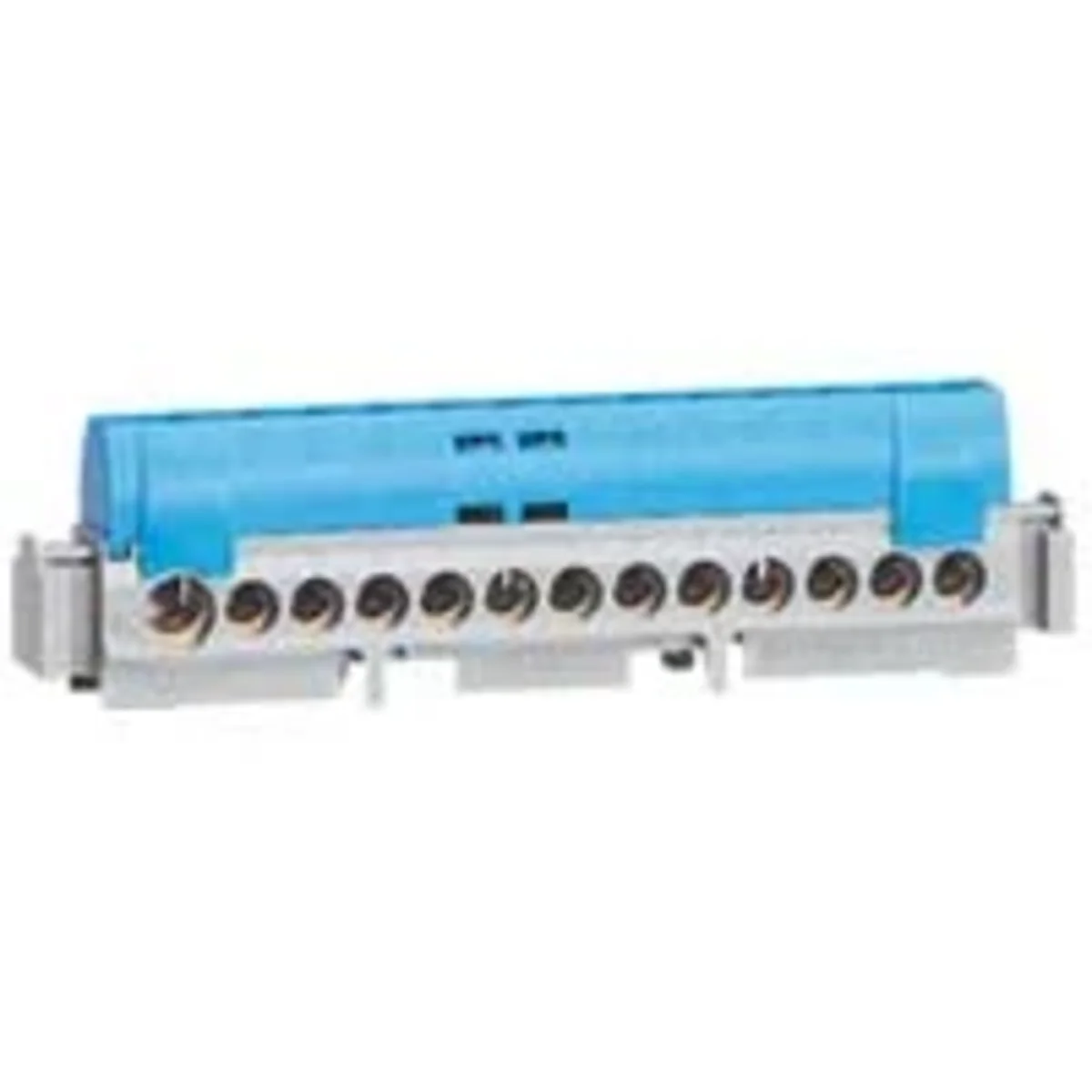

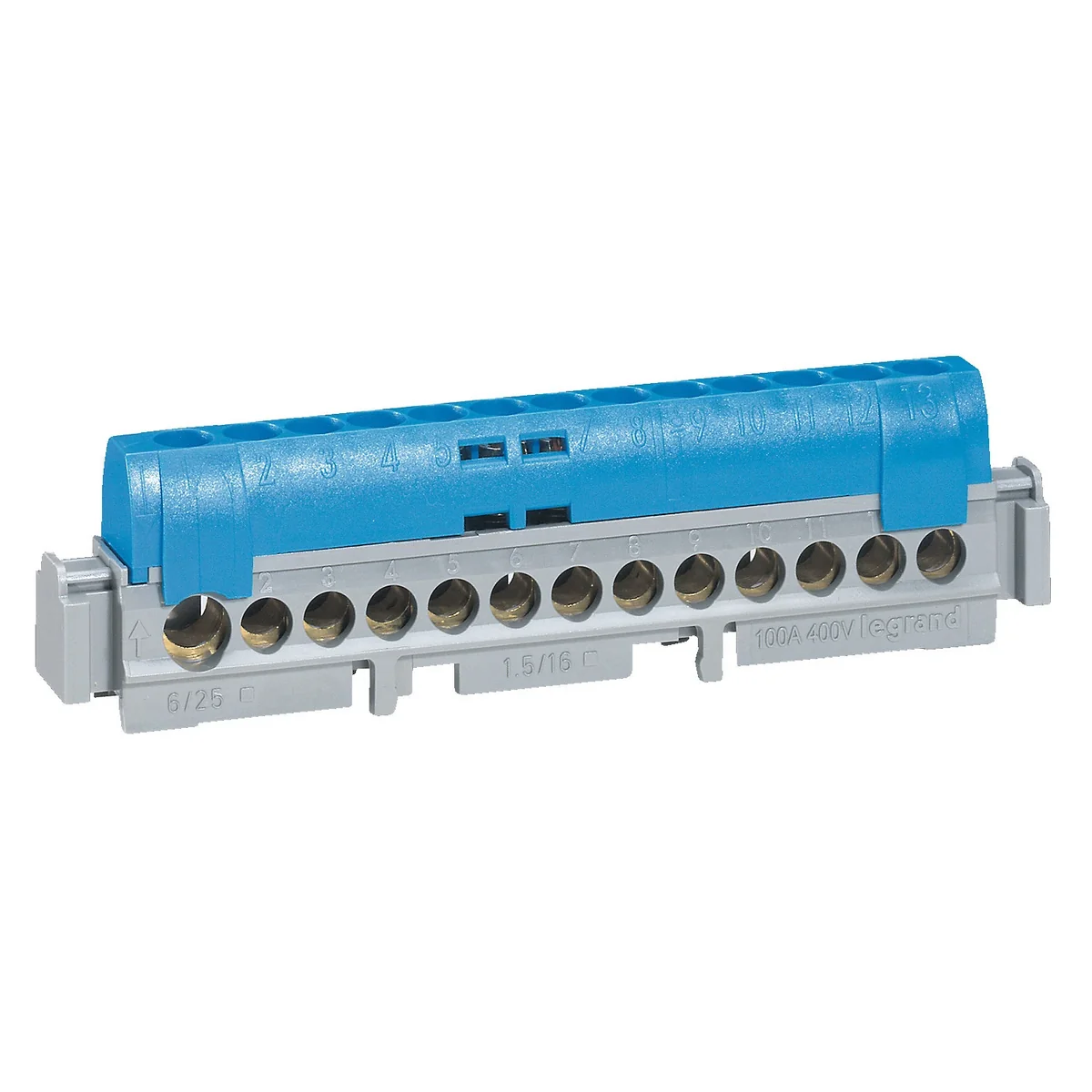

IP2x N17 terminal block
IP2x N17 terminal block
IP2x N17 terminal block

Click on the photo to enlarge

IP2x N17 terminal block
IP2x N17 terminal block
IP2x N17 terminal block
LEGRAND

IP2x N17 terminal block 004845

local index:
TEG008LEGR
Catalog No:
004845
EAN code:
3245060048457
Price:
5,38 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Terminal blocks - insulated
For use with modular switchboards: Nedbox, RWN, Ekinoxe, Ekinoxe TX, , RN 55
Compliant with PN-EN 60998-2-1
Supplied with screws removed
Load capacity :
100 A max. - 400 V~ power supply: 25 mm2
80 A max. - 400 V~ power supply: 16 mm2
Screw terminals

IP2x terminal blocks
Colour: blue
Power supply - number of terminals 6-25 mm2: 1
Outlets - number of terminals 1.5-16 mm2: 16
Length: 141 mm
Print the product sheet Report an error

Technical data

  • Installation
    On the TH-35 rail

Other technical data

  • Connection type
    Screwing
  • Contact safe
    yes
  • Width
    141 mm
  • Mounting method
    DIN rail
  • Height
    30 mm
  • Depth
    16 mm

Catalog cards, diagrams, certificates

F00193EN-02.pdf
LGRP-00744-V01.01-EN.pdf
LGRP-00745-V01.01-EN.pdf
karta katalogowa(463).pdf.PDF
