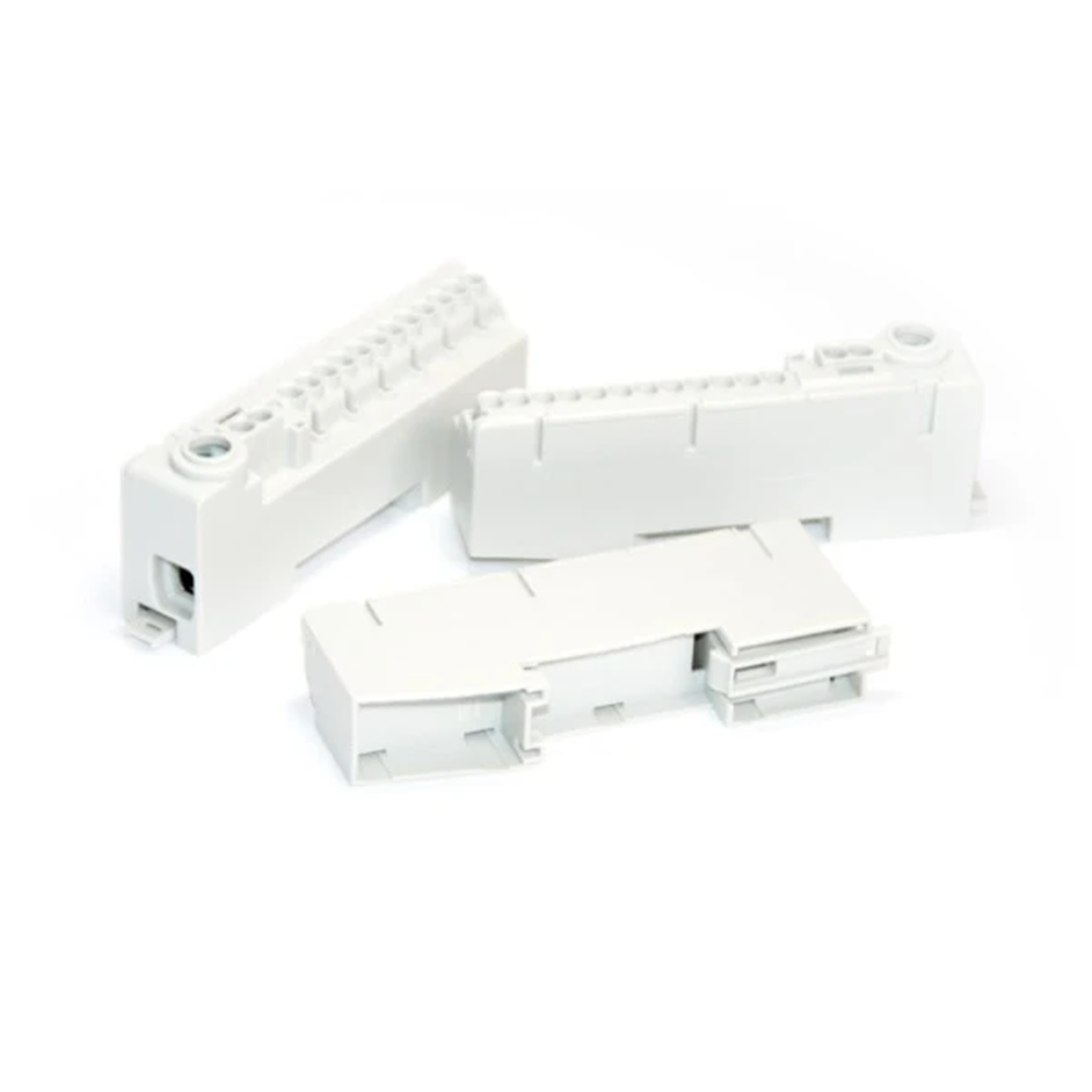

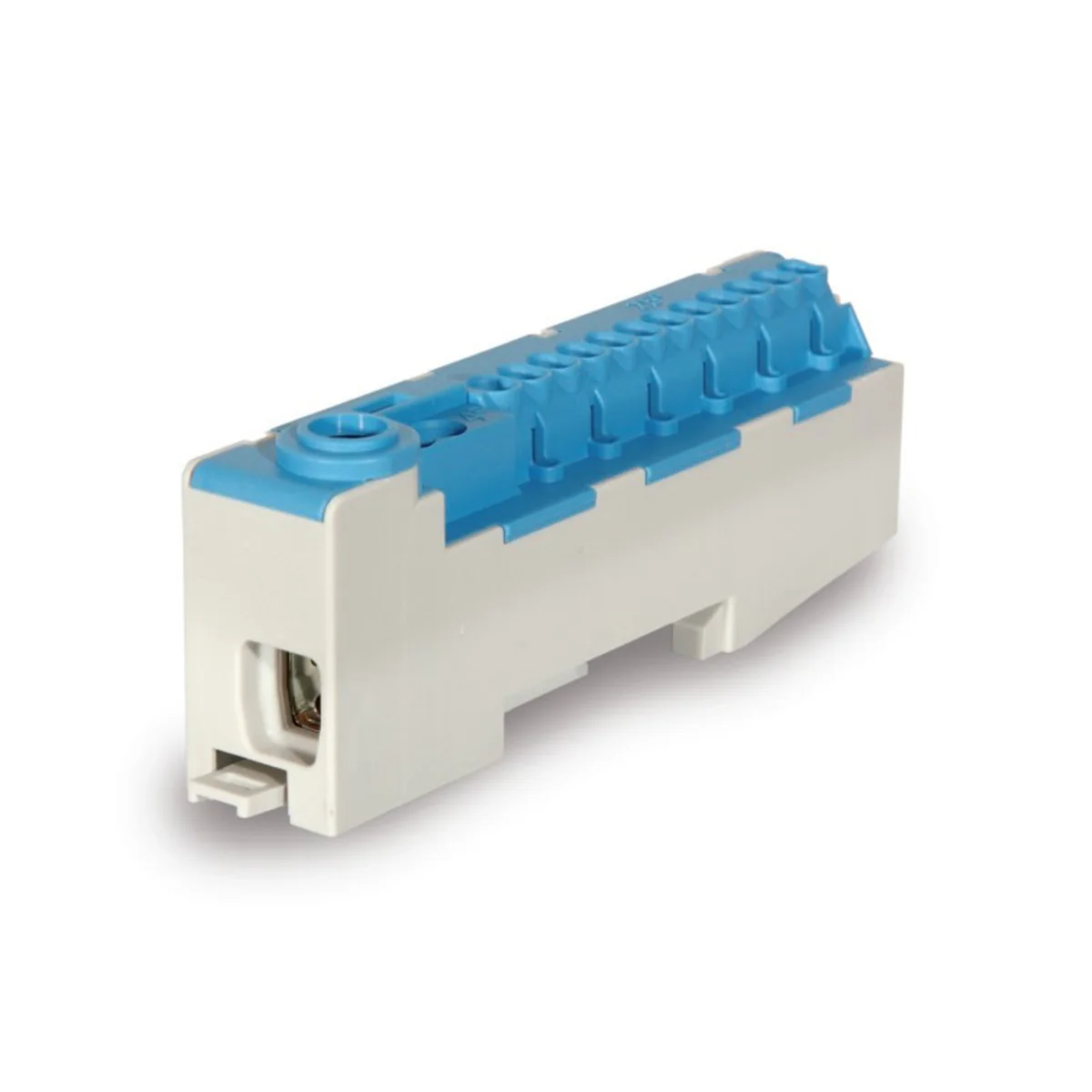

Insulated self-locking branch clamp 10 pcs. A-14-S

local index:
TES001BORP
Catalog No:
A-14-S
EAN code:
4025221083119
Manufacturer: TRYTYT
Color: Gray
Material: Polyamide
Installation: For TH35 rail
Price:
83,89 €
gross / pkg.
(including VAT 23%)
8,39 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Self-locking insulated terminals for neutral conductors, manufactured and certified in accordance with EN 60998/VDE 0613. Body with 15 clamping points, 12 self-locking poles for conductors up to 2.5 mm², 2 self-locking poles for wires up to 4 mm² and 1 entry for a rigid conductor up to 25 mm², or a flexible conductor up to 16 mm², fixed with a screw clamp. Body made of polyamide. Adapted to be mounted on a TS/TH35 rail. Maximum allowable current 80A.

Technical data

  • Color
    Gray
  • Installation
    For TH35 rail
  • Pieces in the package
    10
  • PKWIU
    27.90.33.0
  • Material
    Polyamide
  • Width [mm]
    thirty
  • Cable type
    branched
