Installation connectors for all types of wires 5-wire 221-415/995-008

Indice locale:

TEB391WAGO

Numero di catalogo:

221-415/995-008

Codice EAN:

4066966001679

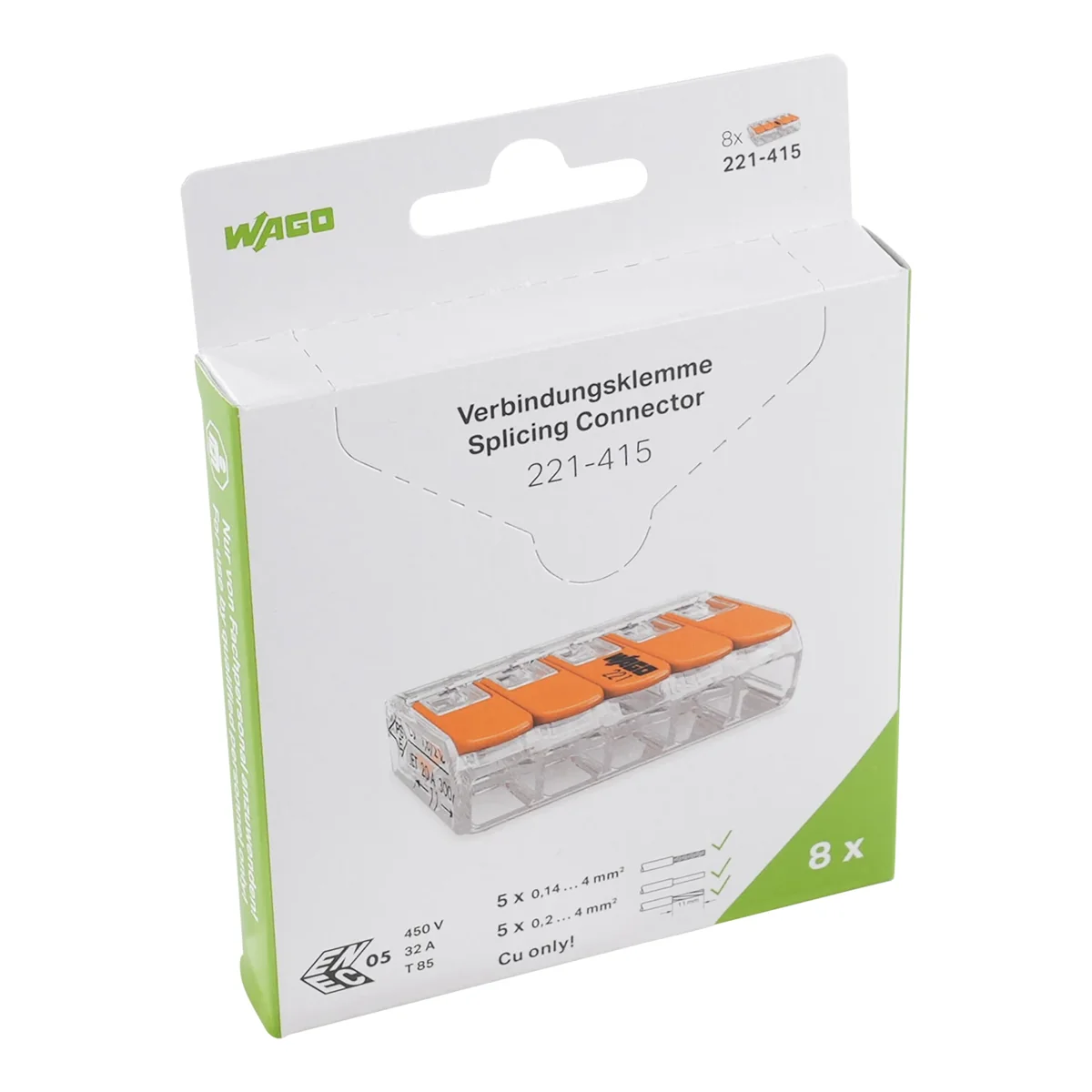

Installation connectors for all types of wires 5-wire

Clicca sulla foto per ingrandire

Produttore: WAGO ELWAG

Depth [mm]: 18.6

Overvoltage category: III

Color: Transparent | Orange

Vedi la descrizione completa

zł

gross / conf. (inclusa IVA 23%) 4,92 zł gross / pezzi

Dostępne 74 conf.

Verificate

Odbierz w godzinę!

Dettagli

Scegliete il vostro grossista

Selezionare

Quantità conf. (multiplo: 1 )

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

The new family of WAGO 221 series connectors enables faster and easier creation of a safe installation using various types of cables: single-wire, stranded or multi-wire.
The 221 series is designed for a nominal current of 32A and a nominal voltage of 450V and therefore can be used in 230V / 400V networks. The transparent housing provides full control of the placement of wires.

Dati tecnici

Depth [mm]

18.6
Color

Transparent Orange
Material

PC
Fire load [MJ]

0.089
Clamp type

Lever
Degree of contamination

2
Weight [g]

4
Rated impulse voltage [kV]

4
Flammability class

V2
Clamping technique

CAGE CLAMP®

Overvoltage category

III
Number of potentials

1
Rated voltage [V]

450
Rated current [A]

32
Family

221
Pieces in the package

8
Height [mm]

8.3
Number of connectors

5
Suitable cross sections [mm²]

0.14 0.25 0.34 0.5 0.75 1 1.5 2.5 4
Wire stripping length [mm]

11

Altri dati tecnici

Liczba punktów mocowania (po stronie instalacji)

5
Rodzaj blokowania/odblokowywania

Other
Transparent

Yes
Nominal current

32 A
Suitable for flexible conductors

Yes
Conductor cross section flexible (fine-strand) with cable end sleeve

0.5 ... 2.5 mm²
Min. AWG-size

24

Przekrój nominalny (od strony instalacji)

0.2 ... 4 mm²
Colour

Colourless
Nominal voltage

450 V
Suitable for solid conductors

Yes
Suitable for multi-wire conductors

Yes
Conductor cross section solid (solid, stranded)

0.2 ... 4 mm²
Max. AWG-size

12

Dettagli del produttore

Produttore

WAGO GmbH & Co. KG
Indirizzo

32423 Minden Hansastraße 27 Niemcy
Email

wago.elwag@wago.com

Imballaggio sfuso

Una specie di pacchetto	PU
Quantità	18 conf.
Peso (kg)	0,919
Volume (m3)	0,003
Larghezza (m)	0,102
Lunghezza (m)	0,298
Profondità (m)	0,134
