Installation connectors for all types of wires, 3-wire 221-413/995-012

Name: Installation connectors for all types of wires, 3-wire
Brand: WAGO ELWAG
SKU: TEB390WAGO
Price: 35.13 PLN
Availability: InStock

Lokaler Index:

TEB390WAGO

Katalognummer:

221-413/995-012

EAN-Code:

4066966001907

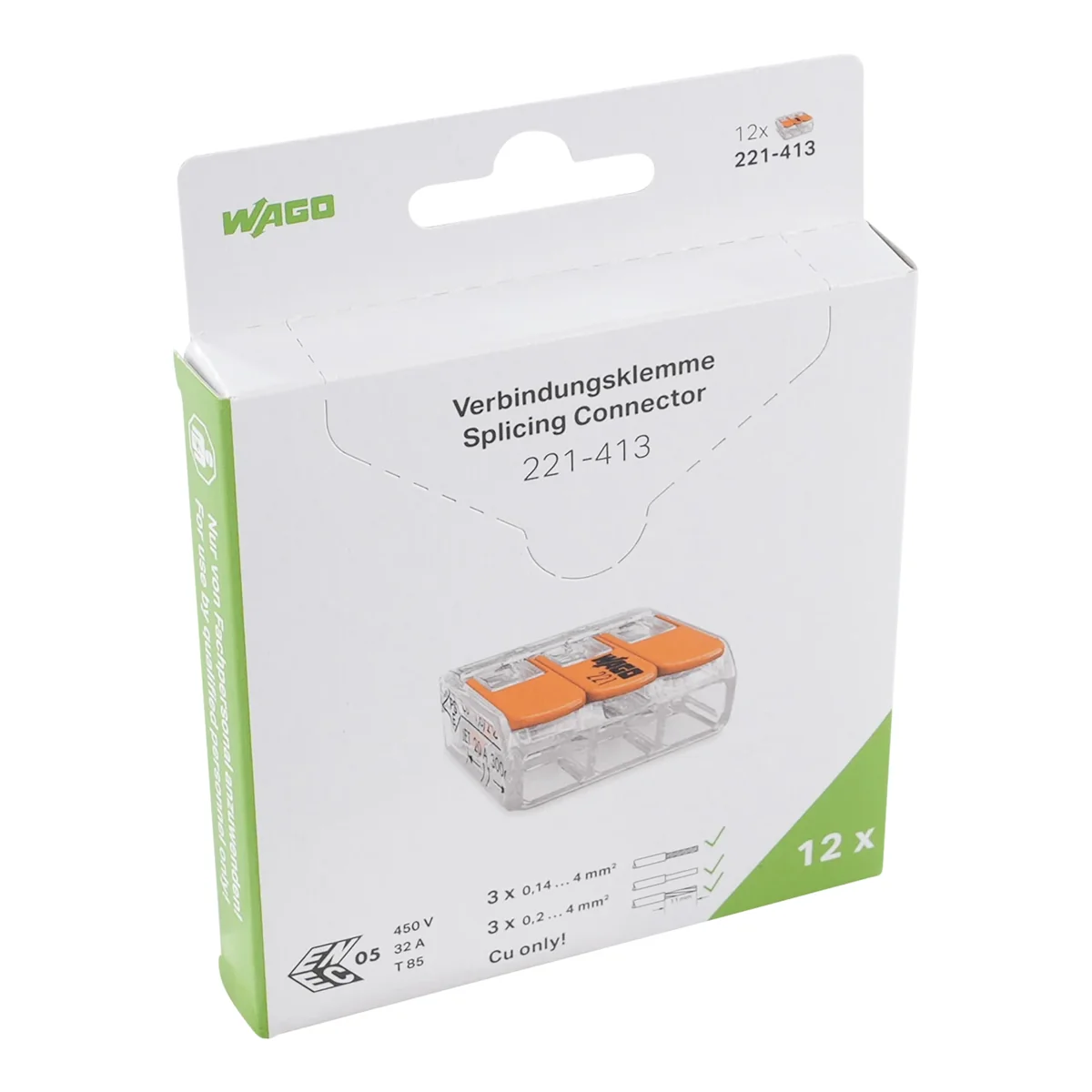

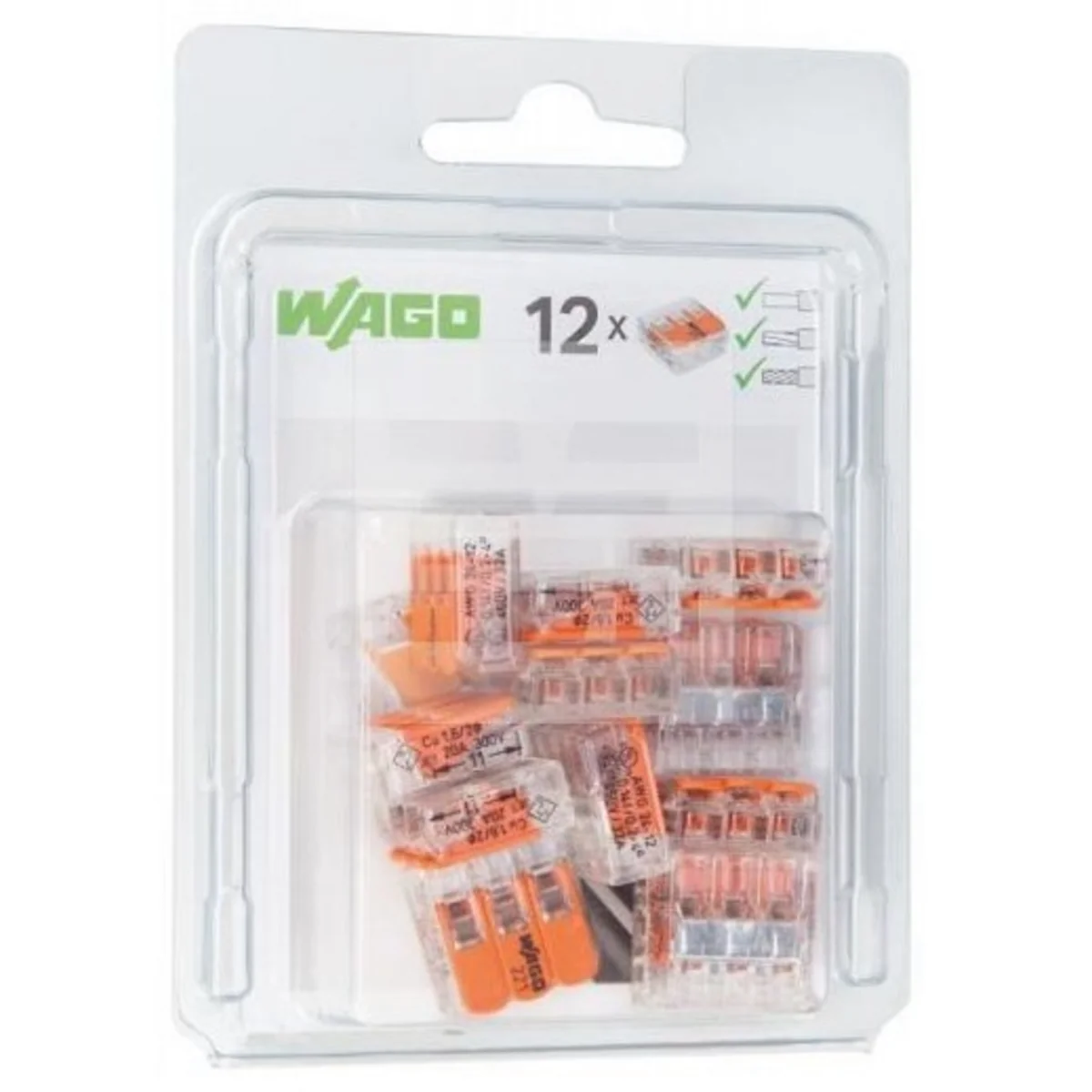

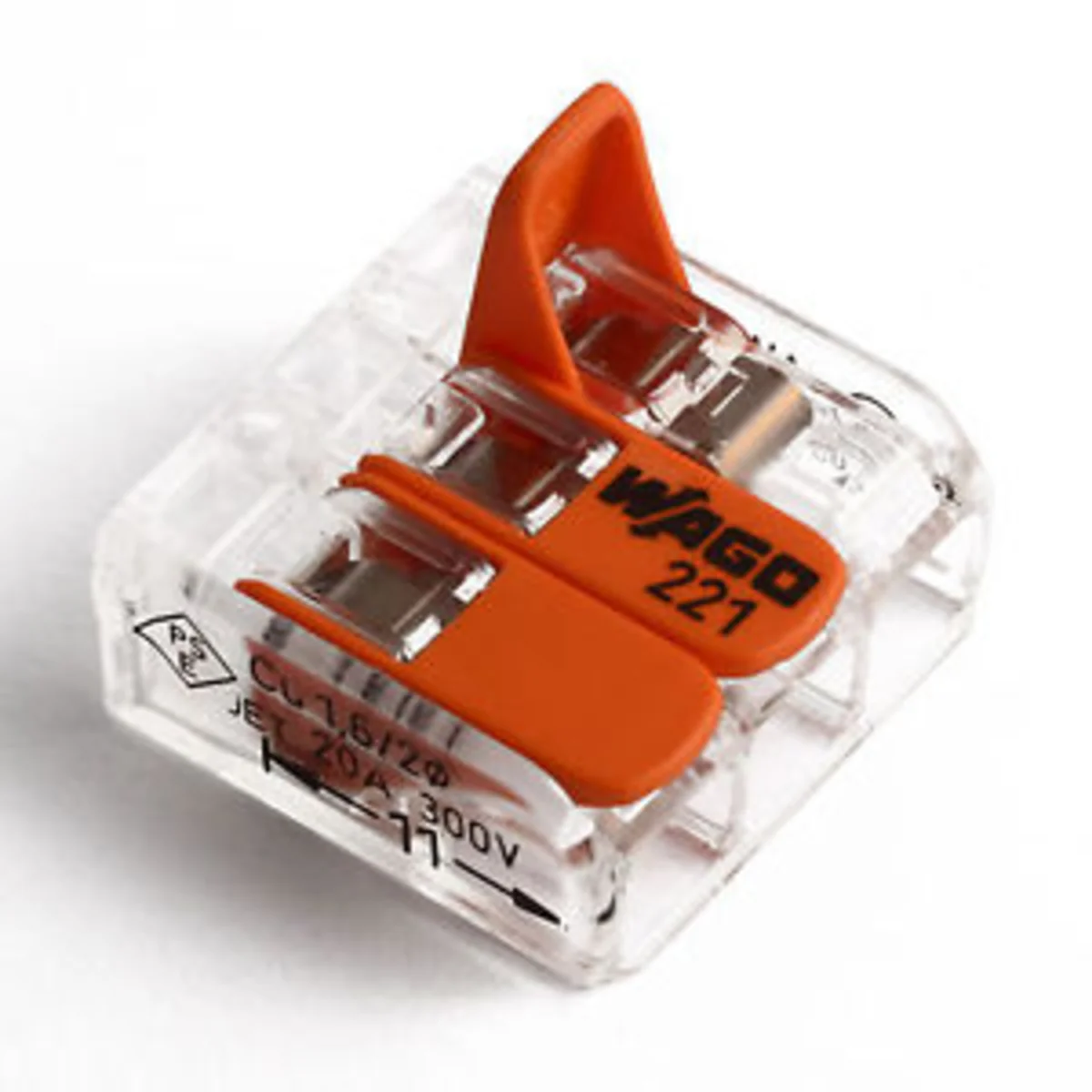

Installation connectors for all types of wires, 3-wire

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: WAGO ELWAG

Depth [mm]: 18.6

Overvoltage category: III

Color: Transparent | Orange

Siehe vollständige Beschreibung

Preis:

35,13 zł

gross / pack

(inklusive MwSt 23%)

2,93 zł gross/stk.

Zugänglich 71 pack

Menge pack

(mehrere:

1

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen

Produktbeschreibung

The new family of WAGO 221 series connectors enables faster and easier creation of a safe installation using various types of cables: single-wire, stranded or stranded.
The 221 series is designed for a nominal current of 32A and a nominal voltage of 450V and therefore can be used in networks 230V / 400V. The transparent housing provides full control of the placement of wires.

Technische Daten

Depth [mm]

18.6
Color

Transparent Orange
Material

PC
Fire load [MJ]

0.064
Clamp type

Lever
Degree of contamination

2
Pieces in the package

12
Height [mm]

8.3
Number of connectors

3
Suitable cross sections [mm²]

0.14 0.25 0.34 0.5 0.75 1 1.5 2.5 4
Wire stripping length [mm]

11

Overvoltage category

III
Number of potentials

1
Rated voltage [V]

450
Rated current [A]

32
Family

221
Width [mm]

18.7
Weight [g]

2.5
Rated impulse voltage [kV]

4
Flammability class

V2
Clamping technique

CAGE CLAMP®

Weitere technische Daten

Number of clamp positions

3
With operation lever

Yes
Transparent

Yes
Nominal voltage

450 V
Suitable for flexible conductors

Yes
Conductor cross section flexible (fine-strand) with cable end sleeve

0.14 ... 4 mm²

Nominal cross section

0.2 ... 4 mm²
Colour

Colourless
Suitable for solid conductors

Yes
Nominal current

32 A
Suitable for multi-wire conductors

Yes
Conductor cross section solid (solid, stranded)

0.2 ... 4 mm²

Hersteller-Details

Hersteller

WAGO GmbH & Co. KG
Adresse

32423 Minden Hansastraße 27 Niemcy
E-Mail

wago.elwag@wago.com

Großpackungen

Eine Art Paket	Tacka
Menge	18 pack
Gewicht (kg)	0,876
Volumen (m3)	0,003
Breite (m)	0,102
Länge (m)	0,298
Tiefe (m)	0,134
