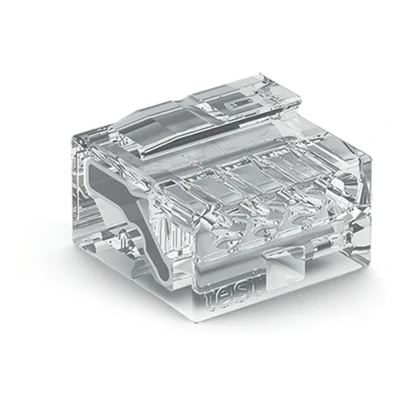

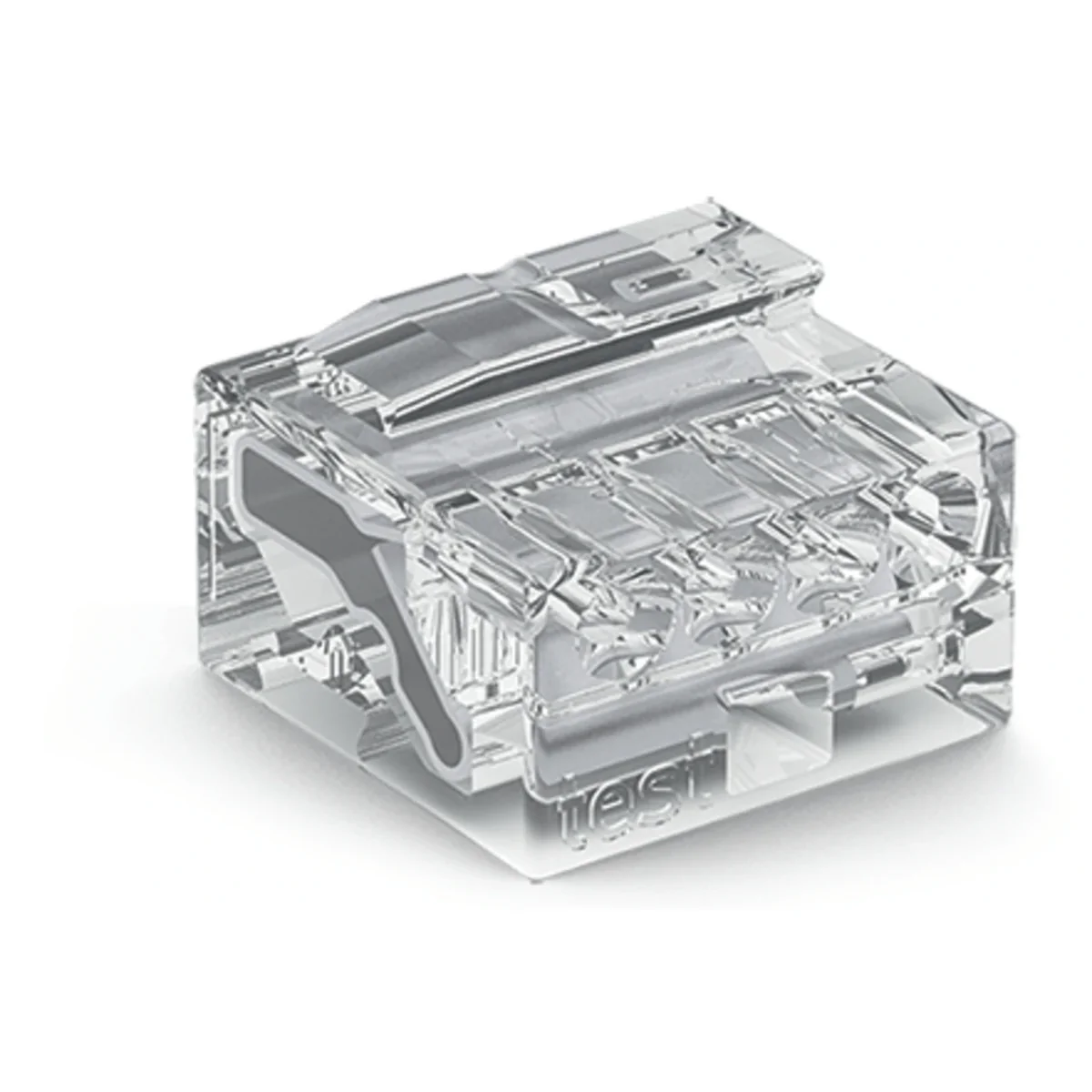

Installation connector MIKRO 4x0.4 - 0.5mm² transparent 100pcs. 243-144

local index:
TEB105WAGO
Catalog No:
243-144
EAN code:
4044918937788
Manufacturer: WAGO ELWAG
Number of tracks: 4
Color: Transparent
Rated current [A]: 6
Price:
31,01 €
gross / pkg.
(including VAT 23%)
0,31 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MIKRO 4-wire installation connector.

Technical data

  • Number of tracks
    4
  • Rated current [A]
    6
  • Clamp type
    PUSH WIRE
  • Dirt zone
    2
  • Weight [g]
    0.81
  • Accurate color
    Transparent
  • Color
    Transparent
  • Gauge [AWG]
    24
  • Series
    243
  • Pieces in the package
    100
  • Rated impulse voltage [kV]
    1.5
  • Number of connectors
    4

Other technical data

  • Number of clamp positions
    4
  • With operation lever
    No
  • Nominal voltage
    100 V
  • Suitable for solid conductors
    Yes
  • Suitable for multi-wire conductors
    No
  • Cable diameter
    0.4 ... 0.5 mm
  • Colour
    Przezroczysty (transparentny)
  • Nominal current
    6 A
  • Suitable for flexible conductors
    No
  • AWG-range
    26 ... 24

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 1,090
Volume (m3) 0,003
Width (m) 0,103
Length (m) 0,353
Depth (m) 0,072
