Installation connector for all types of wires 3-wire - 50 pcs. 221-413

Name: Installation connector for all types of wires 3-wire - 50 pcs.
Brand: WAGO ELWAG
SKU: TEB247WAGO
Price: 98.41 PLN
Availability: InStock

Lokaler Index:

TEB247WAGO

Katalognummer:

221-413

EAN-Code:

4050821808442

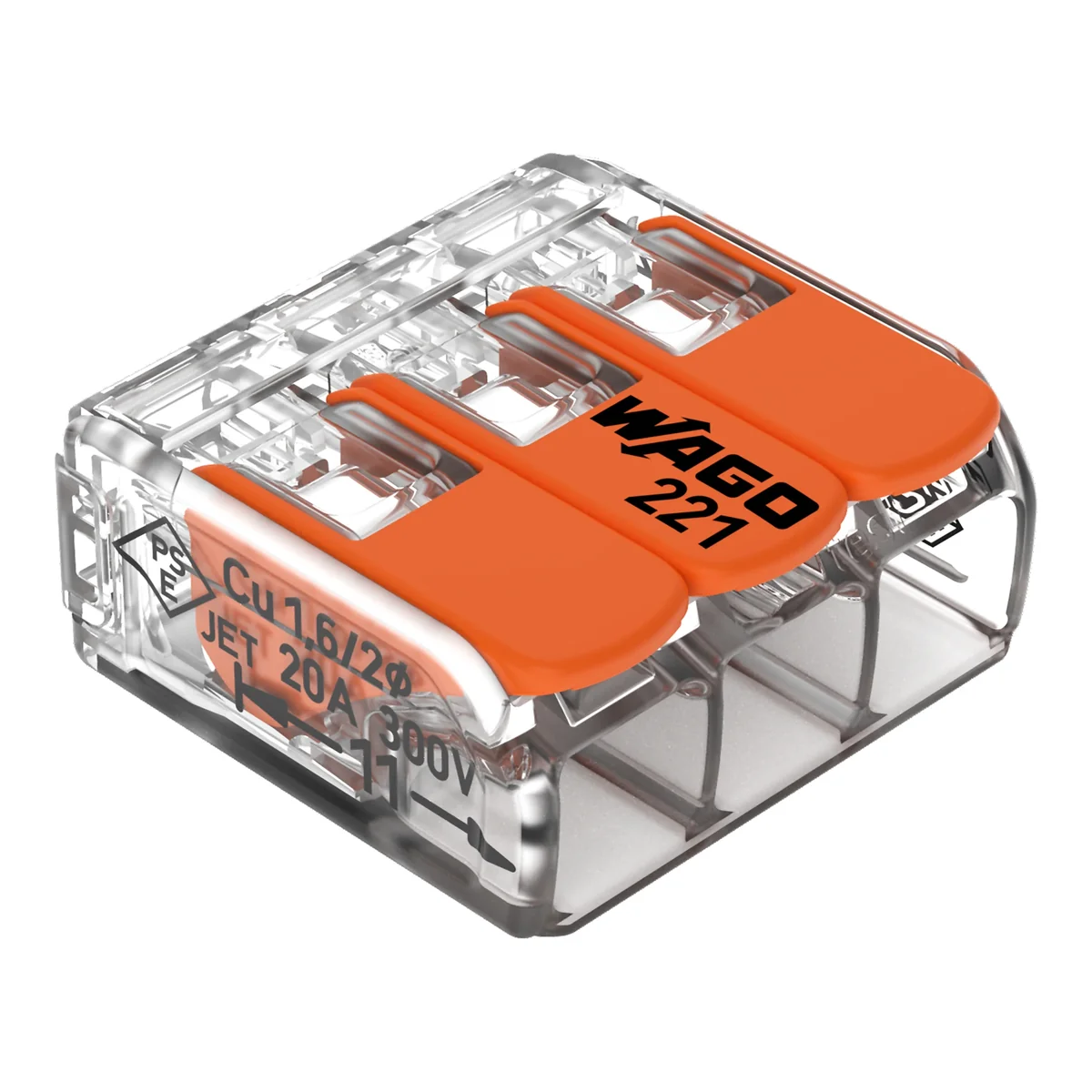

Installation connector for all types of wires 3-wire - 50 pcs.

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: WAGO ELWAG

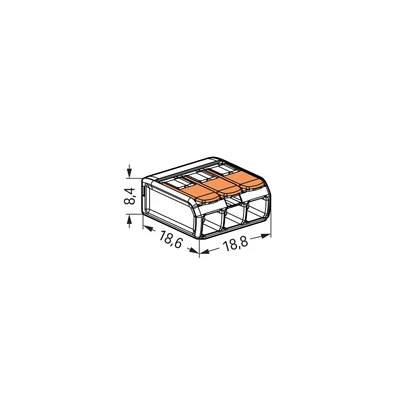

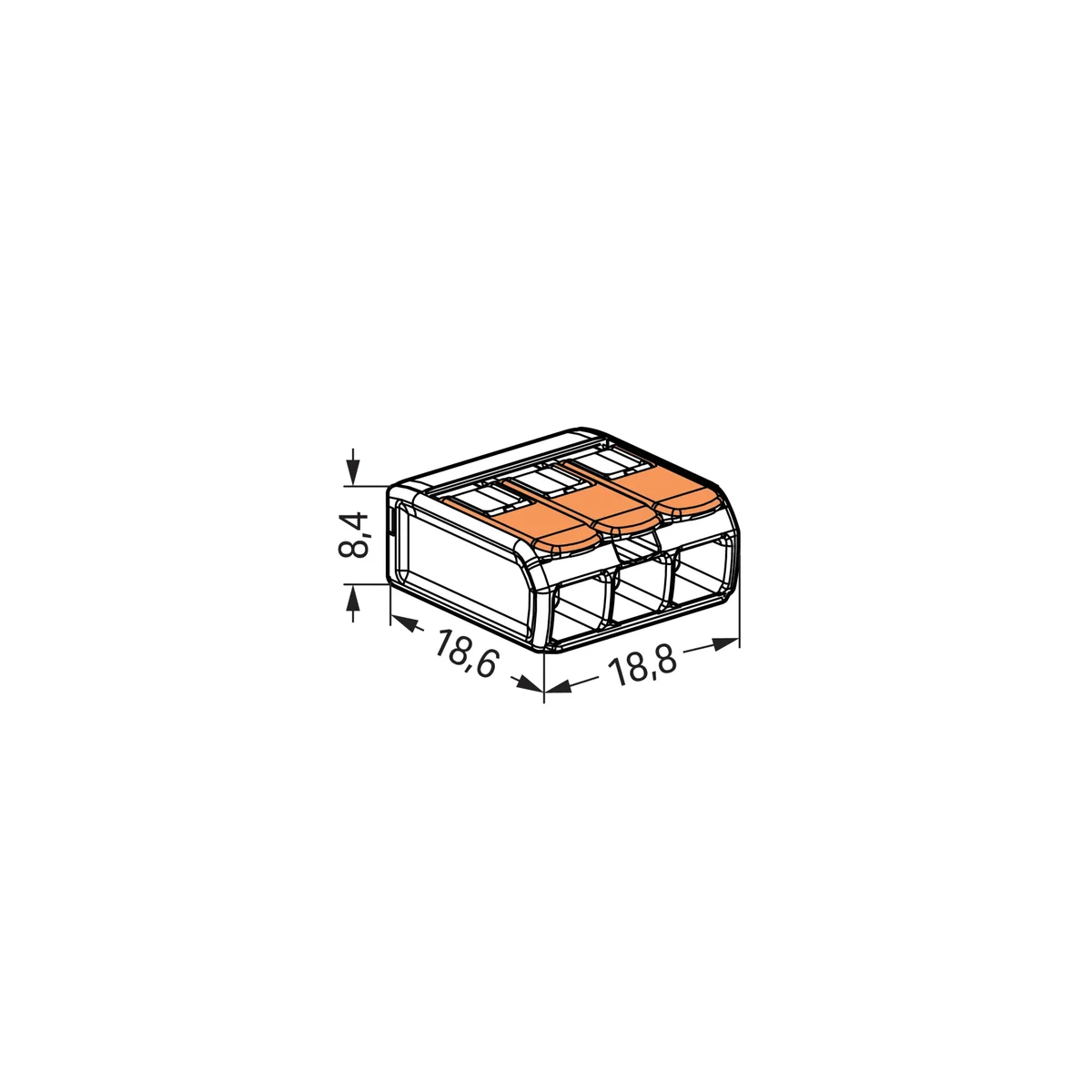

Depth [mm]: 18.6

Overvoltage category: III

Color: Transparent | Orange

Siehe vollständige Beschreibung

Preis:

98,41 zł

gross / pack

(inklusive MwSt 23%)

1,97 zł gross/stk.

Zugänglich 221 pack

Menge pack

(mehrere:

1

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen

Produktbeschreibung

The new family of WAGO 221 series connectors enables faster and easier creation of a safe installation using various types of cables: single-wire, stranded or multi-wire.
The 221 series is designed for a nominal current of 32A and a nominal voltage of 450V and therefore can be used in 230V / 400V networks. The transparent housing provides full control of the placement of wires.

Technische Daten

Depth [mm]

18.6
Color

Transparent Orange
Material

PC
Fire load [MJ]

0.064
Clamp type

Lever
Degree of contamination

2
Pieces in the package

50
Height [mm]

8.3
Number of connectors

3
Suitable cross sections [mm²]

0.14 0.25 0.34 0.5 0.75 1 1.5 2.5 4
Wire stripping length [mm]

11

Overvoltage category

III
Number of potentials

1
Rated voltage [V]

450
Rated current [A]

32
Family

221
Width [mm]

18.7
Weight [g]

2.5
Rated impulse voltage [kV]

4
Flammability class

V2
Clamping technique

CAGE CLAMP®
PKWIU

27.33.13.0

Weitere technische Daten

Number of clamp positions

3
With operation lever

Yes
Transparent

Yes
Nominal current

32 A
Suitable for flexible conductors

Yes
Conductor cross section flexible (fine-strand) with cable end sleeve

0.14 ... 4 mm²
AWG-range

12 ... 24

Nominal cross section

0.2 ... 4 mm²
Colour

Colourless
Nominal voltage

450 V
Suitable for solid conductors

Yes
Suitable for multi-wire conductors

Yes
Conductor cross section solid (solid, stranded)

0.2 ... 4 mm²

Hersteller-Details

Hersteller

WAGO GmbH & Co. KG
Adresse

32423 Minden Hansastraße 27 Niemcy
E-Mail

wago.elwag@wago.com

Großpackungen

Eine Art Paket	Karton	Karton
Menge	10 pack	10 pack
Gewicht (kg)	1,523	1,523
Volumen (m3)	0,000	0,000
Breite (m)	0,170	0,170
Länge (m)	0,220	0,220
Tiefe (m)	0,110	0,110
