Installation connector for all types of wires 2-wire - 100pcs. 221-412

Name: Installation connector for all types of wires 2-wire - 100pcs.
Brand: WAGO ELWAG
SKU: TEB248WAGO
Price: 37.45 PLN
Availability: InStock

Indice locale:

TEB248WAGO

Numero di catalogo:

221-412

Codice EAN:

4050821808435

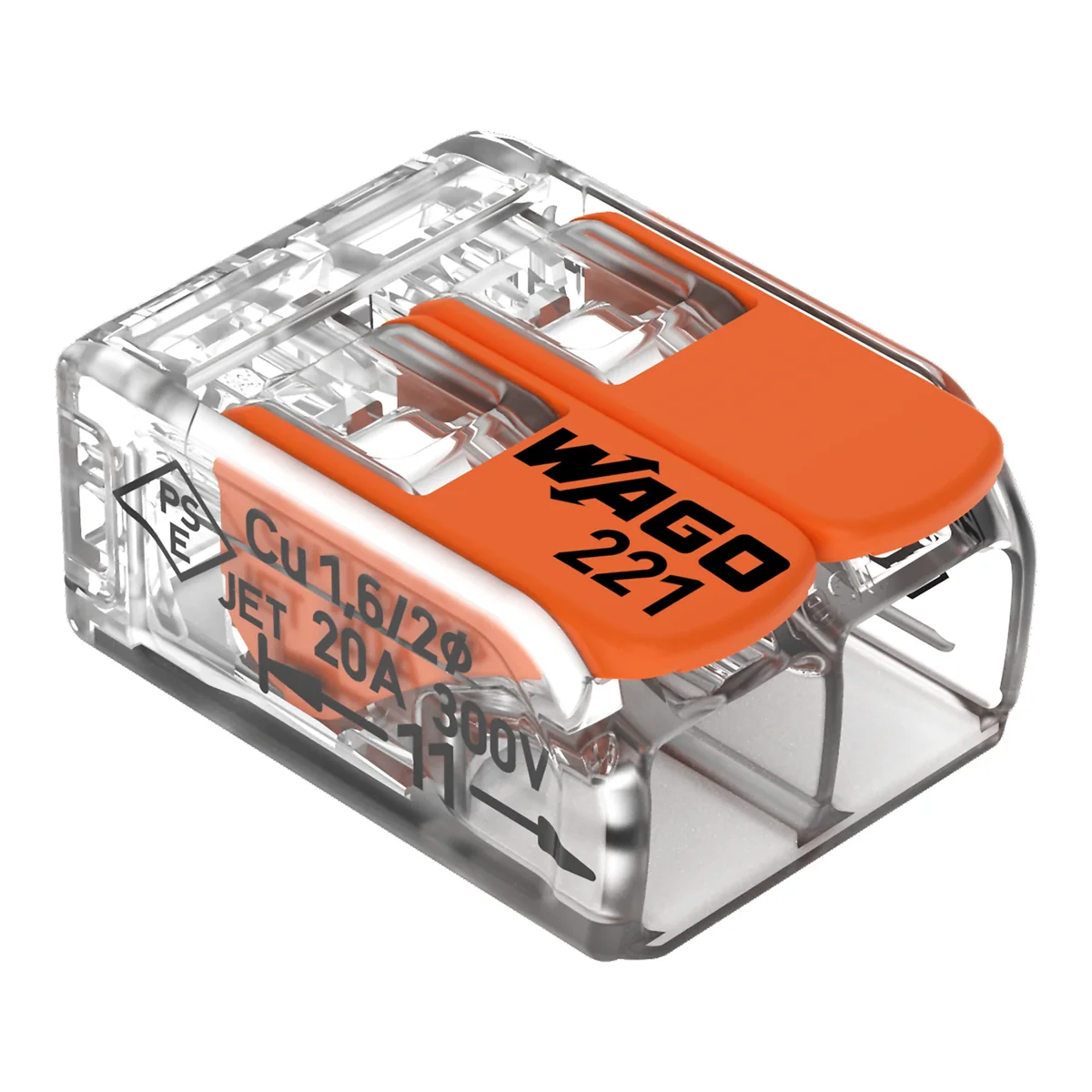

Installation connector for all types of wires 2-wire - 100pcs.

Clicca sulla foto per ingrandire

Produttore: WAGO ELWAG

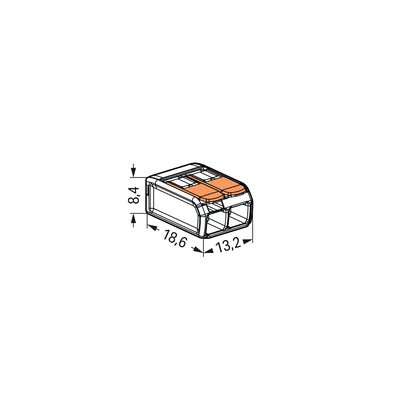

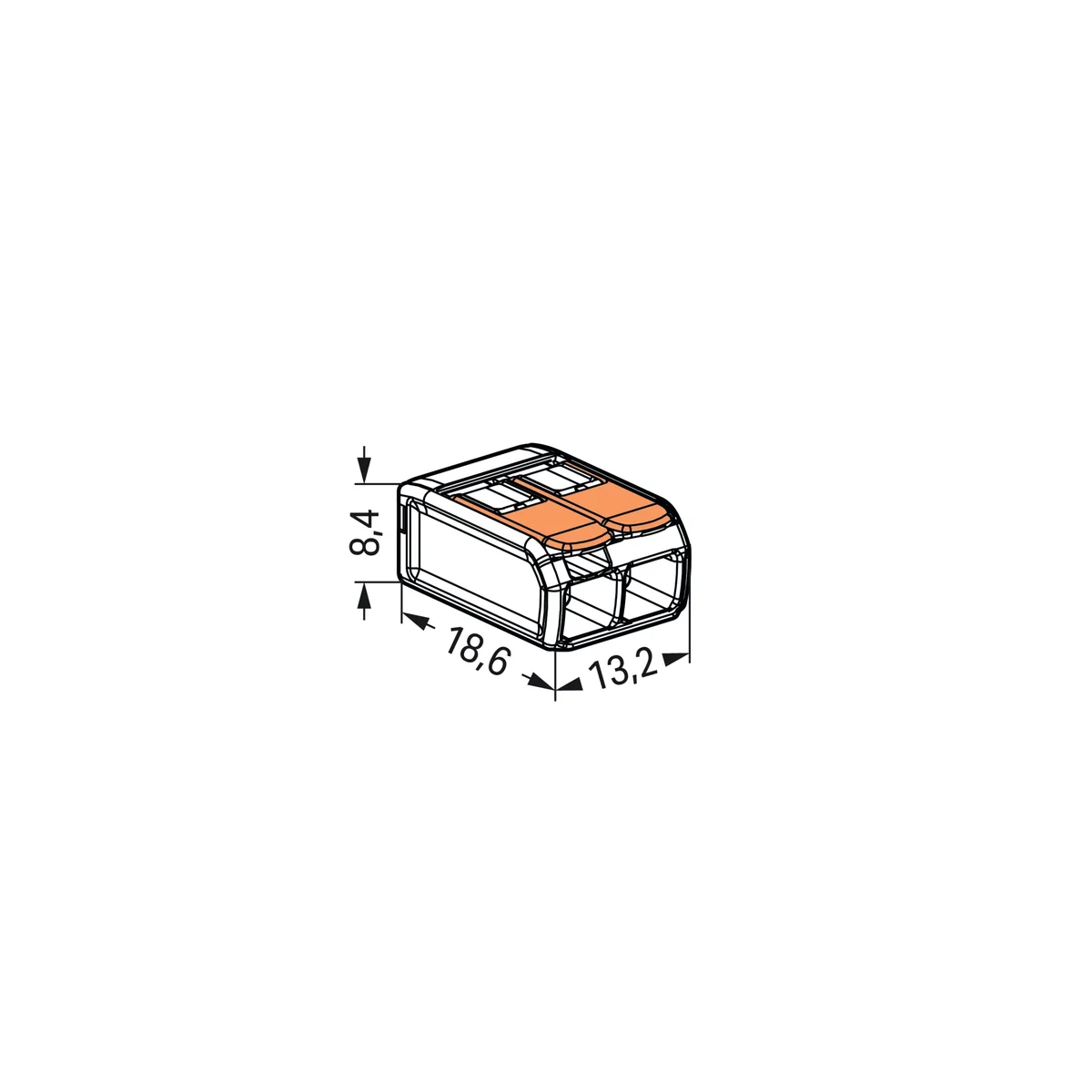

Depth [mm]: 18.6

Overvoltage category: III

Color: Transparent | Orange

Vedi la descrizione completa

Prezzo:

37,45 €

gross / conf.

(inclusa IVA 23%)

0,37 € gross/pezzi

Accessibile 129 conf.

Quantità conf.

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

The new family of WAGO 221 series connectors enables faster and easier creation of a safe installation using various types of cables: single-wire, stranded or stranded.

The 221 series is designed for a nominal current of 32A and a nominal voltage of 450V and therefore can be used in 230V / 400V networks. The transparent housing provides full control of the placement of wires.

Dati tecnici

Depth [mm]

18.6
Color

Transparent Orange
Material

PC
Fire load [MJ]

0.049
Clamp type

Lever
Degree of contamination

2
Pieces in the package

100
Height [mm]

8.3
Number of connectors

2
Suitable cross sections [mm²]

0.14 0.25 0.34 0.5 0.75 1 1.5 2.5 4
Wire stripping length [mm]

11

Overvoltage category

III
Number of potentials

1
Rated voltage [V]

450
Rated current [A]

32
Family

221
Width [mm]

13.1
Weight [g]

1.7
Rated impulse voltage [kV]

4
Flammability class

V2
Clamping technique

CAGE CLAMP®
PKWIU

27.33.13.0

Altri dati tecnici

Number of clamp positions

2
With operation lever

Yes
Transparent

Yes
Nominal current

32 A
Suitable for flexible conductors

Yes
Conductor cross section flexible (fine-strand) with cable end sleeve

0.14 ... 4 mm²
AWG-range

12 ... 24

Nominal cross section

0.2 ... 4 mm²
Colour

Colourless
Nominal voltage

450 V
Suitable for solid conductors

Yes
Suitable for multi-wire conductors

Yes
Conductor cross section solid (solid, stranded)

0.2 ... 4 mm²

Dettagli del produttore

Produttore

WAGO GmbH & Co. KG
Indirizzo

32423 Minden Hansastraße 27 Niemcy
Email

wago.elwag@wago.com

Imballaggio sfuso

Una specie di pacchetto	Karton
Quantità	10 conf.
Peso (kg)	1,941
Volume (m3)	0,000
Larghezza (m)	0,170
Lunghezza (m)	0,220
Profondità (m)	0,110
