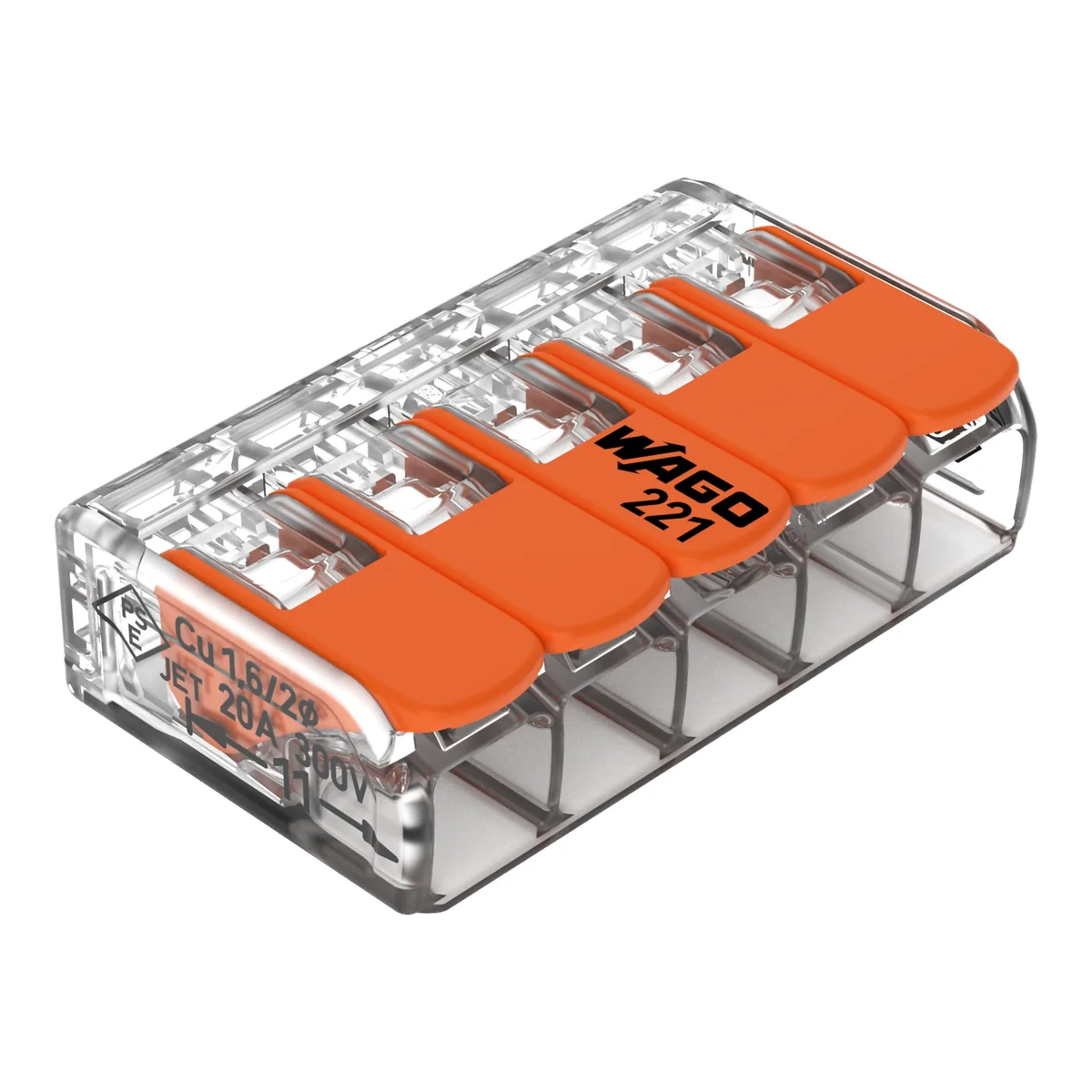

Installation connector for all types of cables 5-wire 221-415

local index:
TEB246WAGO
Catalog No:
221-415
EAN code:
4055143234658
Manufacturer: WAGO ELWAG

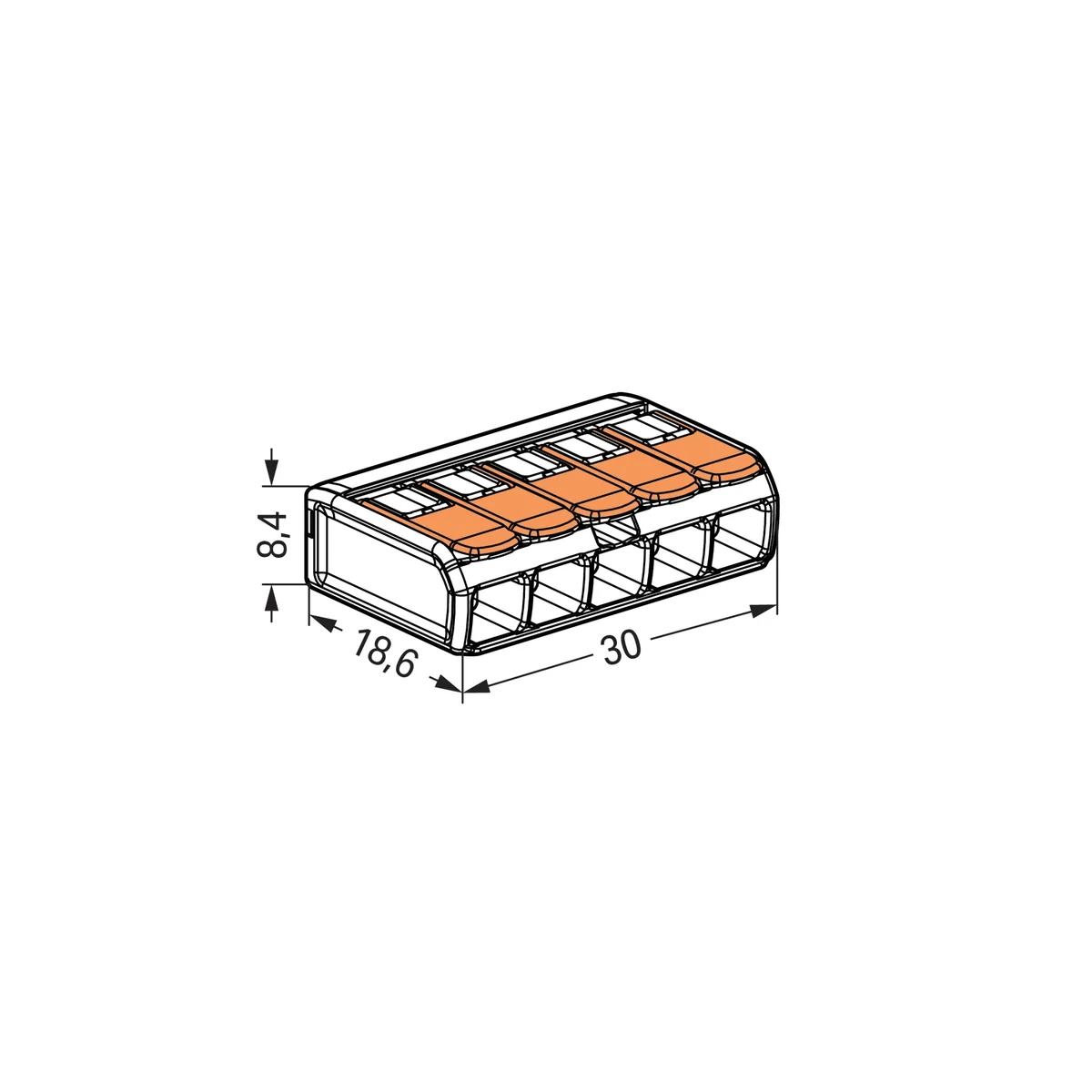

Depth [mm]: 18.6
Color: Transparent
Number of potentials: 1
Price:
21,30 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 147 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The new family of WAGO 221 series connectors enables faster and easier creation of a safe installation using various types of cables: single-wire, stranded or multi-wire.
The 221 series is designed for a nominal current of 32A and a nominal voltage of 450V and therefore can be used in 230/400V networks. The transparent housing provides full control of the placement of wires.

Technical data

  • Depth [mm]
    18.6
  • Number of potentials
    1
  • Rated current [A]
    32
  • Clamp type
    CAGE CLAMP
  • Width [mm]
    29.9
  • Rated impulse voltage [kV]
    4
  • Wire cross-section [mm²]
    Single-wire/multi-wire: 0.2-4; linkage: 0.14-4
  • PKWIU
    27.33.13.0
  • Color
    Transparent
  • Rated voltage [V]
    450
  • Gauge [AWG]
    24 - 12
  • Series
    221
  • Height [mm]
    8.3
  • Number of connectors
    5
  • Suitable cross sections [mm²]
    0.14 0.25 0.34 0.5 0.75 1 1.5 2.5 4

Other technical data

  • Number of clamp positions
    5
  • With operation lever
    Yes
  • Nominal voltage
    450 V
  • Suitable for solid conductors
    Yes
  • Suitable for multi-wire conductors
    Yes
  • AWG-range
    24 ... 12
  • Nominal cross section
    0.2 ... 4 mm²
  • Colour
    Przezroczysty (transparentny)
  • Nominal current
    32 A
  • Suitable for flexible conductors
    Yes
  • Conductor cross section solid (solid, stranded)
    0.2 ... 4 mm²

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 1,255
Volume (m3) 0,004
Width (m) 0,170
Length (m) 0,220
Depth (m) 0,110
