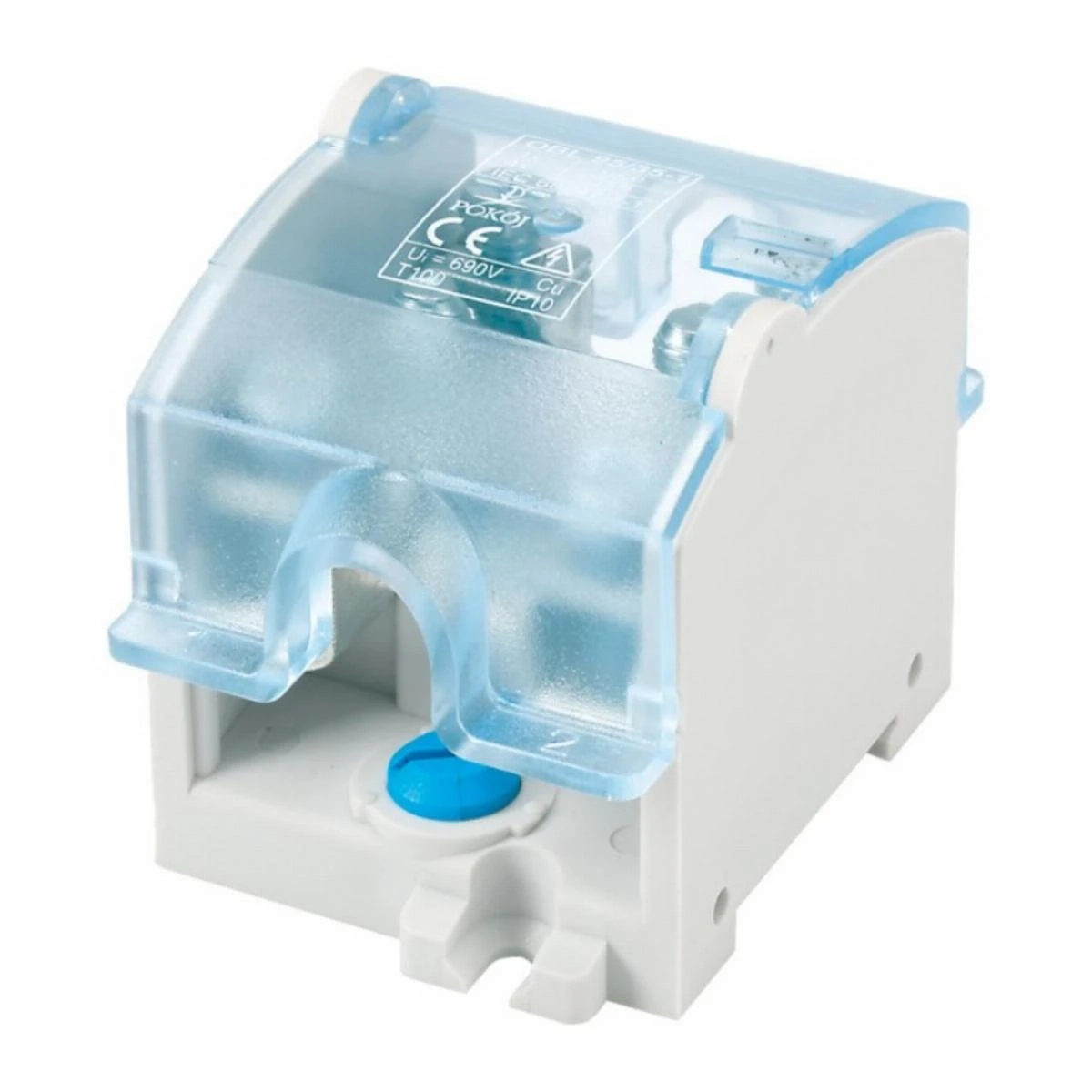

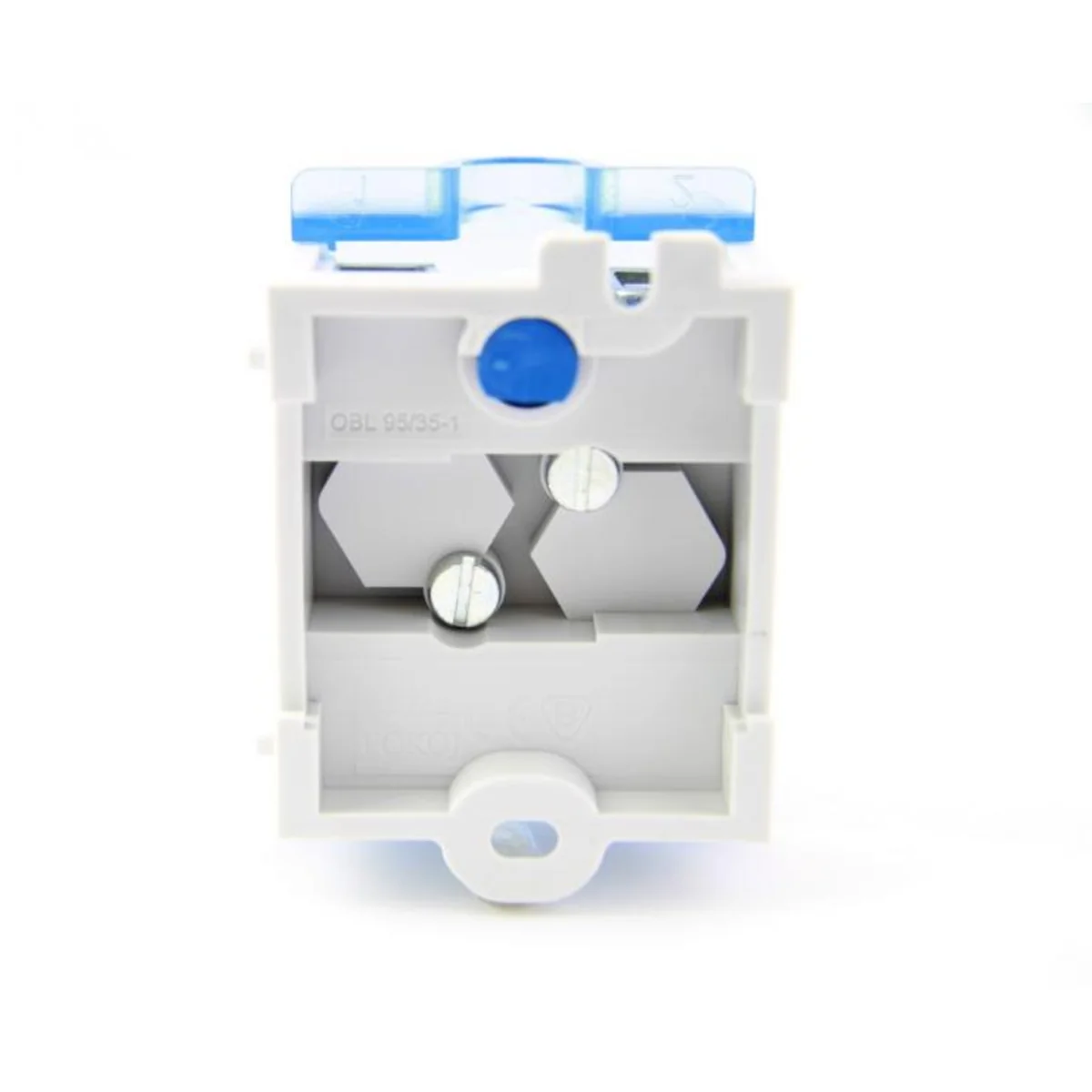

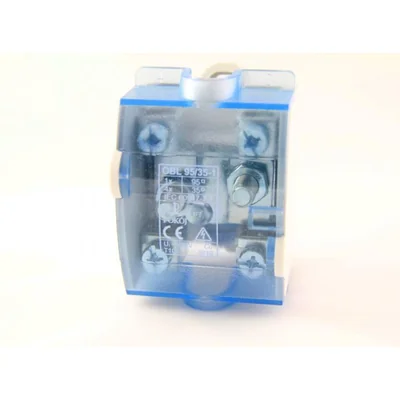

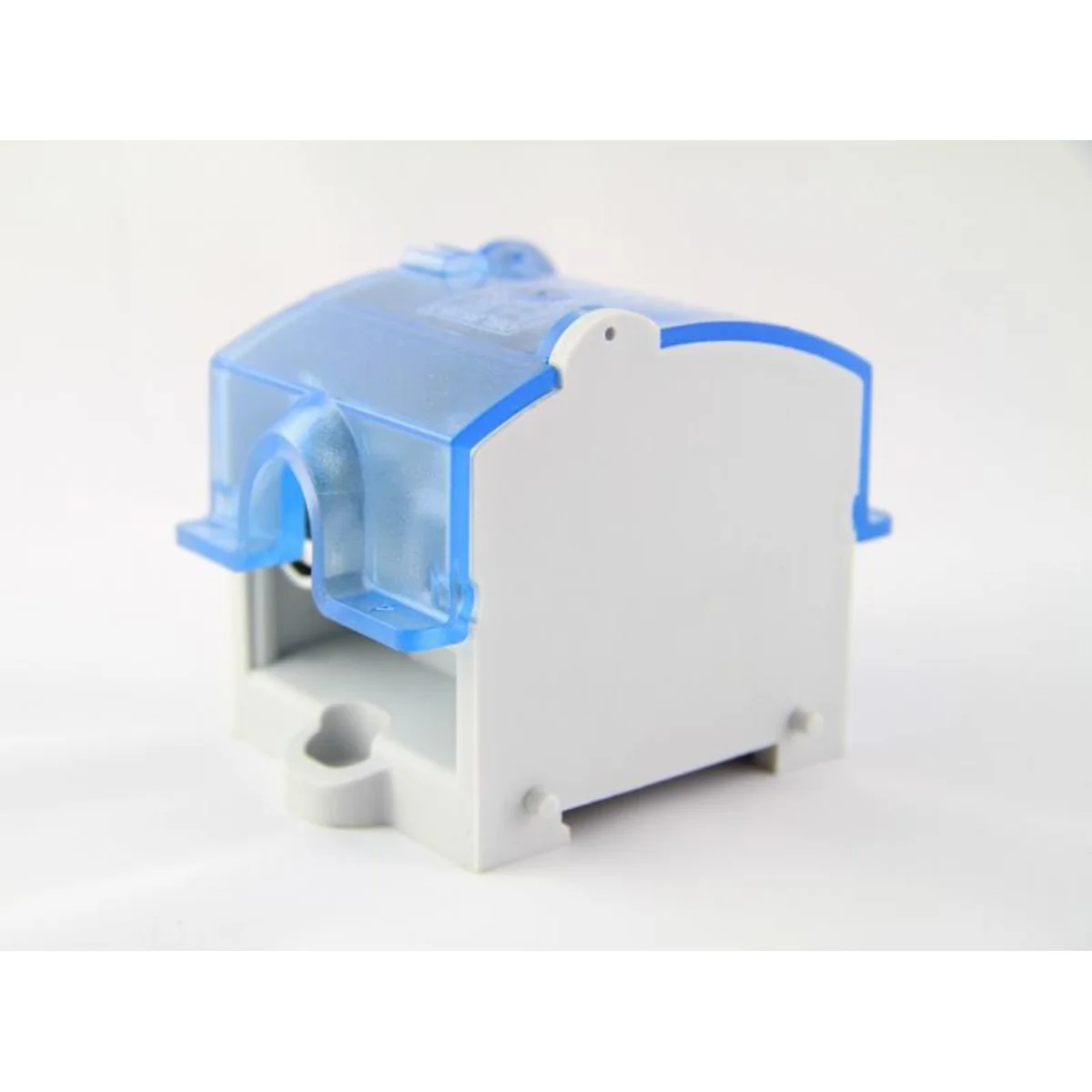

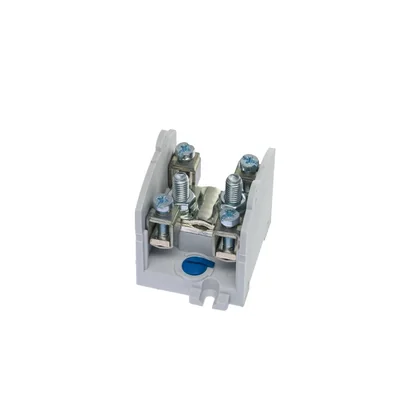

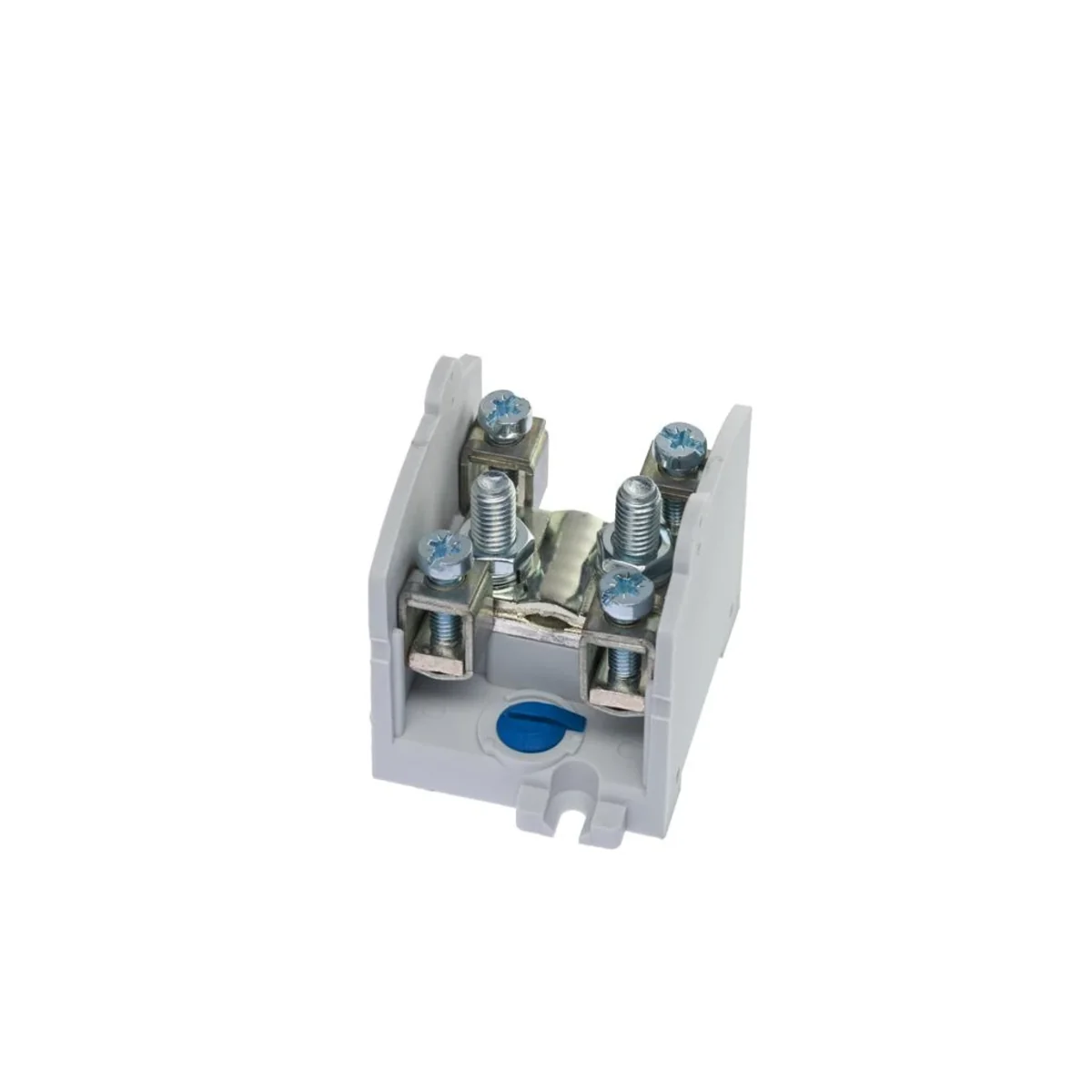

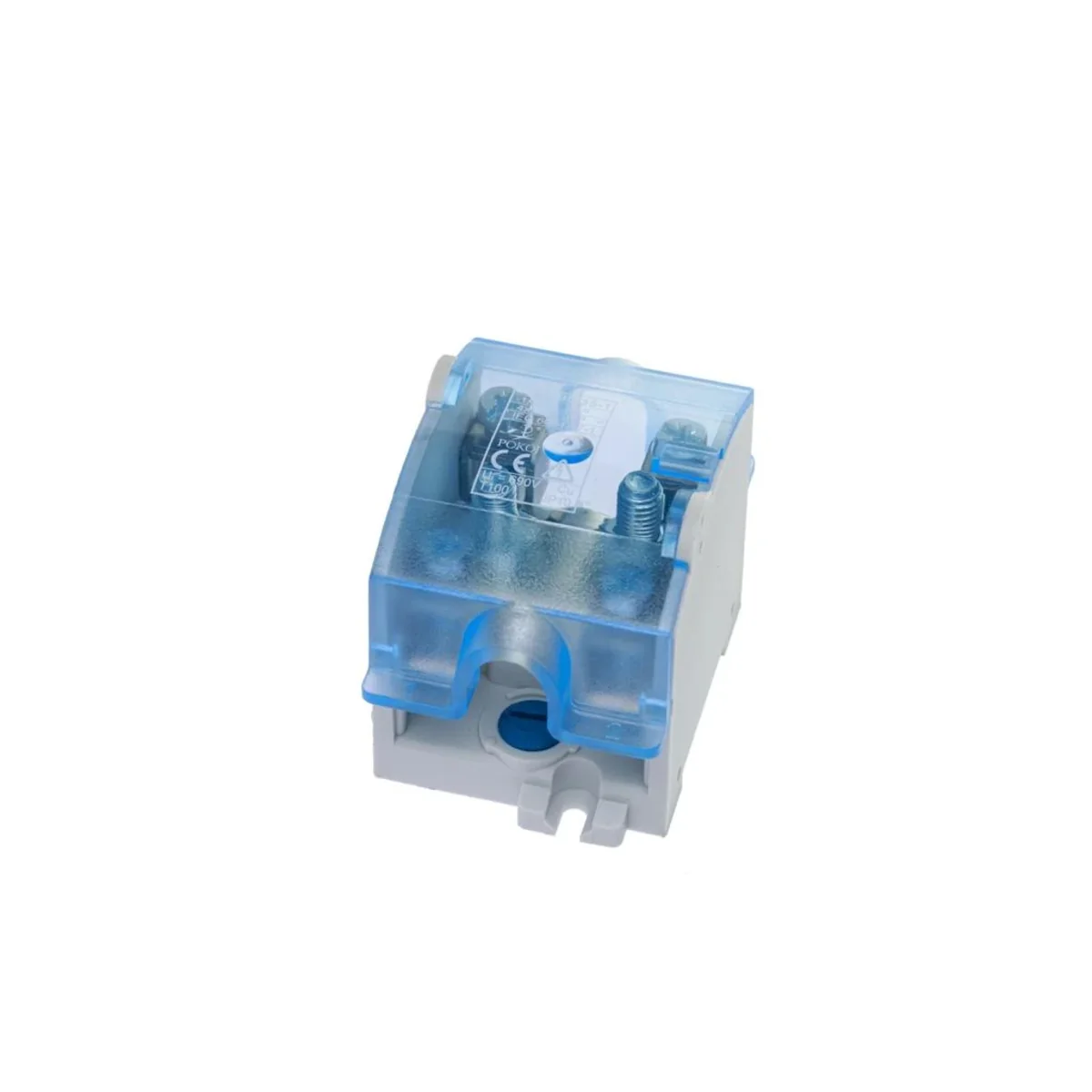

Installation branch OBL 95/35-1 grey/blue A13-6418
local index:
TEG207POKO
Catalog No:
A13-6418
EAN code:
5902626199692
Price:
15,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
OBL 95/35-1 is used to make electrical connections
The branch can be fixed to the ground (pins help to fix successive branches in relation to each other) or on all types of TS35 rails (the cam catch allows for secure mounting of the branch on the rail).
The lid has digitally marked branch current circuits, additionally there is a place for the main circuit markers. The lid can only be fixed in one position. The branch can be sealed.
Cable cross section 1: 25...95mm2
Cable cross section 2: 4...35mm2
Technical data
-
Number of tracks1
-
ColorGray
-
InstallationOn the TH-35 rail
-
Rated current [A]232
-
PKWIU27.33.13.0
-
Number of terminals5
-
Fixingscrew clamp
-
Rated voltage [V]690
-
Accurate colorGrey/Blue
Other technical data
-
Nominal cross section main conductor, SE25 ... 95 mm²
-
Nominal cross section branch conductor, SE/RE4 ... 35 mm²
-
Material main conductorAluminium/copper
-
Terminal insulatedNo
-
Clamping channel opening branch conductorOne side open
-
Type of connectionScrewed connection
-
Nominal cross section main conductor, SM25 ... 70 mm²
-
Nominal cross section branch conductor, SM/RM4 ... 35 mm²
-
Material branch conductorAluminium/copper
-
Clamping channel opening main conductorBoth sides open
-
Surface protectionGalvanized
