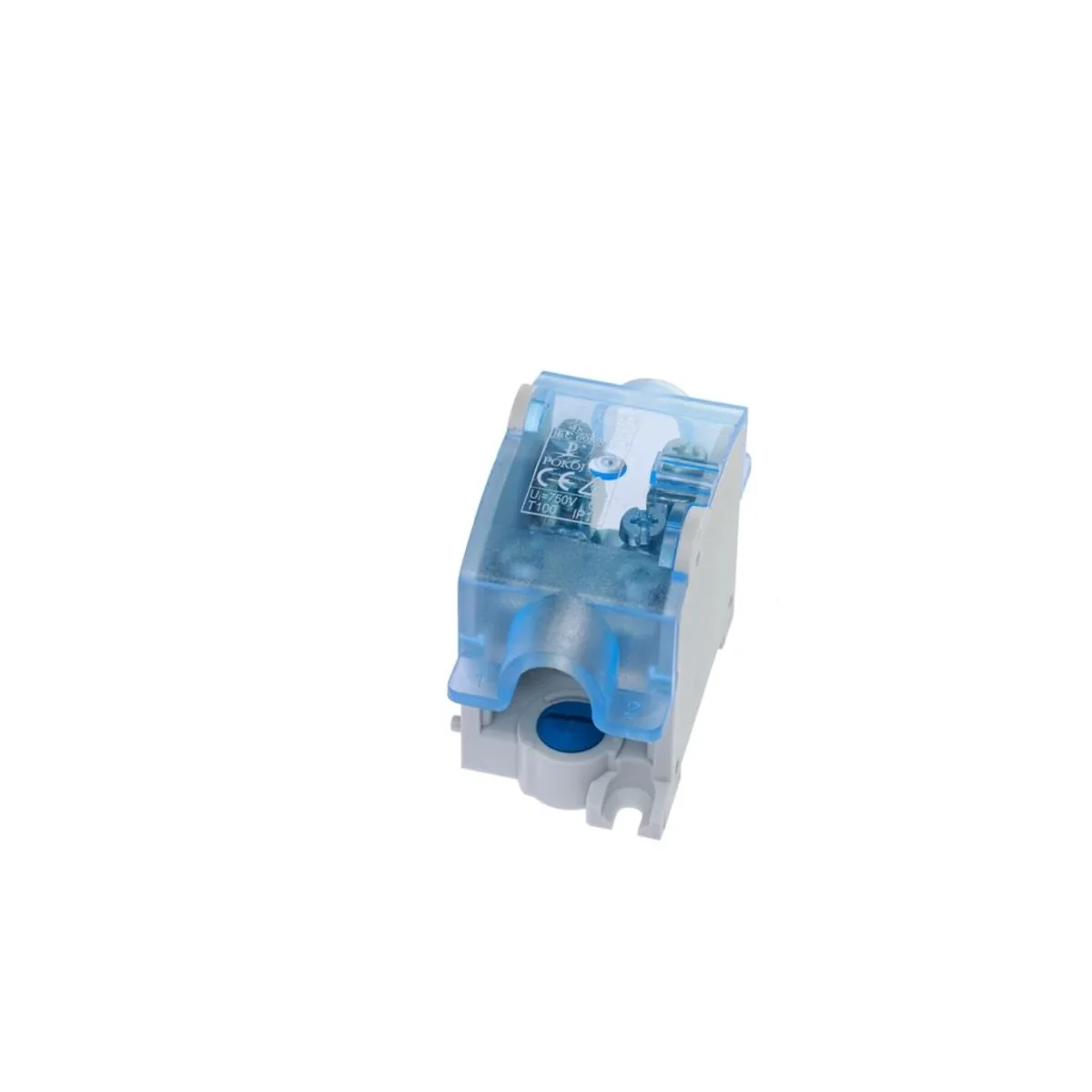

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Click on the photo to enlarge

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue

Installation branch OBL 35/25-1 grey/blue A13-6218

local index:

TEG204POKO

Catalog No:

A13-6218

EAN code:

5902626199579

Price:

9,58 €

gross / pcs.

including VAT 23%

Availability:

Check availability in branches

In warehouses 32 pcs.

Delivery:

From 3,70 € (prepaid courier) Details

Estimated delivery time:

DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

Metody dostawy

details

Payment methods:

Metody płatności

details

Go to section:

Product description Technical data

Product description

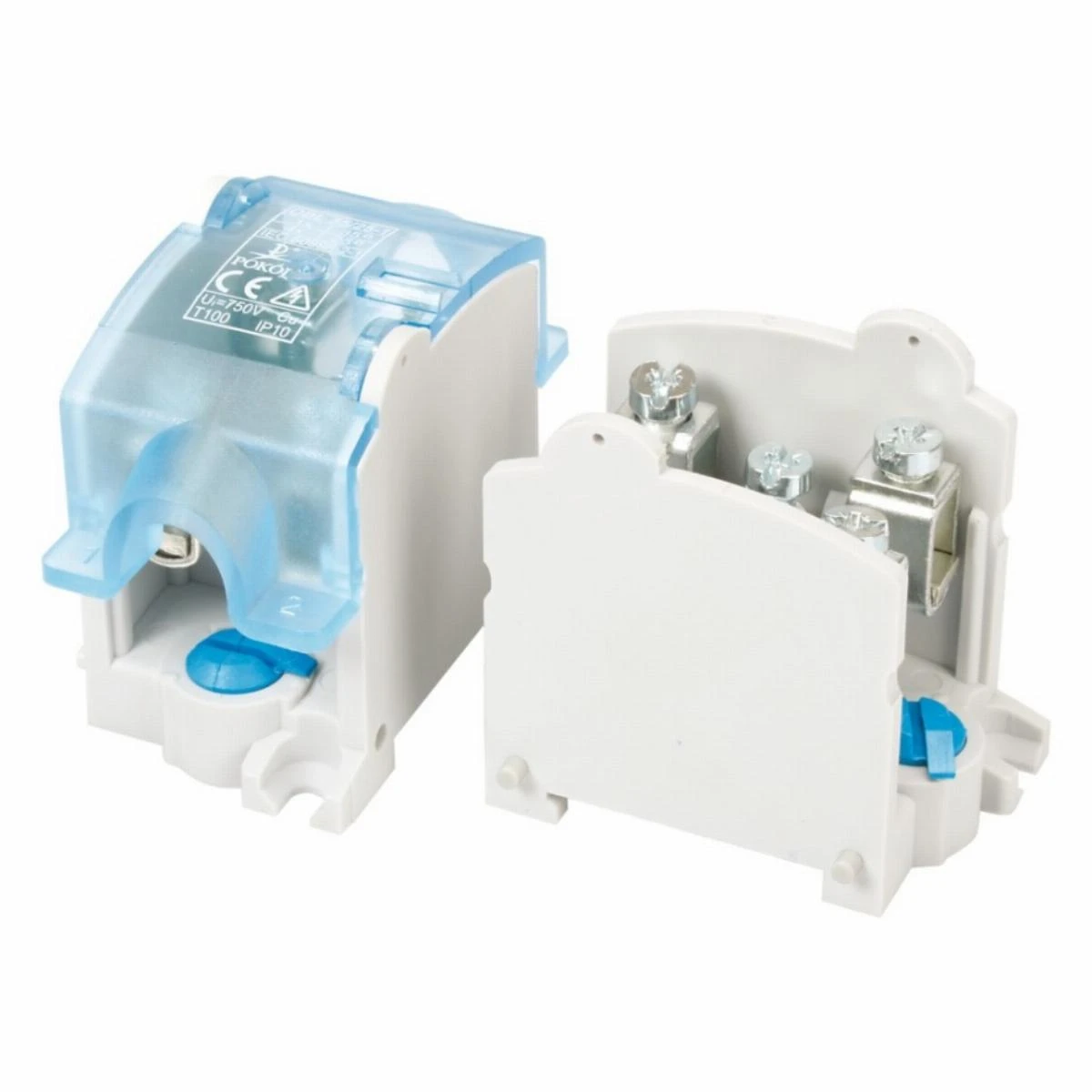

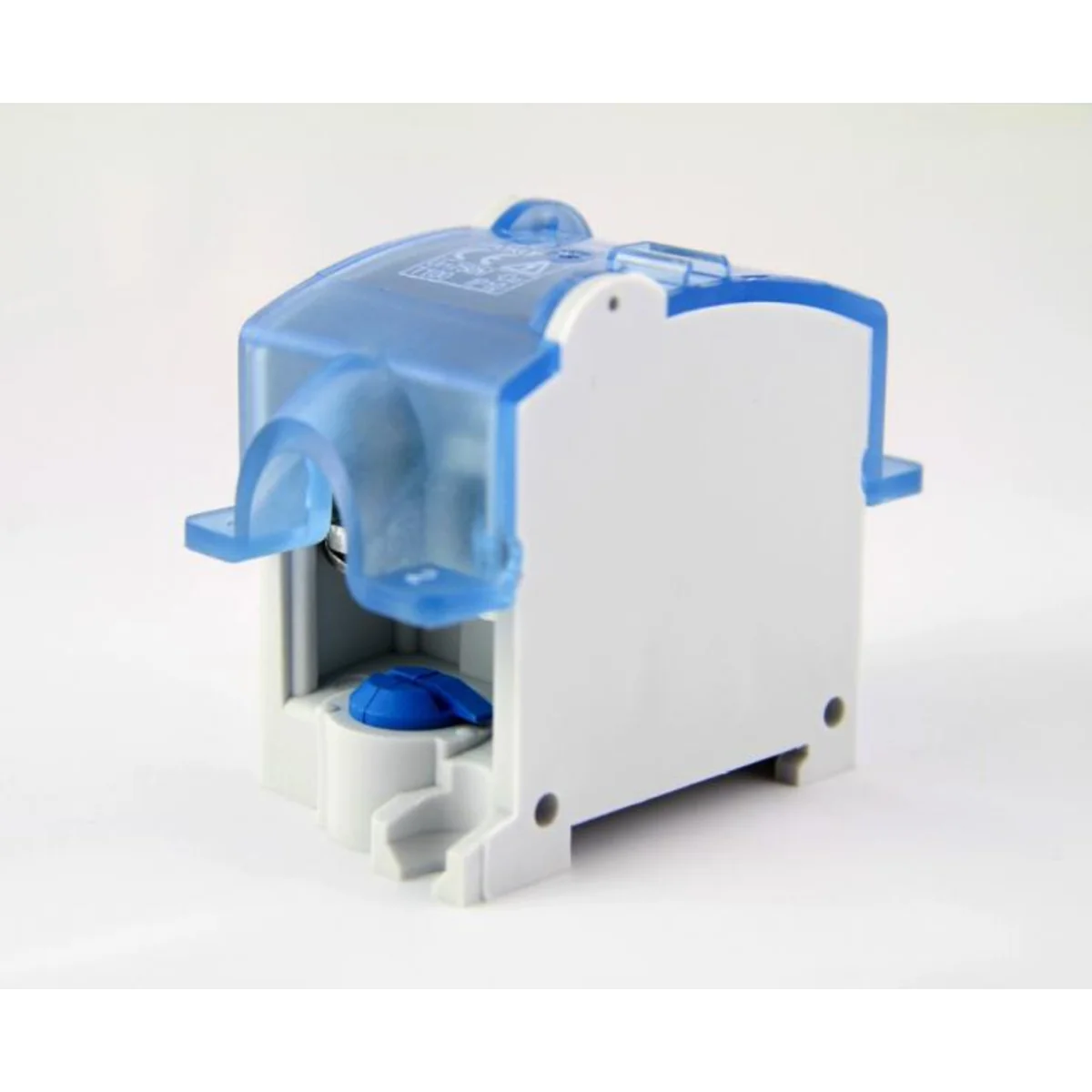

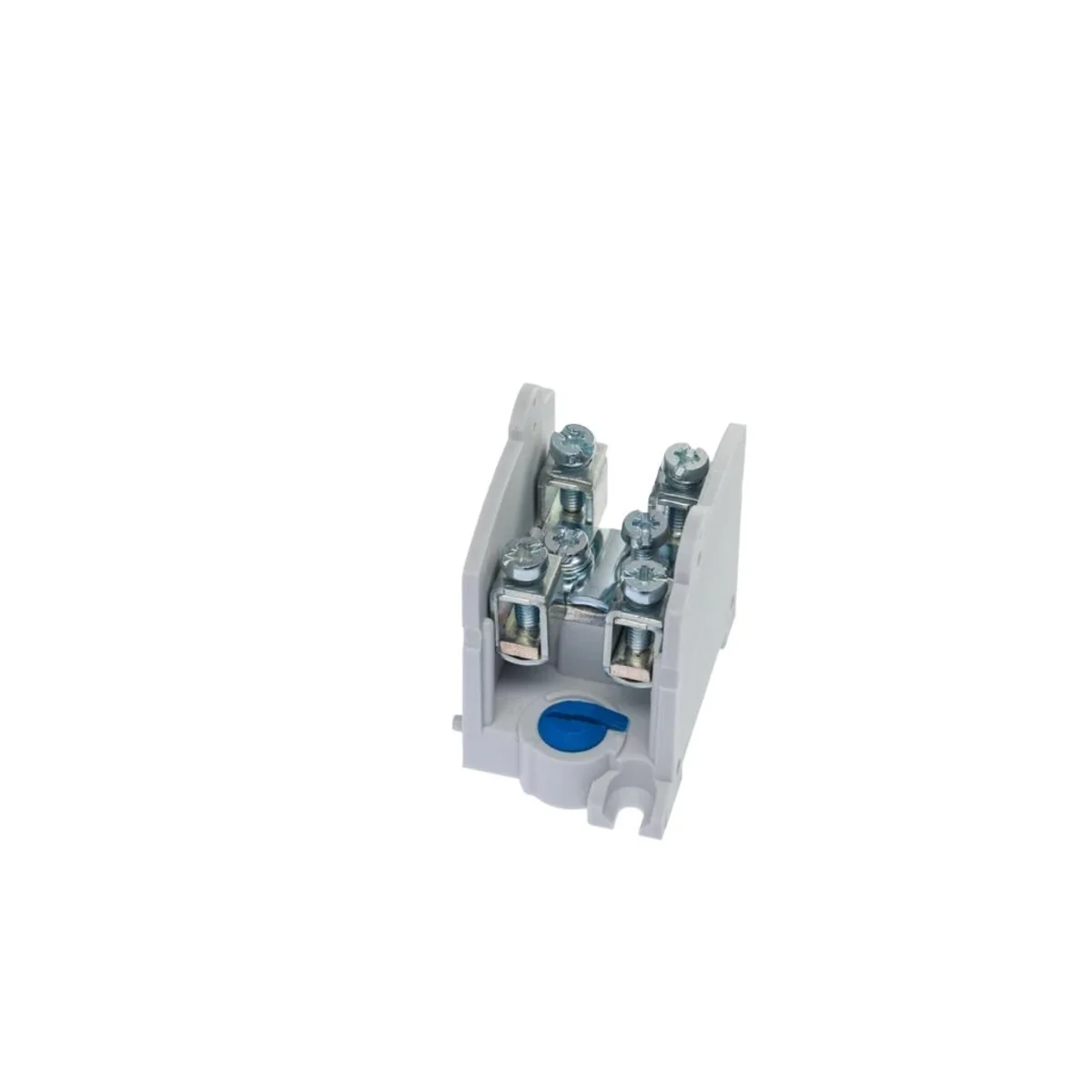

OBL 35/25-1 is used to make electrical connections

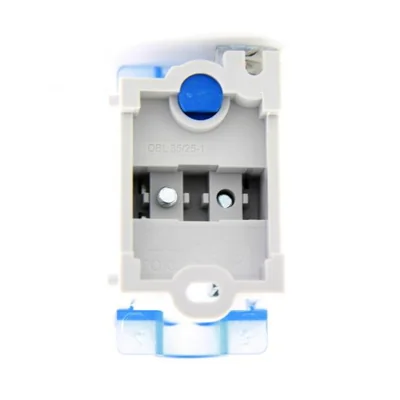

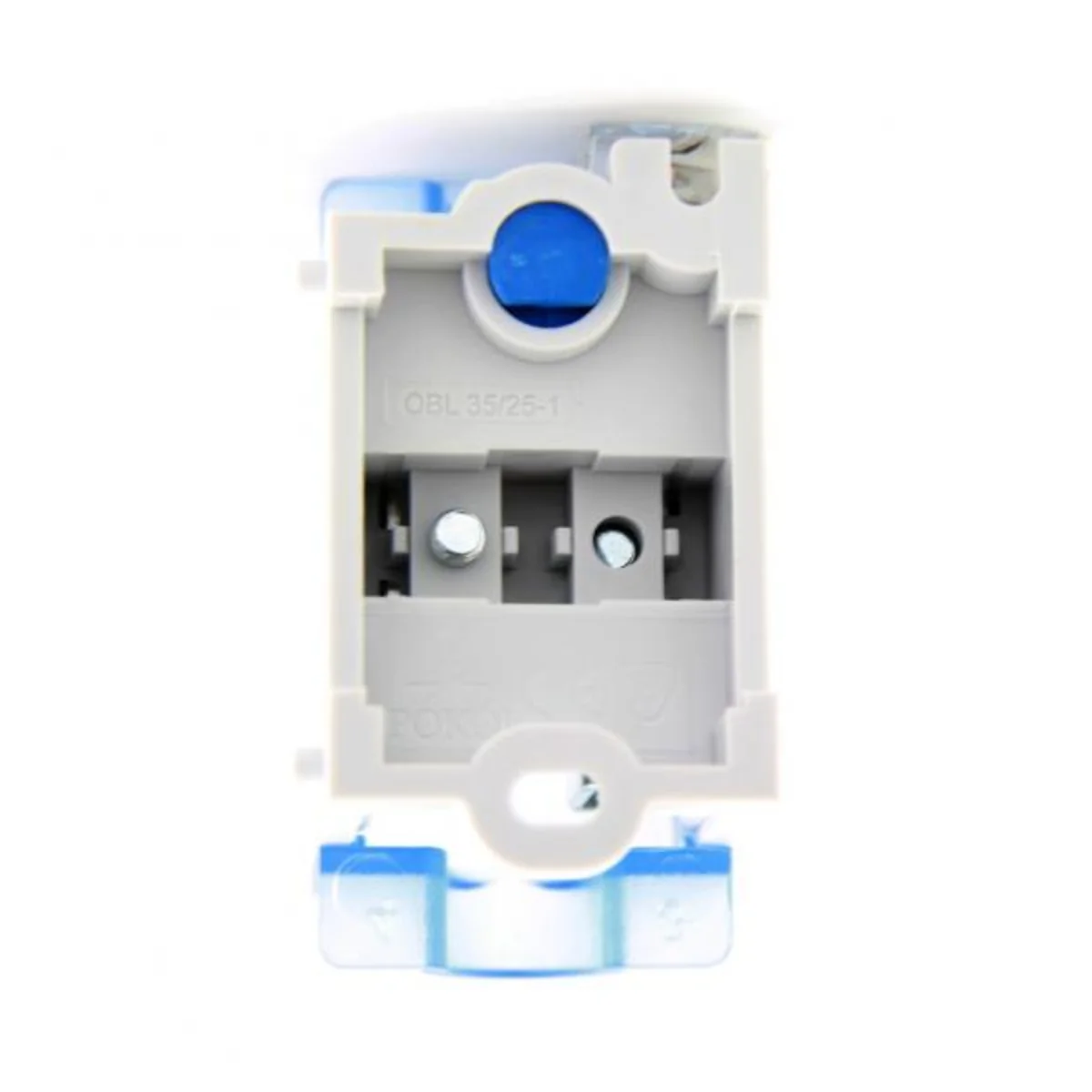

The branch can be fixed to the ground (pins help to fix successive branches in relation to each other) or on all types of TS35 rails (the cam catch allows for secure mounting of the branch on the rail).

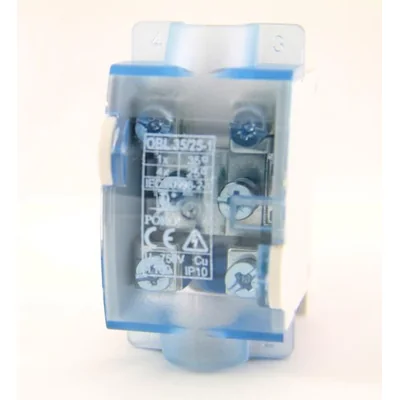

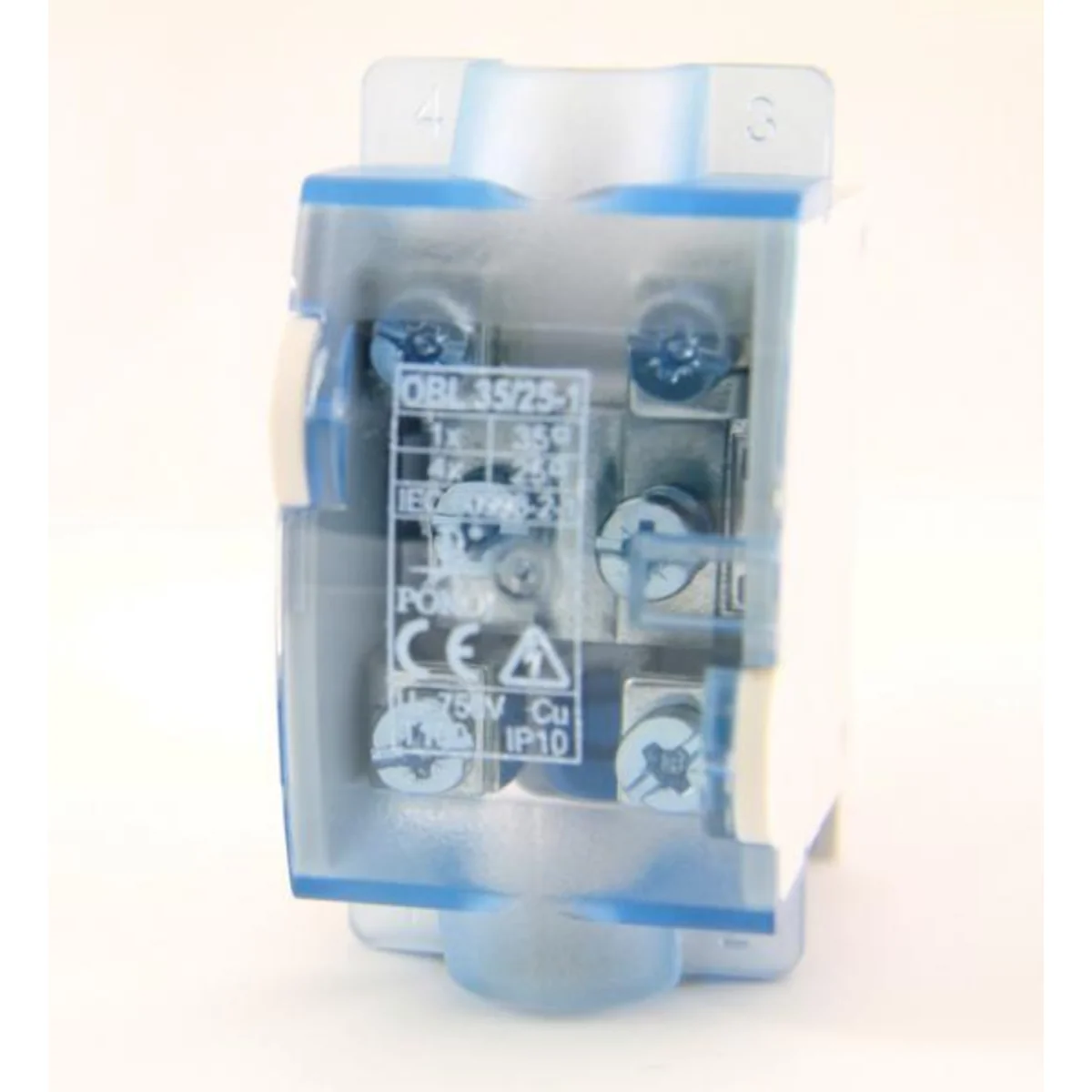

The lid has digitally marked branch current circuits, additionally there is a place for the main circuit markers. The lid can only be fixed in one position. The branch can be sealed.
Cable cross-section 1 6...35 mm2
Cable cross-section 2 4...25mm2

Report an error

Technical data

Number of tracks

1
Color

Gray
Installation

On the TH-35 rail
Rated current [A]

101

Number of terminals

5
Fixing

screw clamp
Rated voltage [V]

750
Accurate color

Grey/Blue

Other technical data

Nominal cross section main conductor, SE

6 ... 35 mm²
Nominal cross section branch conductor, SE/RE

4 ... 25 mm²
Material main conductor

Aluminium/copper
Terminal insulated

no
Clamping channel opening branch conductor

One side open
Type of connection

Screwed connection

Nominal cross section main conductor, SM

6 ... 25 mm²
Nominal cross section branch conductor, SM/RM

4 ... 16 mm²
Material branch conductor

Aluminium/copper
Clamping channel opening main conductor

Both sides open
Surface protection

Galvanized
