POKÓJ

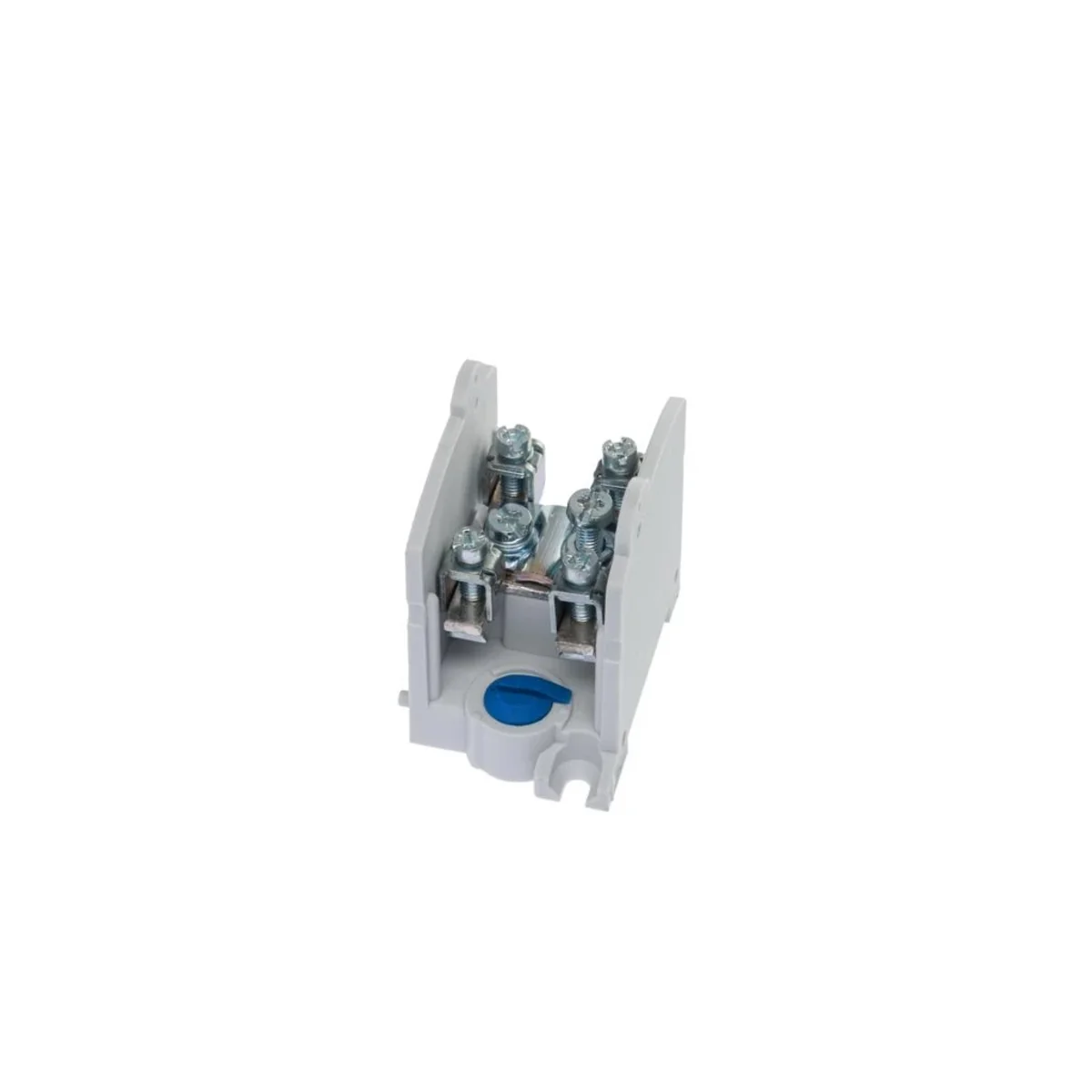

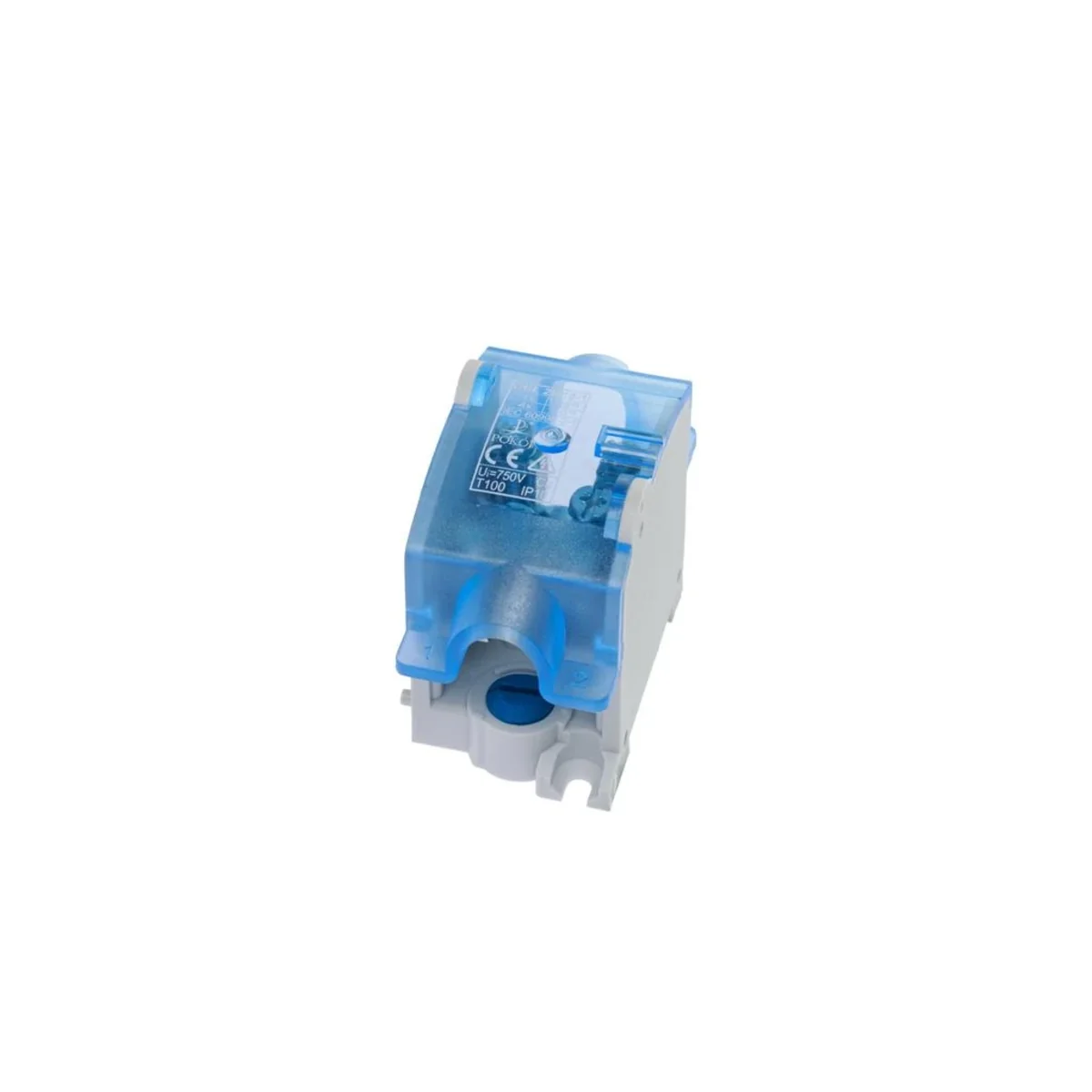

Installation branch OBL 25/16-1 grey/blue A13-6118

local index:
TEG202POKO
Catalog No:
A13-6118
EAN code:
5902626199685
Price:
8,71 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 21 pcs.
Delivery:
From 3,70 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

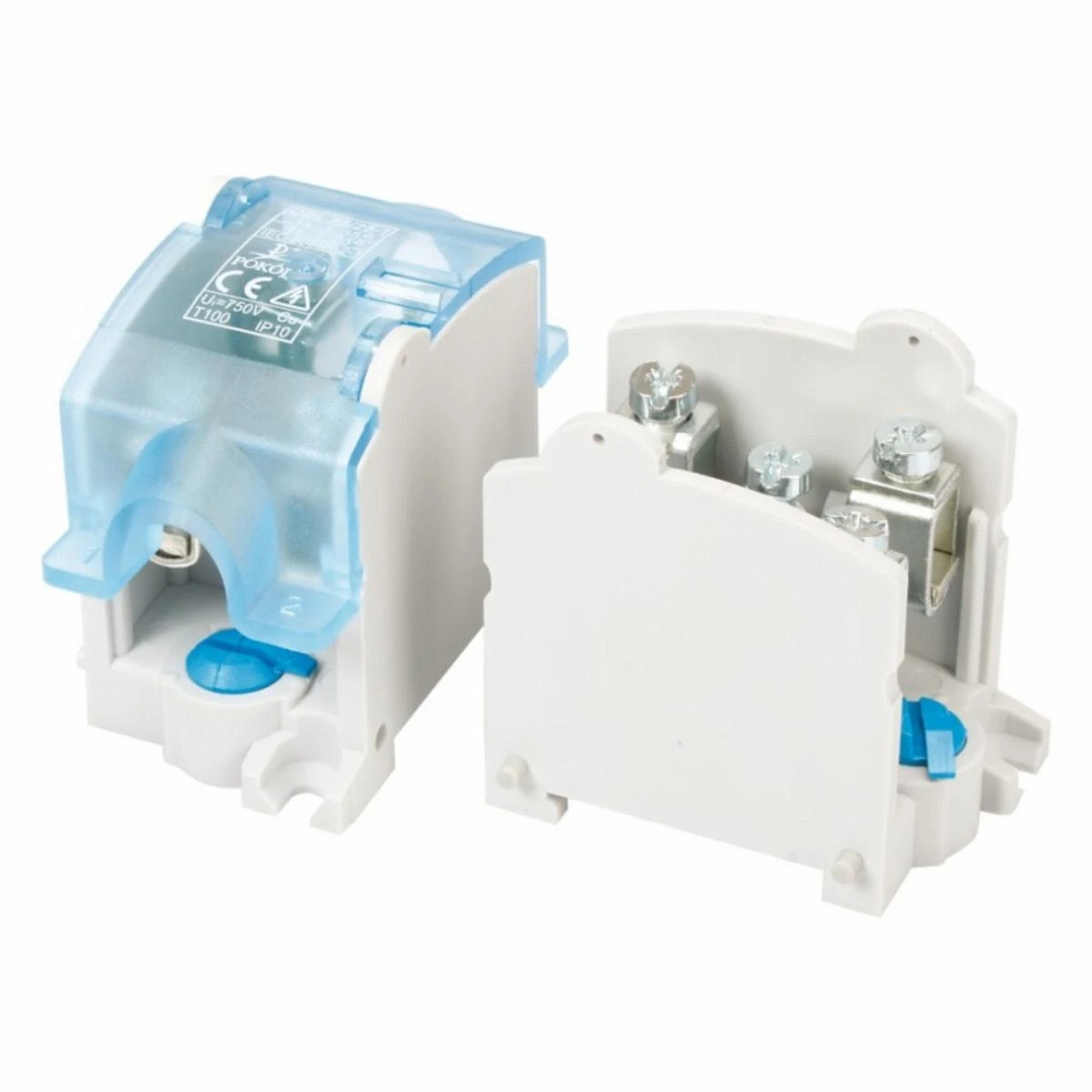

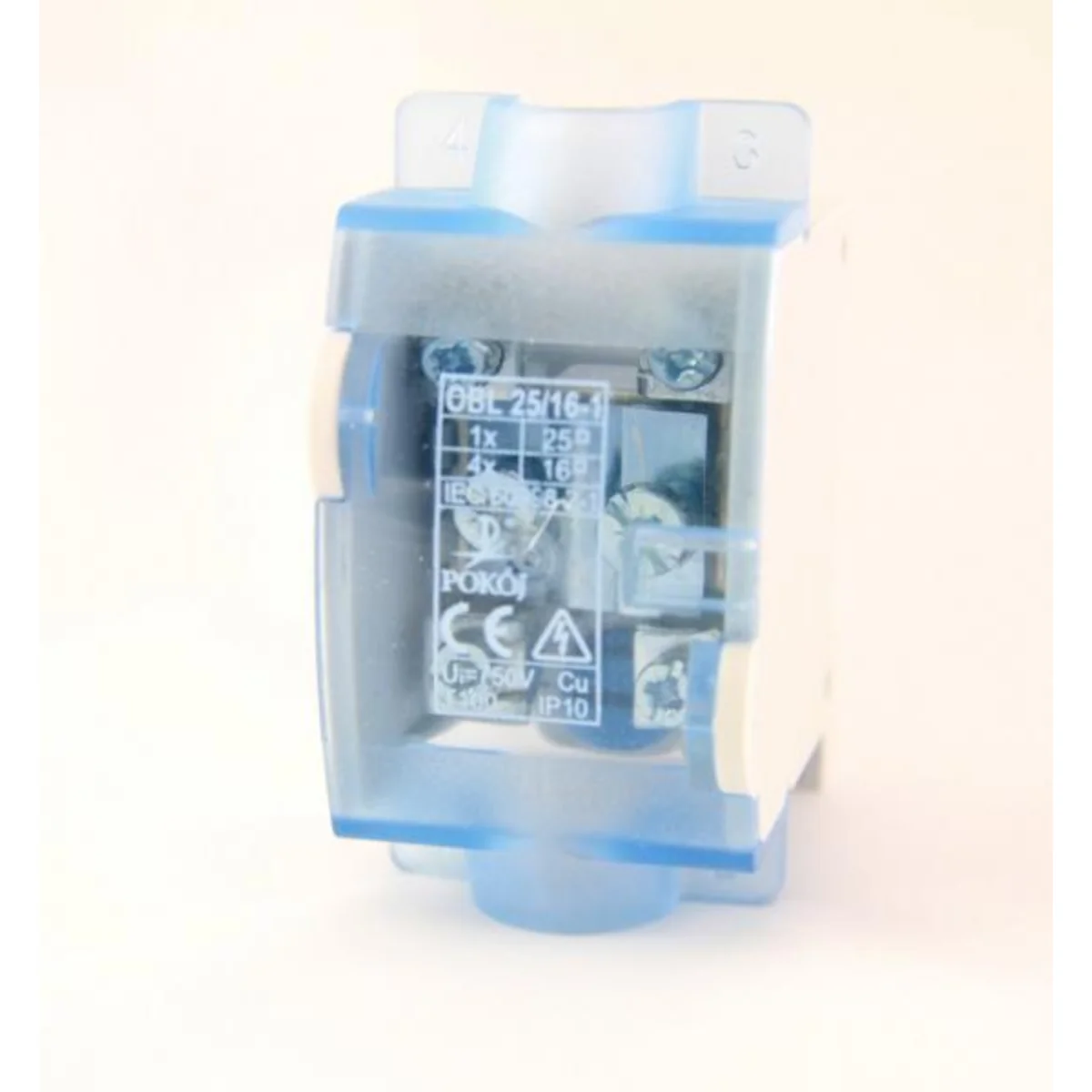

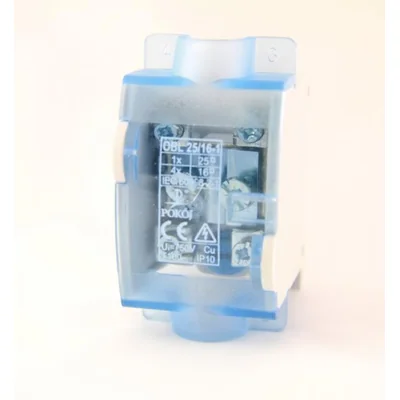

The branch can be fixed to the ground or on all types of TH35 rails (the cam catch allows the branch to be securely attached to the rail). On the lid, the branch current paths are marked digitally, and the main current paths are marked in letters. The cover can be fixed in only one position (reverse mounting prevents the connection of wires. The branch can be sealed.

Model: OBL 25/16-1
Product type: Four-section installation branch
Application: Connecting electric wires
Number x section of tracks (mm²): main line - 1x25, branch lines - 4x16
Rated branch current (A): 76

Technical data

  • Color
    Gray
  • Rated voltage [V]
    750
  • Level of security
    IP10
  • Material
    Polyamide
  • Rated current [A]
    101
  • Accurate color
    Grey/Blue

Other technical data

  • Nominal cross section main conductor, SE
    6 ... 25 mm²
  • Nominal cross section branch conductor, SE/RE
    2.5 ... 16 mm²
  • Material main conductor
    Aluminium/copper
  • Terminal insulated
    no
  • Clamping channel opening branch conductor
    One side open
  • Type of connection
    Screwed connection
  • Nominal cross section main conductor, SM
    6 ... 16 mm²
  • Nominal cross section branch conductor, SM/RM
    2.5 ... 10 mm²
  • Material branch conductor
    Aluminium/copper
  • Clamping channel opening main conductor
    Both sides open
  • Surface protection
    Galvanized
