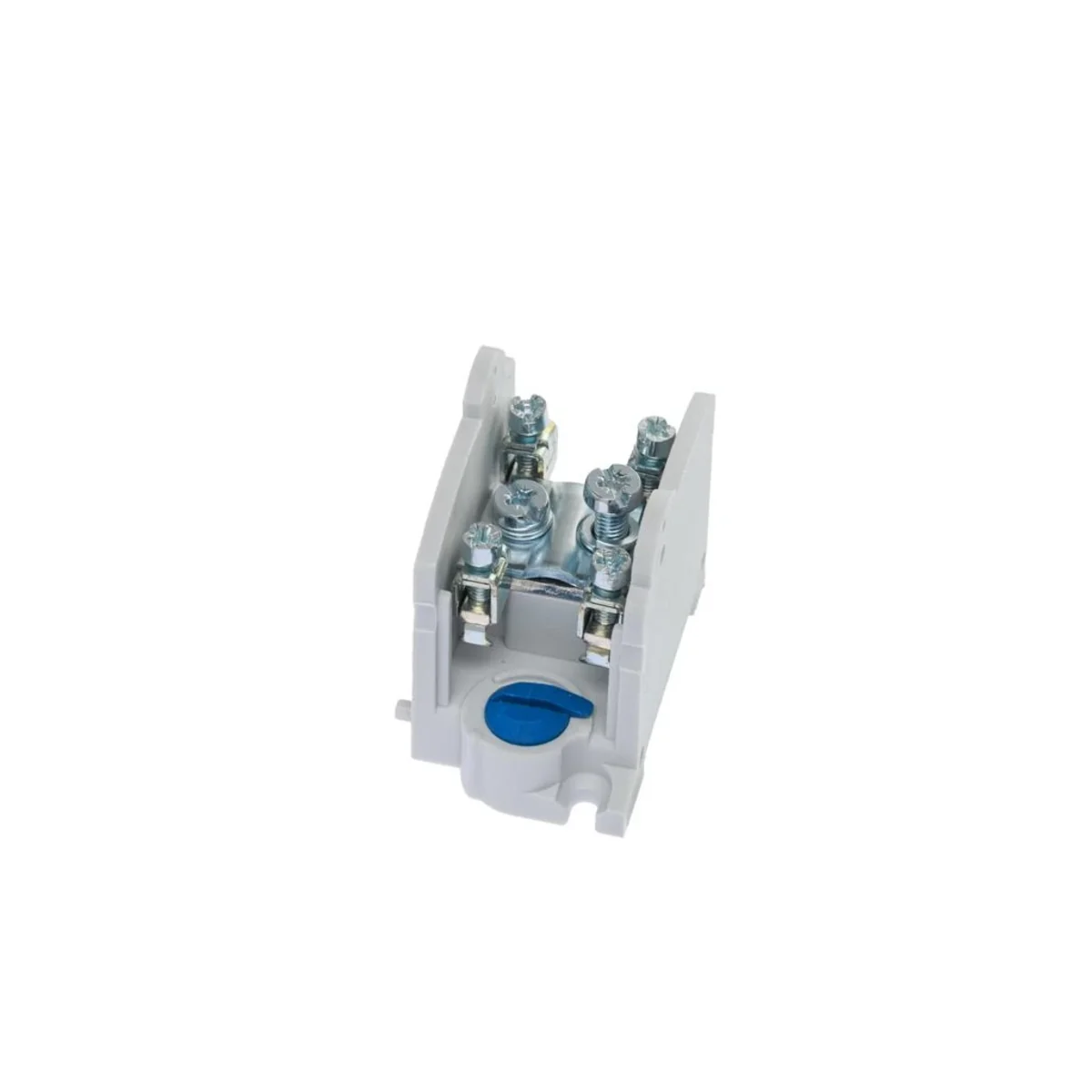

Installation branch OBL 25/10-1 grey/blue A13-6018
local index:
TEG200POKO
Catalog No:
A13-6018
EAN code:
5902626199906
Price:
6,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

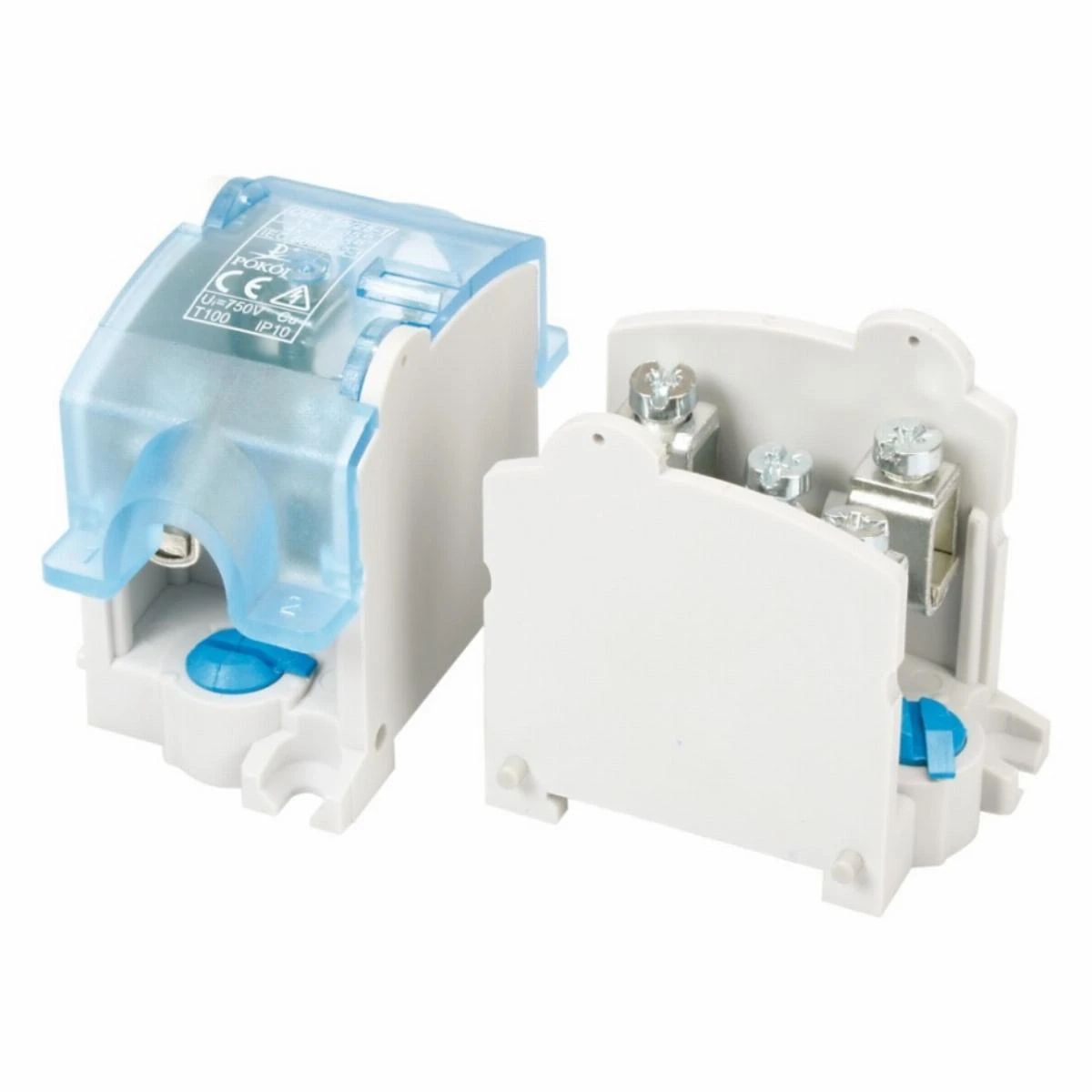

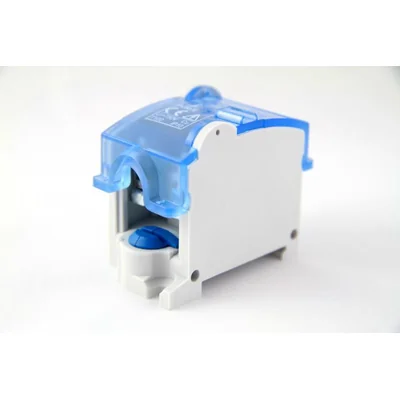

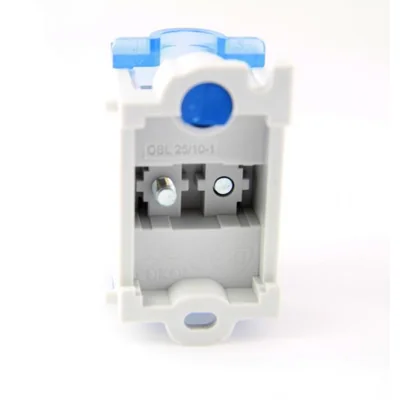

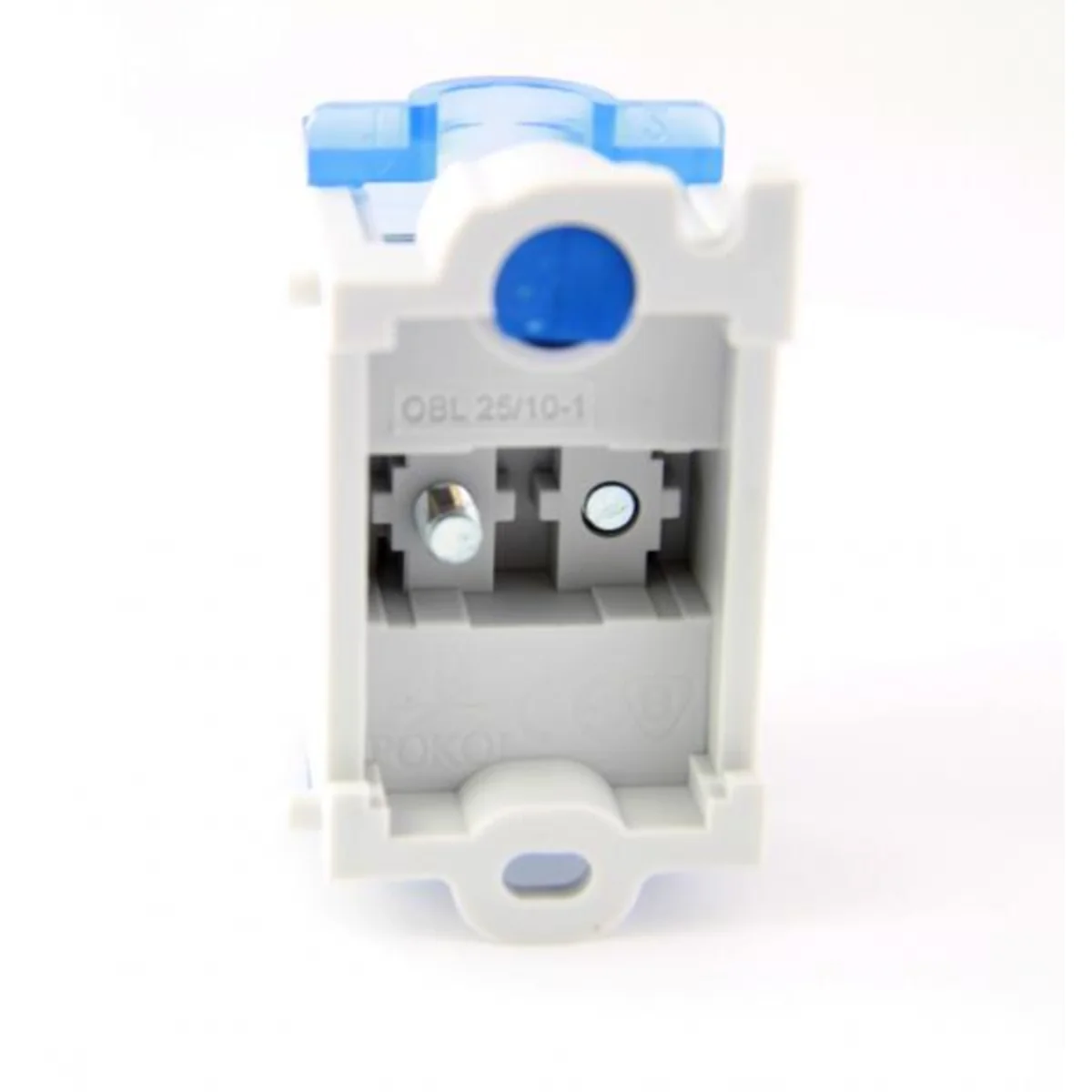

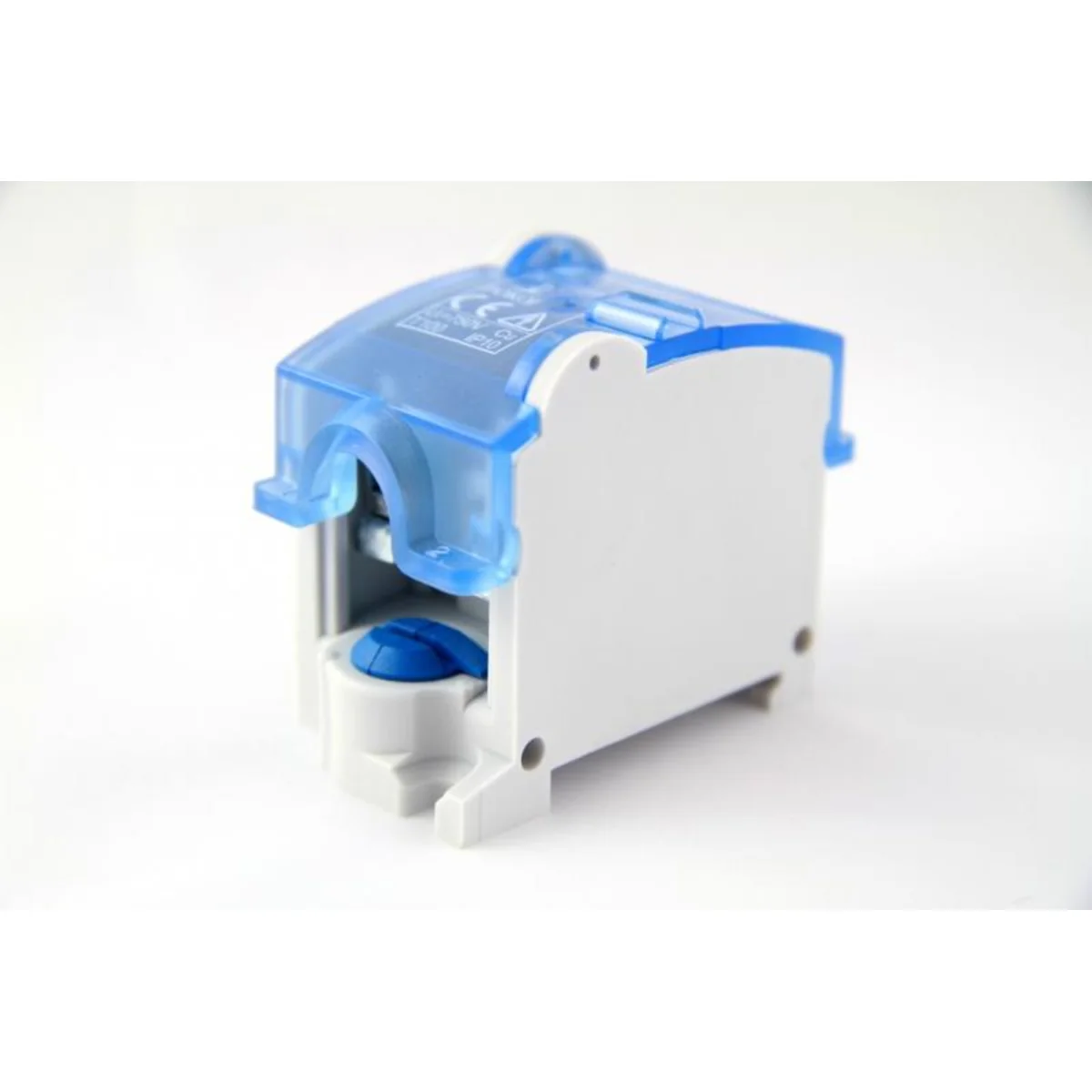

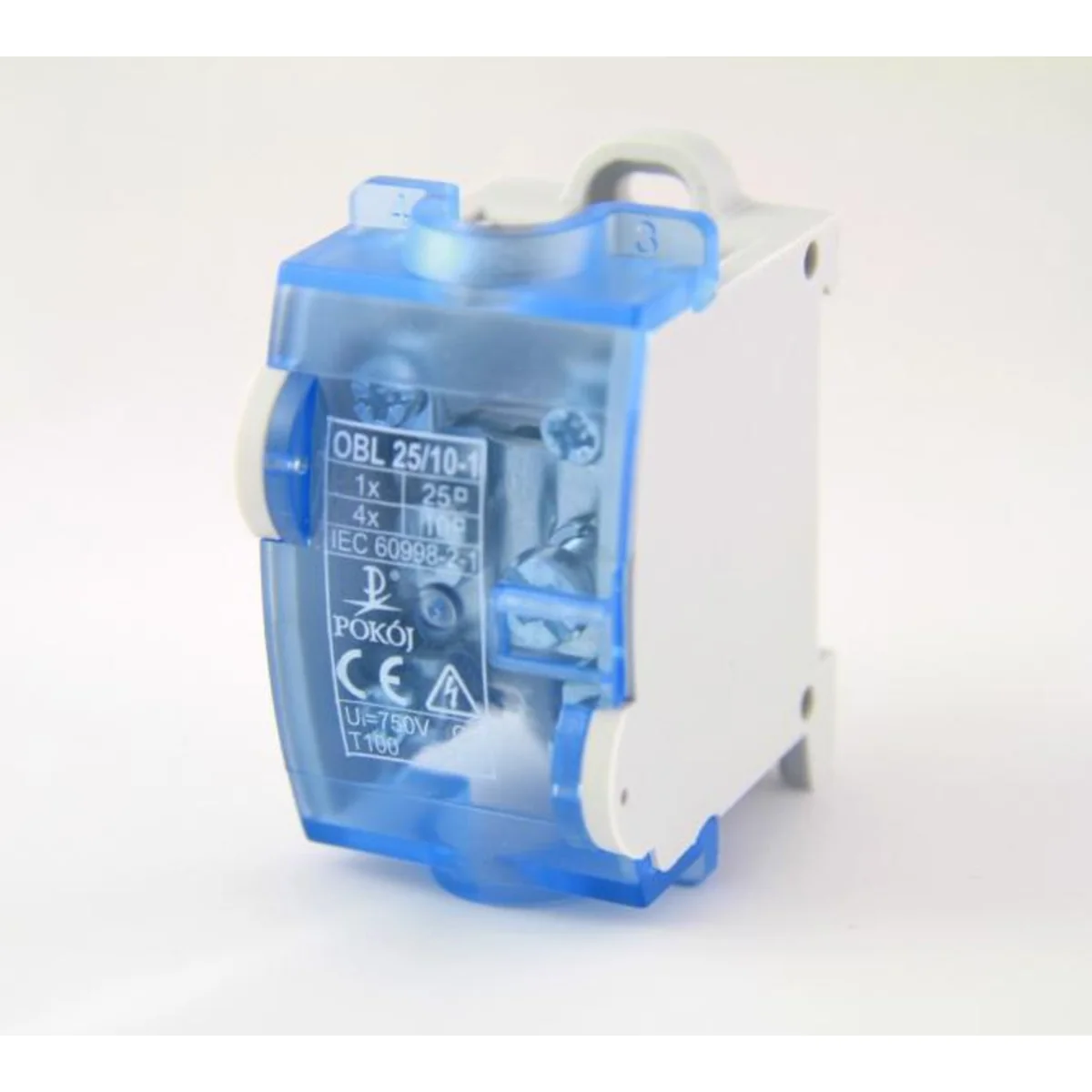

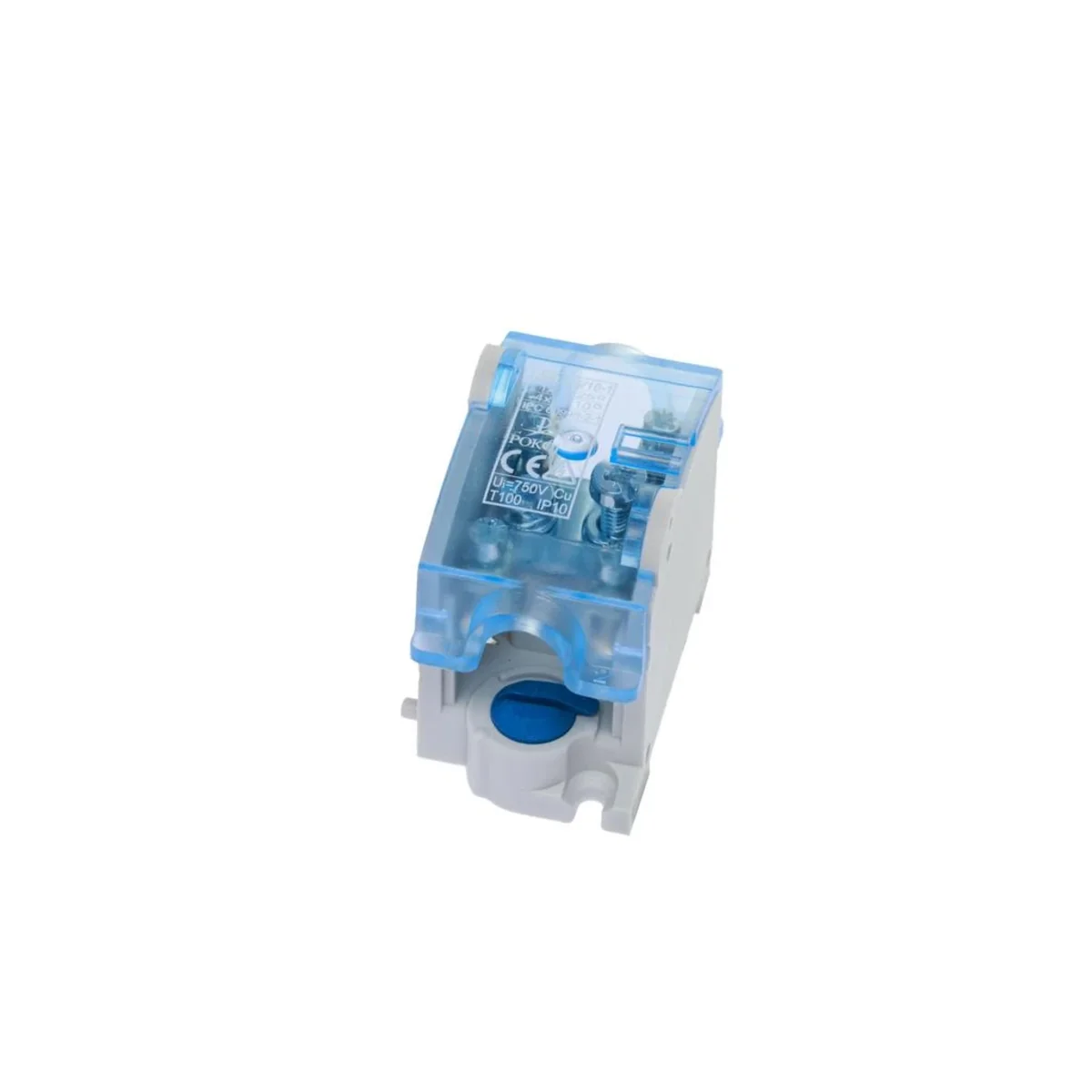

The branch can be fixed to the ground or on all types of TH35 rails (the cam catch allows the branch to be securely attached to the rail). On the lid, the branch current paths are marked digitally, and the main current paths are marked in letters. The cover can be fixed in only one position (reverse mounting prevents the connection of wires. The branch can be sealed.
Model: OBL 25/10-1
Product type: Four-section installation branch
Application: Connecting electric wires
Number x cross-section of tracks (mm²): main line - 1x25, branch lines - 4x10
Rated branch current (A): 57
Model: OBL 25/10-1
Product type: Four-section installation branch
Application: Connecting electric wires
Number x cross-section of tracks (mm²): main line - 1x25, branch lines - 4x10
Rated branch current (A): 57
Technical data
-
ColorGray
-
Rated voltage [V]750
-
Level of securityIP10
-
PKWIU27.33.13.0
-
MaterialPolyamide
-
Rated current [A]101
-
Accurate colorGrey/Blue
Other technical data
-
Nominal cross section main conductor, SE6 ... 25 mm²
-
Nominal cross section branch conductor, SE/RE0.75 ... 10 mm²
-
Material main conductorAluminium/copper
-
Terminal insulatedNo
-
Clamping channel opening branch conductorOne side open
-
Type of connectionScrewed connection
-
Nominal cross section main conductor, SM6 ... 16 mm²
-
Nominal cross section branch conductor, SM/RM0.75 ... 6 mm²
-
Material branch conductorAluminium/copper
-
Clamping channel opening main conductorBoth sides open
-
Surface protectionGalvanized
Manufacturer details
-
ManufacturerPOKÓJ S.E.
-
Address91-202 Łódź Warecka 1 Polska
-
