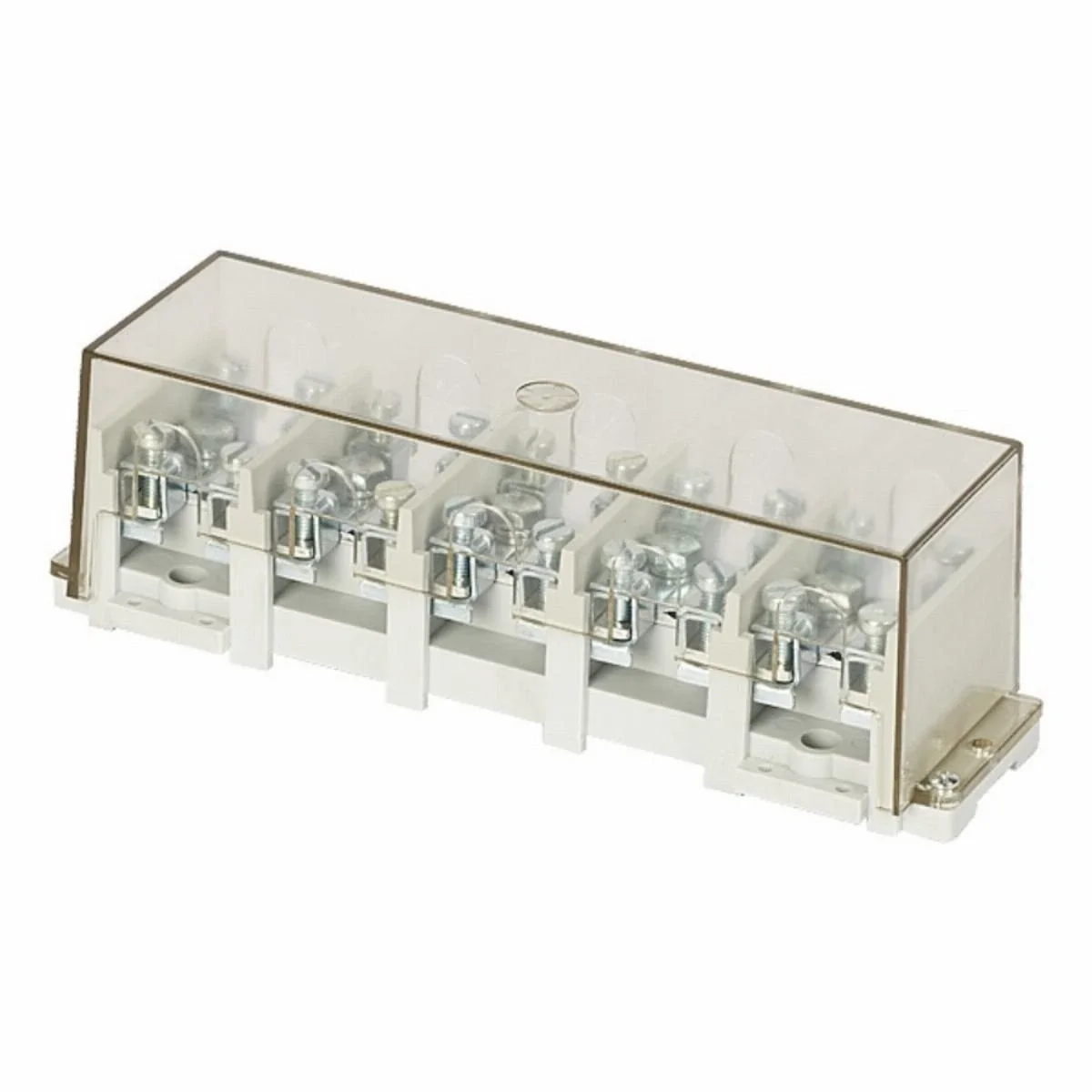

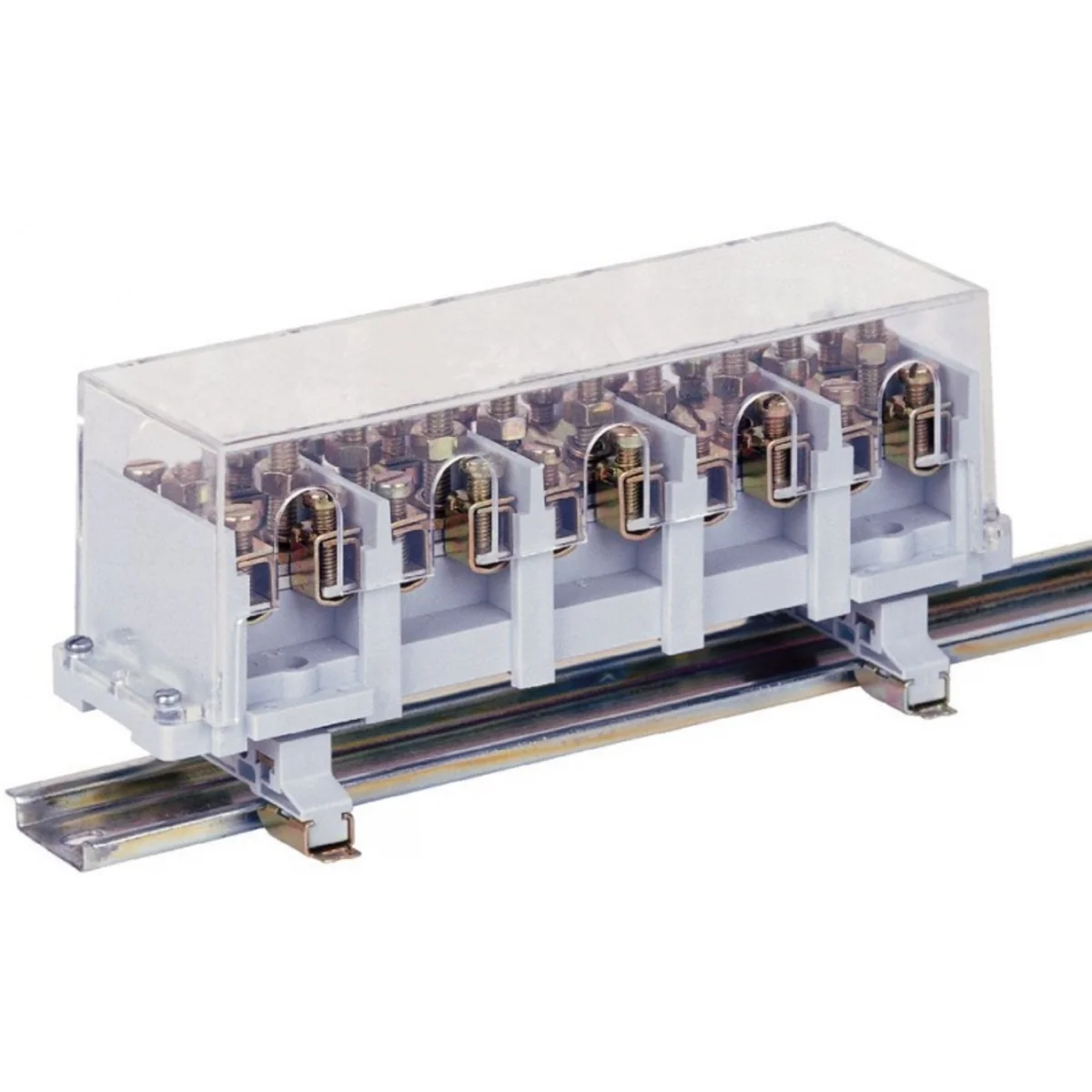

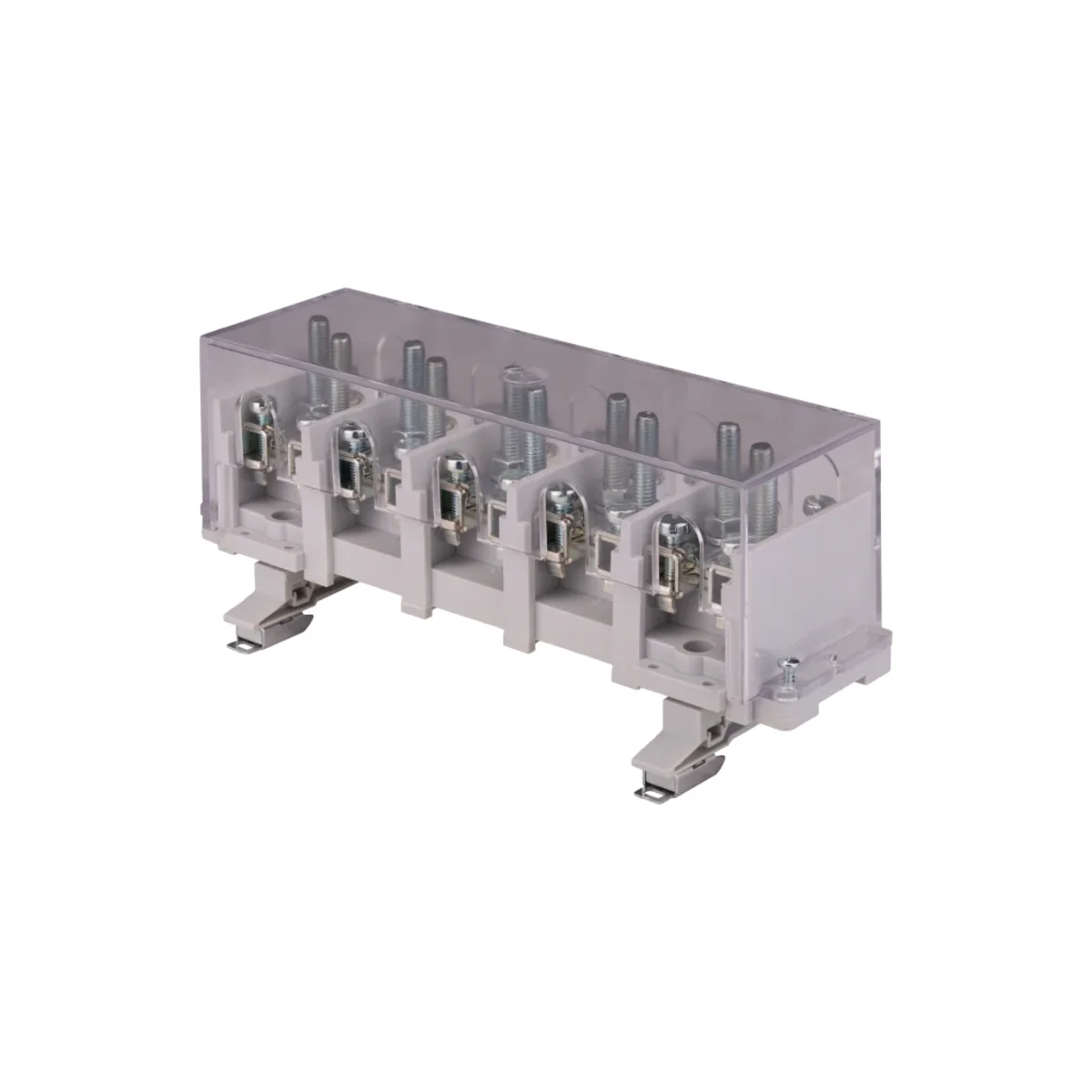

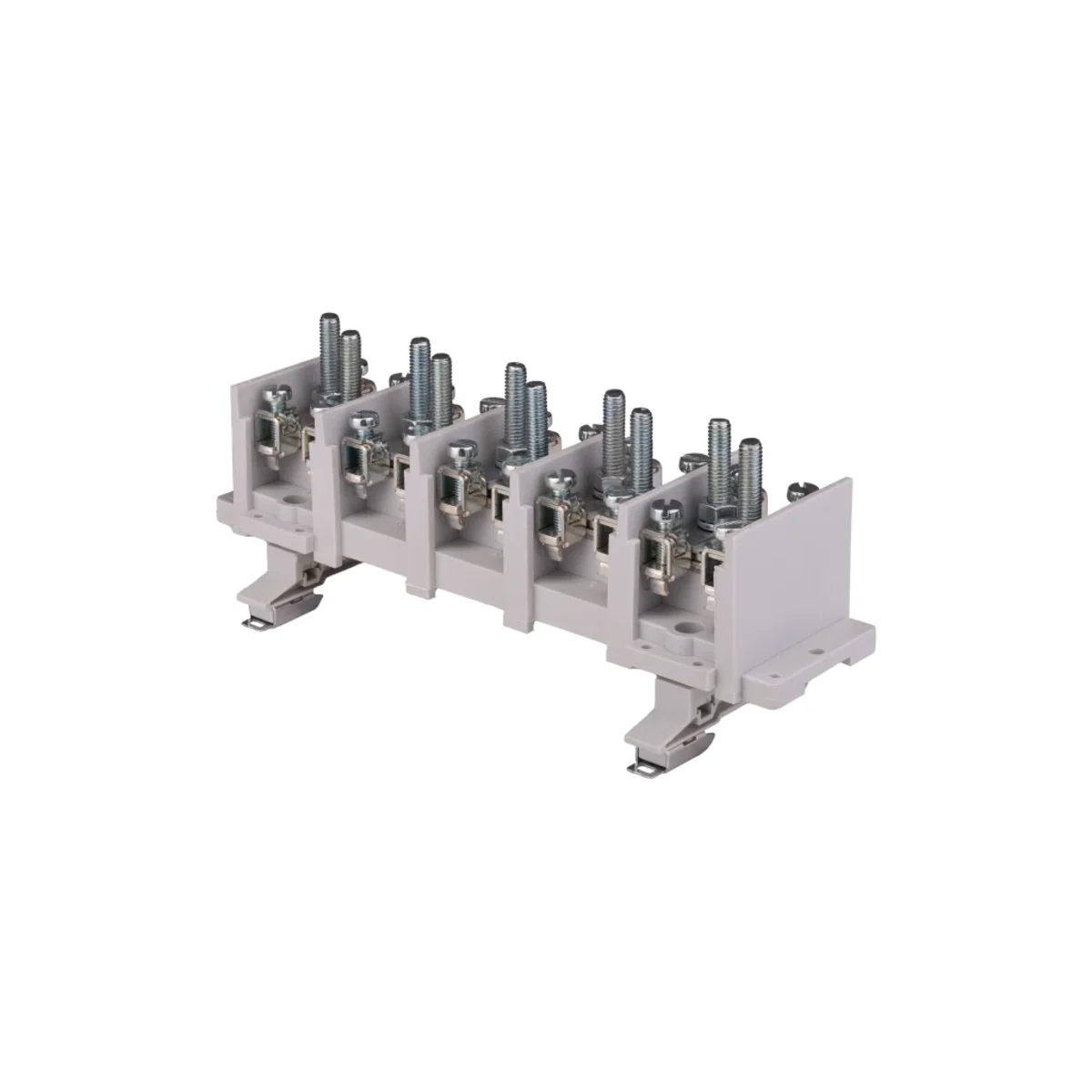

Installation branch LZG-35/16 ODM.22 O grey A13-2438

local index:
TEG154POKO
Catalog No:
A13-2438
EAN code:
5902626103026
Manufacturer: POKÓJ
Color: Gray
Accurate color: Gray
Price:
45,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 13 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Installation branch LZG-35/16 ODM.22 O grey

Technical data

  • Color
    Gray
  • PKWIU
    27.33.13.0
  • Accurate color
    Gray

Other technical data

  • Nominal cross section main conductor, SE
    6 ... 35 mm²
  • Nominal cross section branch conductor, SE/RE
    2.5 ... 16 mm²
  • Material main conductor
    Aluminium/copper
  • Terminal insulated
    No
  • Clamping channel opening branch conductor
    One side open
  • Type of connection
    Screwed connection
  • Nominal cross section main conductor, SM
    6 ... 25 mm²
  • Nominal cross section branch conductor, SM/RM
    2.5 ... 10 mm²
  • Material branch conductor
    Aluminium/copper
  • Clamping channel opening main conductor
    Both sides open
  • Surface protection
    Galvanized
