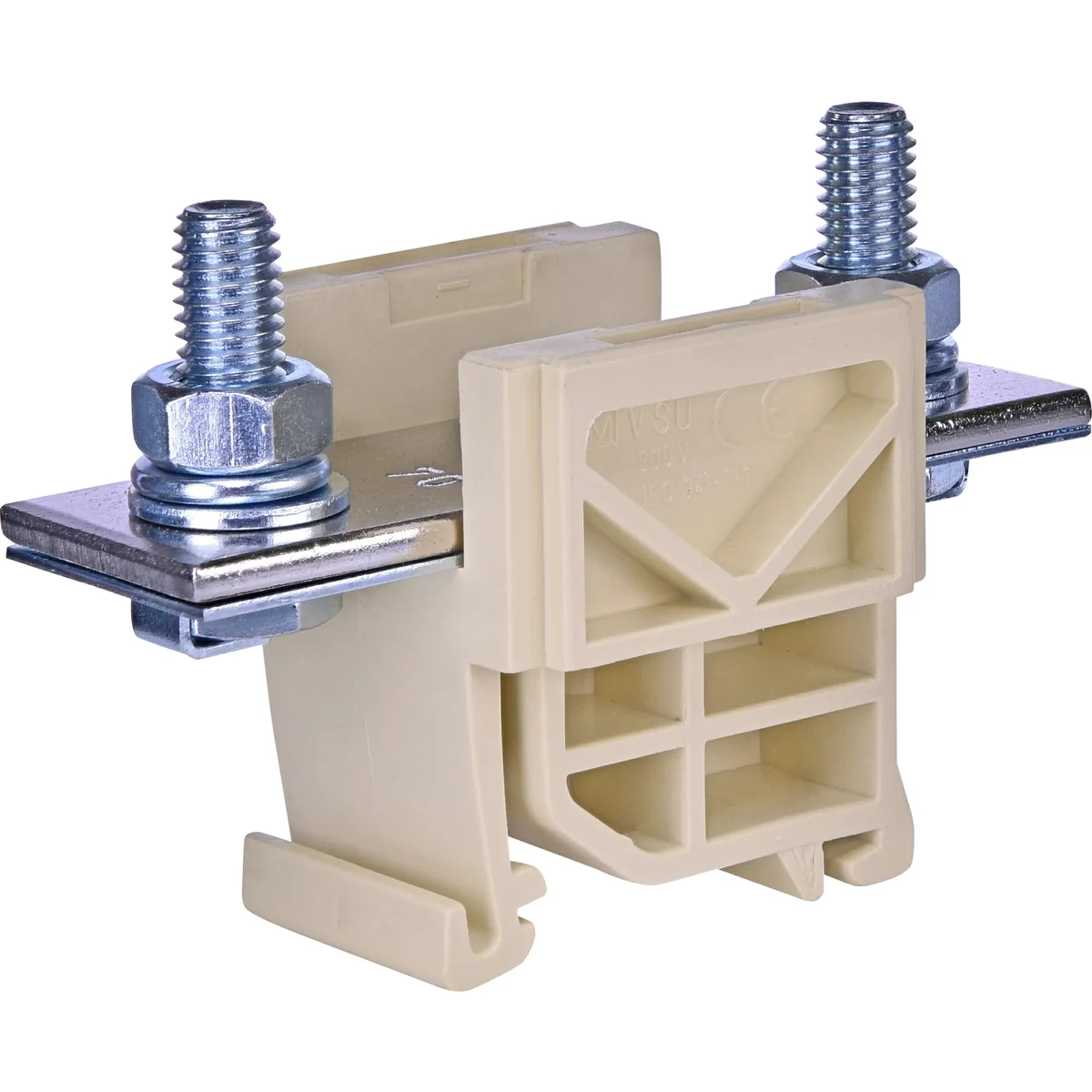

High current threaded nipple - 70 mm2 VSU 70 003901560

local index:
TEG011ETIP
Catalog No:
003901560
EAN code:
5904722915930
Manufacturer: ETI POLAM
Rated voltage [V]: 1000
Rated current [A]: 192
Price:
8,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For use, among others in low-voltage panels and junction and control boxes, in order to obtain functional and safe connections of electrical wires between electrical devices. Basic parameters, the knowledge of which is necessary for the proper operation of this type of products (i.e. type of connector, rated voltage, permissible cable cross-section) are placed on each module.

Advantages:

  •  enclosures made of colored polyamide 66 (type VS) - non-flammable,
  •  rated current up to 415 A, →rated terminal cross-section from 2.5 up to 240 mm2;
  •  possibility of operation in temperatures from -40 to +100o C,
  •  possibility of bridging connectors,
  •  mounting on rail TH 15, TH 32, TH 35,
  •  the housing prevents the hand from touching live screws.

Technical data

  • Rated voltage [V]
    1000
  • PKWIU
    27.33.13.0
  • Rated current [A]
    192

Other technical data

  • Connectable conductor cross section solid-core
    2.5 ... 70 mm²
  • Rated voltage
    1000 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Colour
    Beige
  • Rated current In
    192 A
  • Type of electrical connection 1
    Screw connection
  • Material insulation body
    Thermoplastic

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Weight (kg) 1,500
Volume (m3) 0,002
Width (m) 0,225
Length (m) 0,175
Depth (m) 0,060
