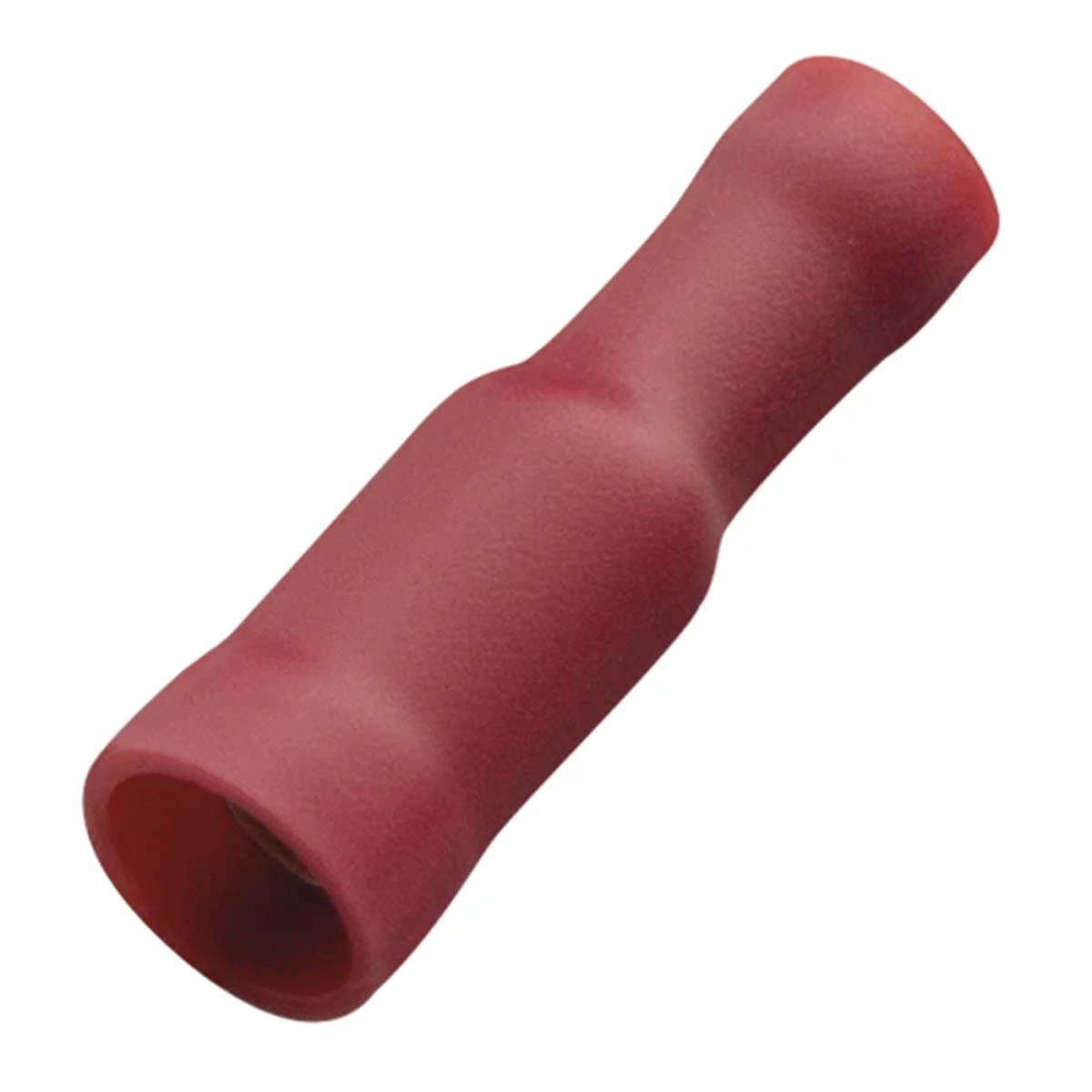

Fully insulated socket 0.5-1.0 red 260440

local index:
TEB057HAUP
Catalog No:
260440
EAN code:
4011923089528
Manufacturer: HAUPA
Length [mm]: 20.2
Flange length [mm]: 8.7
Sleeve length [mm]: 9.5
Price:
12,46 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Round plug-in socket, fully insulated:

  • made of electrolytic copper, tin-plated
  • insulated in PVC with an extended insulating tip,
  • adapted for multi-wire cables ,
  • Easy Entry.

Technical data

  • Length [mm]
    20.2
  • Sleeve length [mm]
    9.5
  • Material
    Copper
  • Inner diameter [mm]
    3.5
  • Insulation material
    PVC
  • Coverage
    Tin plated
  • Flange length [mm]
    8.7
  • Color
    Red
  • Flange width [mm]
    4
  • Socket size [mm]
    4
  • Wire cross-section [mm²]
    0.5-1.0

Other technical data

  • Model
    Bushing
  • Nominal cross section
    0.5 ... 1.0 mm²
  • Colour insulation
    Red
  • Material
    Copper
  • Plug dimensions
    Round 4 mm
  • Insulation
    Fully isolated
  • Material insulation
    Polyvinyl chloride (PVC)
