Feed-through terminal block SET AAP11 6/1.5/24C 2506370000

Name: Feed-through terminal block SET AAP11 6/1.5/24C
Brand: WEIDMULLER
SKU: TES207WEID
Price: 168.15 PLN
Availability: BackOrder

Lokaler Index:

TES207WEID

Katalognummer:

2506370000

EAN-Code:

4050118520750

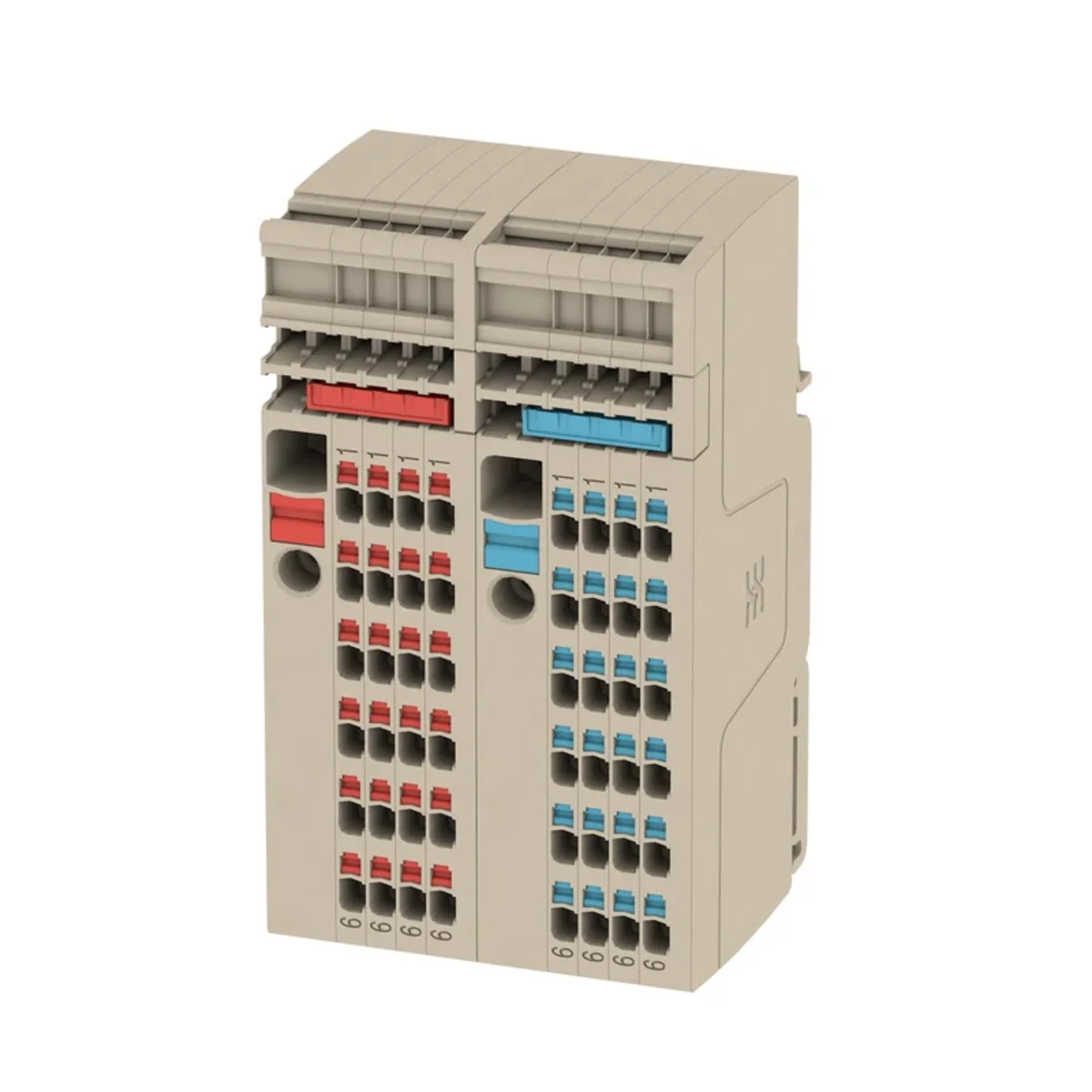

Feed-through terminal block SET AAP11 6/1.5/24C

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: WEIDMULLER

Depth [mm]: 47

Overvoltage category: III

Color: Beige

Siehe vollständige Beschreibung

Preis:

168,15 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 4 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details

Produktbeschreibung

Through terminal block SET AAP11 6/1.5/24C

Temperatures

Storage temperature	-25 °C...55 °C
long term service temperature, min.	-60 °C
long-term service temperature, max.	130 °C

General

< td>Track < td>Carrying rail

Standards	According to IEC 60947-7-1
TS 35
Mounting tip	Support rail
wire connection size AWG, min.	AWG 22
wire connection size AWG, max.	AWG 8
Type of mounting	pressed in
Mounting tip
Open sides	Right side
Mounting type	TS 35

Crimp wires (next connection)

< /tr>

Strip length, consecutive connection	8 mm
Cross the wire connections AWG, next connection, max.	AWG 14
Cross-section of wire connections AWG, next connection, min.	AWG 26
Cross-section of wire connections , fine wire, next connection, max.	1.5 mm
Cable connection cross-section, fine wire, next connection, min.< /td>	0.5 mm
Cable connection cross-section, solid, consecutive connection, max.	1.5 mm
Cable connection cross section, solid, consecutive connection, min.	0.5mm
Cable connection cross-section, stranded, further connection, max.	1.5mm
Cable connection cross-section, stranded, sequential connection, min.	0.5 mm
Type of connection, sequential connection	PUSH IN
Clamp zone, next connection, max.	1.5 mm
Clamp zone, next connection, min .	0.14 mm
Blade size, sequential connection	0.4 x 2.0 mm
connection direction of the further connection	top
cable connection cross-section, fine-wire with end DIN 46228/1 cable gland, further connection, max.	1mm
Cable connection cross-section, fine wire with DIN 46228 cable end /1, distal connection, min.	0.5 mm
dimensioned cross-section of the distal connection	1.5 ;mm

Ratings

Measurement section	6 mm²
Rated voltage	500V
Rated current	41 A
current at max. wire	41 A
Standards	According to the requirements of IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0.78 mΩ
Rated impulse voltage	6 kV
Power dissipation according to IEC 60947- 7-x	1.31 W
Overvoltage category	III
Contamination degree	3

System parameters

< td>number of levels < /tr>

closing plate needed	No
Number of potentials	2
1
number of terminals per level	50
Number of potentials in a row	2
levels internally bridged	No
PE connection	No
Rail	TS 35
N Function	No
PE Function	No
PEN function	No

Technische Daten

Depth [mm]

47
Color

Beige
Degree of contamination

3
Type

SET AAP11 6/1.5/24C
Rated impulse voltage [kV]

6

Overvoltage category

III
Rated current [A]

41
Width [mm]

49
Height [mm]

85.5
Accurate color

dark beige

Weitere technische Daten

Drill hole distance centrically

0 mm
Connectable conductor cross section fine-strand without cable end sleeve

6 ... 0.5 mm²
Connectable conductor cross section solid-core

6 ... 0.5 mm²
Rated current In

41 A
Type of electrical connection 1

Plug-in connection
Number of poles

10
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

130 ... -60 °C
Halogen free

Yes
Height

85.5 mm
Closing plate required

No
Transparent

No

Explosion-tested version 'Ex e'

Yes
Connectable conductor cross section fine-strand with cable end sleeve

6 ... 0.5 mm²
Connectable conductor cross section multi-wired

6 ... 0.5 mm²
Rated voltage

500 V
Type of electrical connection 2

Plug-in connection
Number of clamp positions per pole

6
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Width

49 mm
Depth

47 mm
Colour

Beige
