Feed-through installation terminal block with max. 4 mm2 lever 221-2411

local index:
TEB527WAGO
Catalog No:
221-2411
EAN code:
4066966102666
Manufacturer: WAGO ELWAG
Depth [mm]: 35.5
Number of terminals: 2
Color: Transparent | Orange
Price:
0,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2896 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

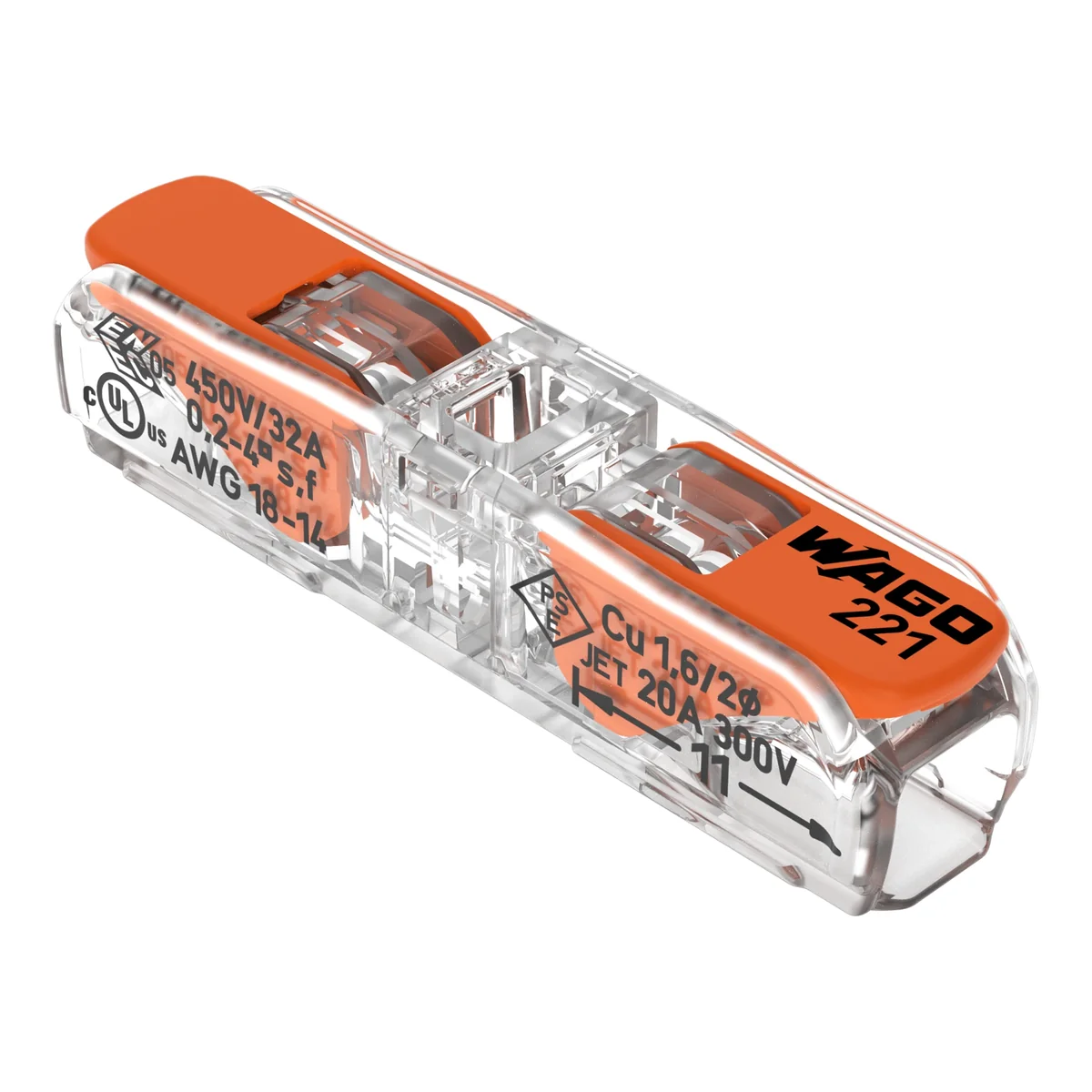

Through installation connector with lever from the manufacturer WAGO. The product catalog number is 221-2411.

  • Rated voltage (II/2): 450V.
  • Rated surge voltage (II/2): 4kV.
  • Solid wire: 0, 2 … 4mm² / 20 … 14 AWG.
  • Stranded wire: 0.2 … 2.5mm² / 18 … 14 AWG.
  • Stranded wire: 0.2 … 4mm² / 18 … 14 AWG.
  • Strip length: 11 mm / 0.43 in.

Technical data

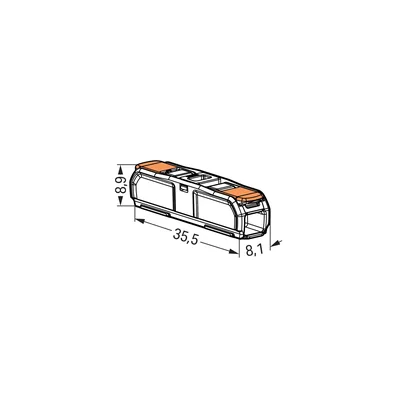

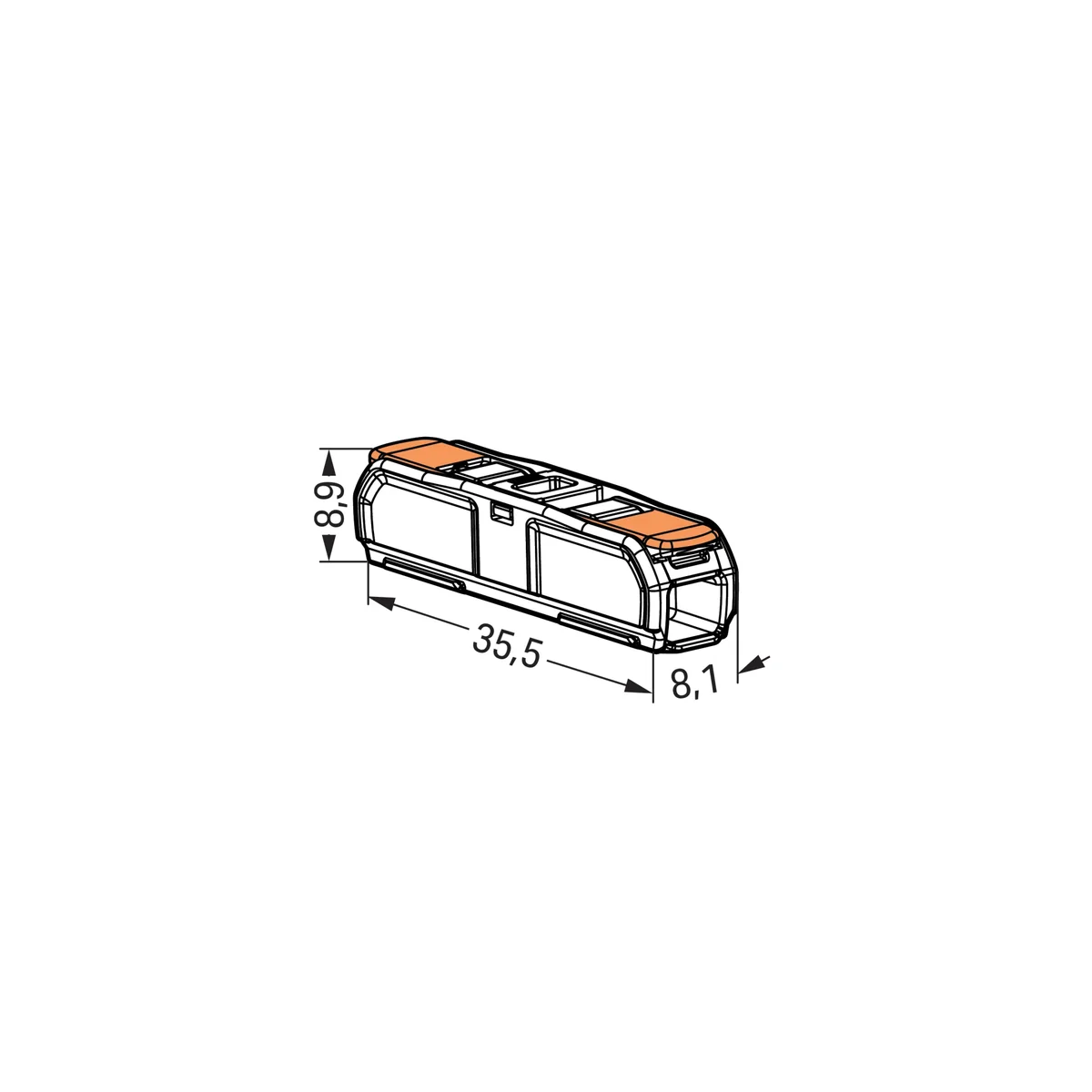

  • Depth [mm]
    35.5
  • Color
    Transparent Orange
  • Width [mm]
    8.1
  • Rated impulse voltage [kV]
    4
  • Number of terminals
    2
  • Rated current [A]
    32
  • Height [mm]
    8.9
  • Flammability class
    V2

Bulk packaging

A kind of package Karton
Quantity 600 pcs.
Weight (kg) 1,630
Volume (m3) 0,004
Width (m) 0,170
Length (m) 0,220
Depth (m) 0,110
