Epic H-B 24 AD-LB case 10103900

local index:
ANM019LAPP
Catalog No:
10103900
EAN code:
4044773590364
Price:
15,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Product on individual request
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

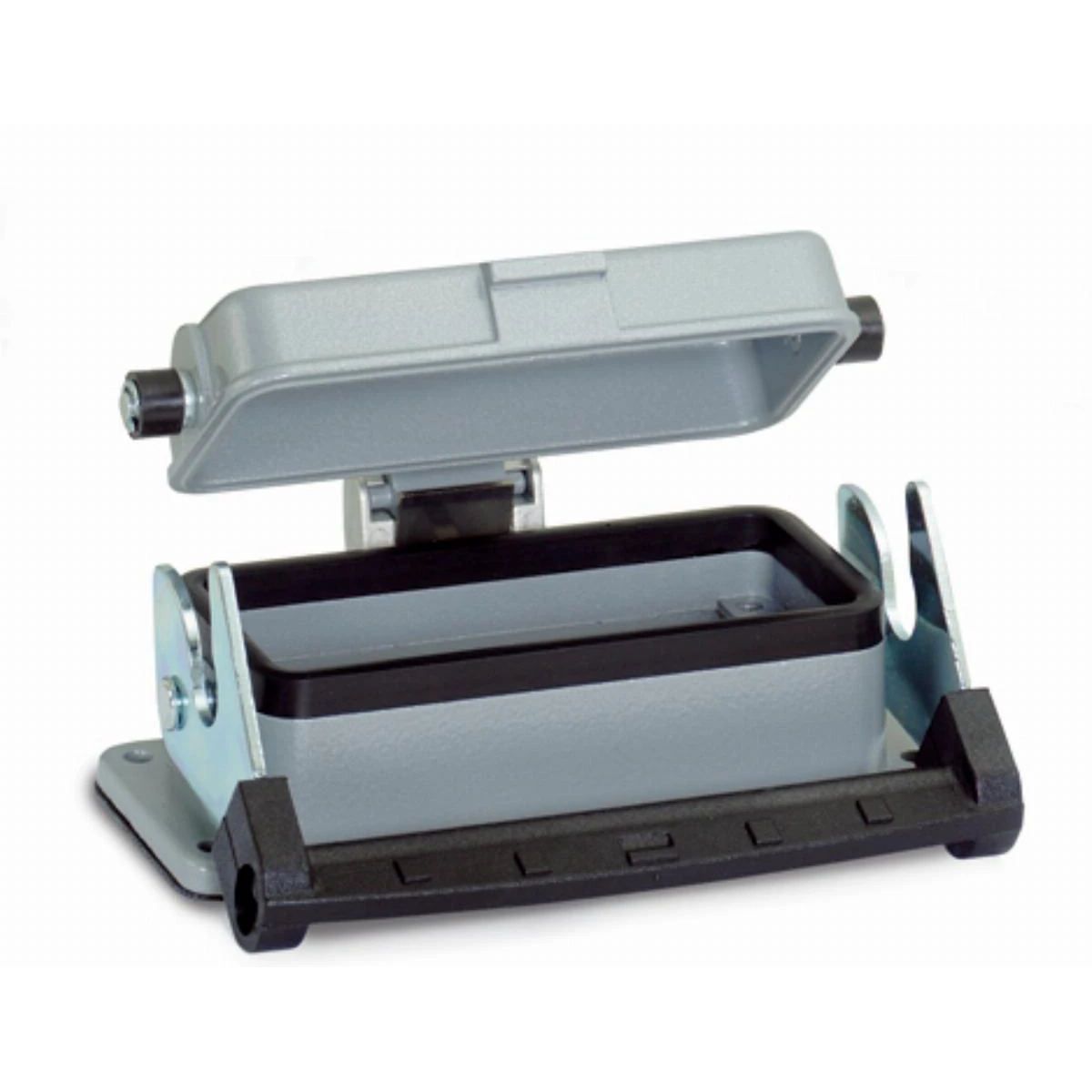

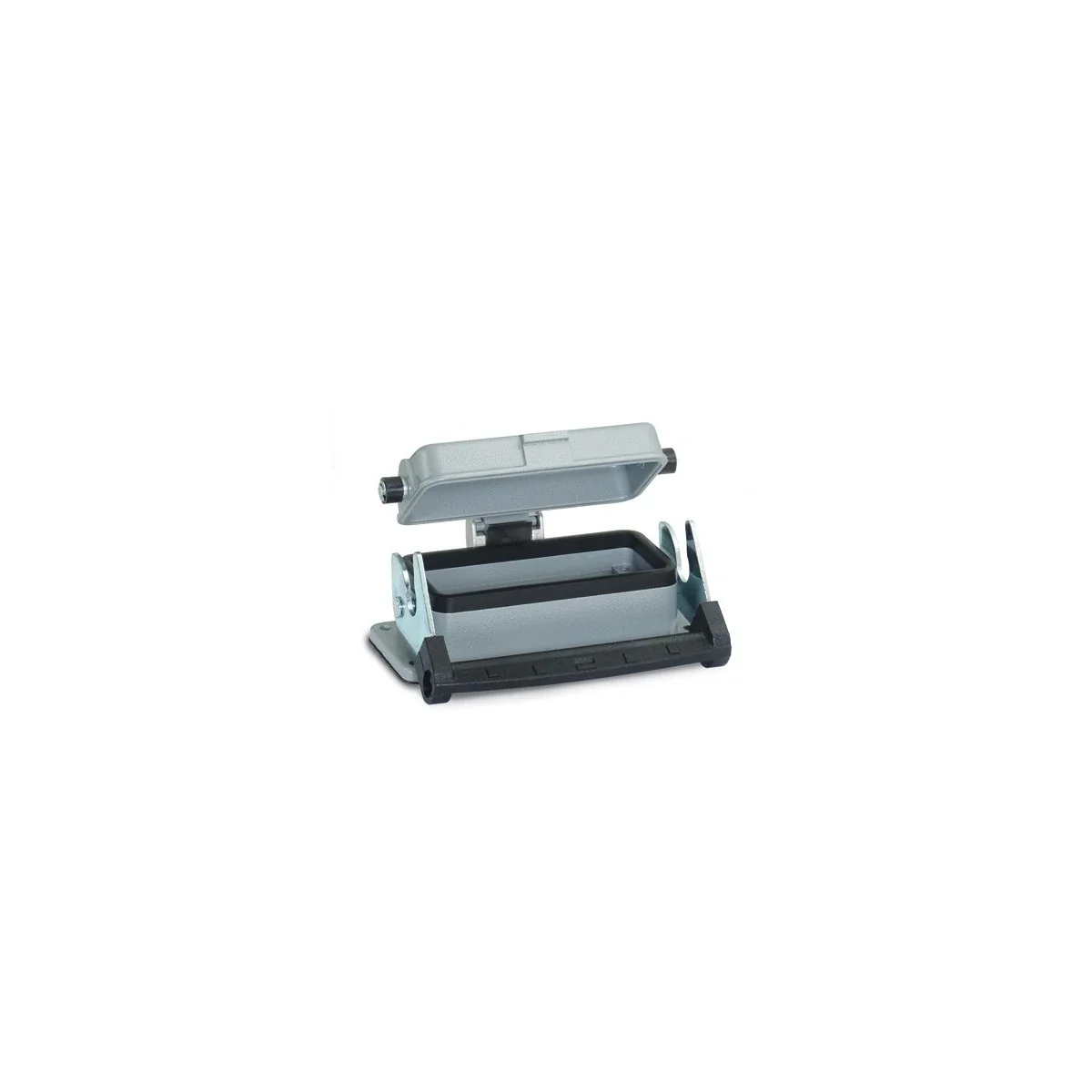

Epic H-B 24 AD-LB case

Technical data

Other technical data

  • Width
    43 mm
  • Type of housing
    Housing extension
  • Coating housing
    Powder coating
  • Position of the shackle
    Base unit
  • With hinged lid
    yes
  • Inflammability class of insulation material according to with UL94
    HB
  • EMC-version
    no
  • UV resistant
    yes
  • Height
    27.8 mm
  • Housing material
    Aluminium
  • Position cable feed
    Atop
  • With cable screw gland
    no
  • Type of locking
    Single locking lever
  • Operating temperature
    -40 ... 125 °C
  • Corrosion resistant
    yes
  • Degree of protection (IP), mounted
    IP65
