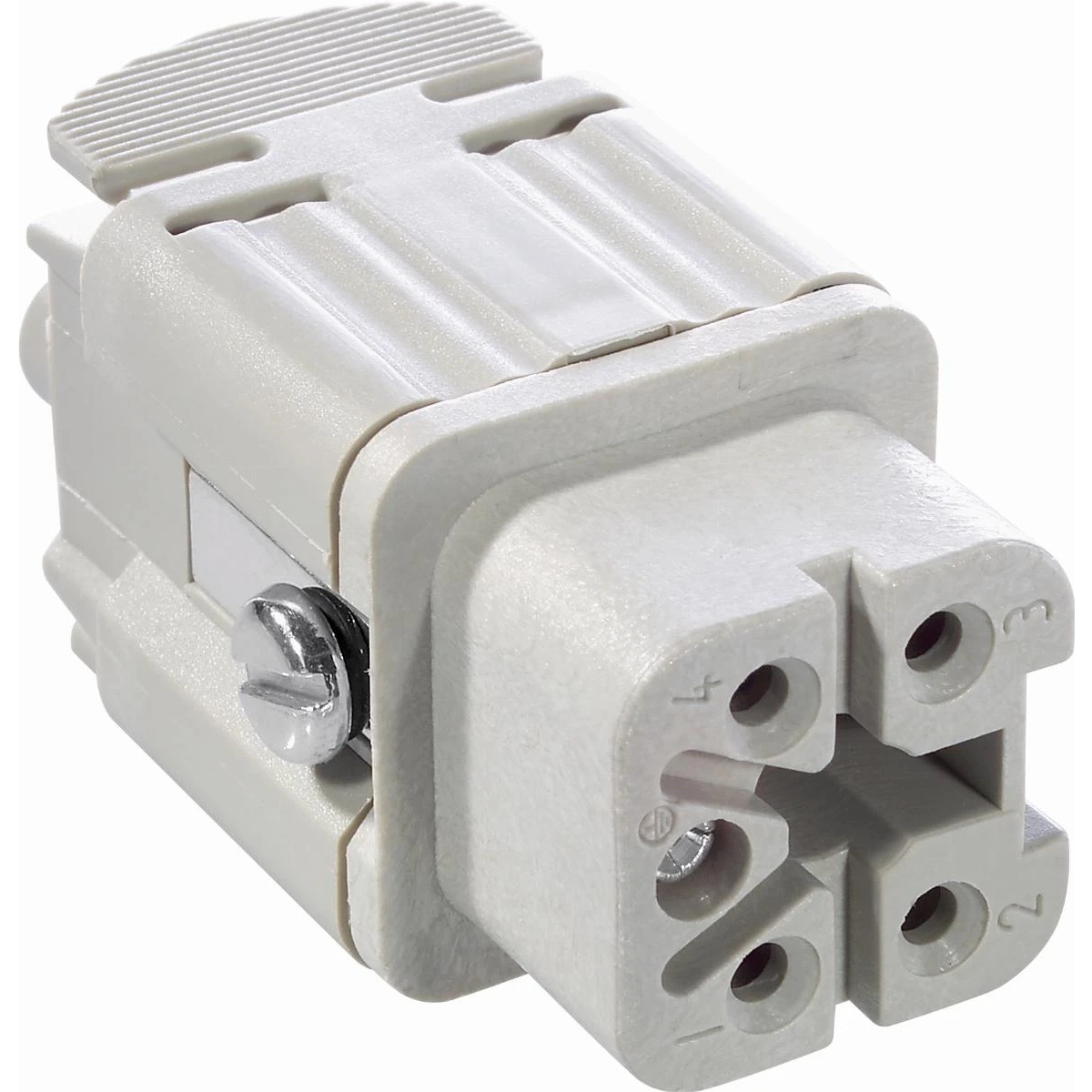

Epic H-A 4 BS cartridge 10432000

Name: Epic H-A 4 BS cartridge
Brand: LAPP KABEL
SKU: ANA393LAPP
Price: 8.49 PLN

local index:

ANA393LAPP

Catalog No:

10432000

EAN code:

4044773071979

Click on the photo to enlarge

Manufacturer: LAPP KABEL

Pin numbers: 1/4

Type: Female

Cable clamps: NO

See full description

Price:

8,49 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

Product on individual request

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

Epic H-A 4 BS cartridge

Contact insert without contacts

No
Number of poles

4
Material connector insert

Thermoplastic
Ambient temperature

-40 ... 125 °C
Rated surge voltage

4 kV
Pollution degree

3
With wire protection

Yes
Connectable conductor cross section fine-strand with cable end sleeve

0.5 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.5 ... 2.5 mm²
Material contact

Brass
With protective conductor

Yes

Contact type

Bus
Diameter plug-in contact

1.6 mm
Rated current In

23 A
Rated voltage

400 V
Over voltage category

III
Type of electric connection

Screw connection
Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 2.5 mm²
Connectable conductor cross section solid-core

0.5 ... 2.5 mm²
Material of contact surface

Silver
Inflammability class of insulation material according to with UL94

V0
