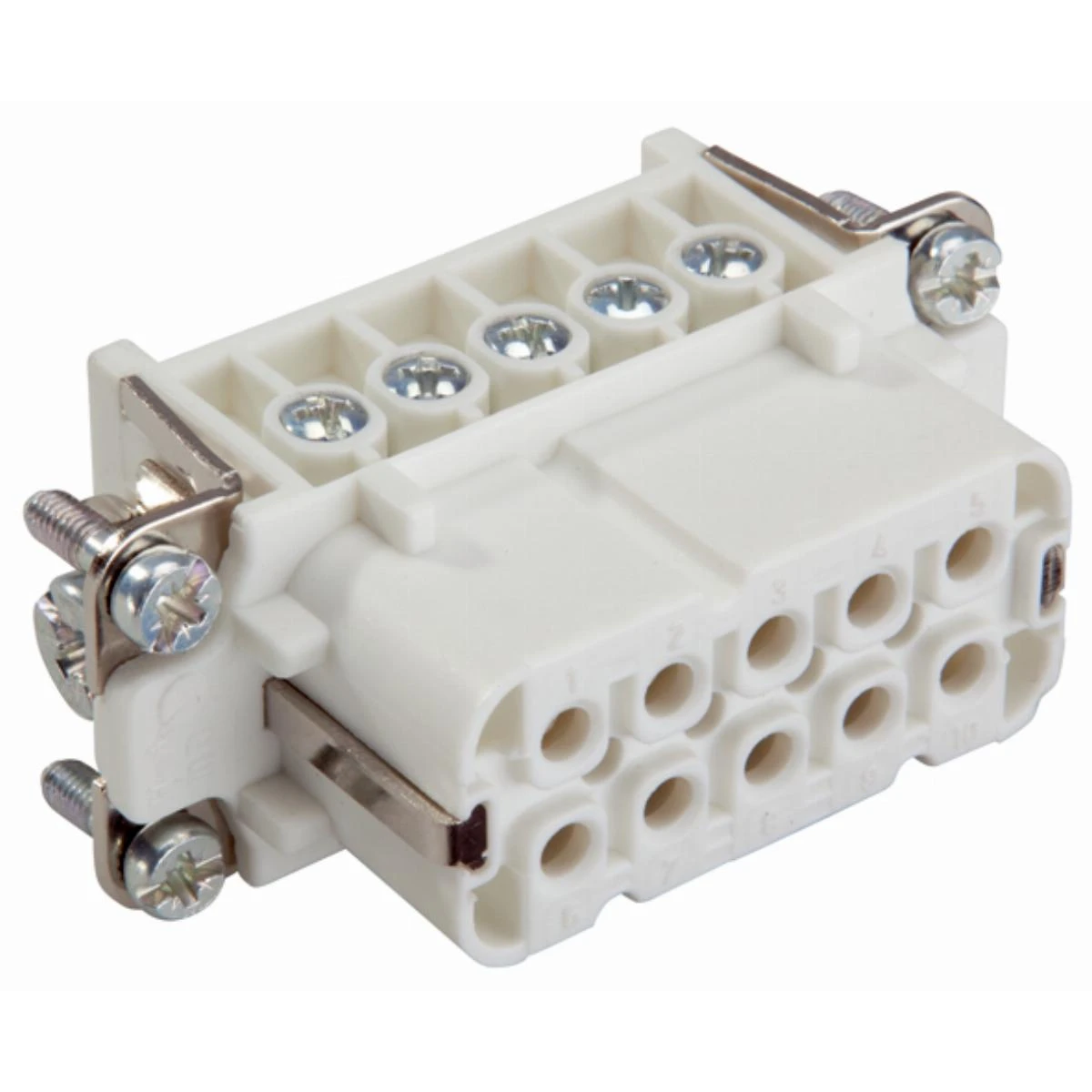

Epic H-A 10 BS DR PH1 cartridge 10441100

Name: Epic H-A 10 BS DR PH1 cartridge
Brand: LAPP KABEL
SKU: ANA282LAPP
Price: 7.21 PLN

Índice local:

ANA282LAPP

Número de catálogo:

10441100

Código EAN:

4044773071931

Haga clic en la foto para ampliar

Fabricante: LAPP KABEL

Pin numbers: 1/10

Type: Female

Cable clamps: Yes

Ver descripción completa

Precio:

7,21 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

Producto a petición individual

Recogida en 1h

Cantidad uds.

(múltiple:

)

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante

Descripción del producto

Epic H-A 10 BS DR PH1 cartridge

Contact insert without contacts

No
Number of poles

10
Material connector insert

Thermoplastic
Ambient temperature

-40 ... 125 °C
Rated surge voltage

4 kV
Pollution degree

3
With wire protection

Yes
Connectable conductor cross section fine-strand with cable end sleeve

0.5 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.5 ... 2.5 mm²
Material contact

Brass
With protective conductor

Yes

Contact type

Bus
Diameter plug-in contact

2.5 mm
Rated current In

16 A
Rated voltage

250 V
Over voltage category

III
Type of electric connection

Screw connection
Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 2.5 mm²
Connectable conductor cross section solid-core

0.5 ... 2.5 mm²
Material of contact surface

Silver
Inflammability class of insulation material according to with UL94

V0
