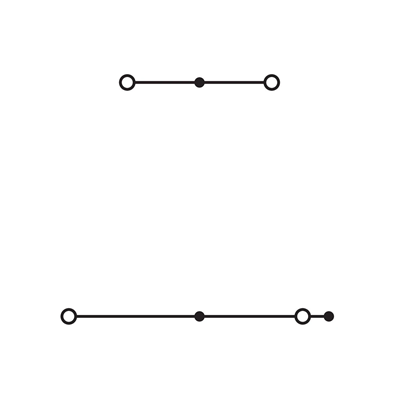

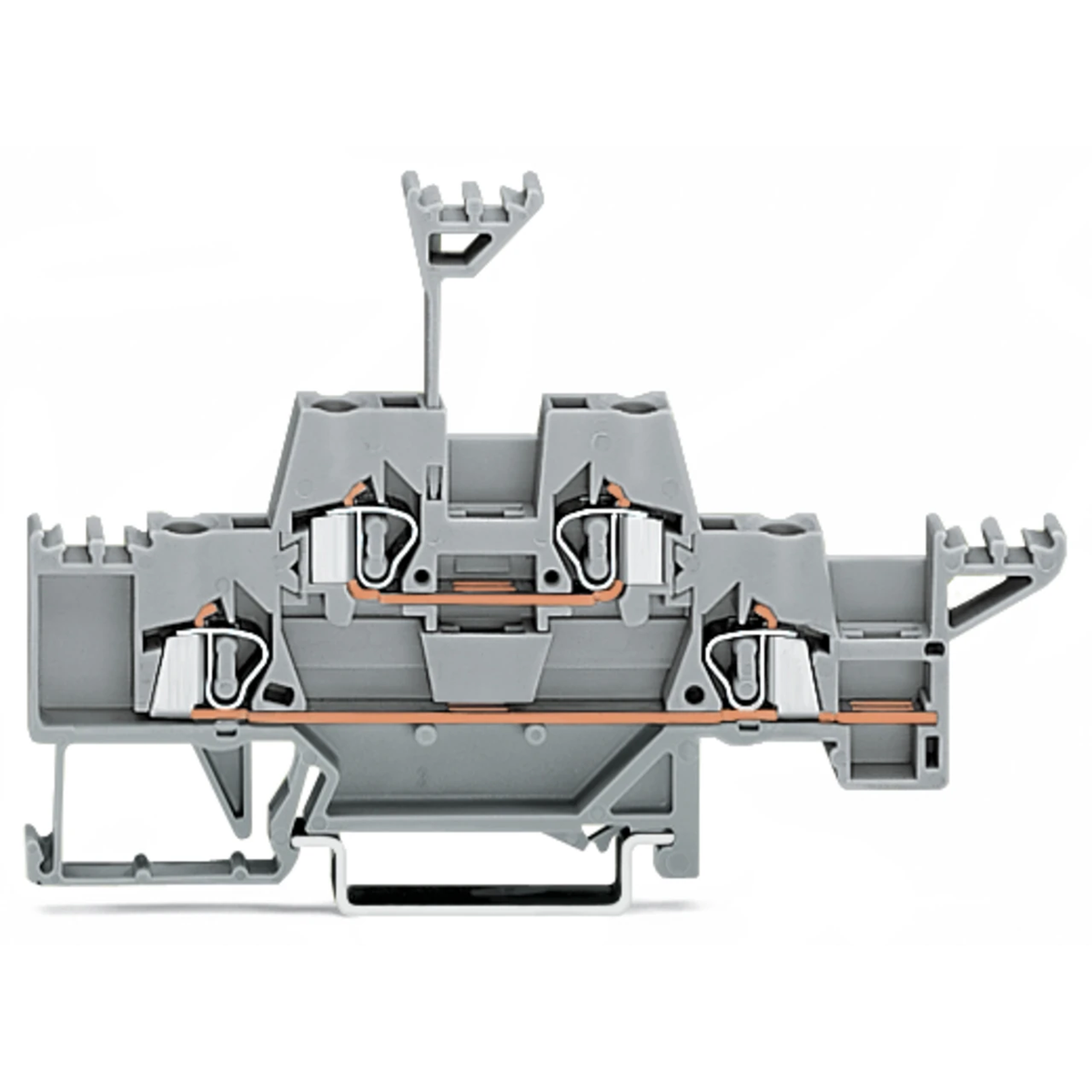

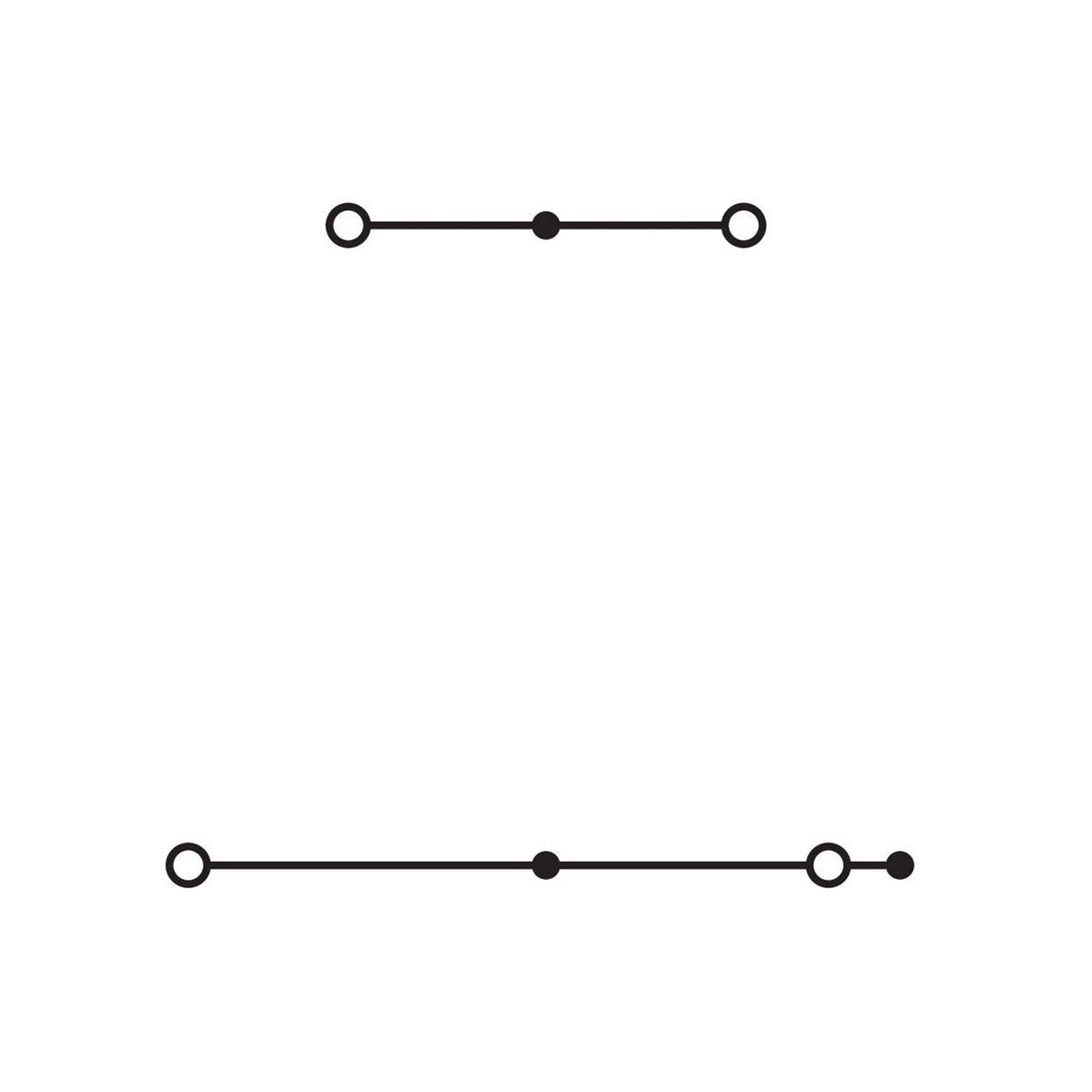

Double-deck through/through terminal block with additional possibility of writing on both sides of the terminal block with the possibility of additional transverse bridging
Technical data
Product group
1 (strip terminal blocks)
Number of levels
2
Gauge [AWG]
2014-12-28 00:00:00
Series
280
Dirt zone
3
Number of connectors
4
Number of potentials
2
Rated current [A]
20
Clamp type
CAGE CLAMP
How to install the cable
Front mounting
Rated impulse voltage [kV]
6
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 2.5 mm²
Connectable conductor cross section solid-core
0.08 ... 2.5 mm²
Rated current In
20 A
Type of electrical connection 1
Spring clamp connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
58.5 mm
Explosion-tested version 'Ex e'
No
Colour
Grey
Connectable conductor cross section fine-strand with cable end sleeve
