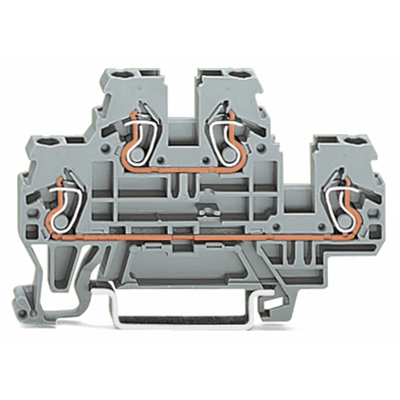

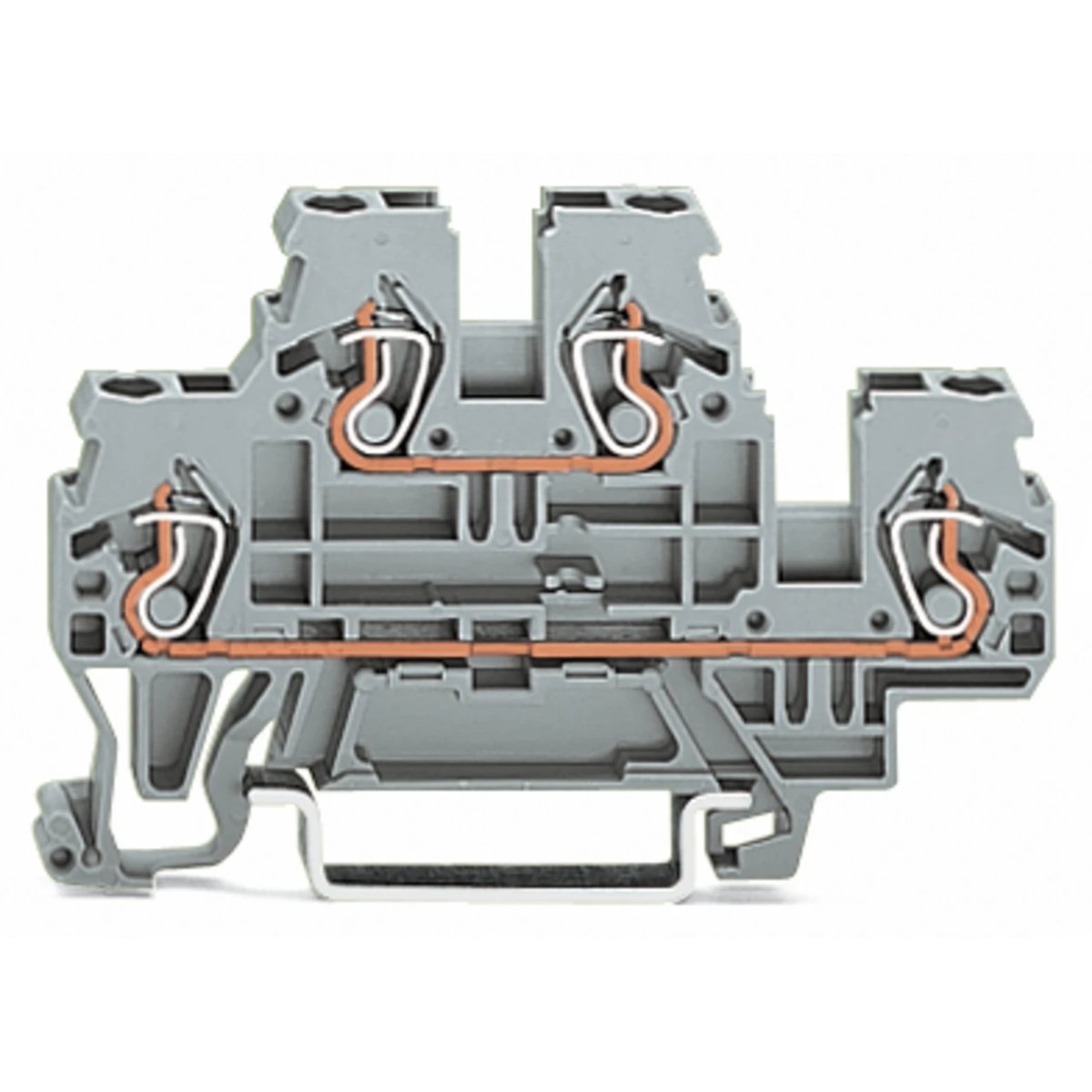

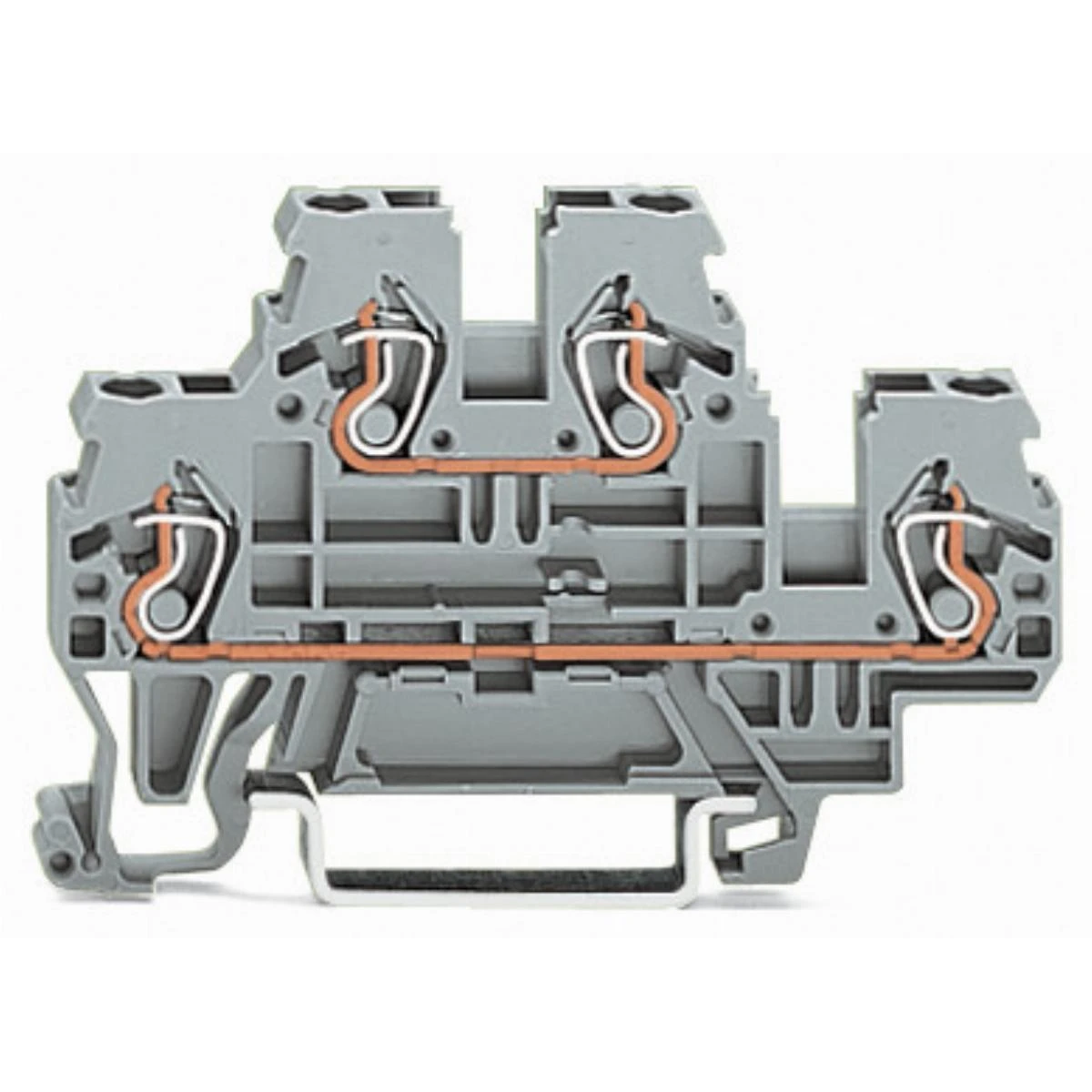

Name: Double-deck connector L/N 2.5mm gray 50pcs.
Brand: WAGO ELWAG
SKU: TES003WAGO
Price: 123.73 PLN

Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 4 mm²
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Rated current In

24 A
Type of electrical connection 1

Spring clamp connection
Connection position

Atop
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

40 mm
Explosion-tested version 'Ex e'

No
Colour

Grey

Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Rated voltage

500 V
Type of electrical connection 2

Spring clamp connection
Number of levels

2
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Width/grid dimension

5 mm
Length

70 mm
Closing plate required

Yes
Internally connected stages

No
