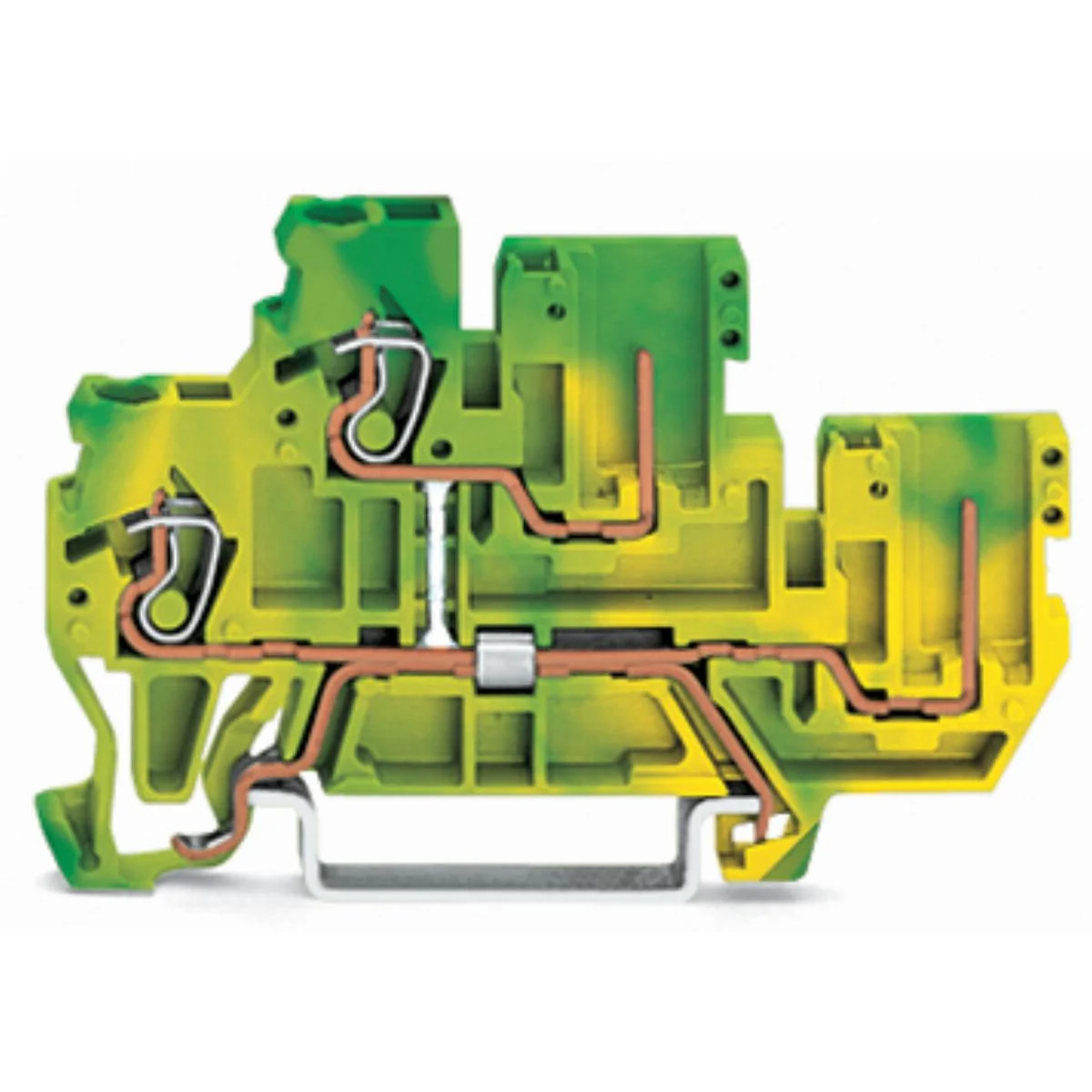

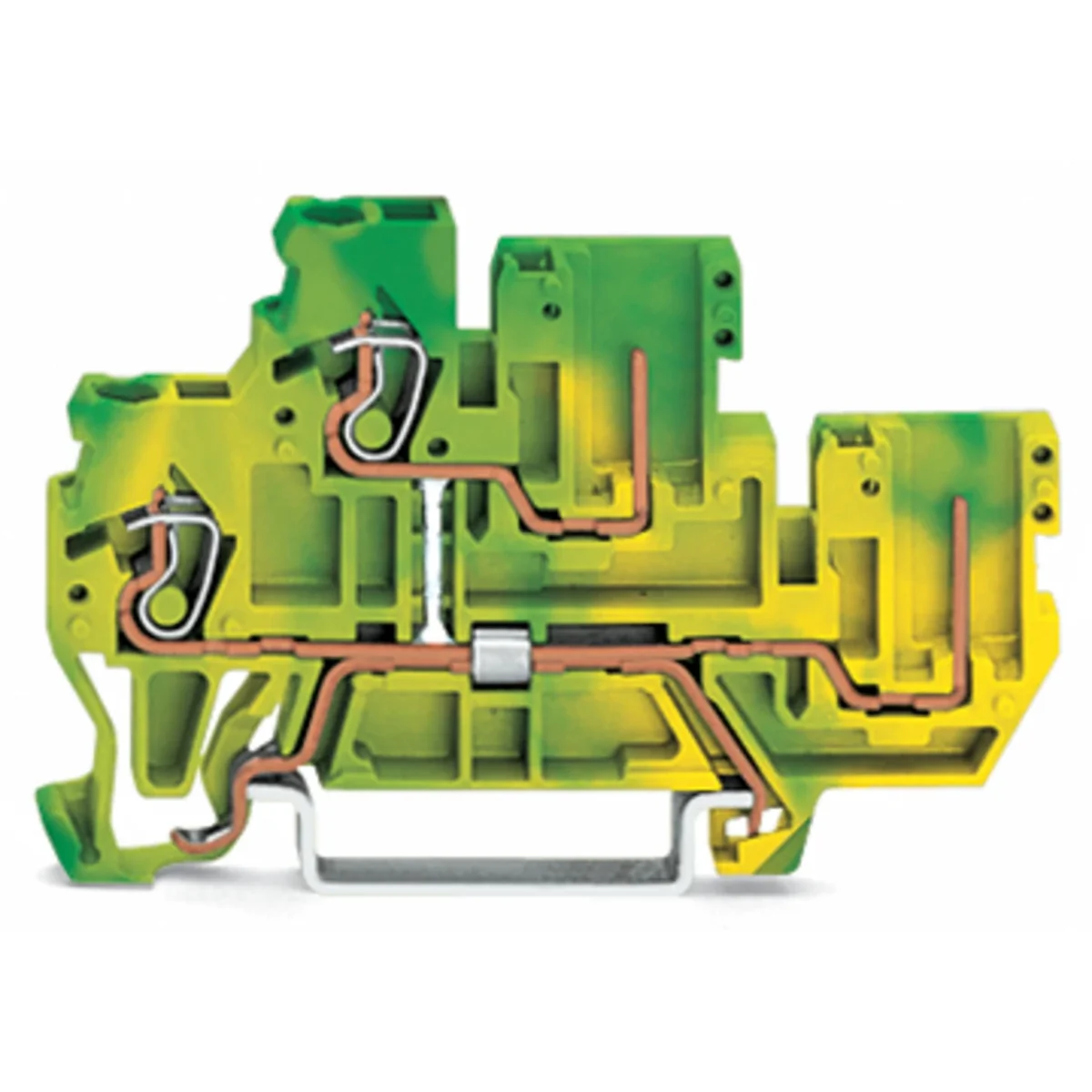

Double deck 2-wire/2-pin yellow-green base terminal block X-COM 870-107

Name: Double deck 2-wire/2-pin yellow-green base terminal block X-COM
Brand: WAGO ELWAG
SKU: TEB290WAGO
Price: 1.73 PLN
Availability: InStock

local index:

TEB290WAGO

Catalog No:

870-107

EAN code:

4045454225346

Double deck 2-wire/2-pin yellow-green base terminal block X-COM

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Color: Gray

Number of levels: 2

Gauge [AWG]: 28 - 14

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

1,73 €

gross / pcs.

(including VAT 23%)

192,22 € gross/kg.

The lowest price from 30 days before the reduction: 5,20 € gross -3,47 €

Base price: 5,47 € gross

Accessible 83 pcs.

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

2-wire/2-pin double-deck base terminal block 2-wire/2-pin protective PE housing color yellow-green internal bridging.

Technical data

Color

Gray
Gauge [AWG]

28 - 14
Series

870
Accurate color

Gray

Number of levels

2
Clamp type

CAGE CLAMP COMPACT
Weight [g]

9

Other technical data

PEN function possible

Yes
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Type of electrical connection 2

Spring clamp connection
Number of levels

2
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

105 ... 105 °C
Width/grid dimension

5 mm
Length

70 mm
Colour

Green/yellow

Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 4 mm²
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Type of electrical connection 1

Spring clamp connection
Connection position

Atop
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Wysokość przy najniższym sposobie montażu

40 mm
Closing plate required

Yes

Manufacturer details

Manufacturer

WAGO ELWAG SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Address

50-506 UL. PIĘKNA 58A
E-mail

wago.elwag@wago.com
Tax identification number

8961025689

Bulk packaging

A kind of package	Karton	Karton
Quantity	50 pcs.	50 pcs.
Weight (kg)	0,605	0,605
Volume (m3)	0,001	0,001
Width (m)	0,095	0,095
Length (m)	0,320	0,320
Depth (m)	0,047	0,047
