WAGO ELWAG

Double deck 1-wire/1-pin L/L base terminal block gray X-COM 50pcs. 870-101

local index:
TEB282WAGO
Catalog No:
870-101
EAN code:
4045454004446
Price:
131,57 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

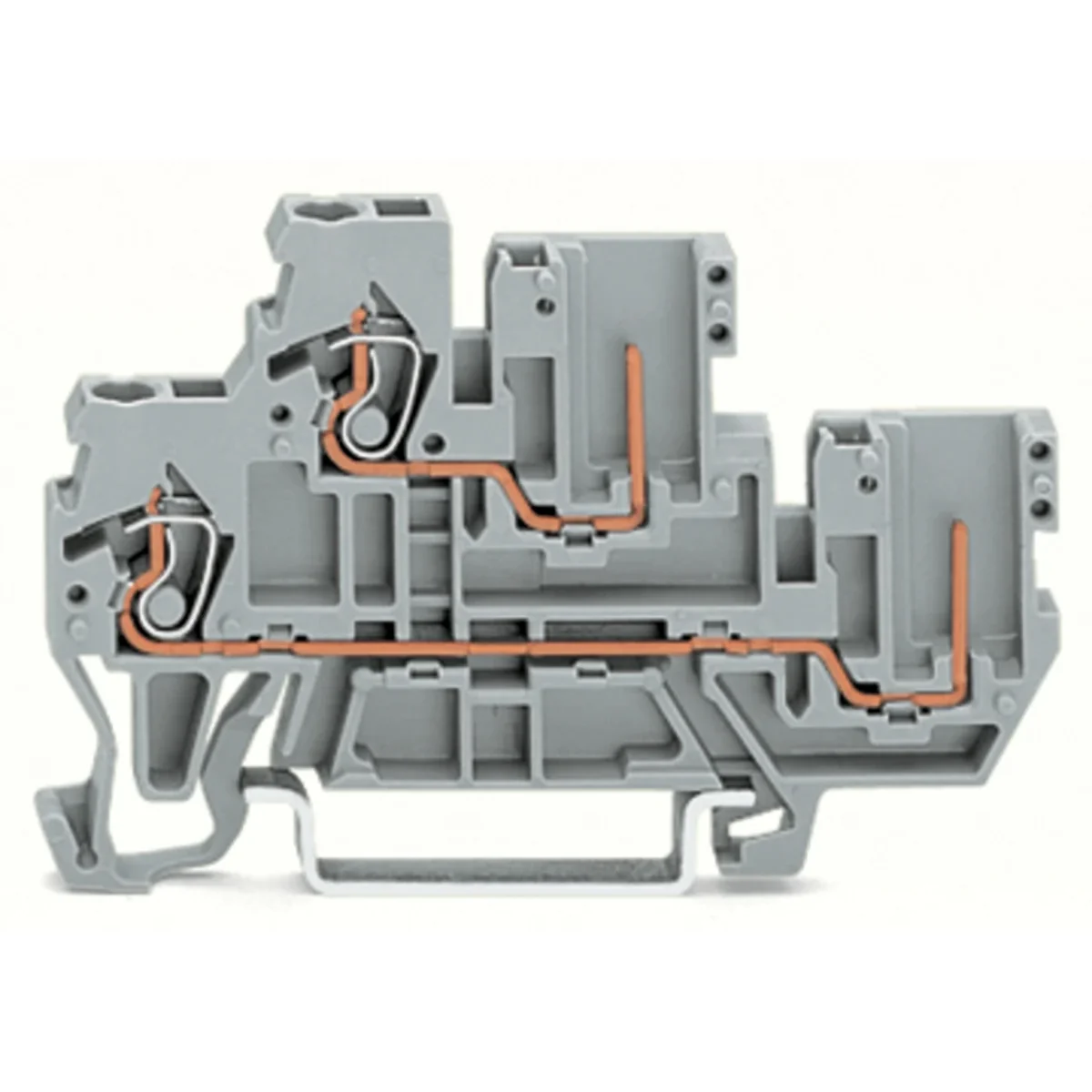

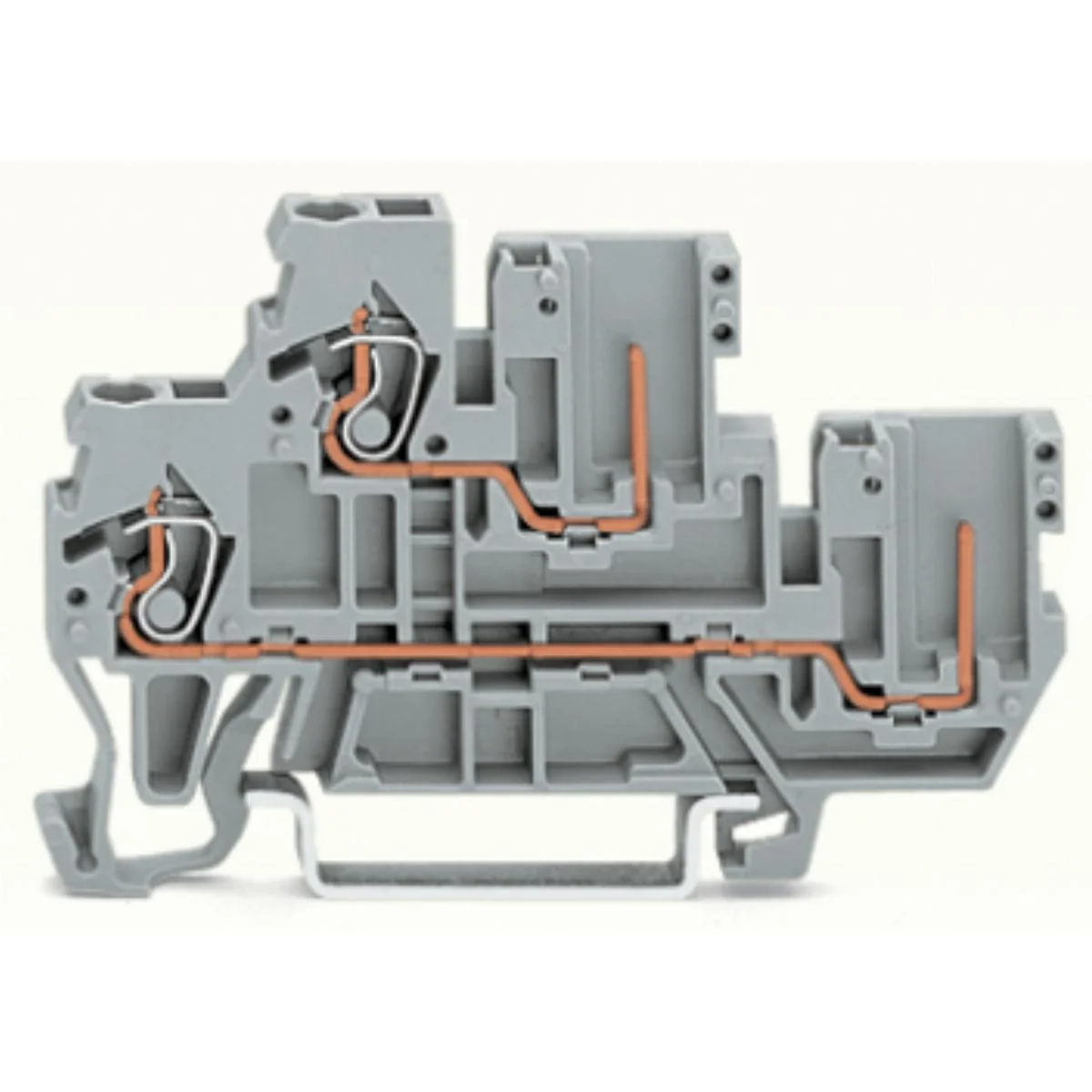

1-conductor/1-pin double-deck through/through L/L base terminal block, gray casing.

Technical data

  • Color
    Gray
  • Rated current [A]
    16
  • Cable type
    f
  • Series
    870
  • Pieces in the package
    50
  • Rated impulse voltage [kV]
    6
  • Number of levels
    2
  • Gauge [AWG]
    2014-12-28 00:00:00
  • Clamp type
    CAGE CLAMP COMPACT
  • Dirt zone
    3
  • Weight [g]
    9

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Rated current In
    16 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    40 mm
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Rated voltage
    500 V
  • Type of electrical connection 2
    Plug-in connection
  • Number of levels
    2
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    5 mm
  • Length
    70 mm
  • Closing plate required
    yes
  • Internally connected stages
    no
