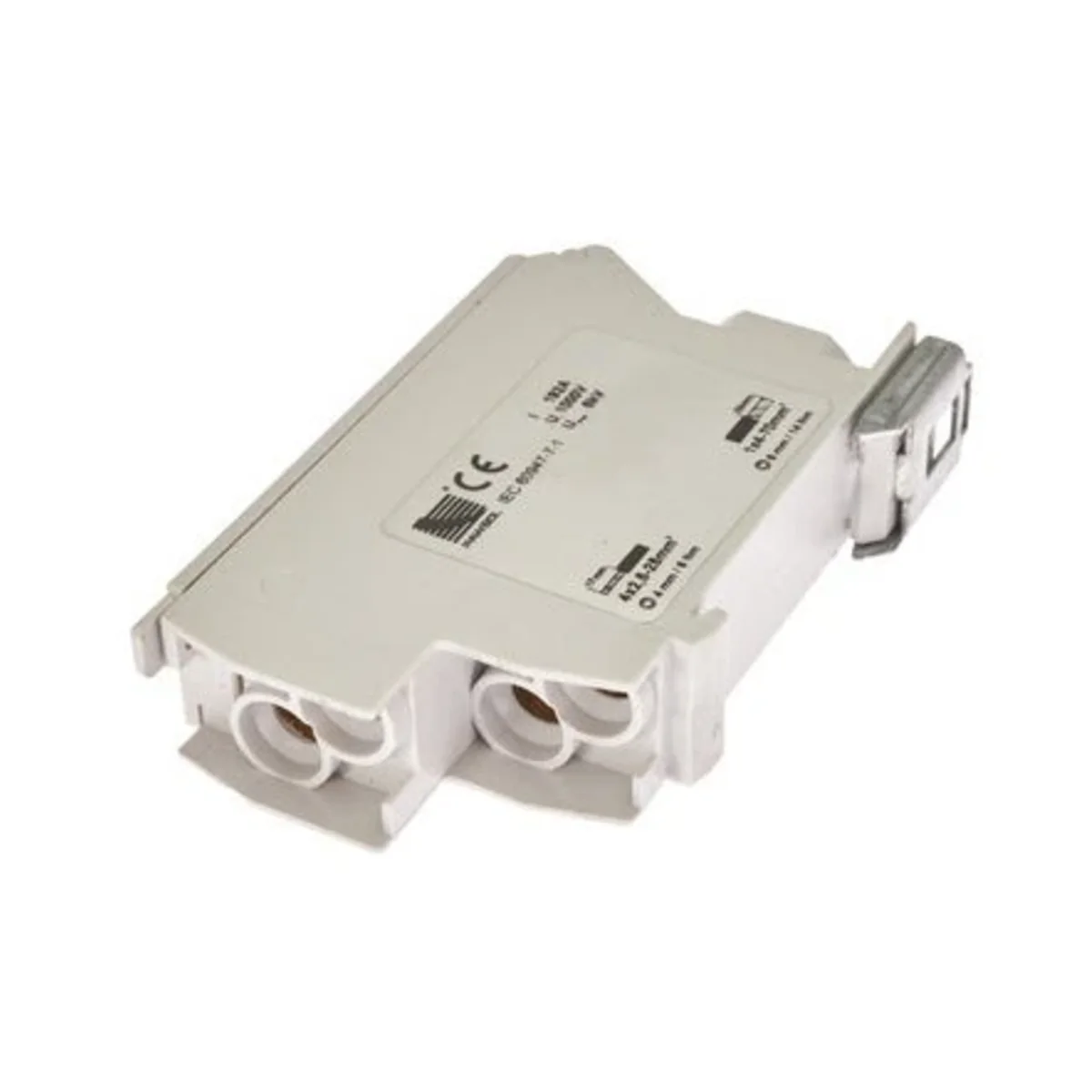

Distribution block, Al/Cu, 1x4-70mm2 / 4x2.5-25mm2, 160A, 600V, gray E.4094/SZ
local index:
TES005PAWB
Catalog number:
E.4094/SZ
EAN code:
5902983356370
Manufacturer:
PAWBOL
Price:
53,73 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Drill hole distance centrically0 mm
-
Connectable conductor cross section fine-strand without cable end sleeve25 ... 70 mm²
-
Connectable conductor cross section solid-core25 ... 70 mm²
-
Rated current In192 A
-
Type of electrical connection 1Screw connection
-
Number of poles1
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94Other
-
Width18 mm
-
Depth45 mm
-
ColourGrey
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve25 ... 70 mm²
-
Connectable conductor cross section multi-wired25 ... 70 mm²
-
Rated voltage415 V
-
Type of electrical connection 2Other
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-30 ... 80 °C
-
Halogen freeNo
-
Height45 mm
-
Closing plate requiredNo
-
TransparentNo
Manufacturer details
-
ManufacturerPAWBOL Sp. z o.o.
-
Address32-640 Zator Władysława Grabskiego 29 Polska
-
E-mail
Bulk packaging
| A kind of package | Bez opakowania | Karton |
| Quantity | 1 pcs. | 12 pcs. |
| Weight (kg) | 0,117 | - |
| Width (m) | 0,040 | - |
| Length (m) | 0,080 | - |
| Depth (m) | 0,050 | - |
