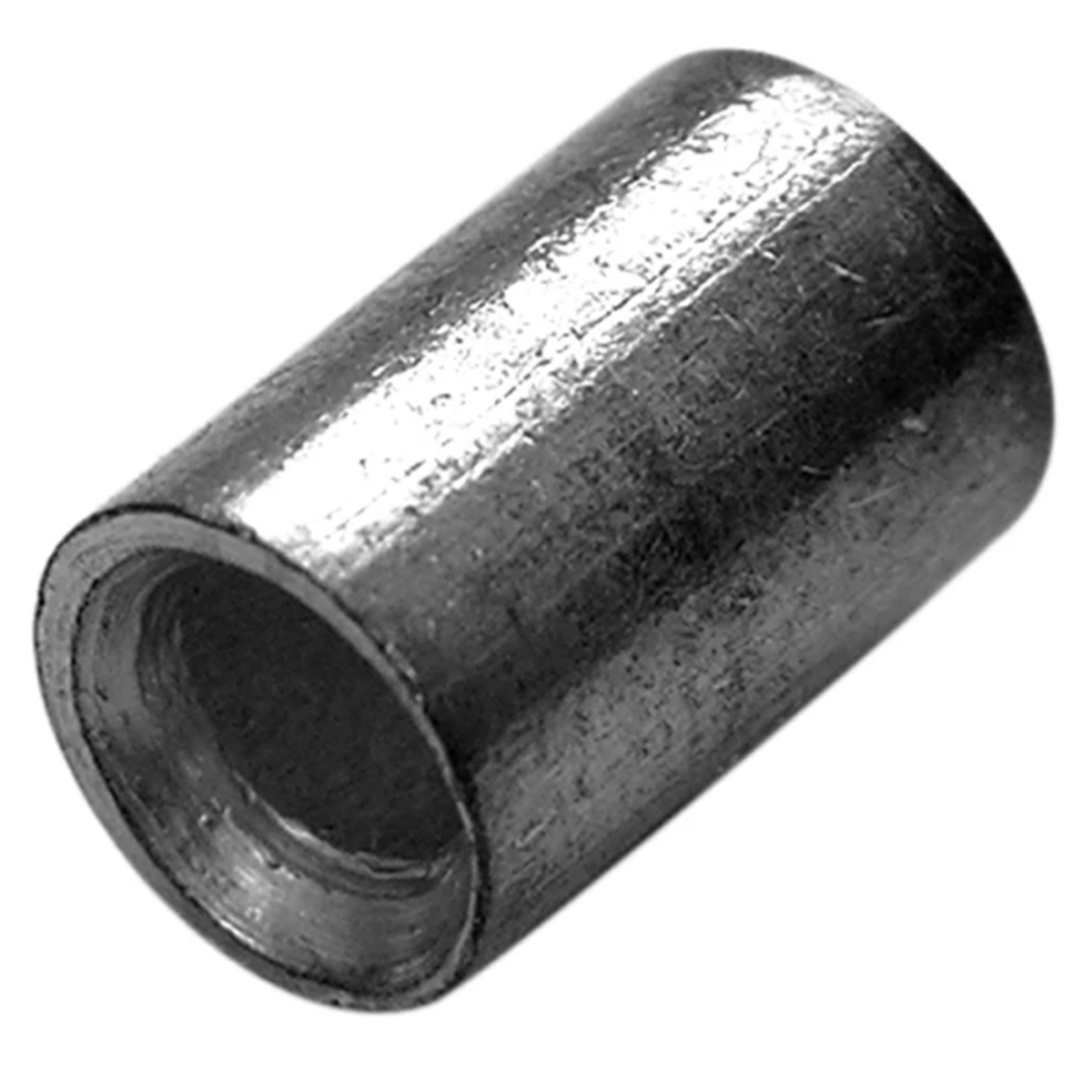

DIN 25 mm² tin-plated Cu parallel connector 291102

local index:
TEB006HAUP
Catalog No:
291102
EAN code:
4011923093587
Manufacturer: HAUPA
Length [mm]: 13
Model: DIN-compliant version
Outer diameter [mm]: 10
Price:
31,54 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Press connector for copper wires

Technical data

  • Length [mm]
    13
  • Outer diameter [mm]
    10
  • Connection type
    Parallel connector
  • Package width [mm]
    10
  • Package length [mm]
    13
  • Voltage range
    Up to 10 kV
  • Model
    DIN-compliant version
  • Surface protection
    tin plating
  • Package height [mm]
    10
  • Package weight [kg]
    0.5
  • Number of branches
    2
  • For unloaded connections
    NO

Other technical data

  • Nominal cross section
    25 ... 25 mm²
  • Sleeve form
    Short
  • Suitable for stranded conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Voltage level
    Up to 10 kV
  • Number of branches
    2
  • Oil stop/centre bar
    No
  • Model
    DIN-version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    No
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Insulation
    None
  • Type of connection
    Parallel connector
  • For pull protected connections
    No
