Connector ZUG-G2.5 black color 30pcs. A11-0073

local index:
TES200POKO
Catalog No:
A11-0073
EAN code:
5902626101527
Manufacturer: POKÓJ
Color: Black
Pieces in the package: thirty
Price:
26,72 €
gross / pkg.
(including VAT 23%)
0,89 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

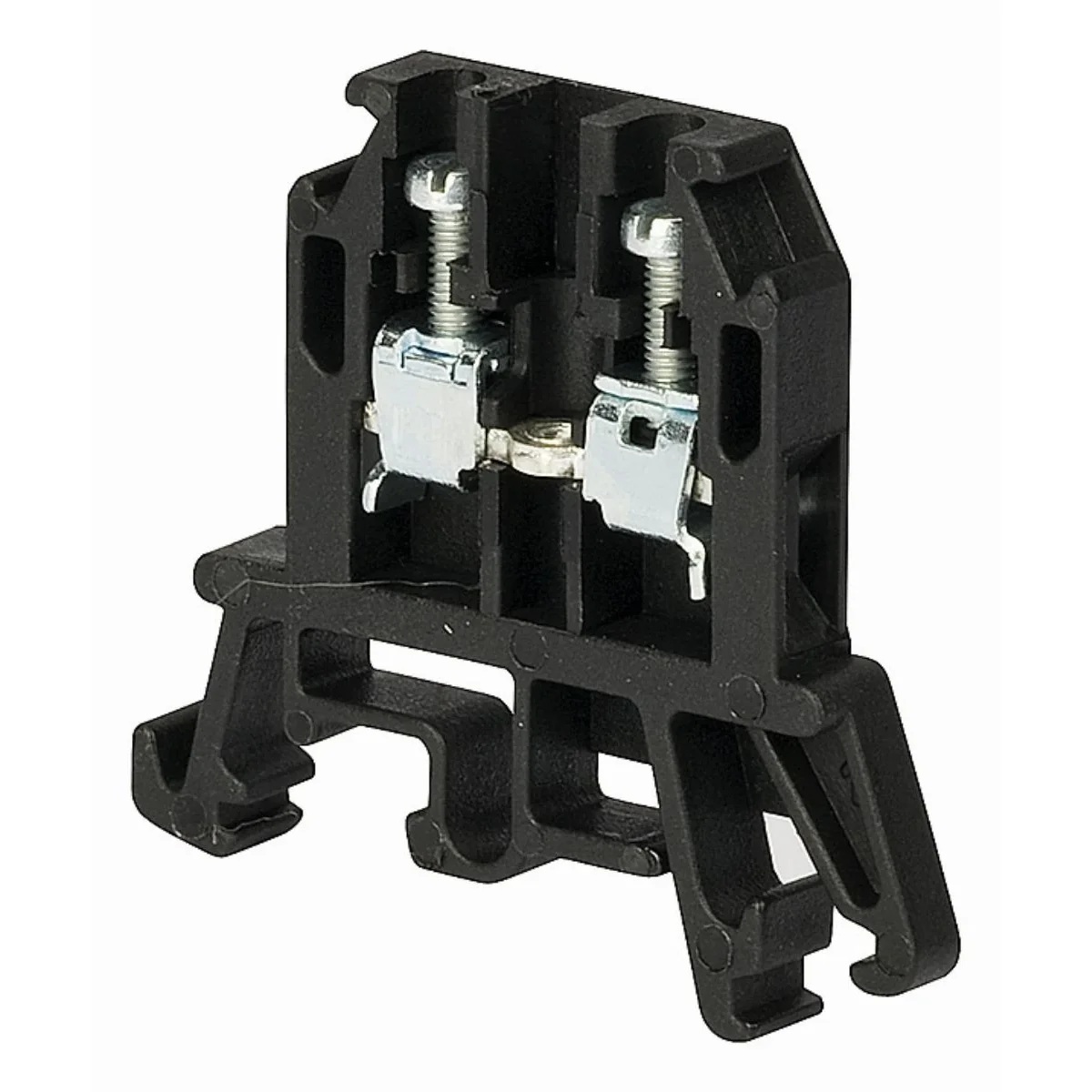

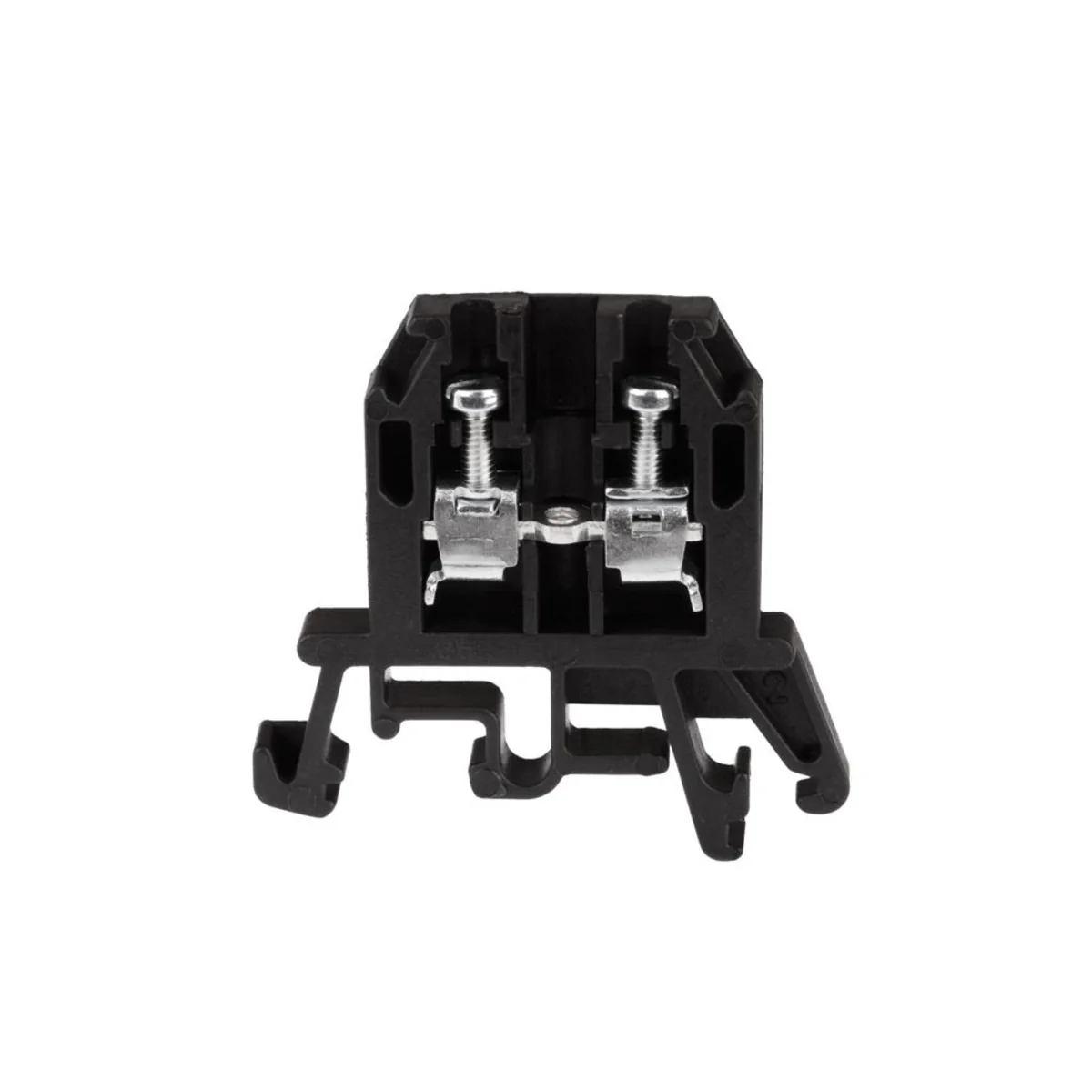

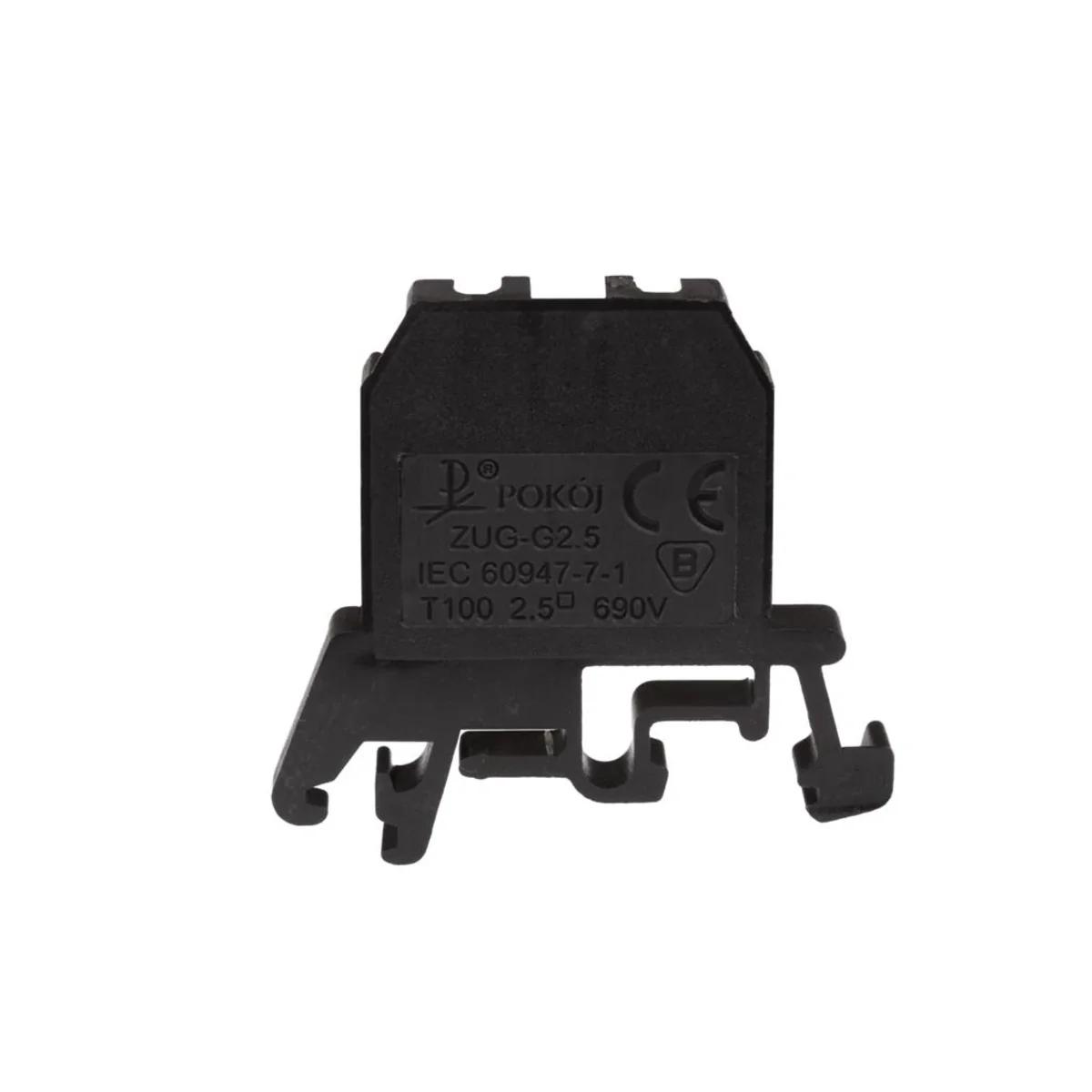

Connector ZUG-G2.5 black

Technical data

  • Color
    Black
  • PKWIU
    27.12.40.0
  • Pieces in the package
    thirty

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0.5 ... 2.5 mm²
  • Rated current In
    24 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    42 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Black
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.5 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 2.5 mm²
  • Rated voltage
    690 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 100 °C
  • Width/grid dimension
    5.2 mm
  • Length
    42 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
