Connector ZUG-G16 yellow 30 pcs. A11-0371
local index:
TES056POKO
Catalog No:
A11-0371
EAN code:
5902626101718
Price:
85,63 €
gross / pkg.
(including VAT 23%)
2,85 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

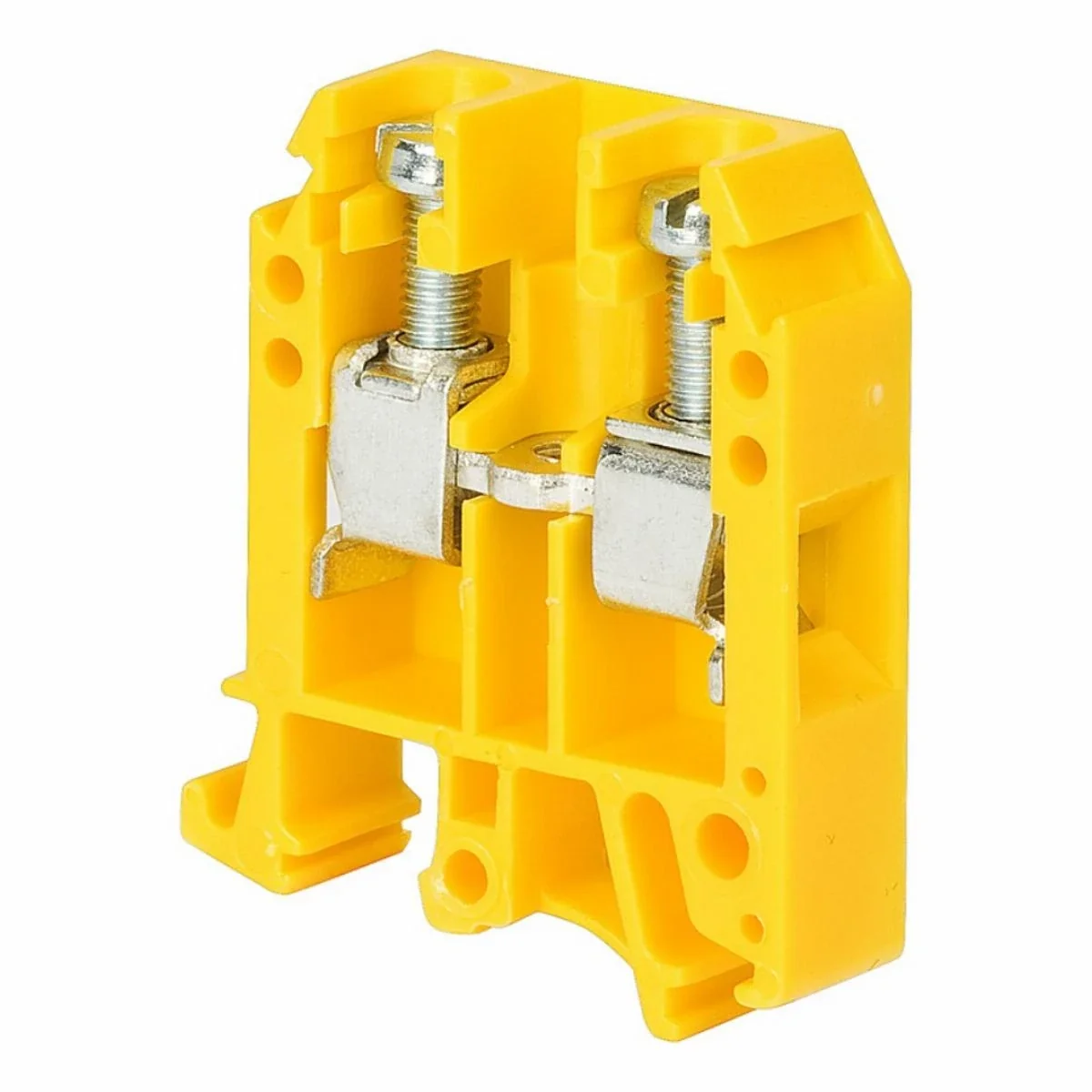

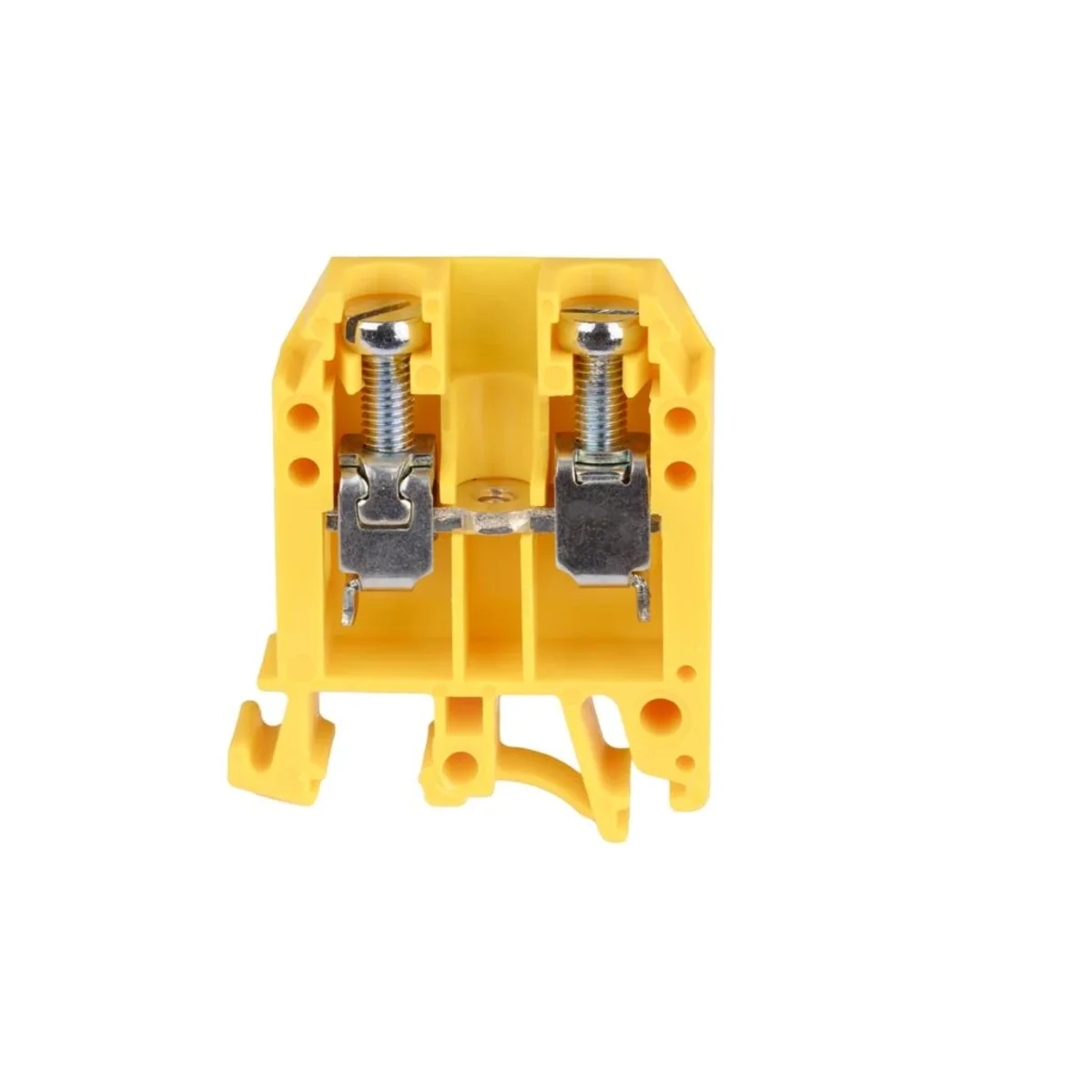

ZUG-G16 connector, yellow
Technical data
-
ColorYellow
-
PKWIU27.12.40.0
-
Pieces in the packagethirty
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve1.5 ... 10 mm²
-
Connectable conductor cross section solid-core1.5 ... 16 mm²
-
Rated current In76 A
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu54 mm
-
Explosion-tested version 'Ex e'No
-
ColourYellow
-
Connectable conductor cross section fine-strand with cable end sleeve1.5 ... 10 mm²
-
Connectable conductor cross section multi-wired1.5 ... 10 mm²
-
Rated voltage690 V
-
Type of electrical connection 2Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension12 mm
-
Length45 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
