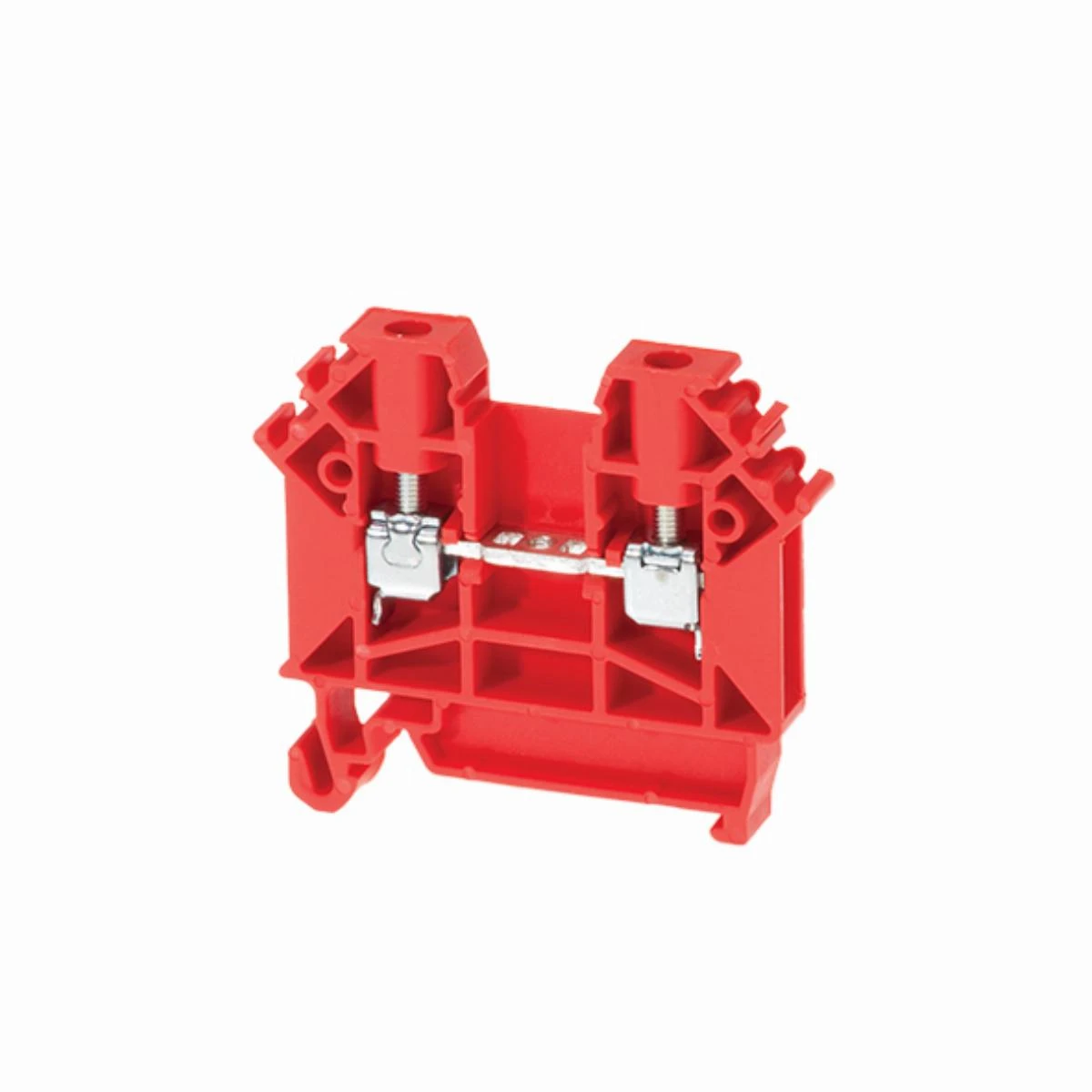

Connector ZUG-4 red color 30pcs. A11-A237

Indeks lokalny:
TES065POKO
Numer katalogowy:
A11-A237
Kod EAN:
5907570311930
Producent: POKÓJ
Color: Red
Pieces in the package: thirty
Cena:
4,86 zł
gross / szt.
(w tym VAT 23%)
do 4 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Connector ZUG-4 red color 30pcs.

Dane techniczne

  • Color
    Red
  • PKWIU
    27.12.40.0
  • Pieces in the package
    thirty

Pozostałe dane techniczne

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.5 ... 6 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    40.6 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Red
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.5 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 4 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 120 °C
  • Width/grid dimension
    6.4 mm
  • Length
    45.4 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
