Connecting cables and wires
Connectors
Rail connectors

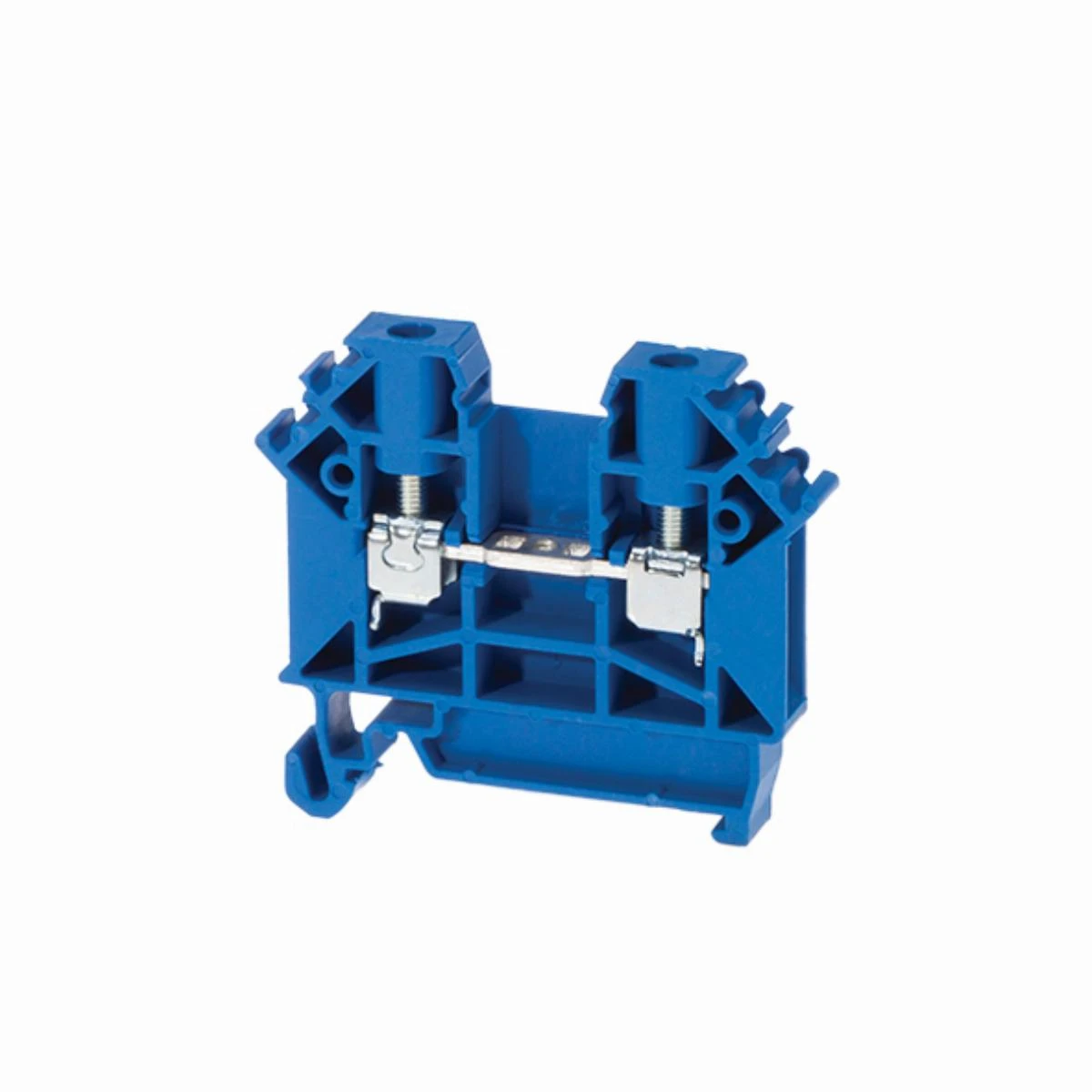

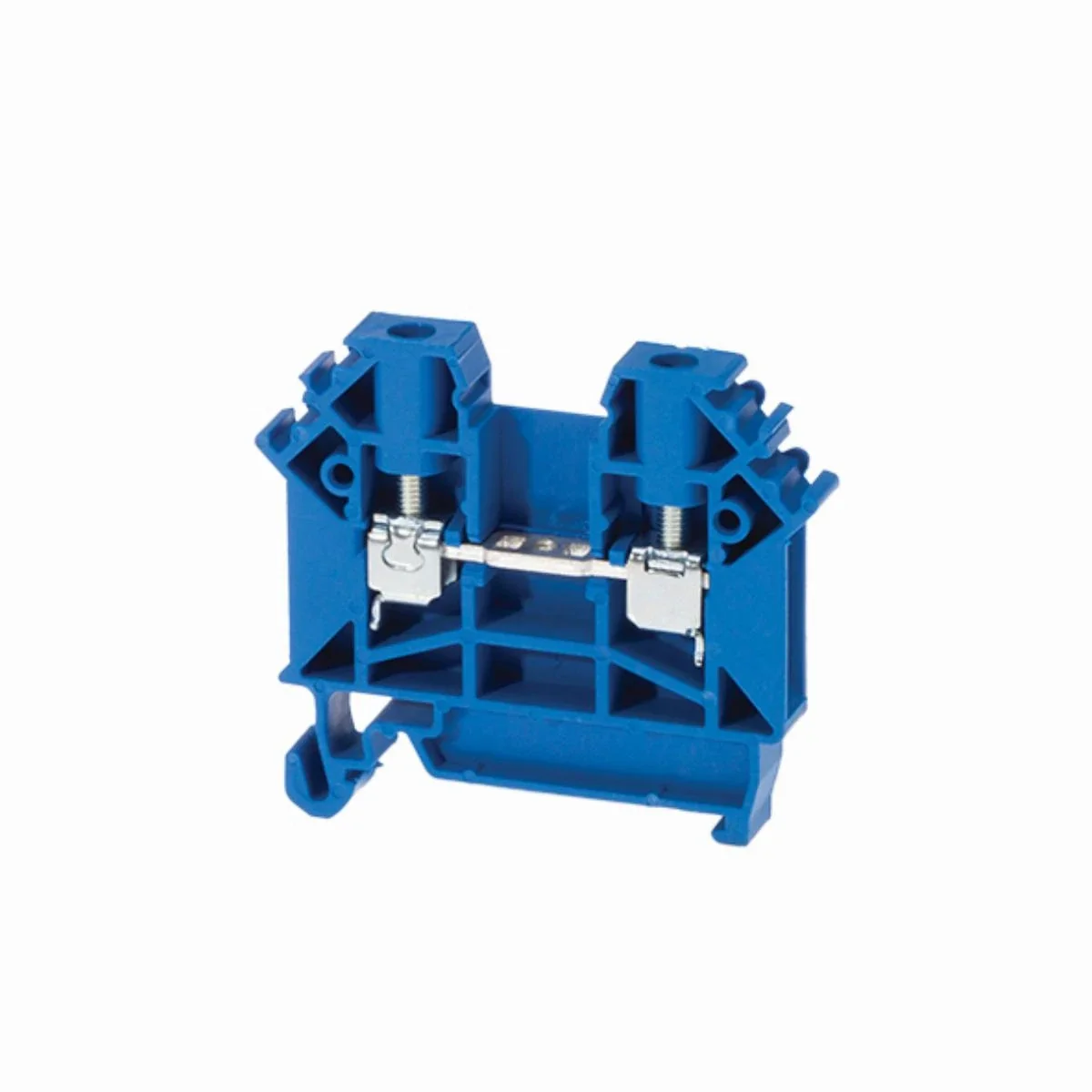

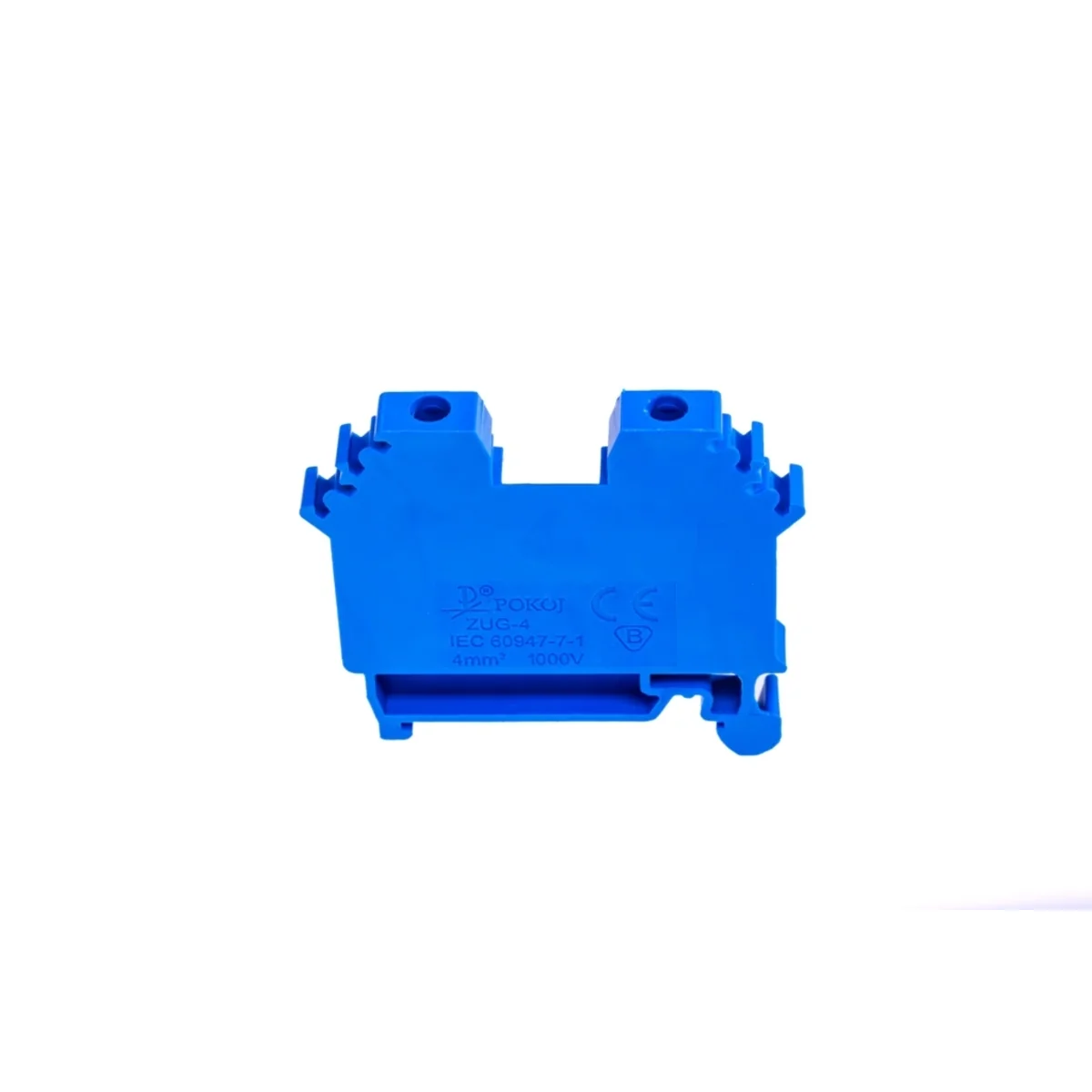

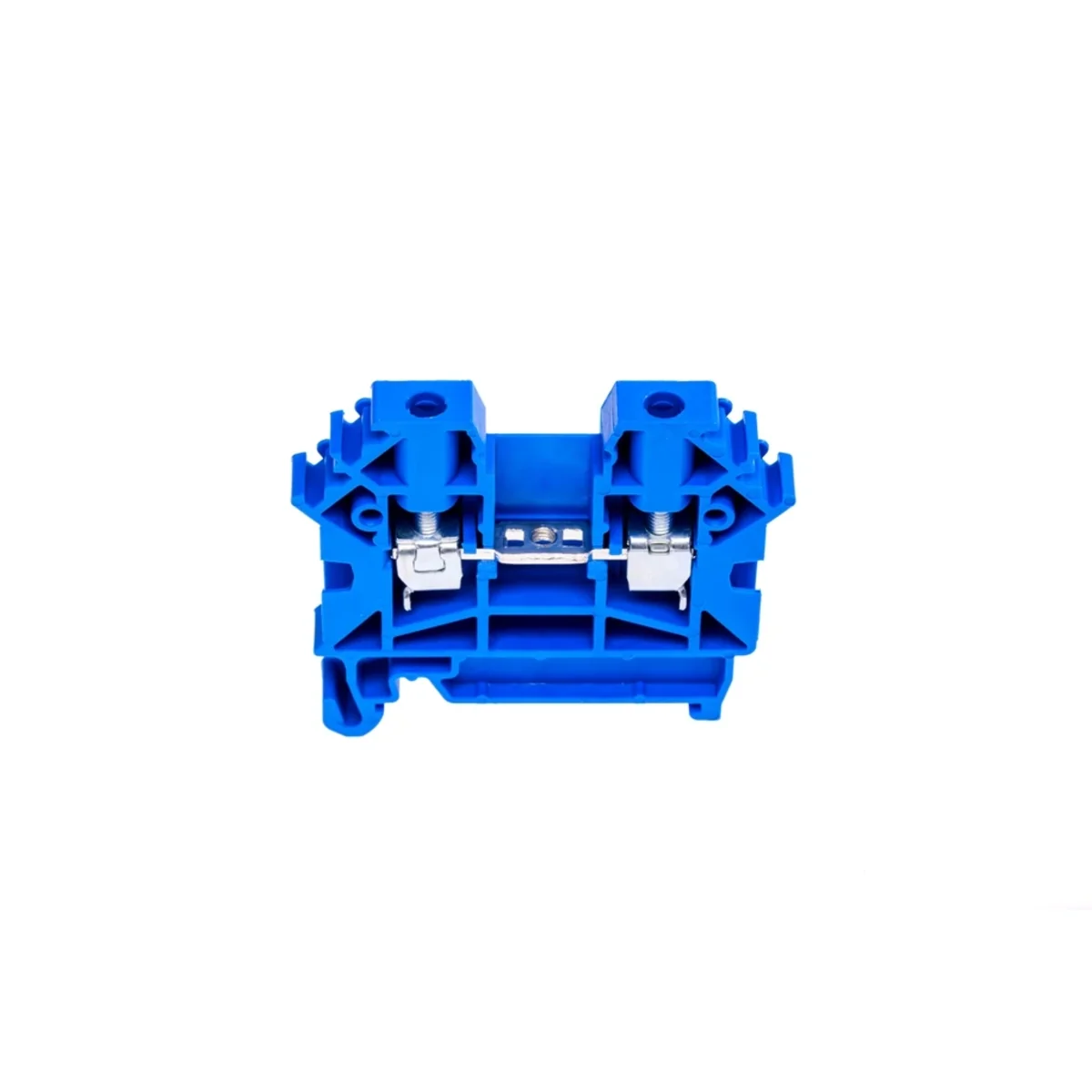

Connector ZUG-4 blue 30pcs. A11-A236
local index:
TES145POKO
Catalog No:
A11-A236
EAN code:
5907570311923
Click on the photo to enlarge
Manufacturer:
POKÓJ
Color:
Blue
Pieces in the package:
thirty
See full description
Price:
31,30 €
gross / pkg.
(including VAT 23%)
1,04 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Connector ZUG-4 blue 30pcs.
Technical data
Color
Blue
PKWIU
27.12.40.0
Pieces in the package
thirty
Other technical data
Connectable conductor cross section fine-strand without cable end sleeve
0.5 ... 4 mm²
Connectable conductor cross section solid-core
0.5 ... 6 mm²
Rated current In
32 A
Type of electrical connection 1
Screw connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
40.6 mm
Explosion-tested version 'Ex e'
No
Colour
Blue
Connectable conductor cross section fine-strand with cable end sleeve
0.5 ... 4 mm²
Connectable conductor cross section multi-wired
0.5 ... 4 mm²
Rated voltage
1000 V
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
-25 ... 120 °C
Width/grid dimension
6.4 mm
Length
45.4 mm
Closing plate required
Yes
Internally connected stages
No
See more >>
